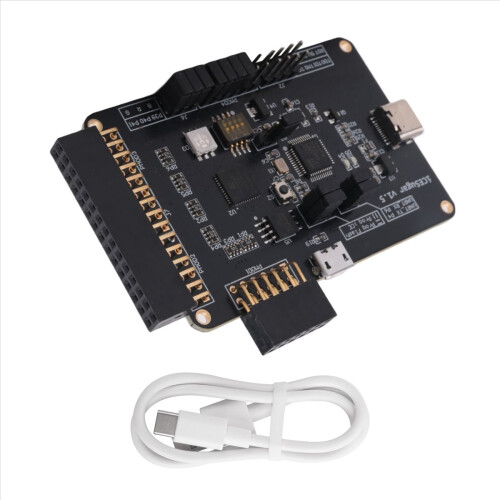

ICESugar FPGA Development Board Open Source RISC-V Based on ICE40UP5k USB-C Interface for IoT/Edge AI Projects

ICESugar FPGA Development Board Open Source RISC-V Based on ICE40UP5k USB-C Interface for IoT/Edge AI Projects Description

Features
iCE40UP5k main chip, 5280 LUT/128KB SPRAM/PLL/ SPI///PWM
On-board iCELink debugger, supporting drag-and-drop programming, USB CDC serial port and JTAG

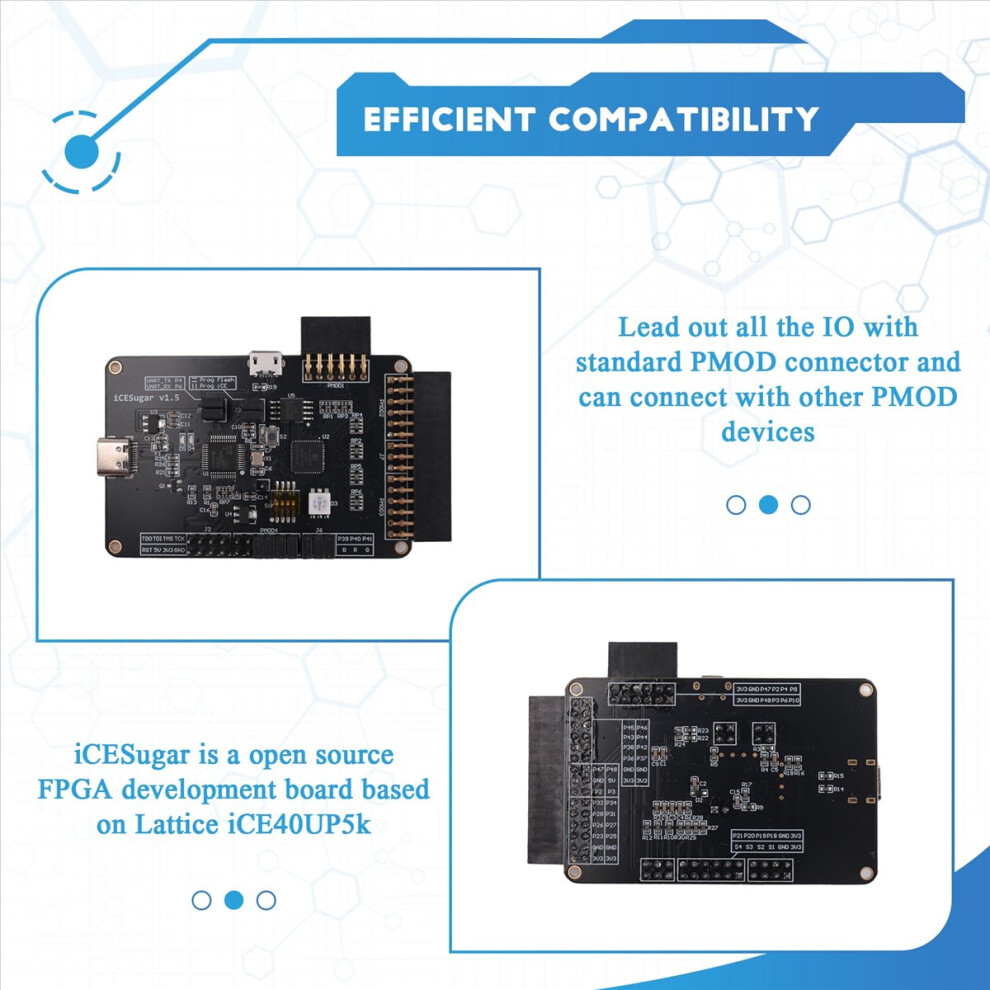

Lead out all the IO with standard PMOD connector and can connect with other PMOD devices
Totally use open source tool chain to develop

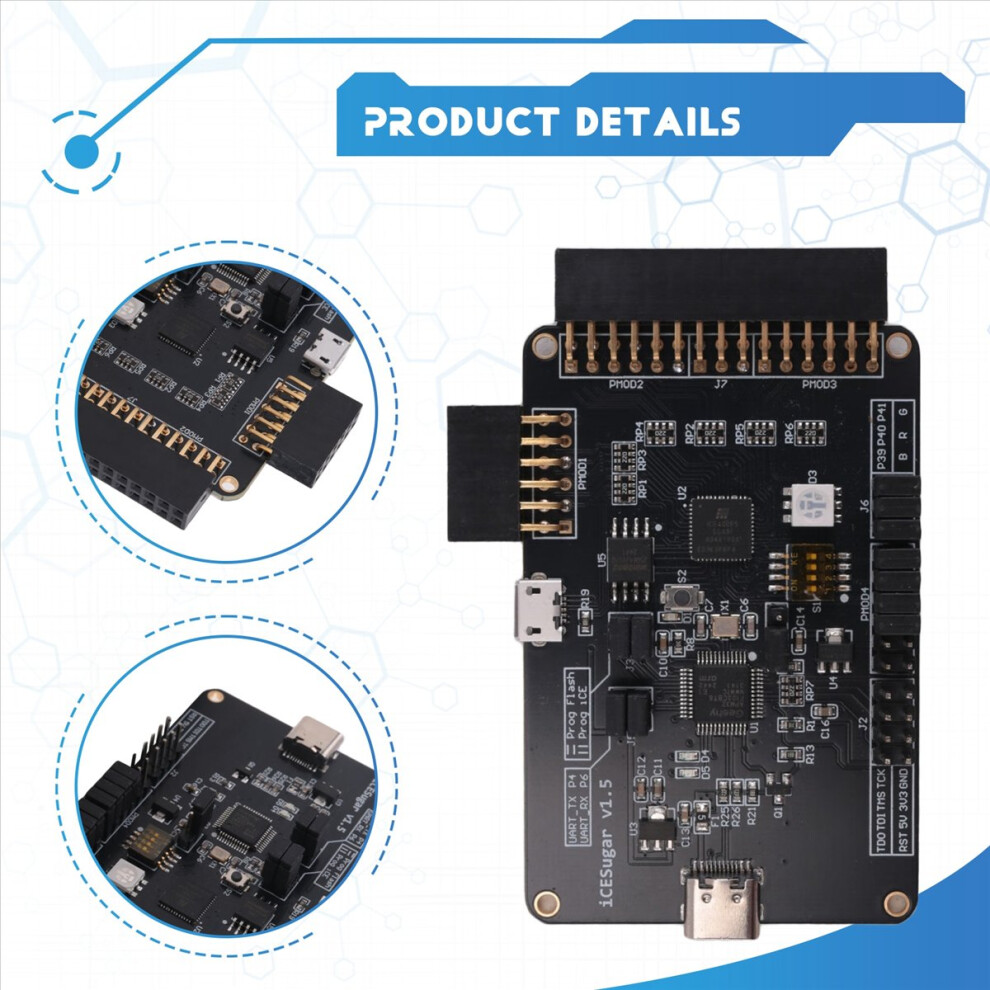

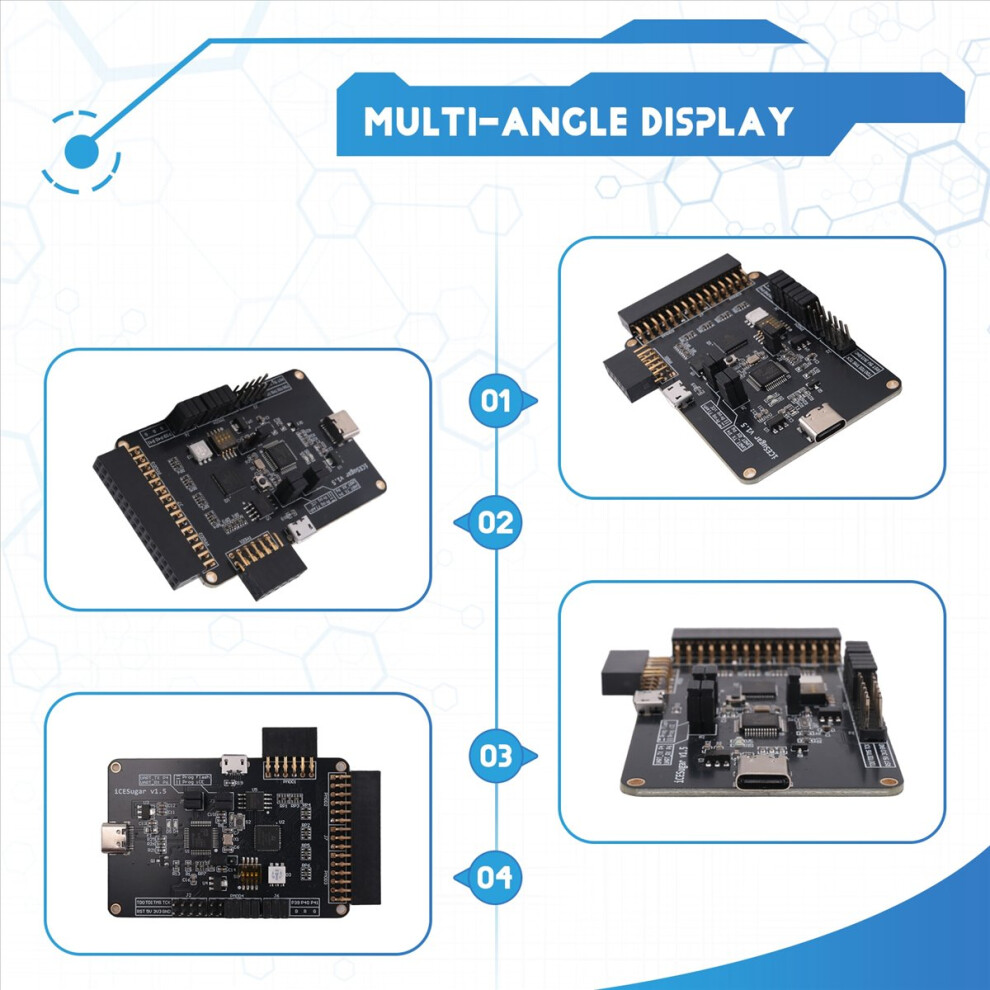

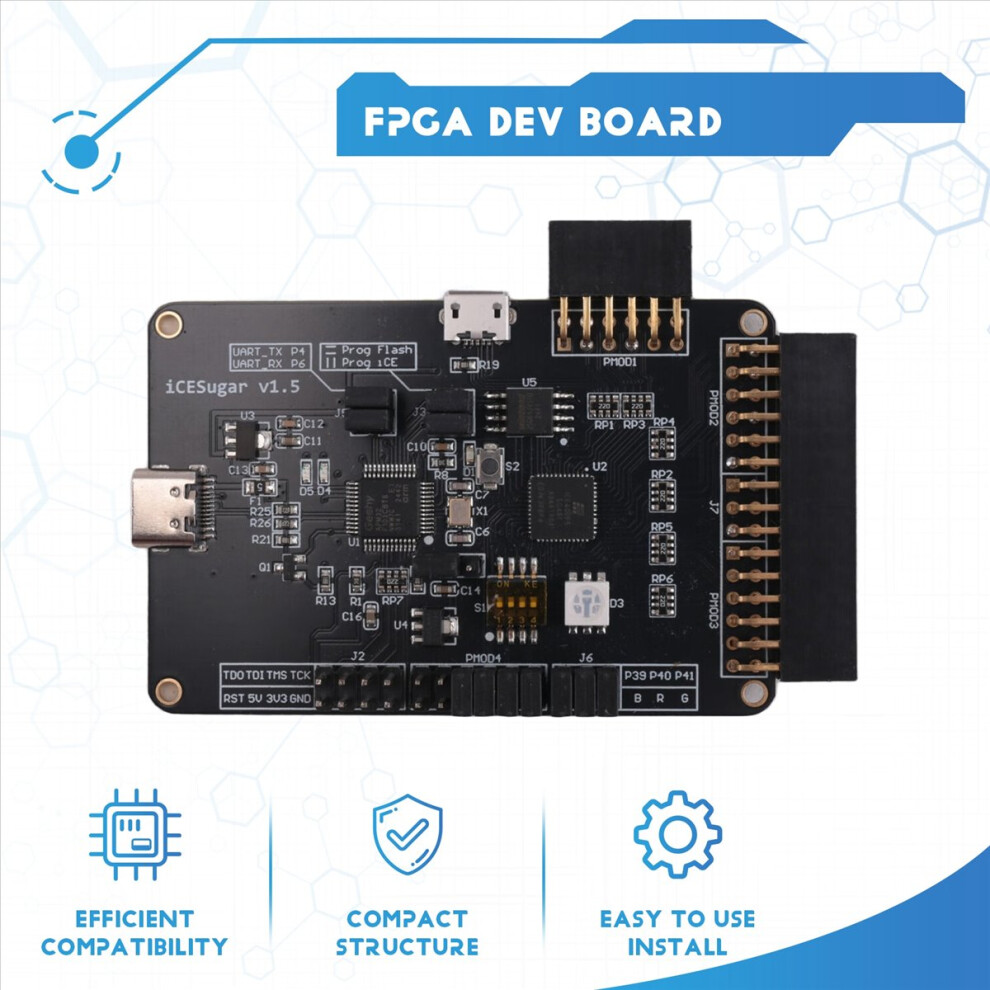

iCESugar is a open source FPGA development board based on Lattice iCE40UP5k.
Though it's small and exquisite, it contains rich peripheral resources on board including RGB LED,Switch,TYPE-C-USB, Micro-USB.
Most of the IO are led out by standard PMOD connector and can connect with other PMOD device.

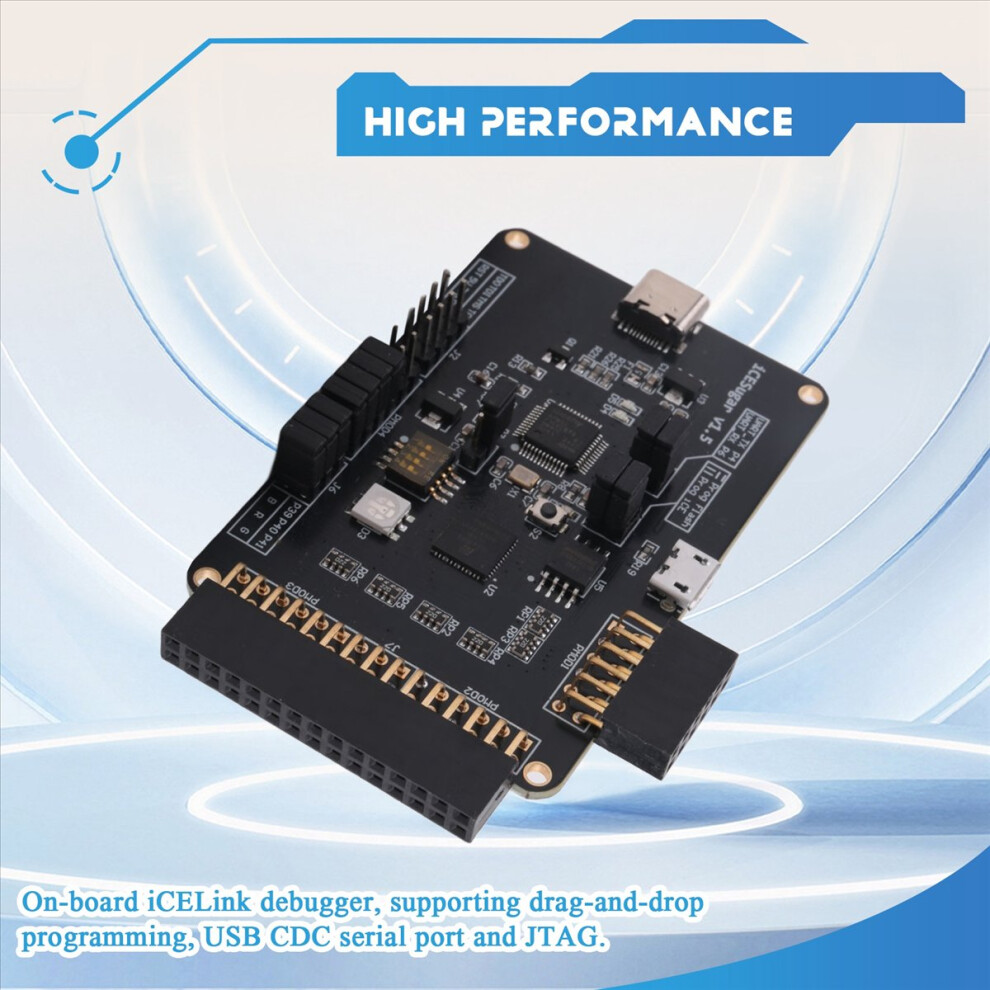

Also, it has a on-board debugger called iCELink which is based on ARM Mbed DAPLink. You can just drag the FPGA bitstream into the virtual disk to program with a big convenience, since the iCELink supports drag-and-drop programming, USB CDC serial port and JTAG.
Built-in 8MB SPI-Flash and support DUAL/QUAD SPI& QPI
Color: Black
Material: PCB

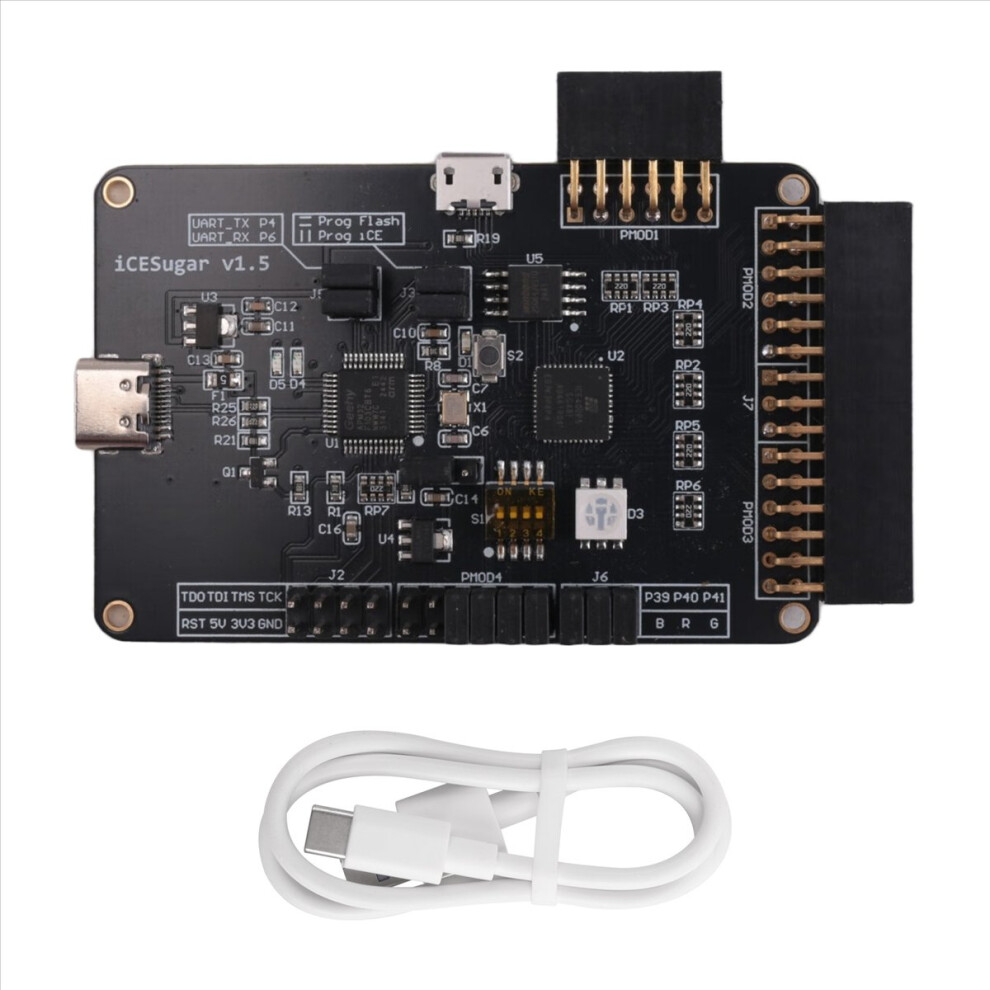

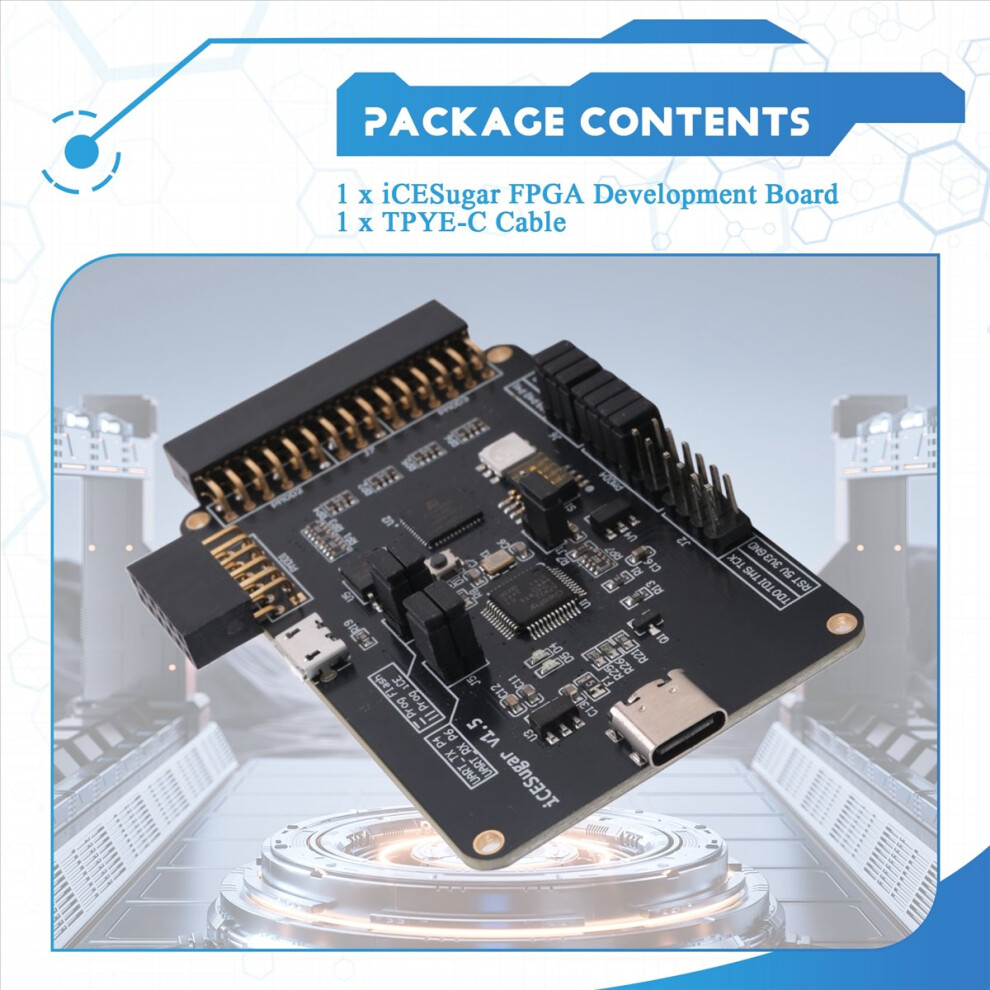

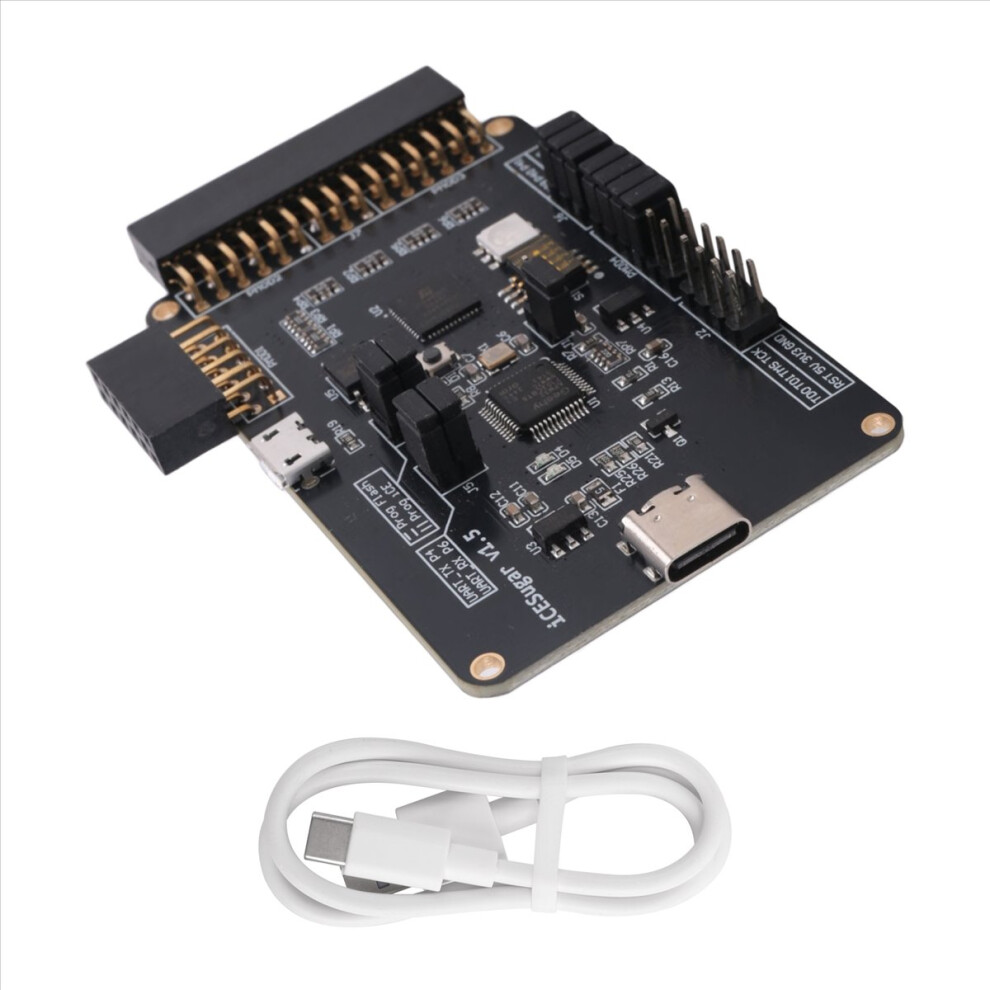

Package Contents:
1 x iCESugar FPGA Development Board
1 x TPYE-C Cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
