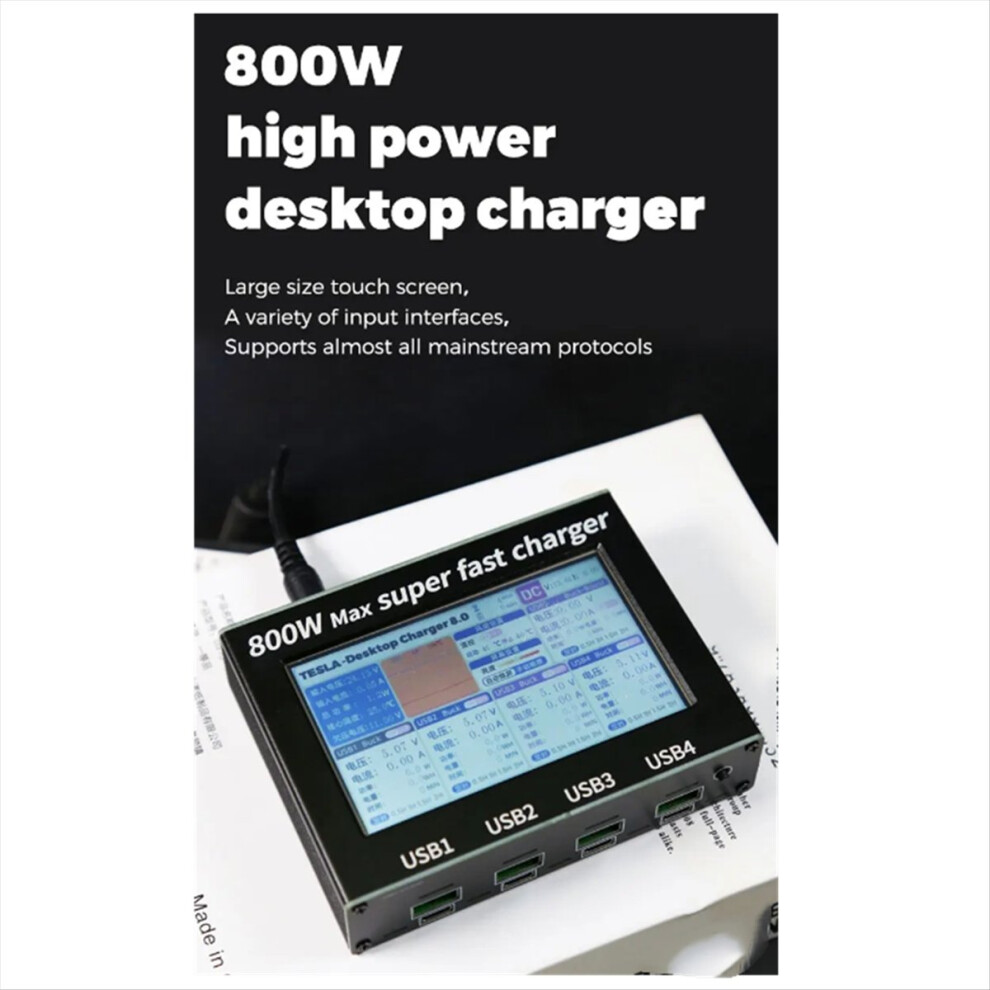

800W 4.3 Inches Screen Adjustable Five-Way Output

800W 4.3 Inches Screen Adjustable Five-Way Output Description

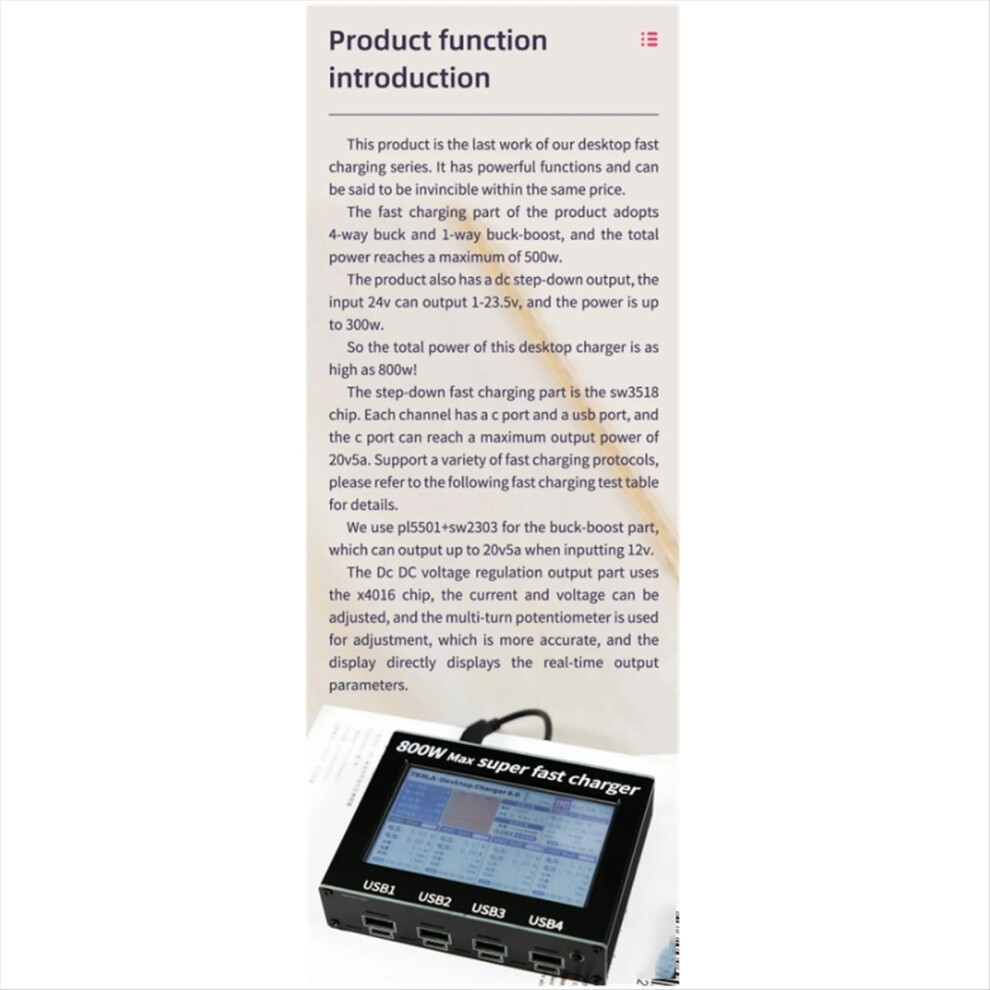

1. This module mainly adopts 3-way sw3518s and two-way SC8701+IP2712 buck-boost design, input 24v can output 5-20v voltage, if input 12v, only the left two type-c can output 20v.
2. The main control part adopts STM32F103C8T6 microcontroller. This microcontroller has large capacity and reliable performance. However, due to the recent lack of chips, the price increase is also very strong.

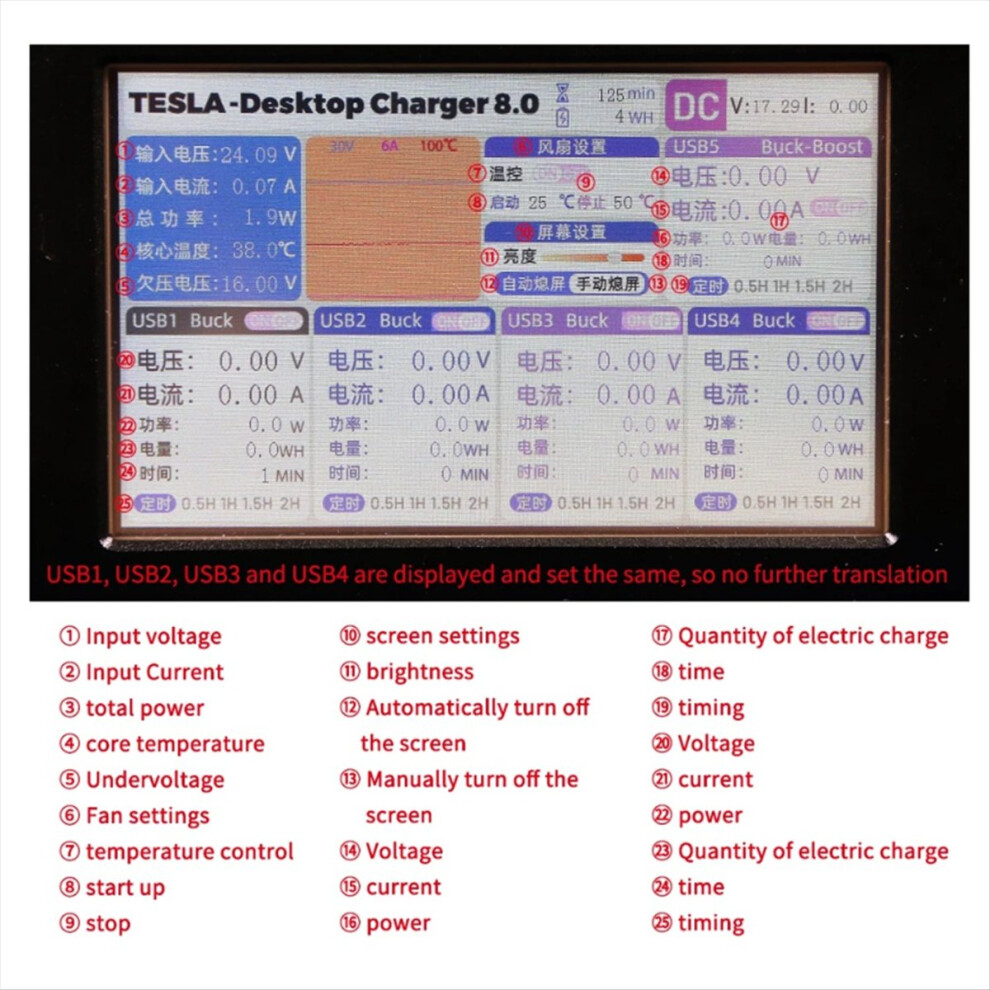

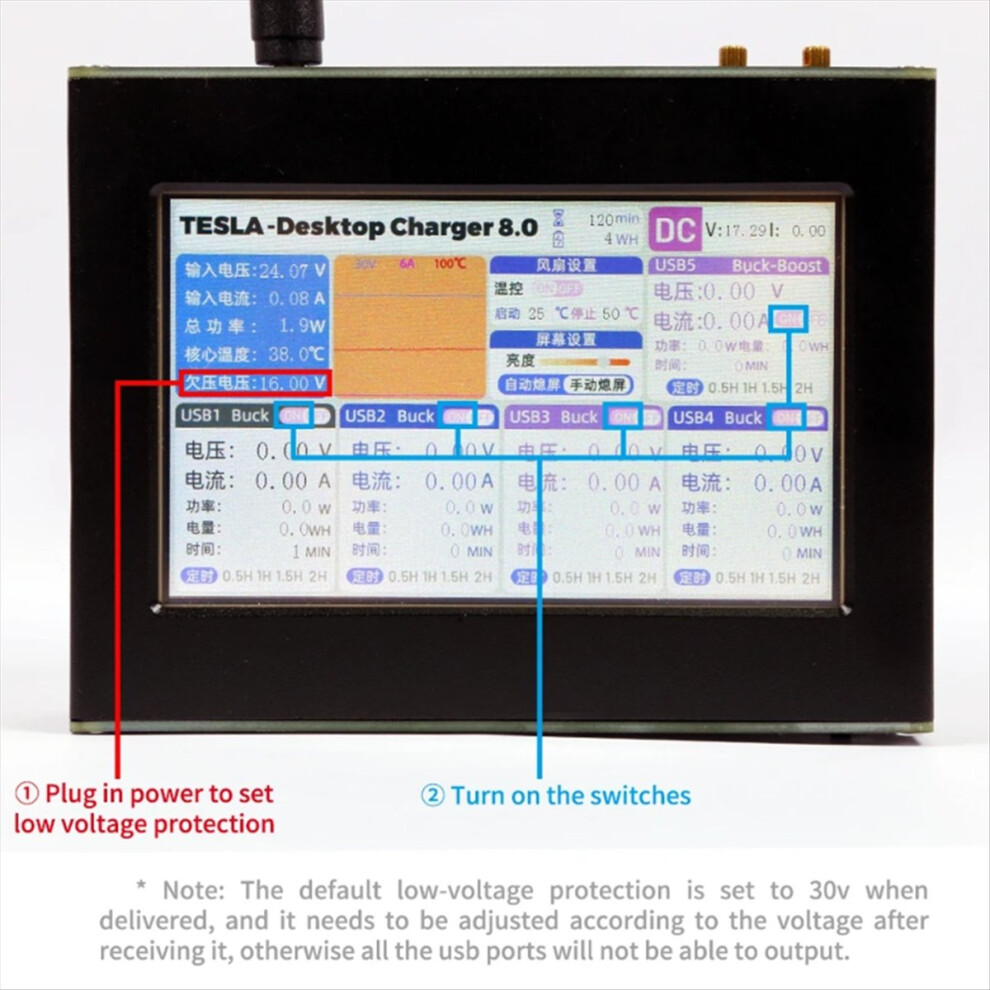

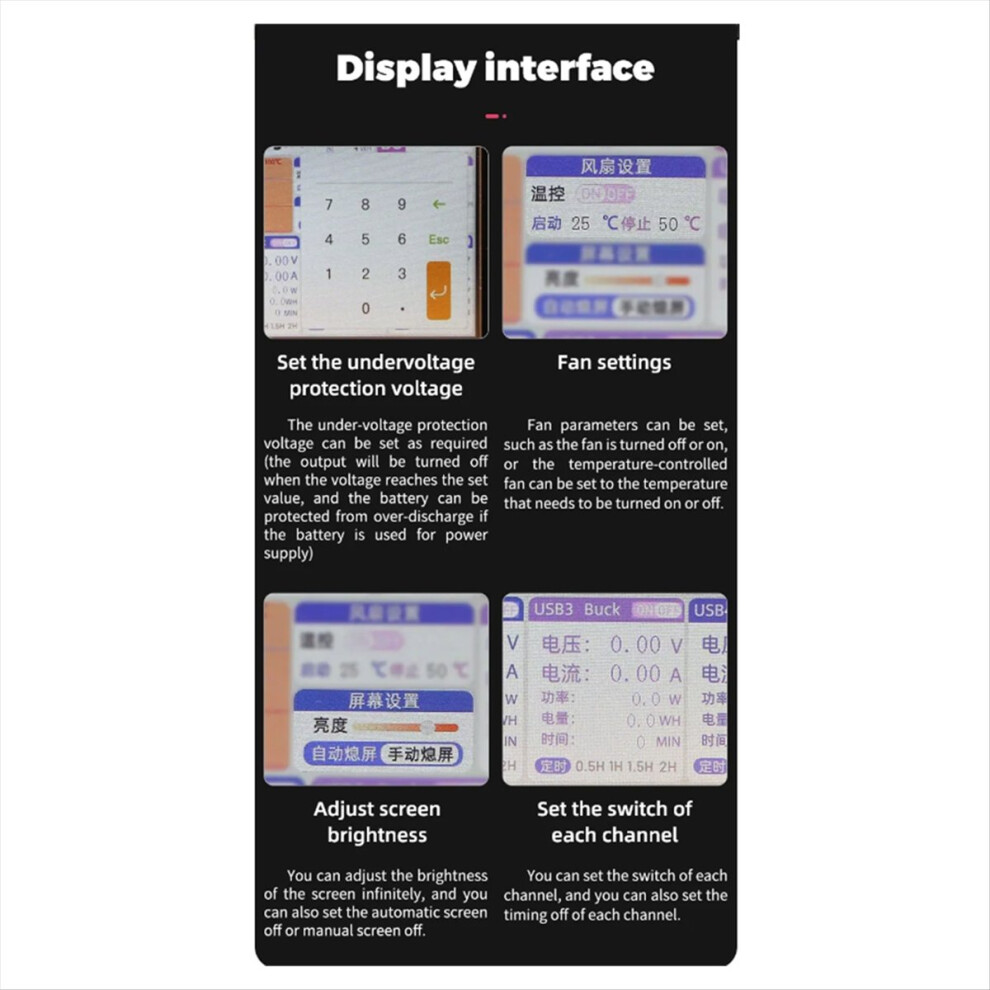

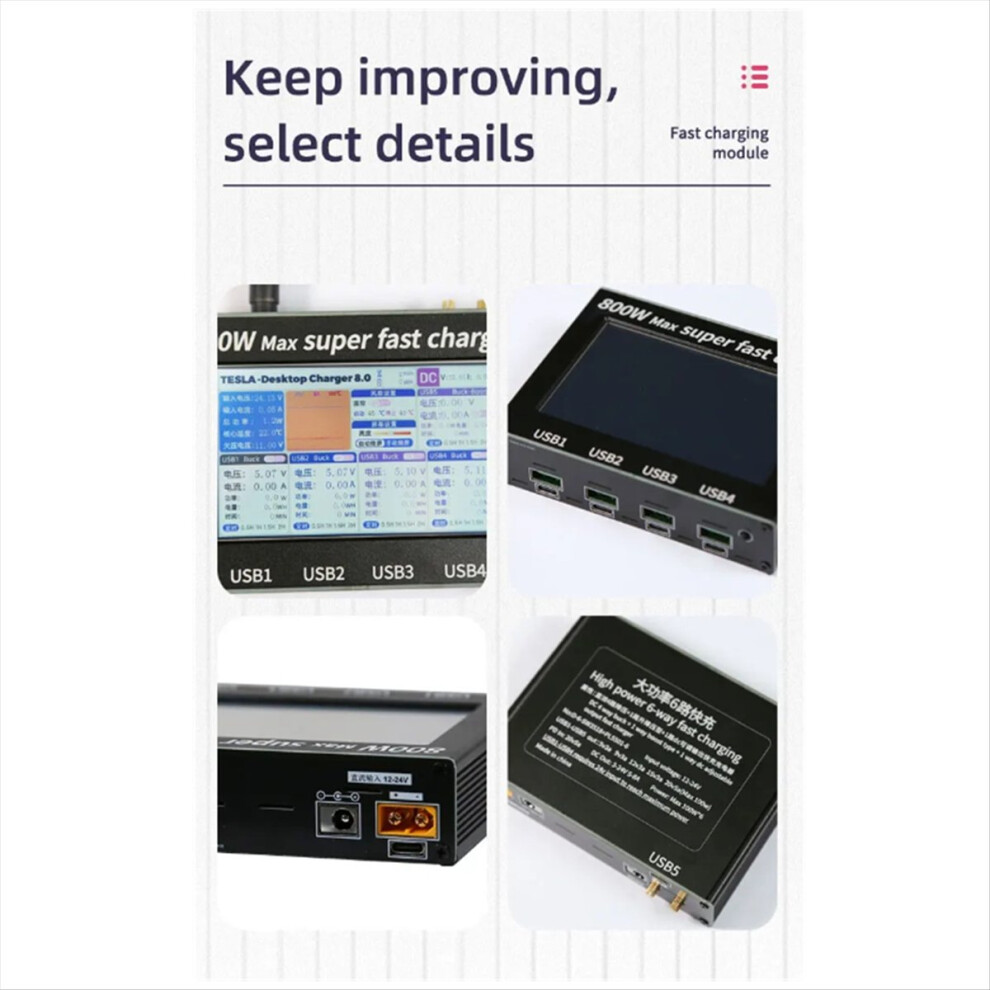

3. The display is a 3.5-inch high-definition touch screen. The switch of each channel can be directly controlled by touch. At the same time, the can display the real-time data of each output. Including voltage, current, power, power and fast charging protocol. In addition, the current and voltage curve parameters of each channel can also be displayed separately. The built-in clock circuit can also set the time (year, month, day) by itself.

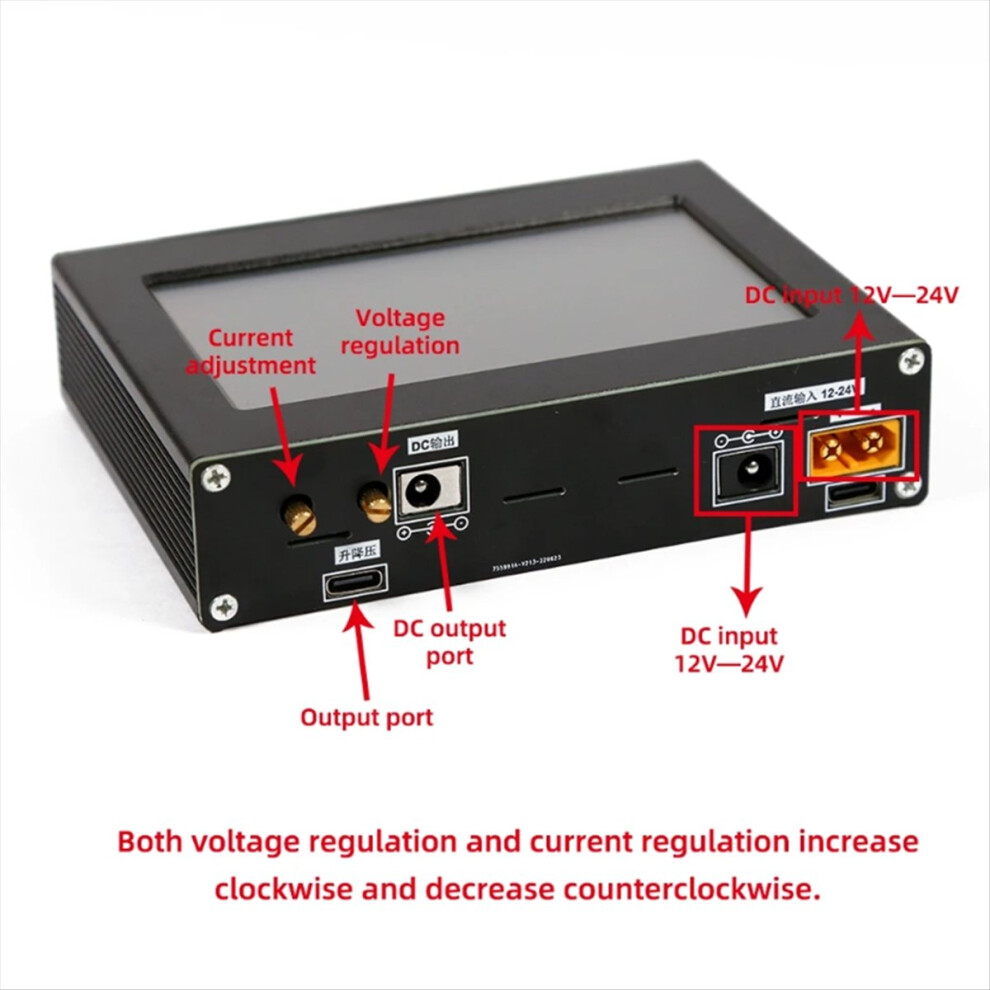

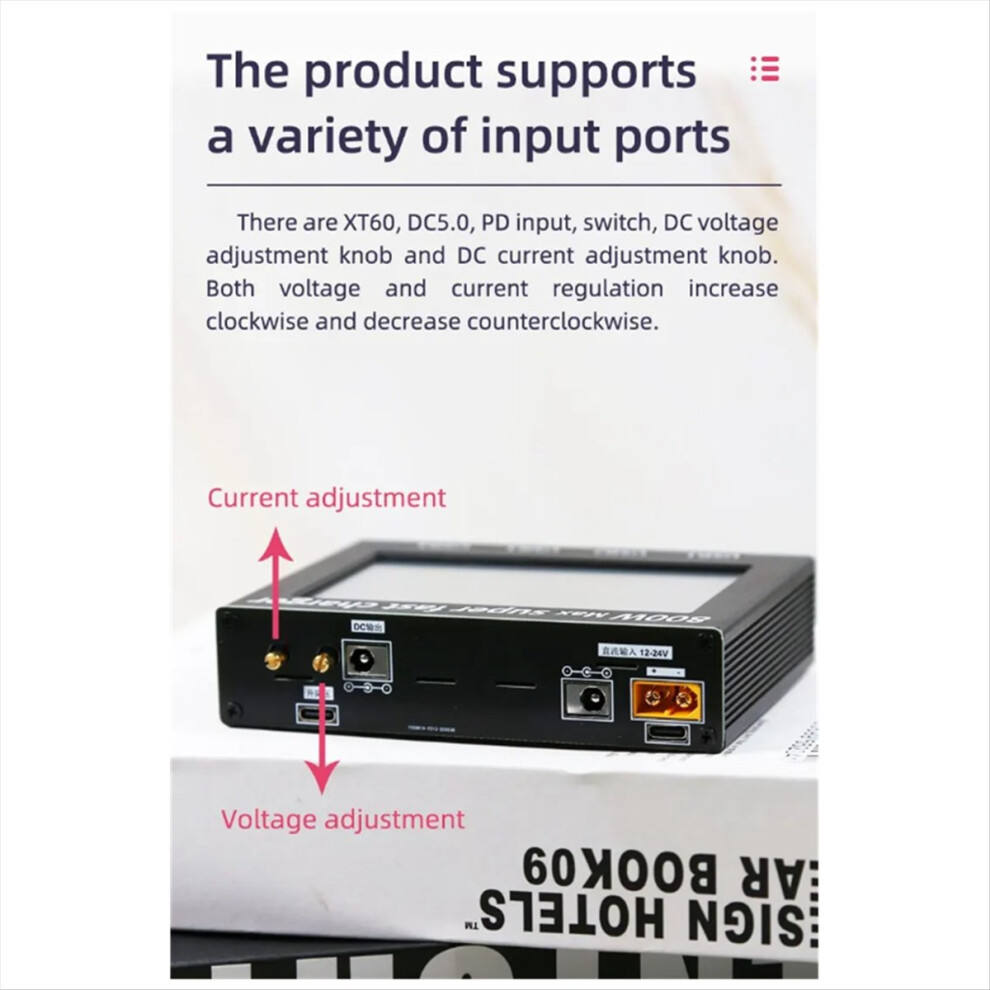

4. The host supports tree input interfaces, namely xt60, dc5.5mm,type-C data input. It should be noted that it is recommended to use an xt60 socket for power supply above 200w, which can effectively prevent the high-current plug from overheating. If you use type-c power supply, the power supply device needs to support 20v and the output capacity of 5a or more,Port C can only be used as a current output.
5. This product supports a maximum output of 450w, provided that your power supply has enough power (the product host option does not have a power supply). But from the actual use situation, few need such a large power output, so we suggest that a 100-200w 24v power supply is not needed.

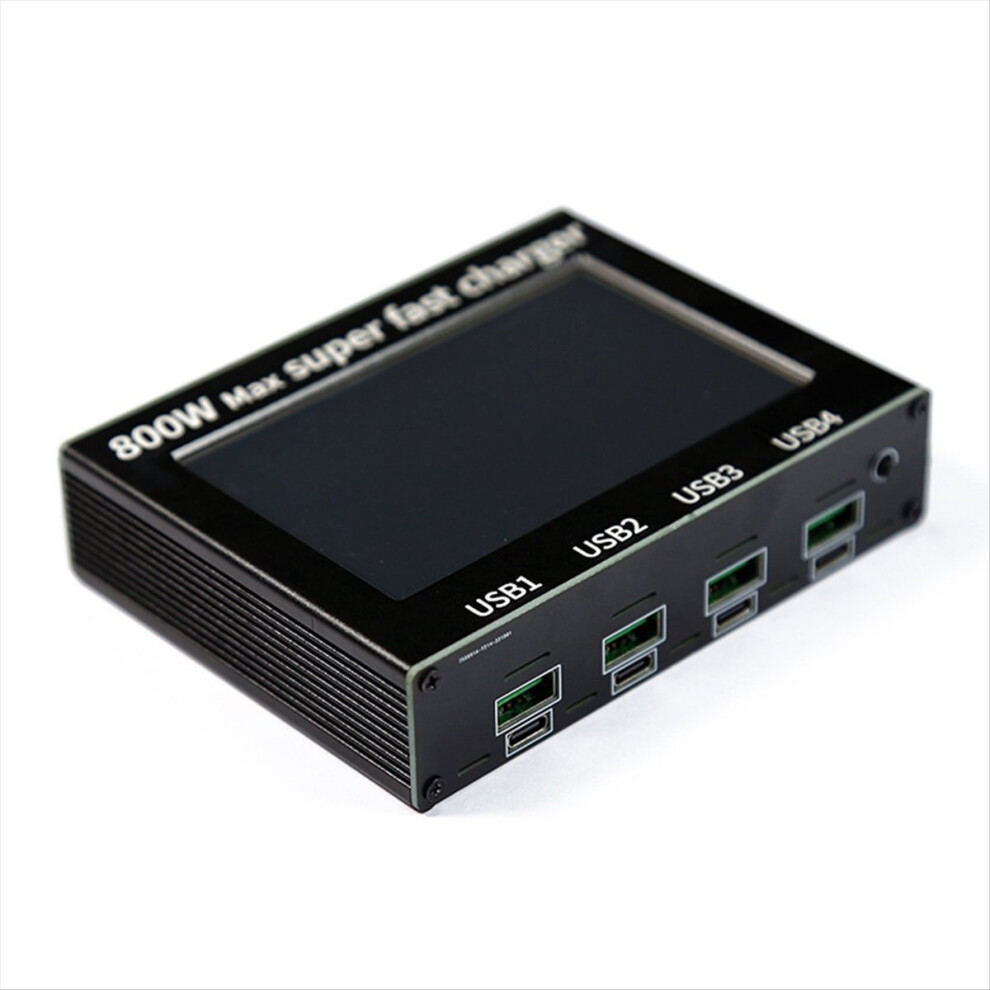

This product has 5 outputs, the left two are buck-boost circuits composed of SC8701+IP2712, the maximum output is 72w (20v3.6a). The 3 channels on the right are -down output composed of sw3518, the maximum output is 100w (20v5a). Note: If 12v input, sw3518s can not reach 20v output, because sw3518 is a step-downoutput.
The fast charging protocol of this product basically covers all types of electronic products on the market. But there are a few points to note. If the 100W module is not plugged into the mobile phone, it must be 100W charging power. The specific power is determined by the fast charging protocol, or it may be determined by the power supply. Some manufacturers such as for , for xm equipment detect whether the charging equipment is for-original, if it is not-original chip or charging head, it cannot reach the highest power. At the same time, the fast charging cable of the data cable used by the device is also very important. For example, the data cable that does not support e-mark naturally cannot obtain the maximum power.
Colour:Black
Material:ABS

Package Contents:
1 * Desktop Charger

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
