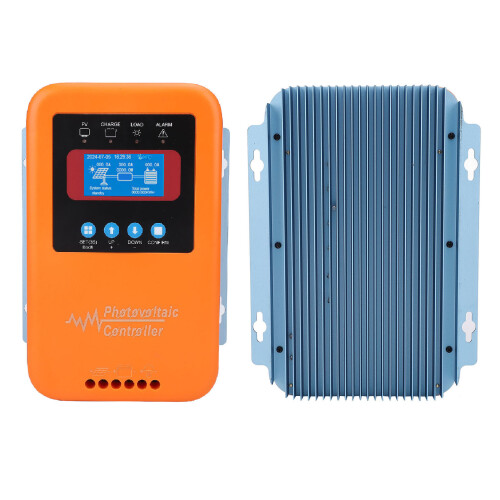

80A MPPT Solar Charge Controller 12V-48V LCD Regulator
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
£113.03
FREE Delivery
1%
Earn £1.13 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Tue 4th - Mon 10th Aug
Sold by: WEIN, there is 1 other seller
Returns: 30 days
180-day payment protection
Most Popular in Solar Charge Controllers
Description & Details
Summary
- Multiple Circuit Guard: This solar controller provides overcurrent, overvoltage, overload, undervoltage, short circuit, overcharge, and high temperature guard to ensure stable and efficient output; Automatically adapt to the battery voltage, built in fuse and to prevent damage caused by reverse connection
- High Charging Efficiency: MPPT solar charging controller, >99% peak power, providing efficient output; Adopting intelligent tracking algorithms to trace peak values in real time, resulting in higher charging efficiency
- LCD and Data Storage: The solar panel regulator adopts an LCD display screen with backlight function, which is clear, intuitive, convenient to use at any time; With automatic memory data storage function, convenient and practical

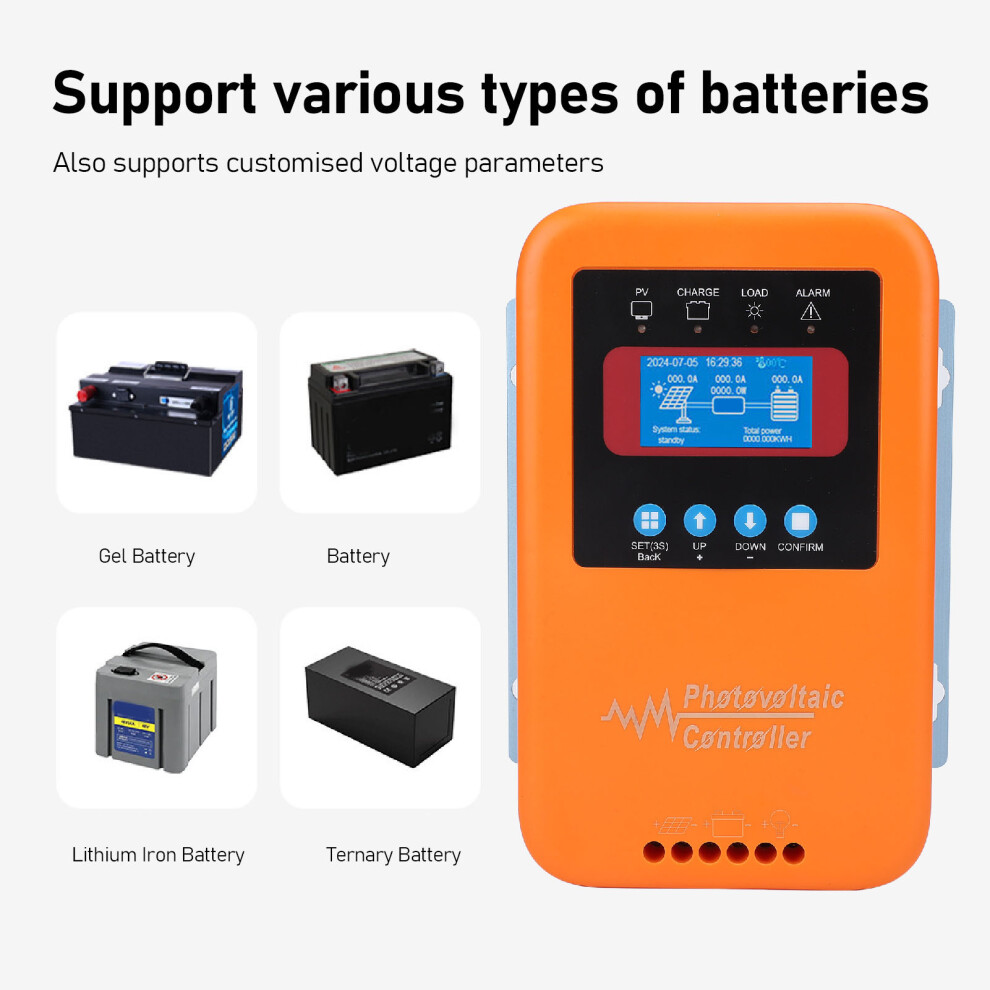

- Compatible Battery: This solar charge regulator is suitable for colloidal battery, acidic battery, lithium iron phosphas battery, for ternary battery, etc., supports custom voltage parameters, automatically disconnects when the battery is fully charged

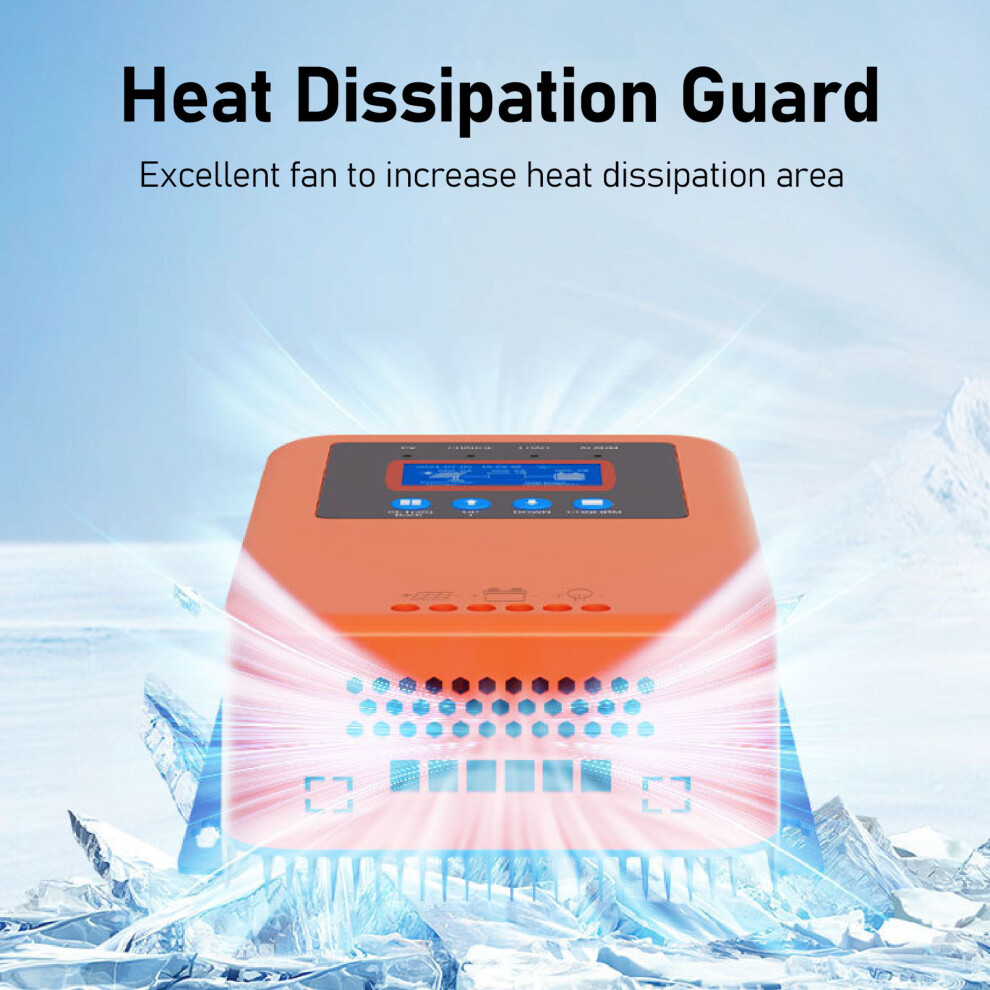

- MPPT Charging and Cooling: Adopting 3 stages MPPT regulated charging method of DC charging, streaming and floating charging to achieve fast and intelligent charging; Adopting excellent fan to ensure fast heat dissipation
80A MPPT Solar Charge Controller 12V-48V LCD Regulator Description
MPPT Solar Charge Controller 12V 24V 36V 48V Solar Panel Battery Regulator LCD Backlight Display 80A Photovoltaic Controller
Item Type: MPPT Solar Charge Controller

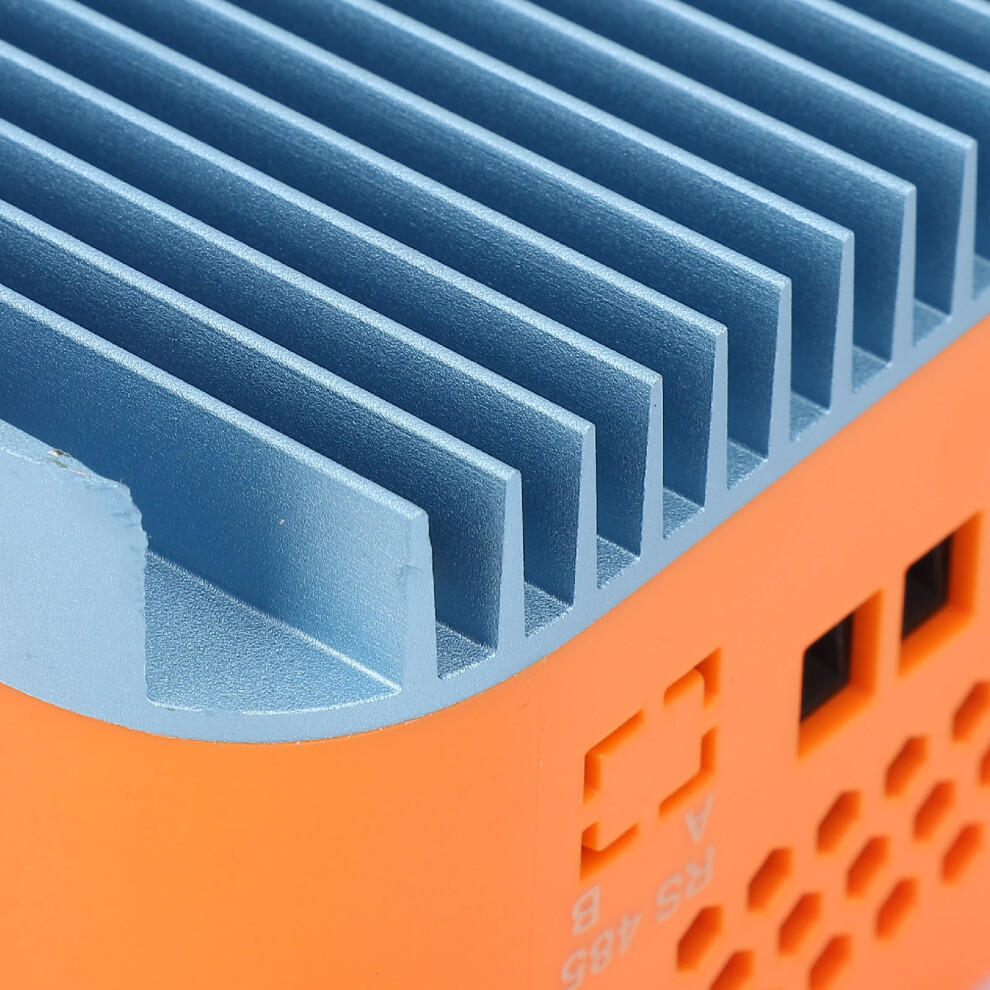

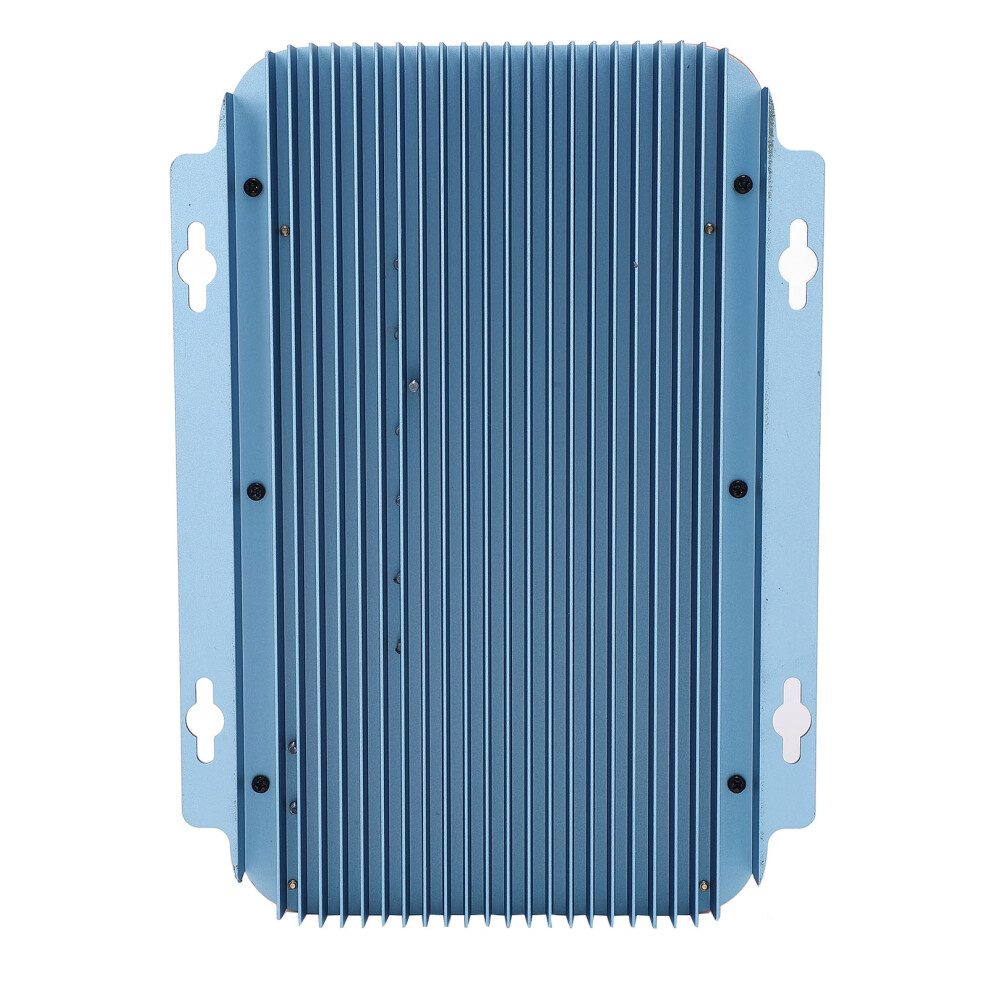

Material: ABS Shell, Aluminum Heat Sink
Battery Type:
Acidic Battery: (12V 24V 36V 48V 96V Auto Recognition + Adjustable 12V 24V 36V 48V 60V 72V 84V 96V)
Gel Battery: 12V 24V 36V 48V 60V 72V 84V 96V
Phosphas Battery: Cell Voltage 3.2x Series Number (Adjustable 2S-45S)
Ternary Battery: Cell Voltage 3.7x Series Number (Adjustable 2S-45S)
User Defined: Equalized Charging, Float Charging, DC Discharging
Limit Voltage Adjustment: 8V-170V
With Photovoltaic Input, Charging Voltage (Activate Lithium Battery) can use DC Output Activation Function
Photovoltaic Maximum Open Circuit Input Voltage: 0-230V
Charging Current Adjustment: 0-80A
Start Charging: Photovoltaic Voltage > Battery Voltage +3V (Low Current Charging even on Rainy Days)
DC Charging Current Output Function: Continuous DC Output 80A
Temperature Compensation: Automatically compensates according to charging voltage and current to adapt to battery temperature and extend battery life

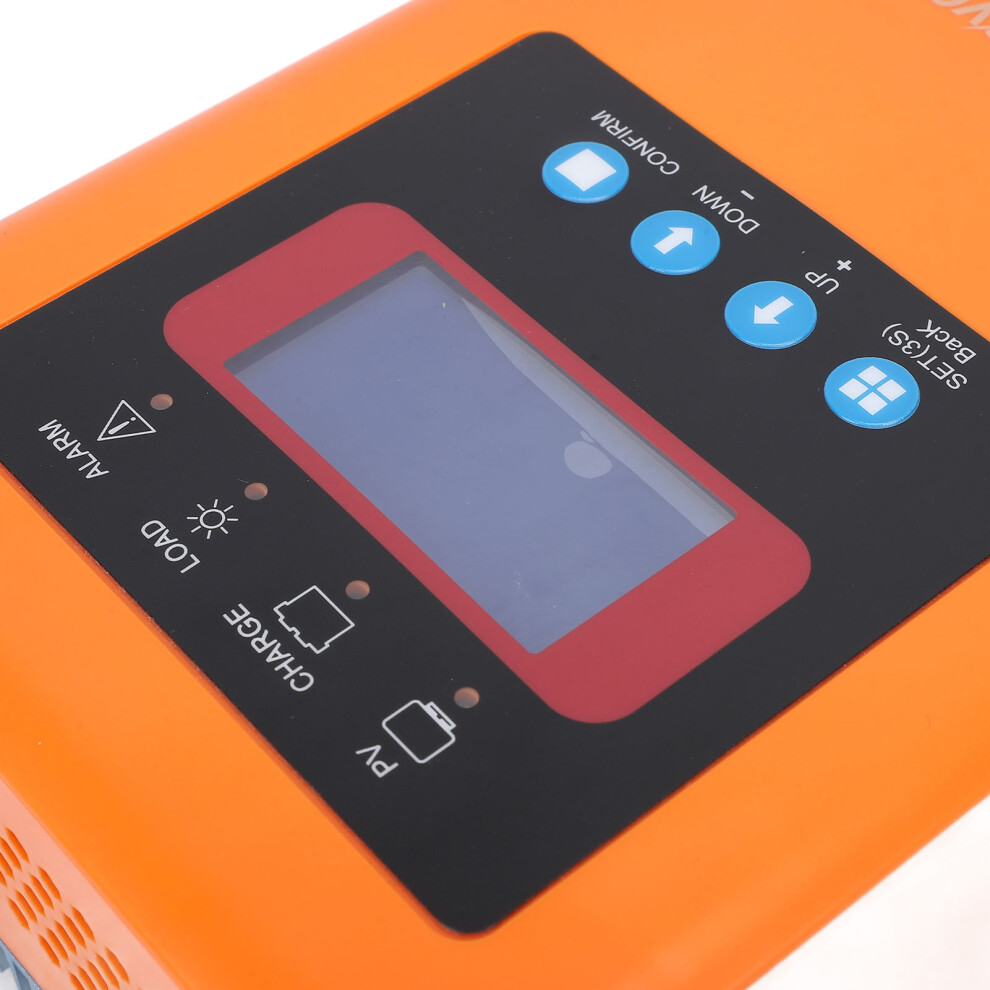

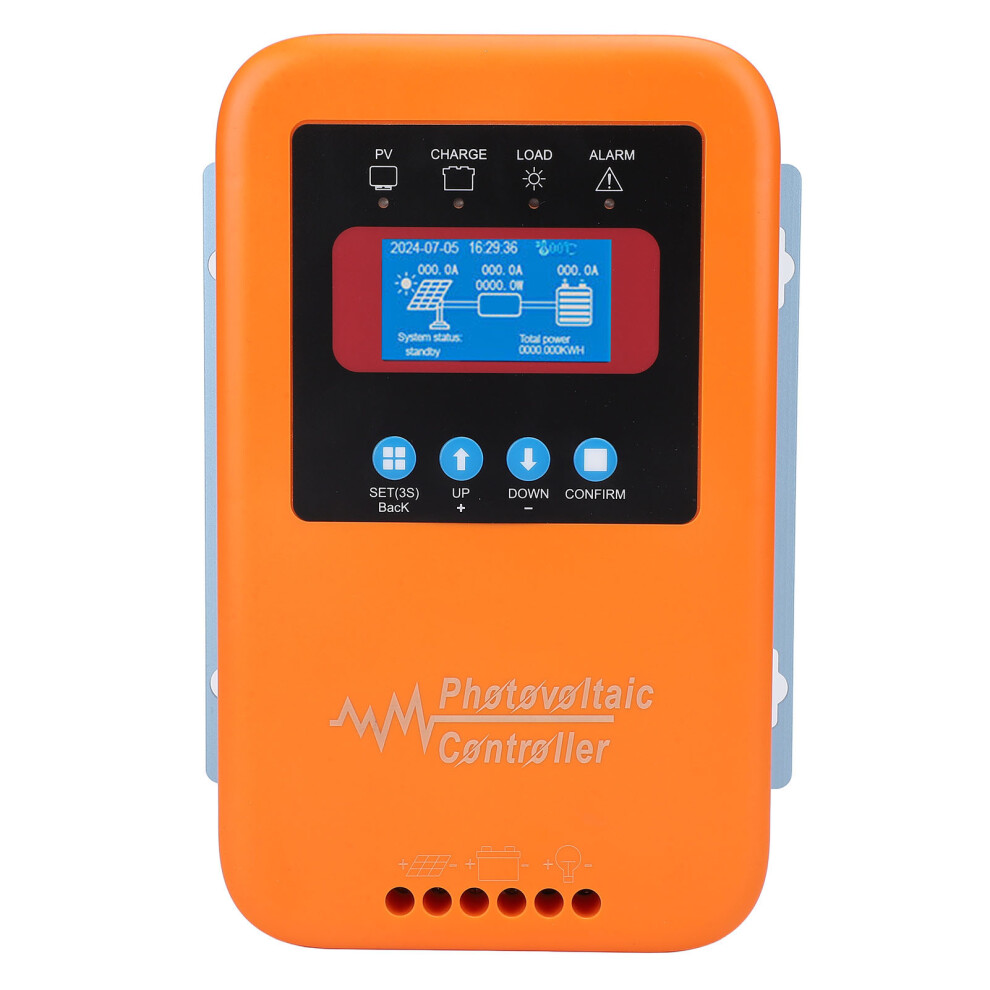

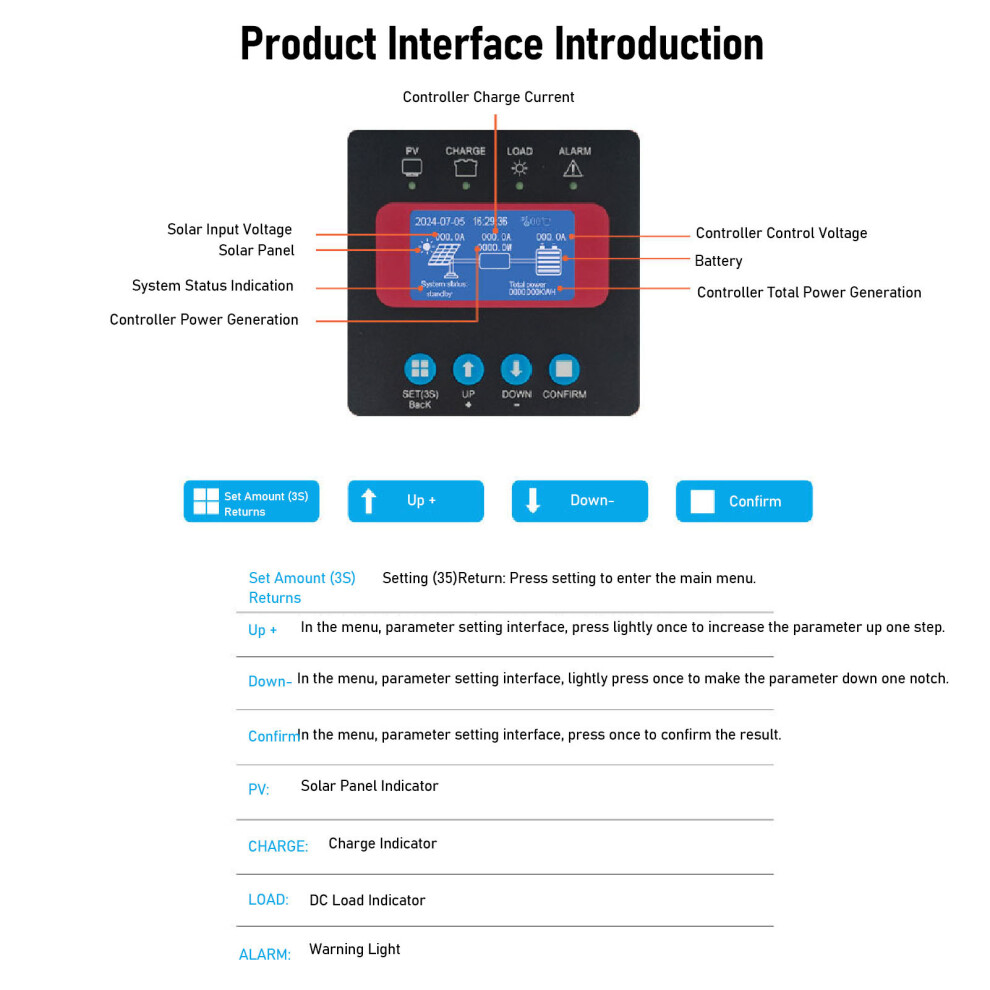

Display: Touch Button LCD Display (Generator, Photovoltaic Voltage, Battery Voltage, Charging Current Power, Working Status)
Chinese and English Display Setting: (Battery Type, Charging Current Recovery)

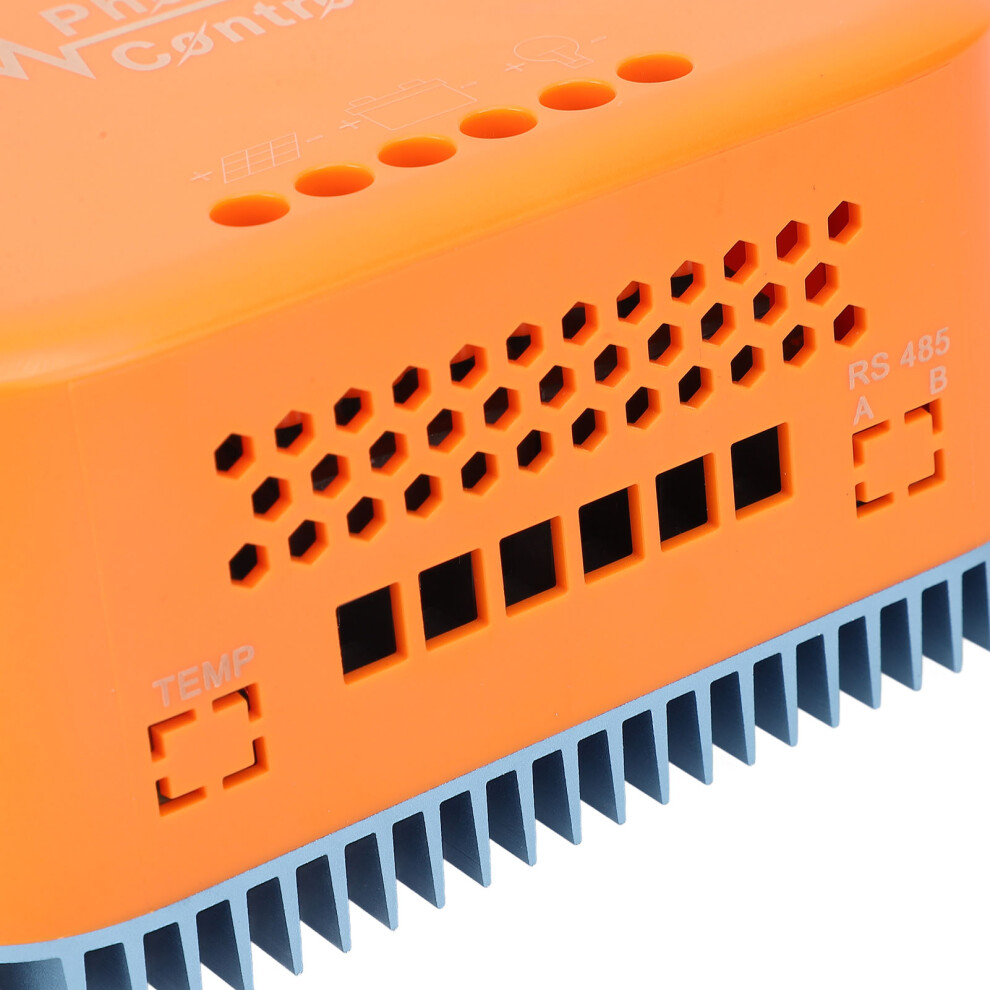

8 Pin RS485 Comm Interface (Query Operating Status and Settings)
Working Temperature: -20-40
Protective Rating: IP21
Product Advantages: Conversion Rate up to 99%, Protective Design, Strong Heat Dissipation, Compatible with Mainstream Battery, Automatic Voltage Recognition
Details
| OPC | PKC98D8 |
|---|---|
| Codes | 4681346681113 (EAN) |
| Rank | #22 Solar Charge Controllers |
| #229 Solar & Wind Energy |
