80W Mini WiFi Stereo Amplifier - Compact Wireless Music Streaming Multizone Amp

80W Mini WiFi Stereo Amplifier - Compact Wireless Music Streaming Multizone Amp Description

Overview:

Wi-Fi Control – Unlike previous generation amplifiers that allow wireless connection via Bluetooth, this amplifier connects to your devices wirelessly via Wi-Fi / the internet. There are a number of reasons as to why this is a major improvement, but the main ones are:

Range – Bluetooth has a range of around 10m. With Wi-Fi, the only range is your internet signal. If you get the internet at one side of your house / garden, you will be able to control this amplifier.

Reliability & Connection - Wi-Fi is much more secure than Bluetooth so no unwanted connections can occur. Wi-Fi is also much more stable and is less likely to drop signal or break up like Bluetooth.

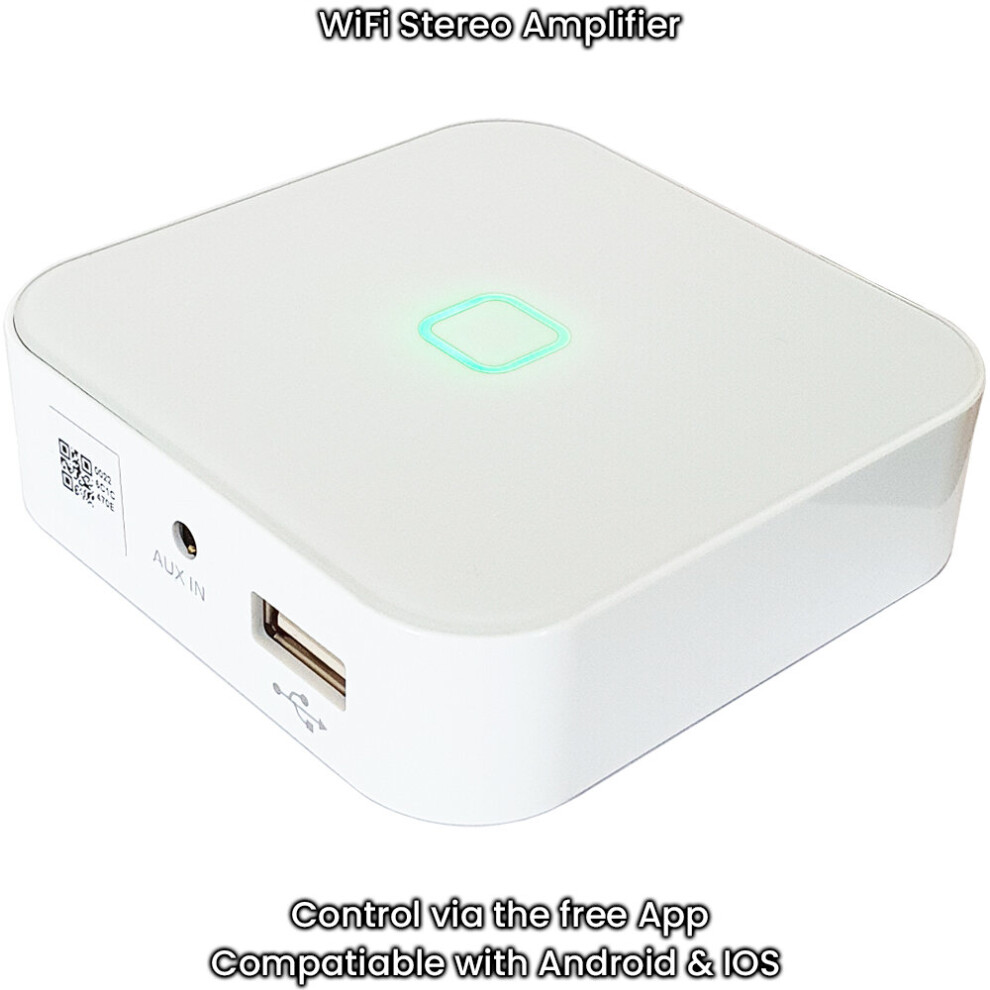

App Control – This amplifier has its own (FREE) Phone / Tablet app that allows you to link your Spotify / Amazon Music / Apple Music / Digital Radio all through one simple app. No need for a separate remote. Simply hide the amp away and you can control everything without needing line of sight.

App is Compatible with ANDROID & iOS.

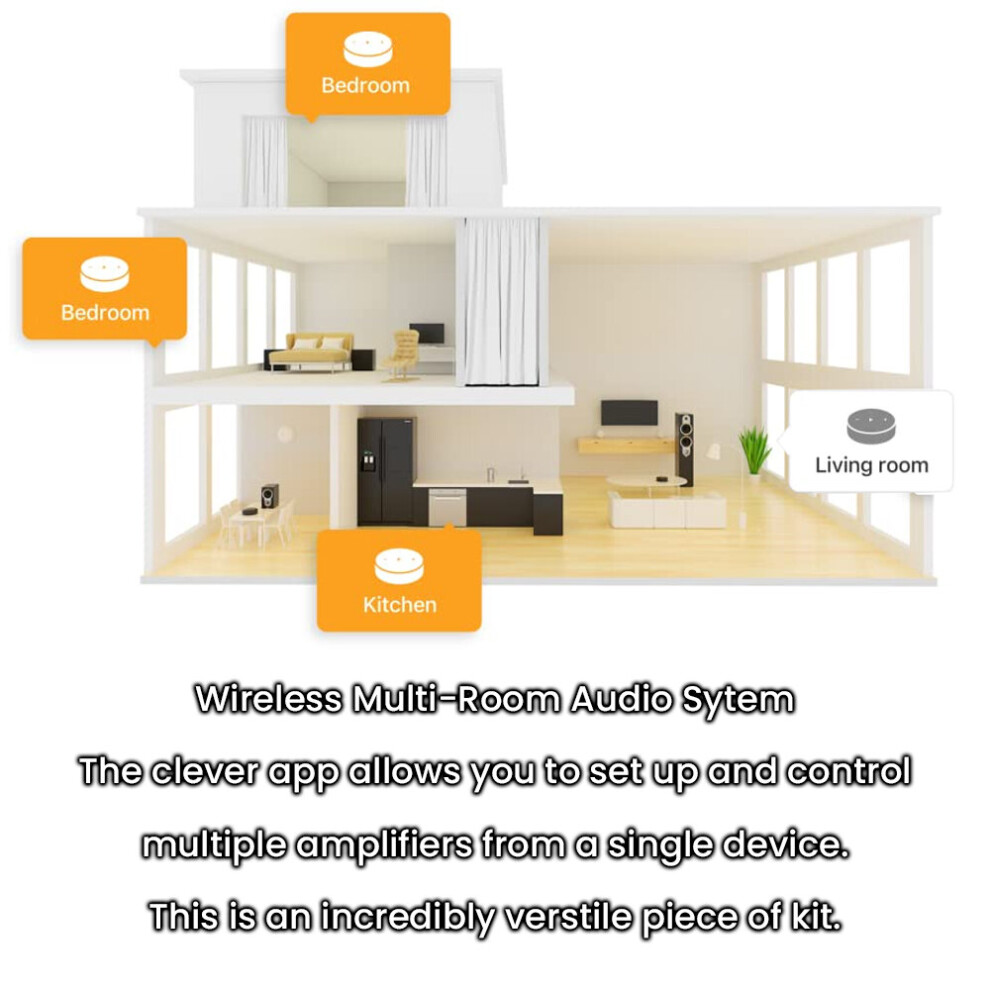

Multi-Room / Zoning - The clever app allows you to set-up and control multiple amplifiers from a single device (app). This is perfect for multi-room / multi-zone applications where you would like to control the volume of each system separately / combine zones into 1, all from your phone / tablet. Depending on the level of music streaming service you use, you can also play different things in different zones at the same time and control all volumes separately. This is an incredibly versatile piece of kit and a fantastic alternative to SONOS.

Power - The amplifier may be small, but it packs a punch, at peak, this small unit will pump out an impressive 80W max @ 4OHM (2x 40W). However, thanks to the latest, CLASS-D DIGITAL sound reproduction technology, this little stereo amplifier sounds much louder than the figures suggest… It really is impressive! The amp can handle any domestic environment and most commercial environments (depending on the nature of the install).

Size - Thanks to its compact size, this amplifier can be hidden out of sight in places such as above kitchen units & in ceiling voids. Once set up and the power is connected, you don't need to touch it again to play music wirelessly.

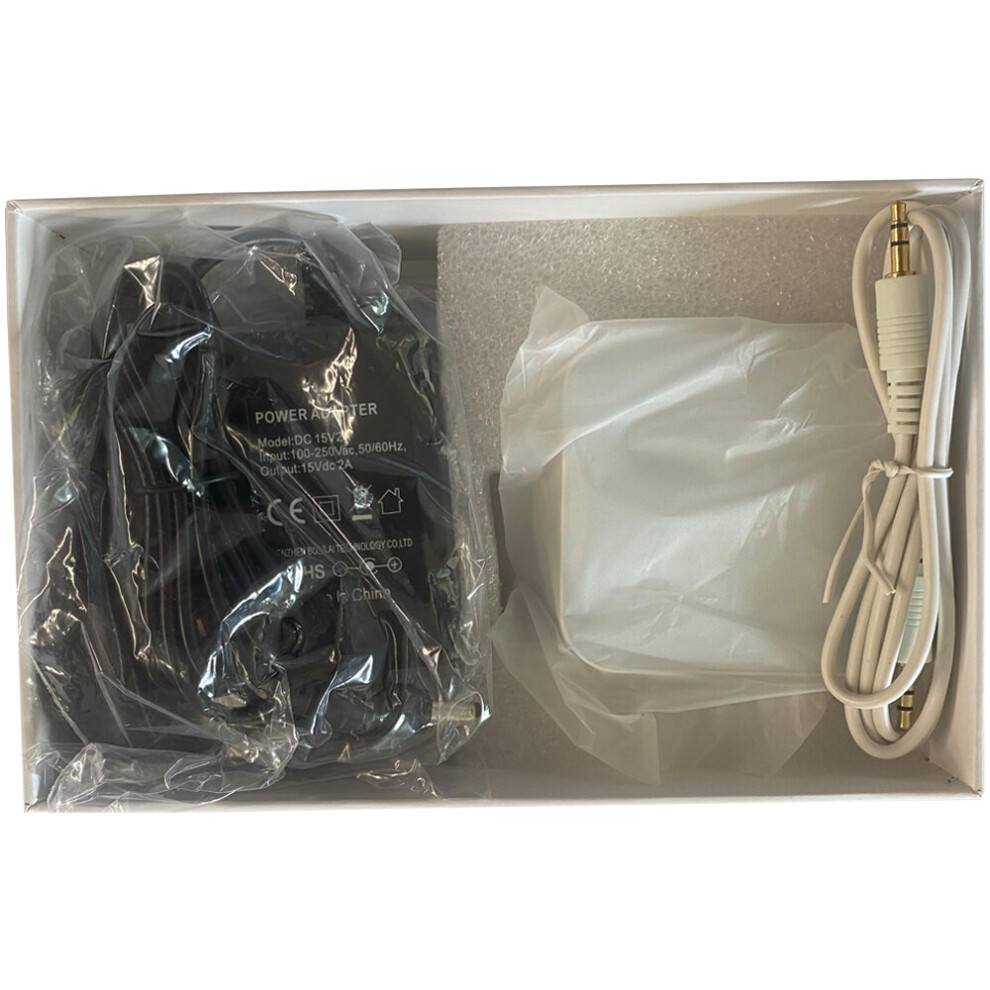

Connectivity - Not all devices have a Wi-Fi option such as CD players or TV's. Don't worry, this amplifier has an auxiliary input, it is also supplied with a connection cable to save you the hassle of ordering one. As well as an Aux input, it also accepts Micro SD cards & USB input.

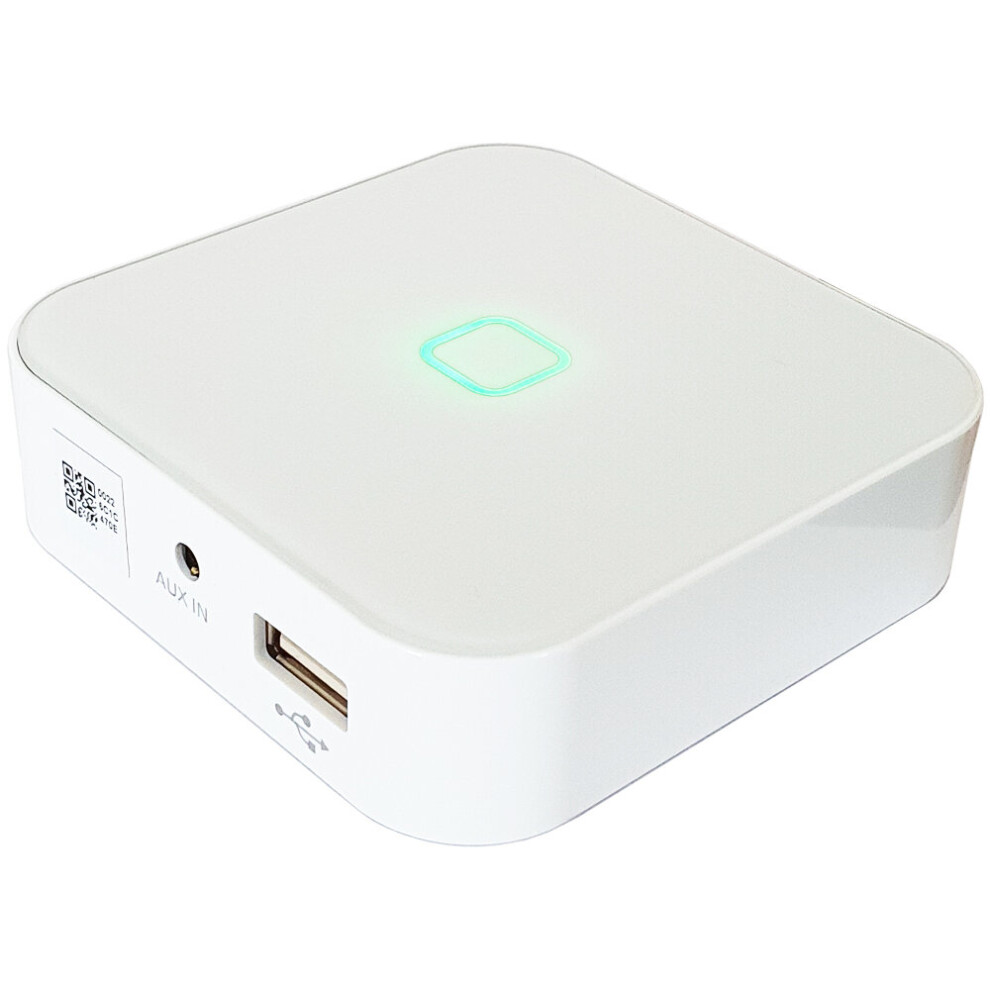

Features:

1x Wi-Fi Module

1x Auxiliary Input

1x MicroSD Card Slot

1x USB Slot

4x Push Fit Terminals for connecting speaker cable

1x 15V 2A Power Supply Connector

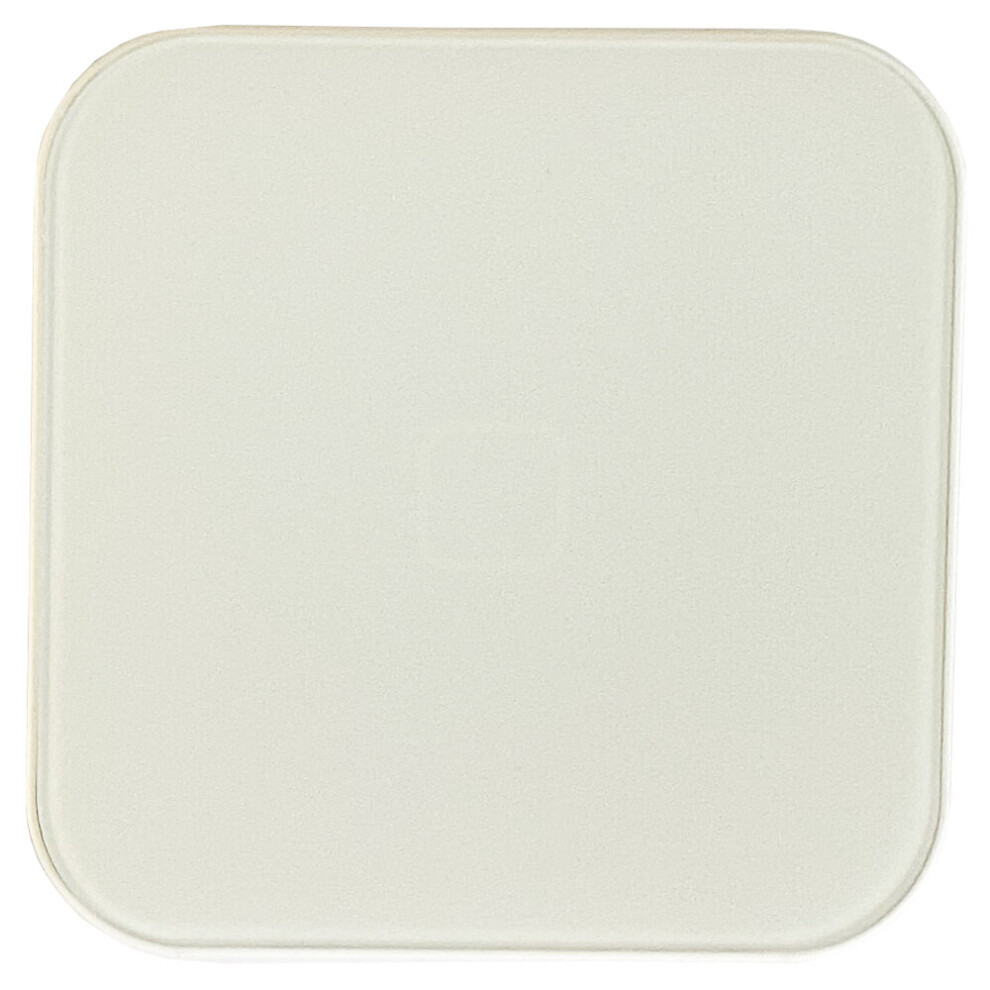

Sleek & Minimalistic plastic body with rubber base.

Wired Connections:

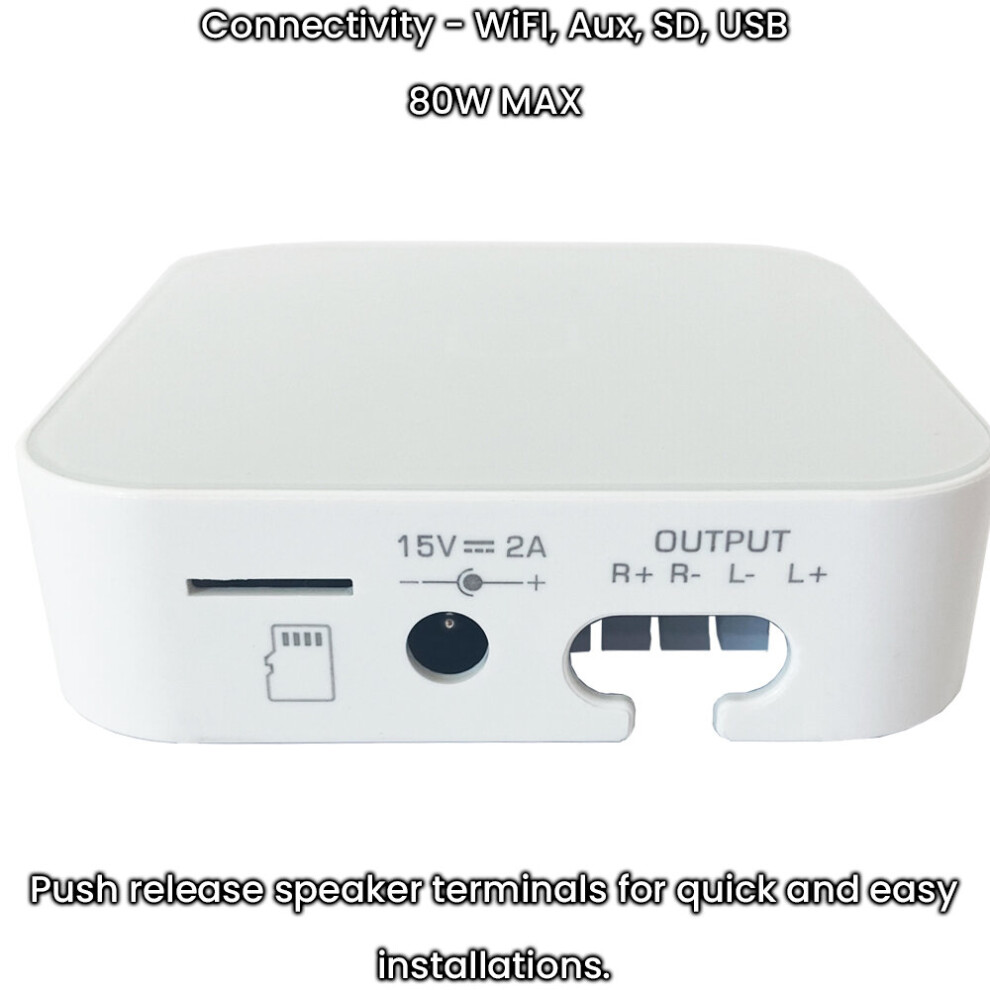

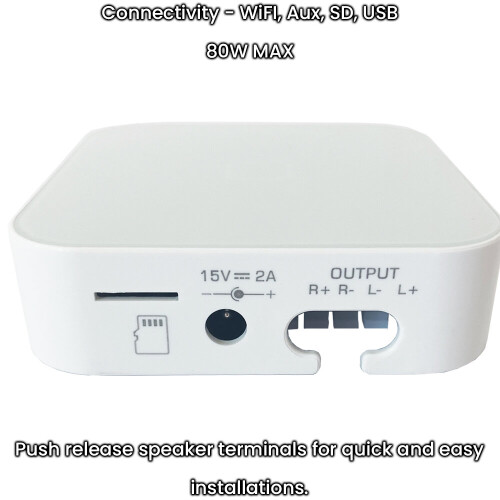

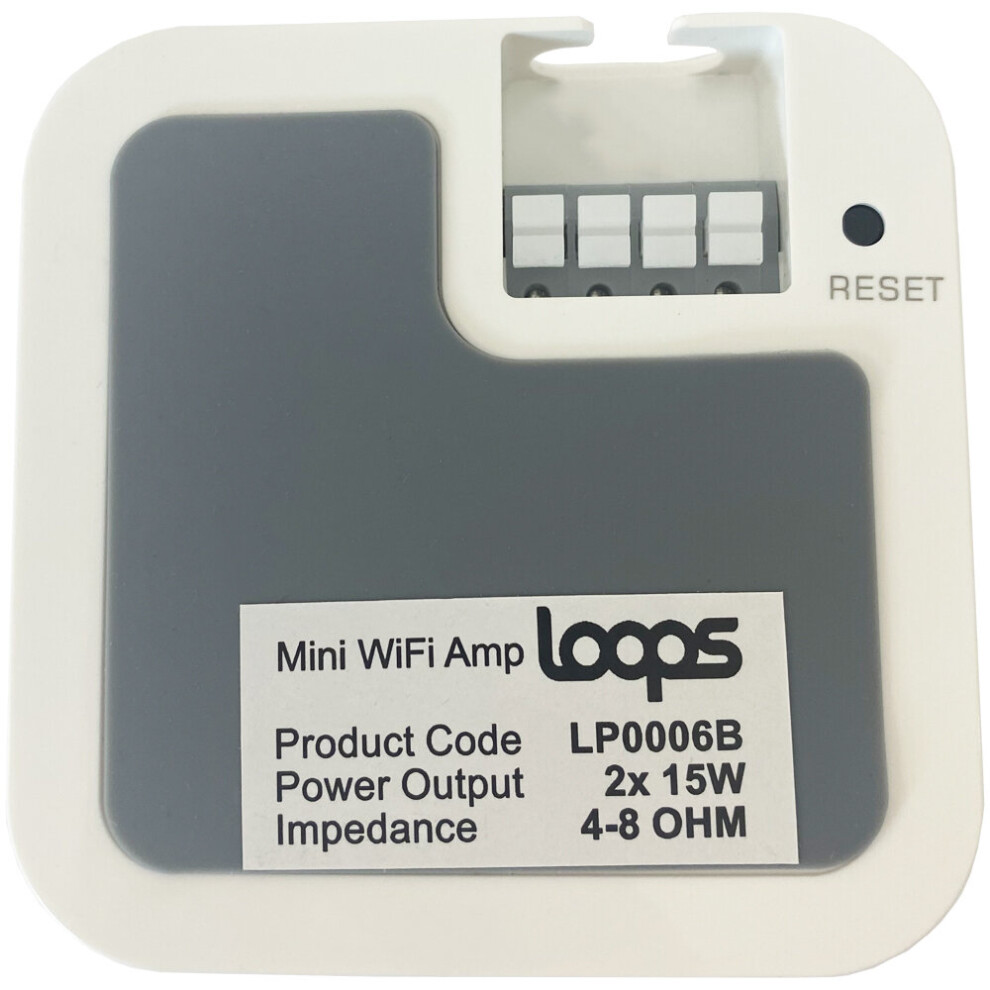

Push Release Speaker Terminals - Speaker Connections 4 to 8 ohm – Labelled; (R- & R+) for negative and positive connections to the right speaker(s), (L- & L+) for negative and positive connections to the left speaker(s).

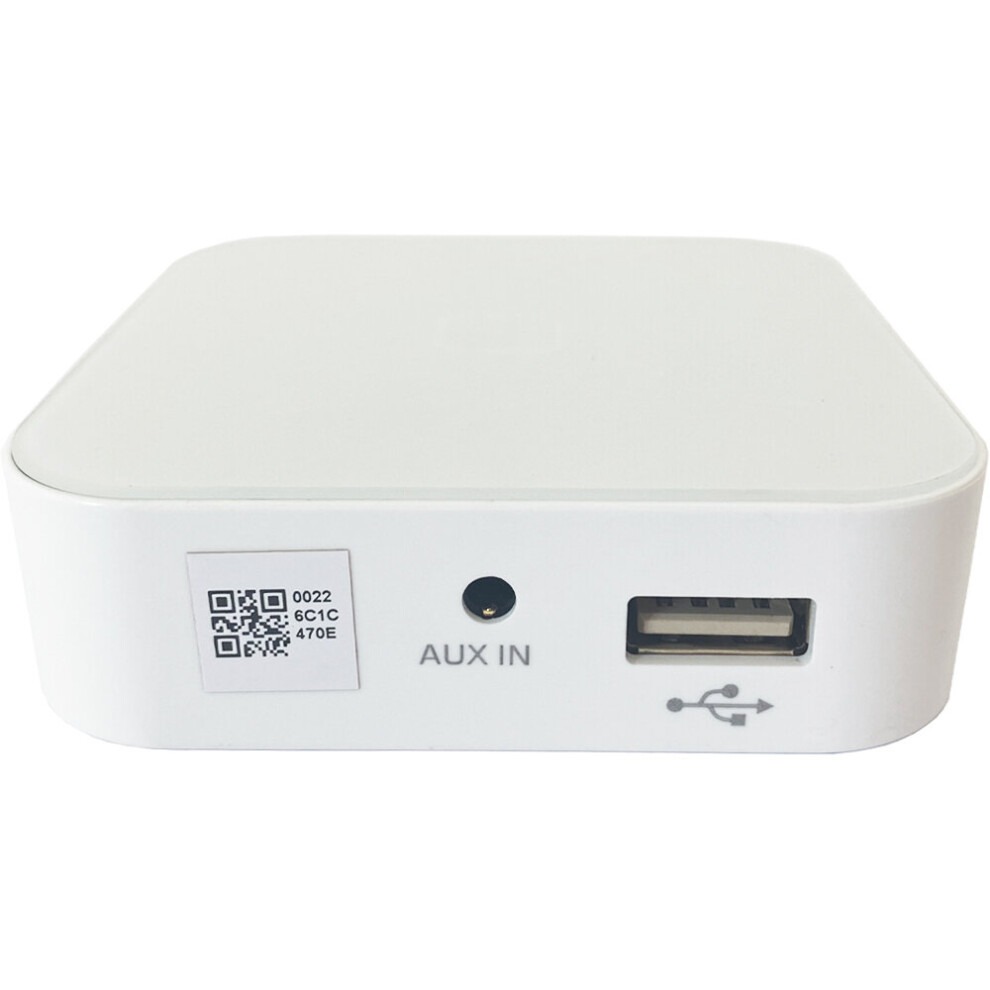

3.5mm Auxiliary Input - For a direct wired connection to a source device such as a smartphone.

Micro SD Card - The amplifier can also play MP3 tracks stored on a Micro SD Card. Simply insert card at the bottom of the panel.

USB Port - The amplifier can also play MP3 tracks stored on a USB stick.

 Technical Specification:

Output Impedance: 4 to 8 Ohms

Output Power RMS: 2 x 15W @ 8 Ohms (30W)

Output Power MAX: 2 x 20W @ 8 Ohms (40W)

Output Power RMS: 2 x 30W @ 4 Ohms (60W)

Output Power MAX: 2 x 40W @ 4 Ohms (80W)

Operating Voltage: 15V DC / 2A (Power Adapter Supplied)

Frequency Response: 20Hz to 20 KHz

Dimensions (HxWxD): 74x74x21mm

Weight: 79.5g

How to Install:

1. On your smartphone / tablet, download the WiiM Legacy Player application by Linkplay Tech. For iOS devices, download the Legacy Player app from the App Store. For android devices, download the Legacy Player App from the Google Play Store.
2. Upon opening the Legacy Player app, a searching screen will be shown with an option to “Add Device” at the bottom of the screen. If the amplifier has already been connected to Wi-Fi network in the past, the searching screen will confirm it has found 1 or more devices.
3. Go to the Wi-Fi settings on your device to search for available networks, the amplifiers name will start with “smart audio”. Connect your device to the amplifier.
4. The next page on the app will ask you to select the Wi-Fi network that you would like to connect the amplifier too. Select your network and enter the password to connect the device.
5. Once connected you will be able to name the new device.
6. You can now connect your device back to your local Wi-Fi network & start playing music via the Legacy Player application.
