915Mhz 868MHz ELRS RX Diversity Receiver Dual Core

915Mhz 868MHz ELRS RX Diversity Receiver Dual Core Description

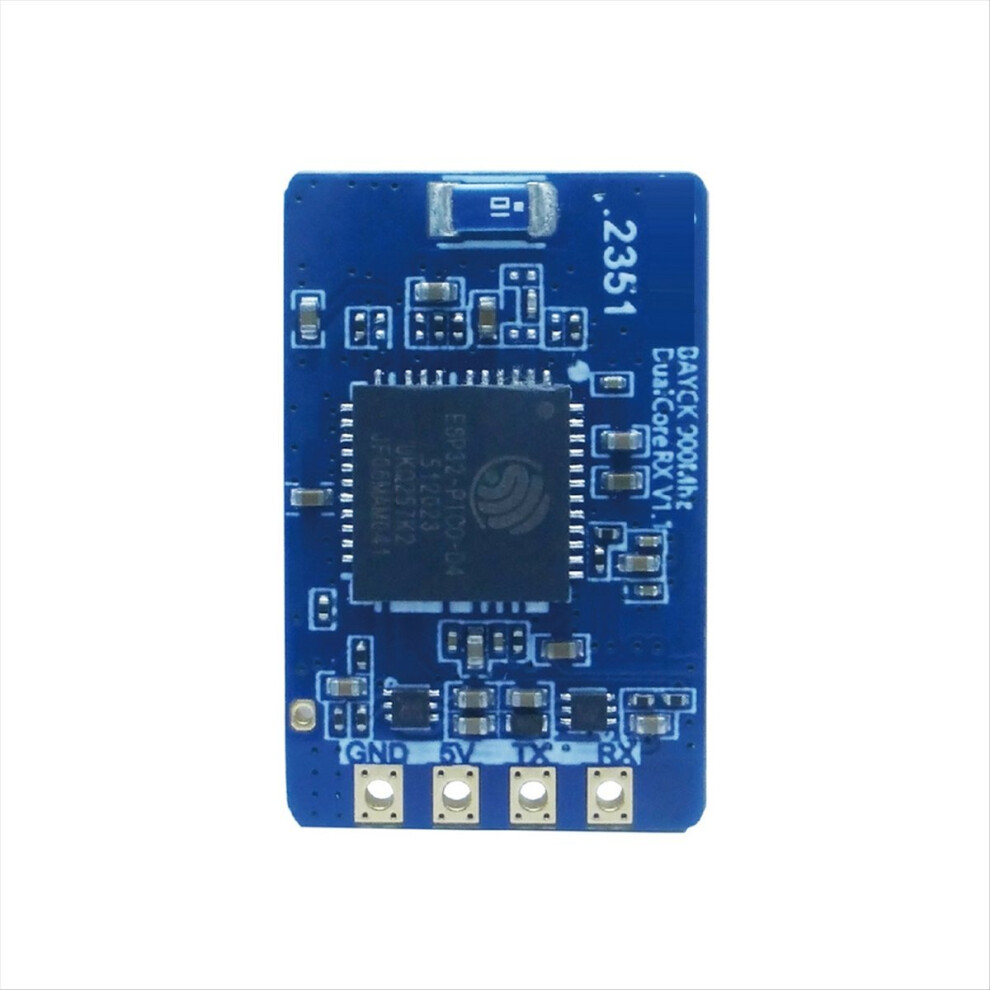

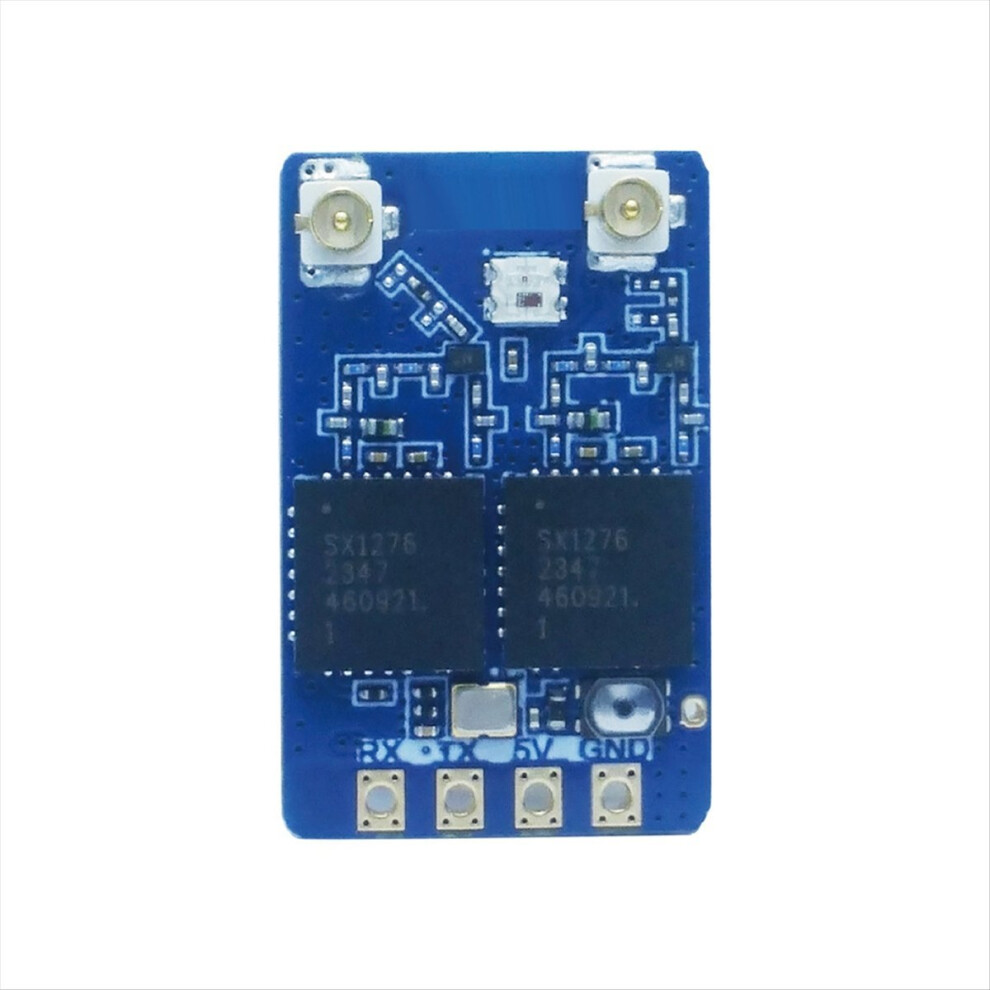

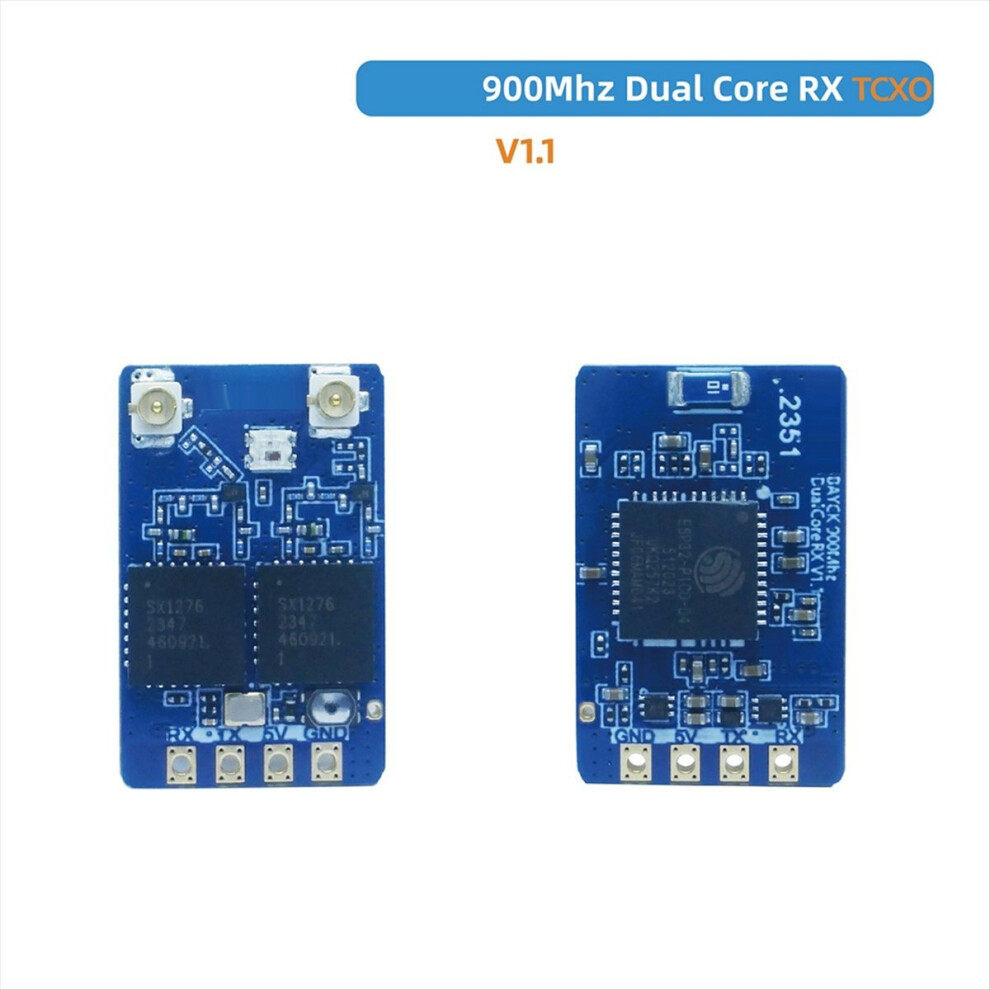

Type: 915MHz/868MHz true diversity receiver ESP32 PICO D4, dual SX1276
Dual antenna connector: IPEX MHF1/U.FL
RF frequency: 915MHz or 868MHZ
Telemetry power: 17dbm
Receiving protocol: CRSF/SBUS, etc.

Input voltage: +5V DC @+ pad
PCB size: 22mm x14mm
Built-in TCXO (temperature compensated crystal oscillator)
Firmware target: Generic ESP32 True Diversity PA 900MHz RX (ground station required
To update to 1.6.0)
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Colour:Blue
Material:PCB

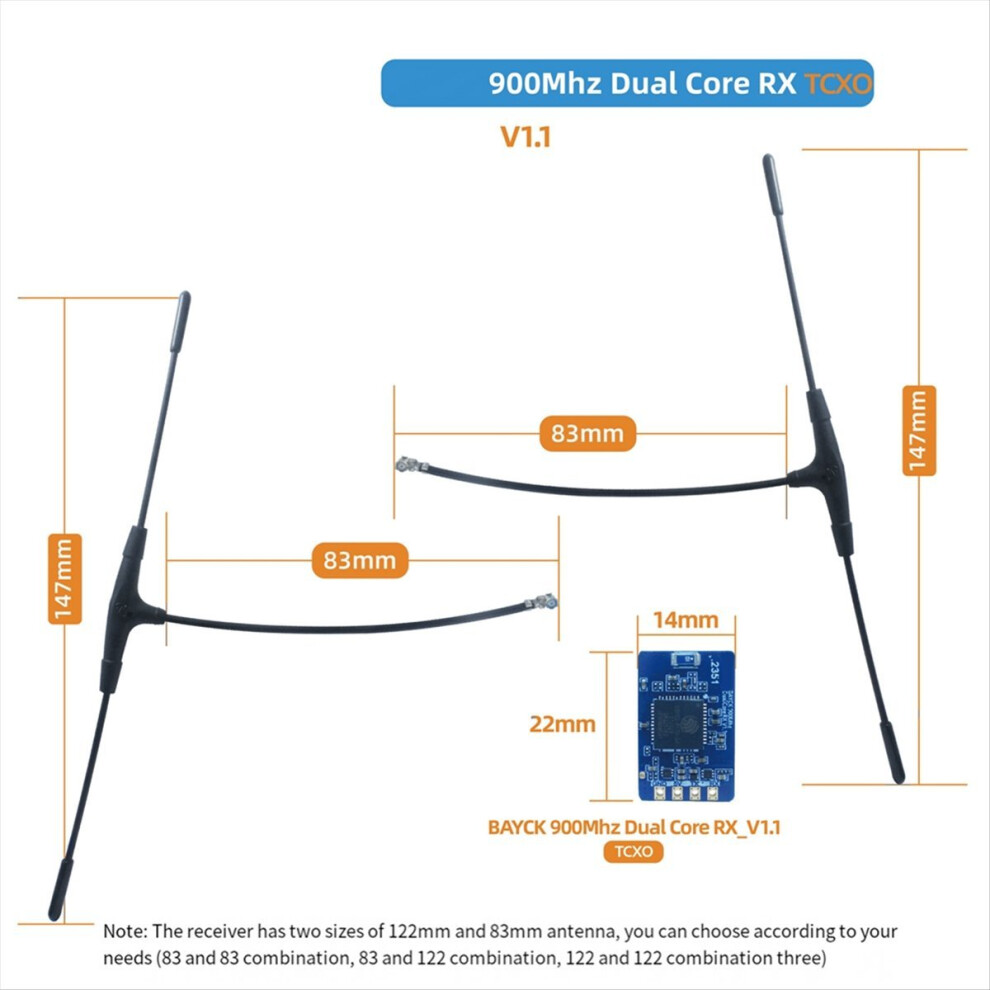

Type: C: 915Mhz Dual-83mm antenna feeder x2

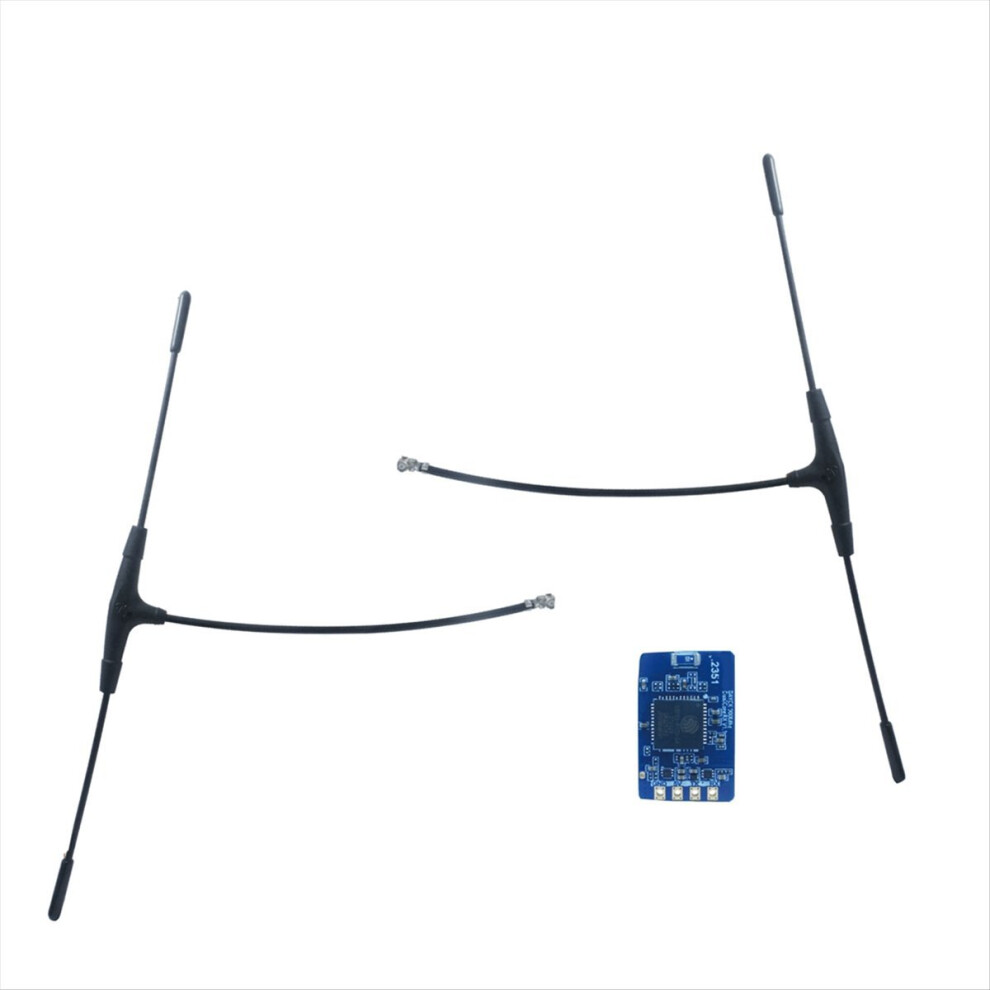

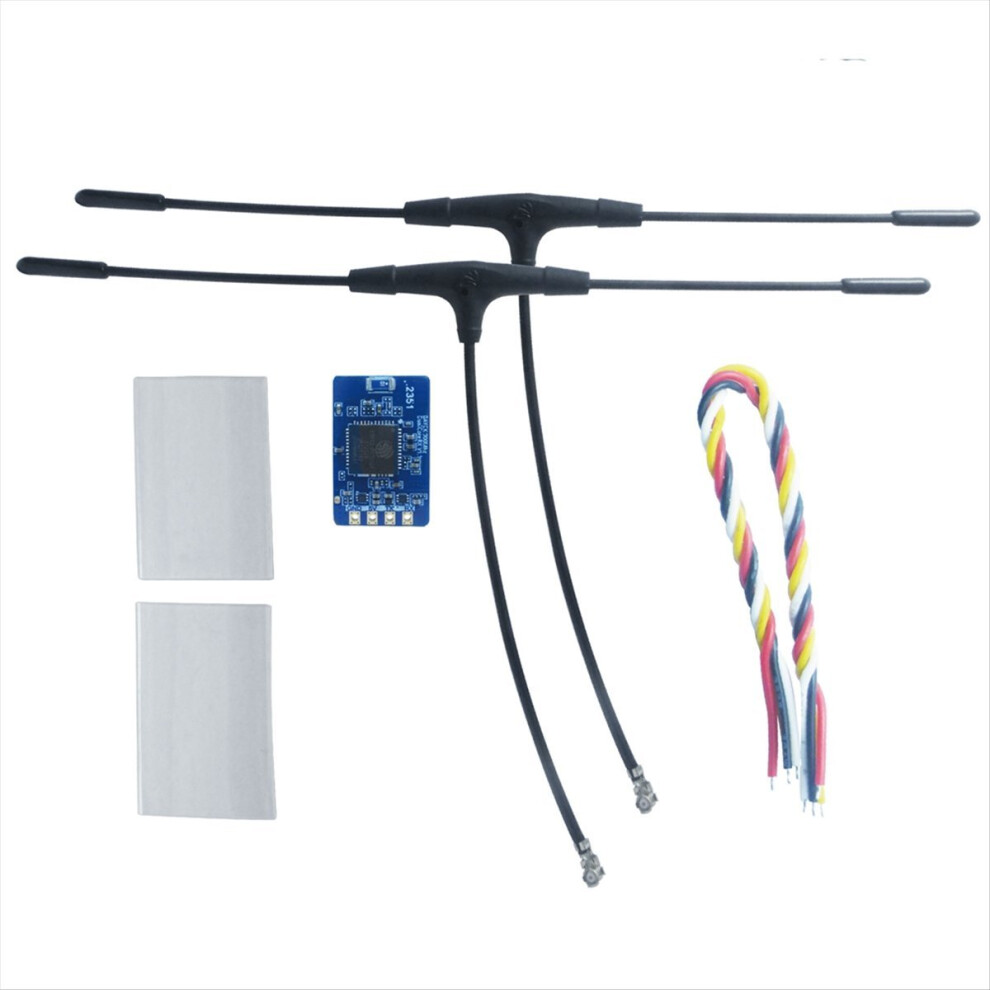

Package Contents:
1x Receiver
2x Antenna

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
