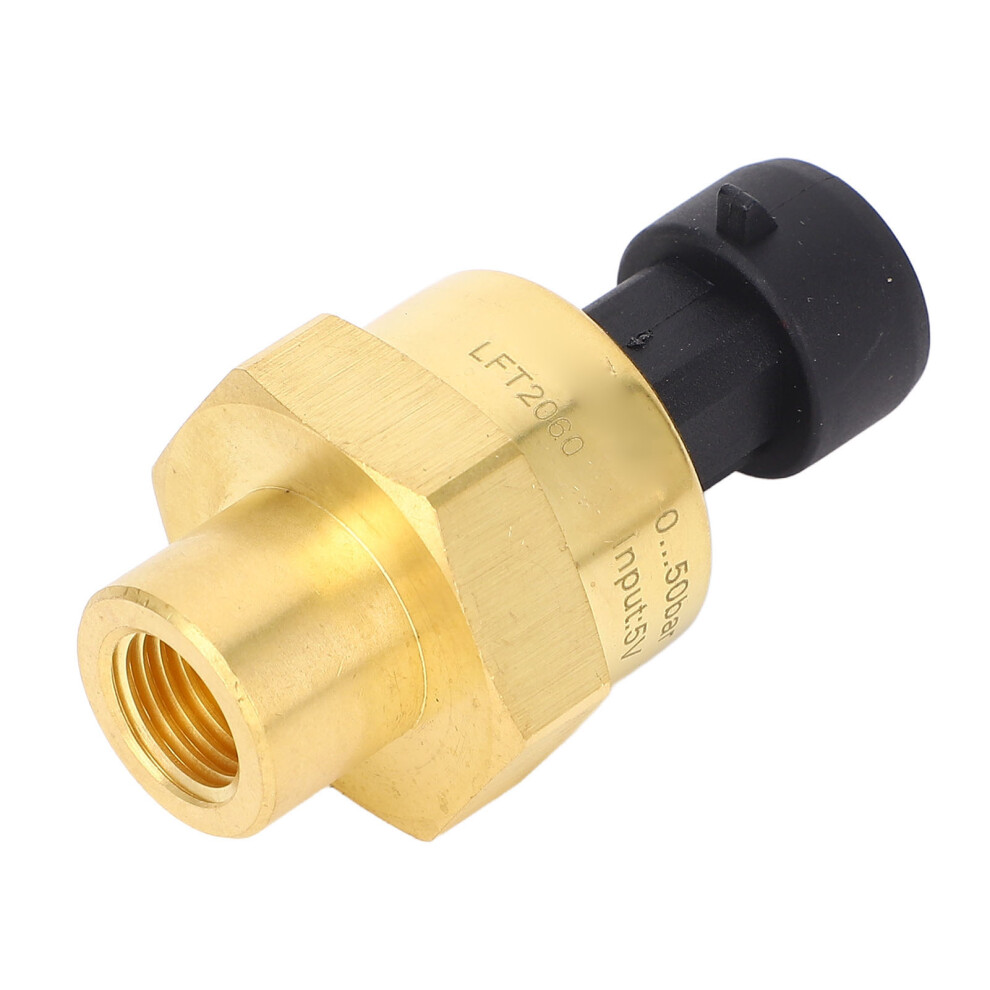

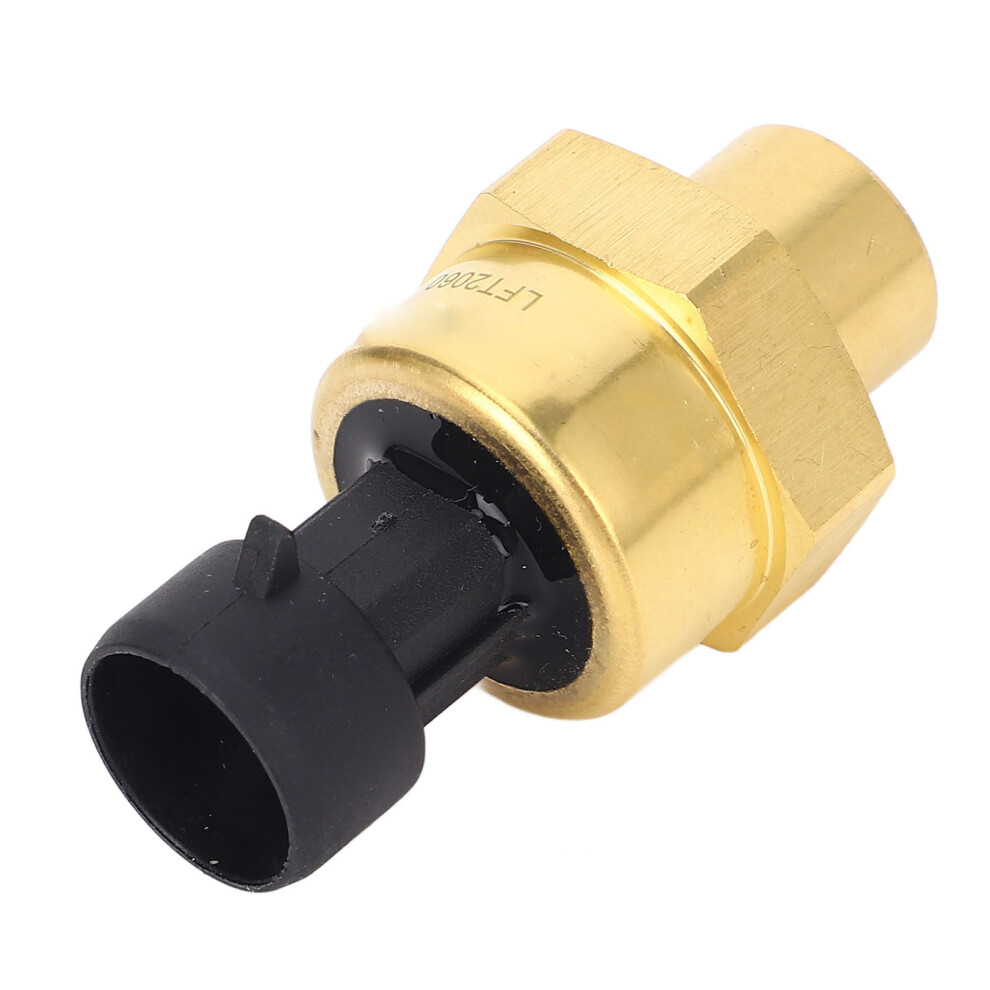

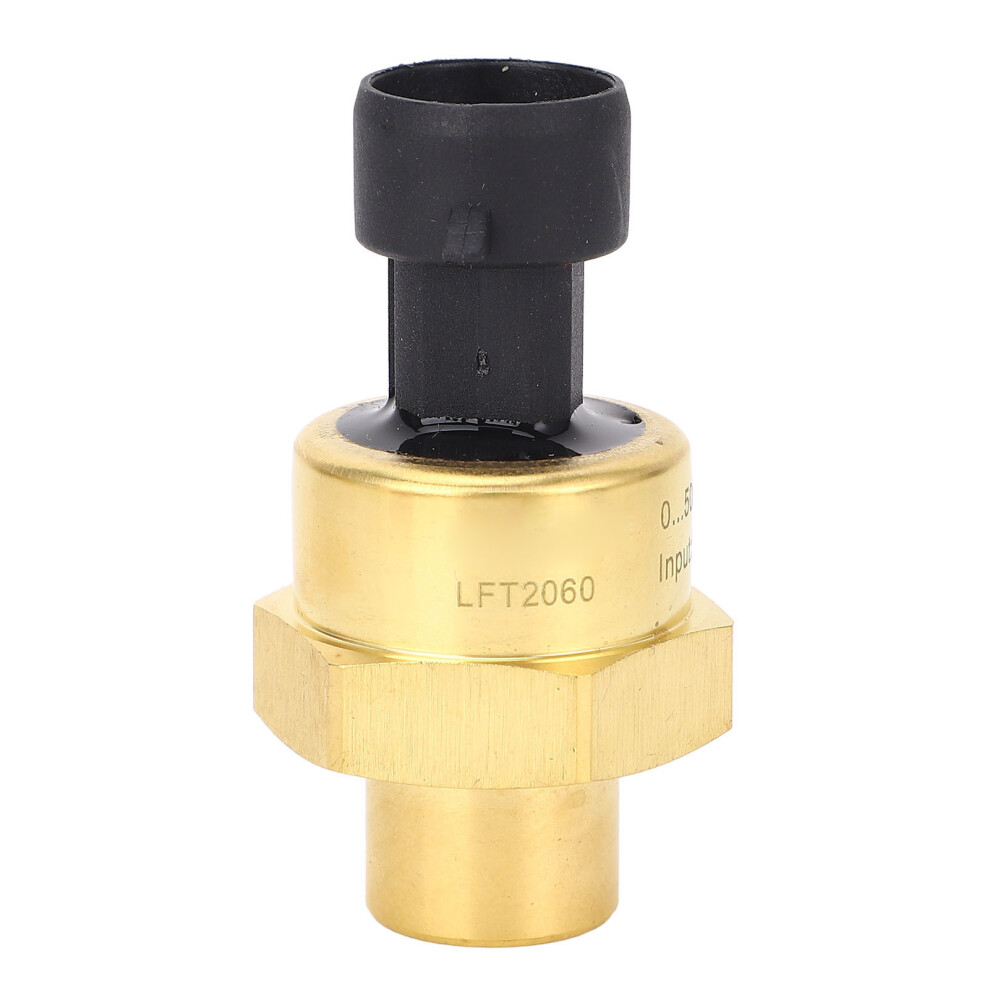

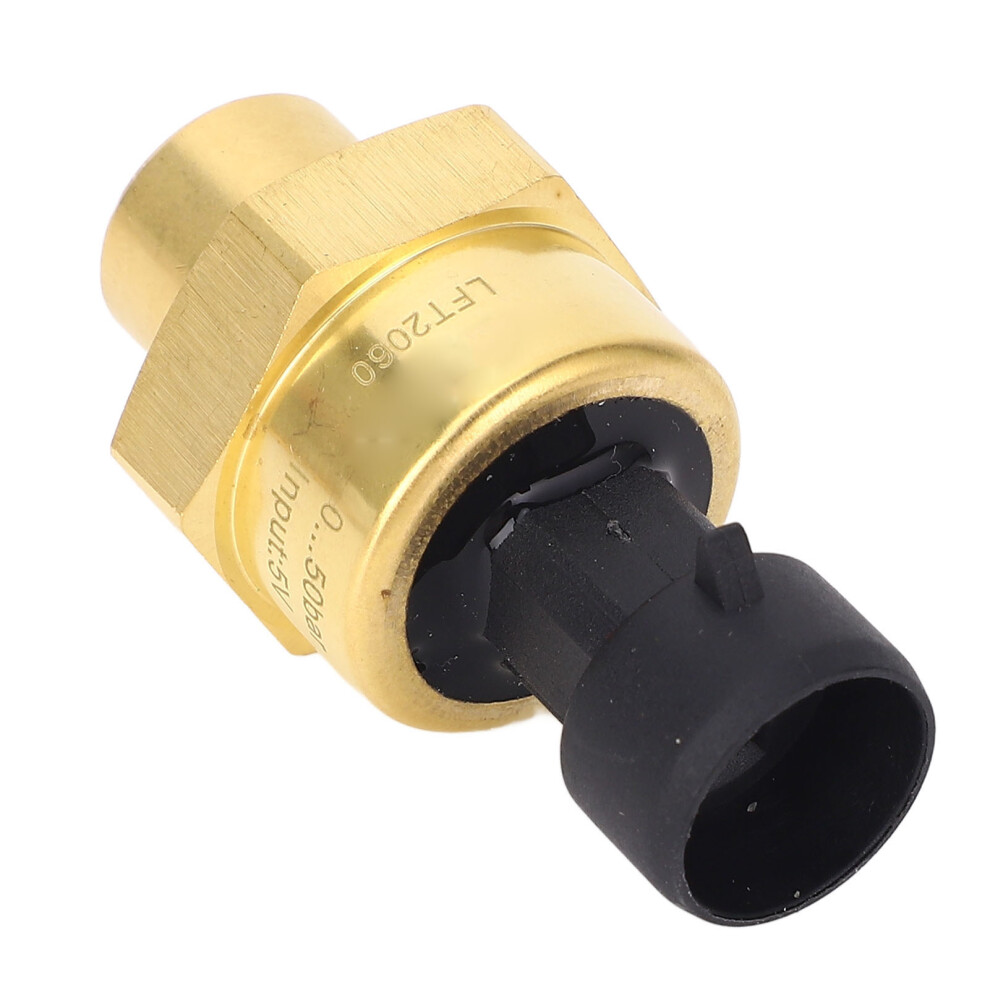

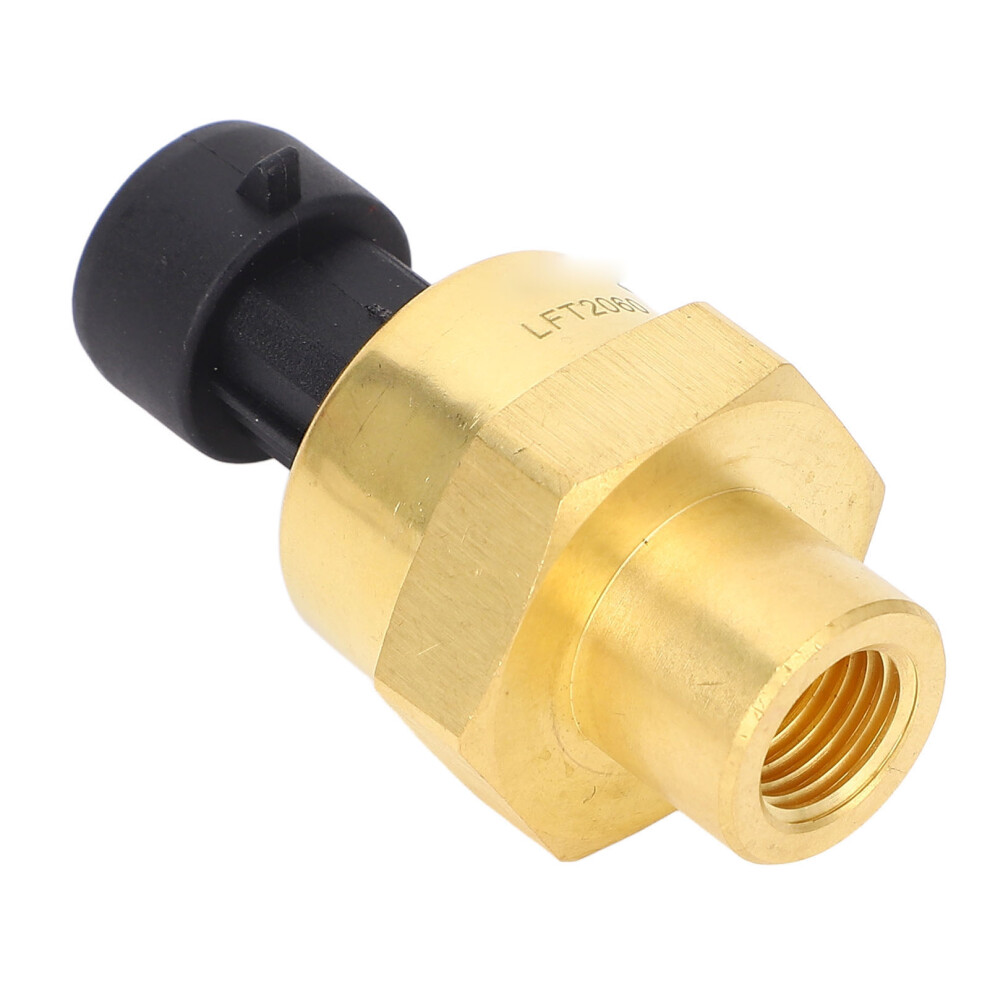

AC Refrigeration Pressure Transmitter 0-50 Bar IP67 Brass 4.75-5.25VDC

AC Refrigeration Pressure Transmitter 0-50 Bar IP67 Brass 4.75-5.25VDC Description

1、Brass Materials: Crafted from brass, this pressure transmitter features a high temperature resist plastic tail, ensuring durability in various demanding working environments. 2、High Overload Capacity: Designed to withstand high overload and rupture pressure, this sensor works across a wide temperature range with high accuracy and IP67 waterproofing to prevent condensation issues. 3、Minimal Output Error: Featuring an impressive output error of just 1.5% FS across the entire temperature range, our pressure sensor ensures high sensitivity and accuracy for dependable performance. 4、Wide Measuring Range: With a measurement range of 0 to 50 bar, this pressure transmitter is versatile enough for various applications, meeting the demands of both commercial and industrial settings. 5、High Reproducibility: Providing exceptional performance in non linearity, hysteresis, and repeatability, our pressure sensor ensures consistent readings, making it a vital tool for accurate monitoring.
Item Type: Refrigeration Pressure Transmitter
Material: Brass
Range: 0-50 bar
Output: 0.5-4.5V (Proportional output)
Overload Pressure: 2 times the rated pressure
Burst Pressure: 3 times the rated pressure
Accuracy: 2.5%F.S (-40 to 120)
Operating Temperature: -40 to 120
Supply Voltage: 4.75-5.25VDC
Insulation Strength: 1800VAC for 1 second
Electrical Connection: for Parker connector
Pressure Port: 7/16-20UNF internal thread
Pressure Type: Gauge pressure (G)
Enclosure Safety: IP67
1 x Refrigeration Pressure Transmitter
1 x User Manual
