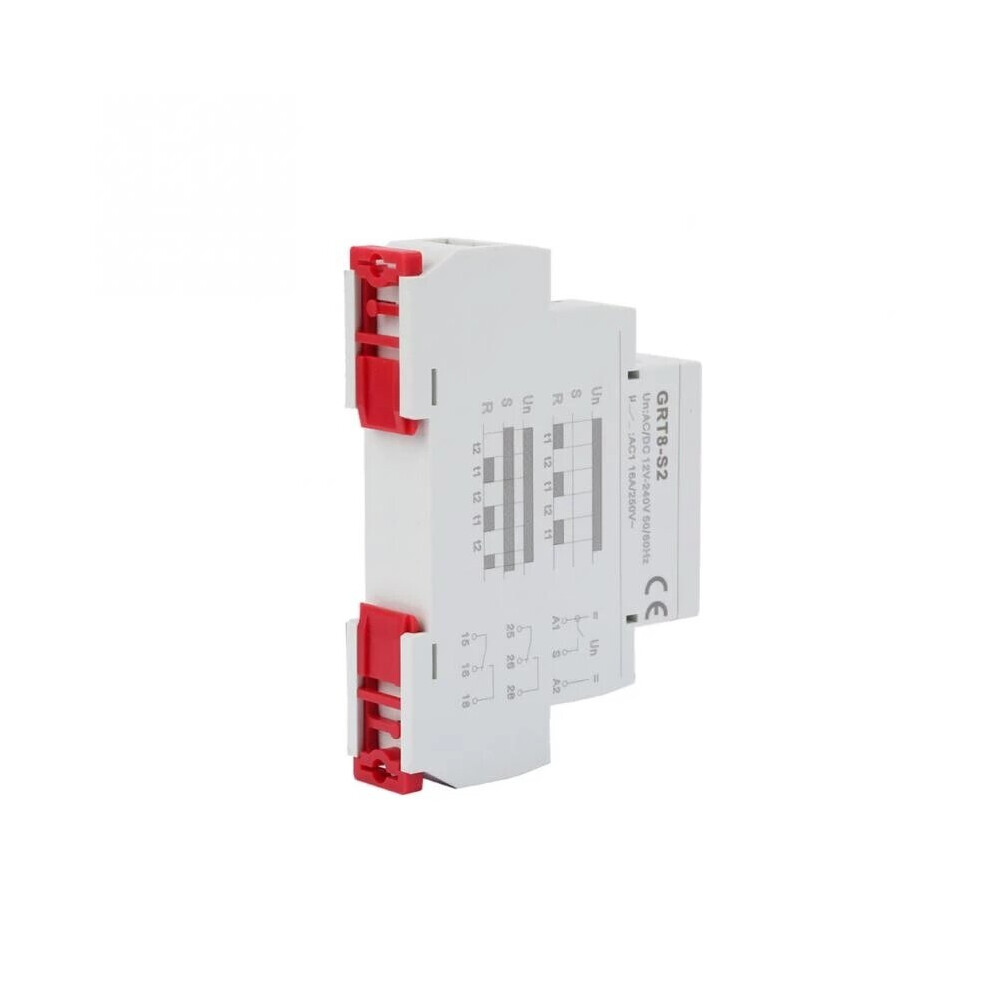

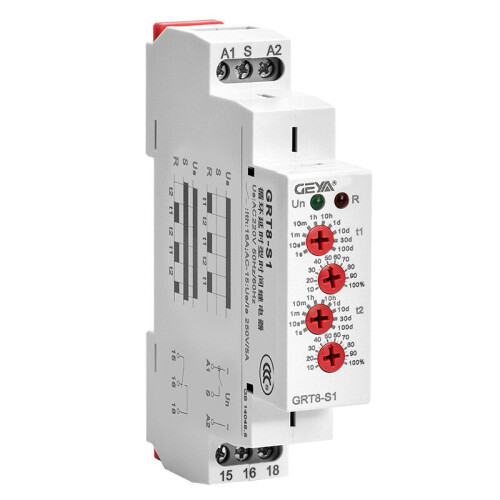

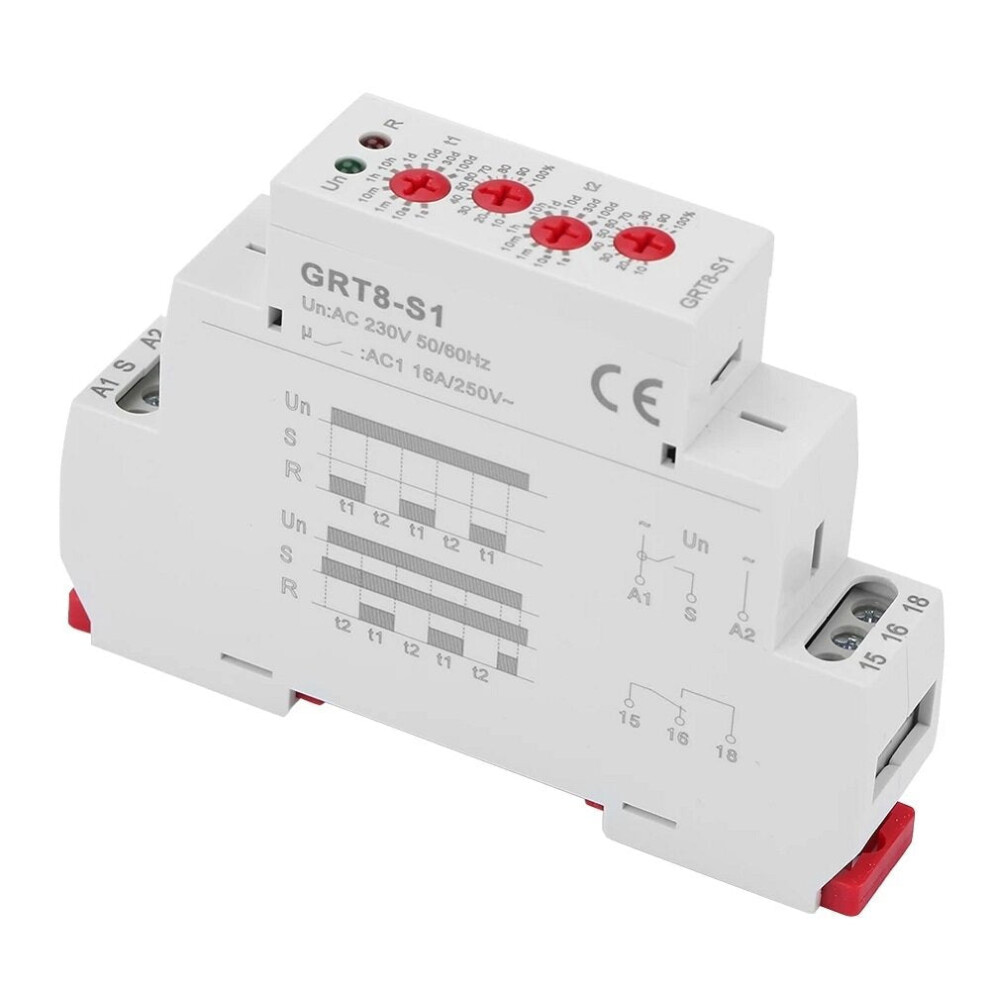

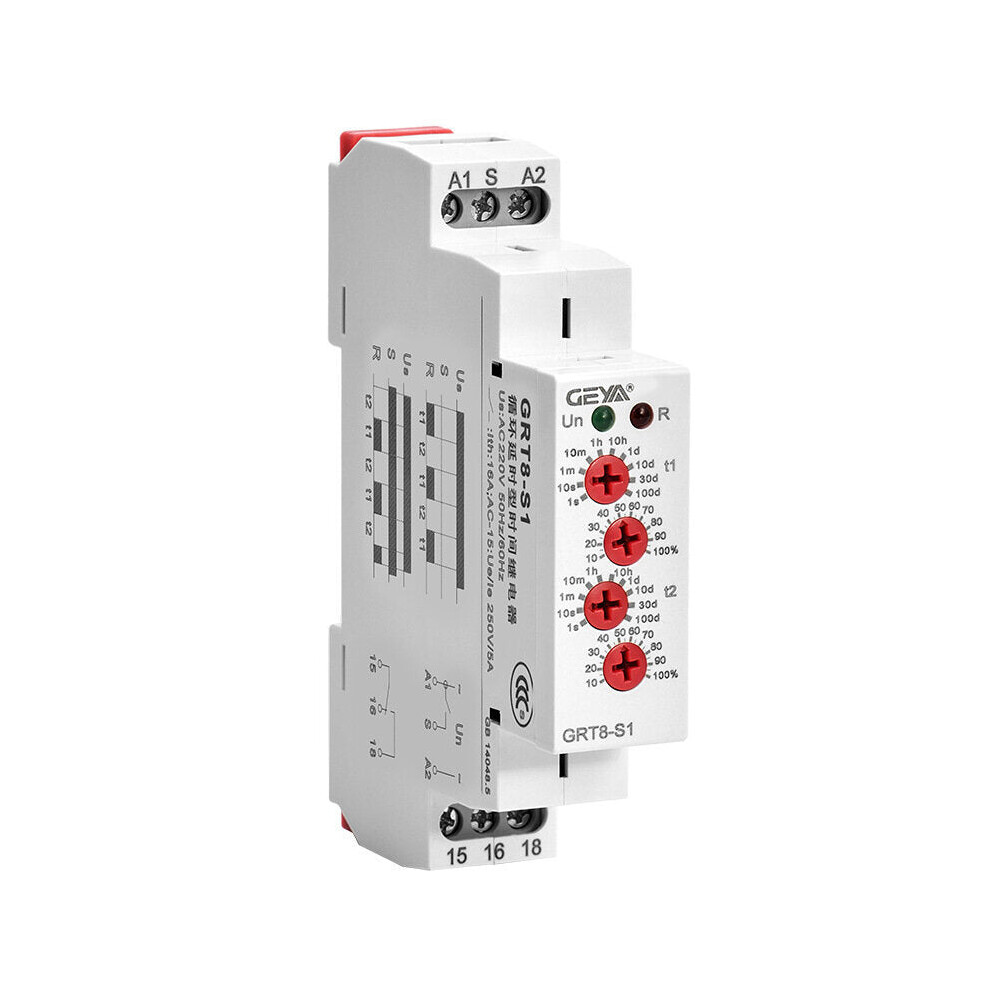

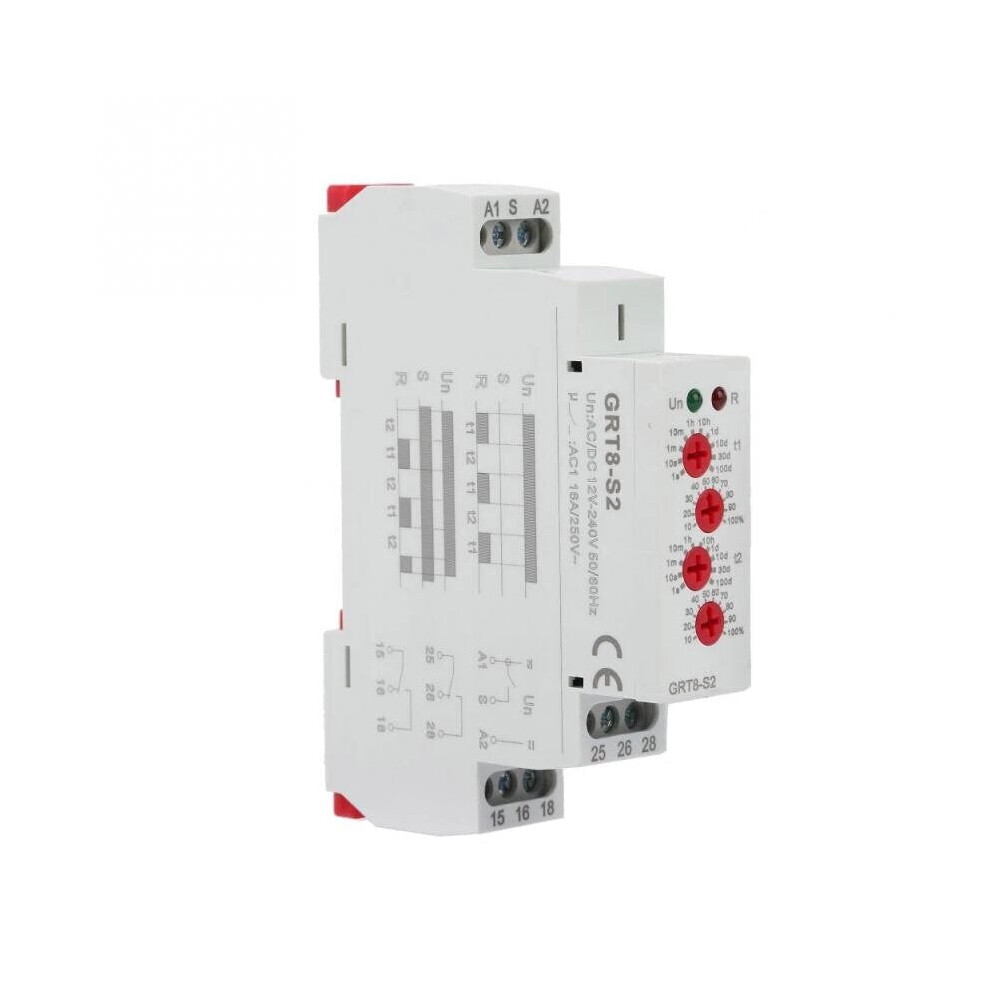

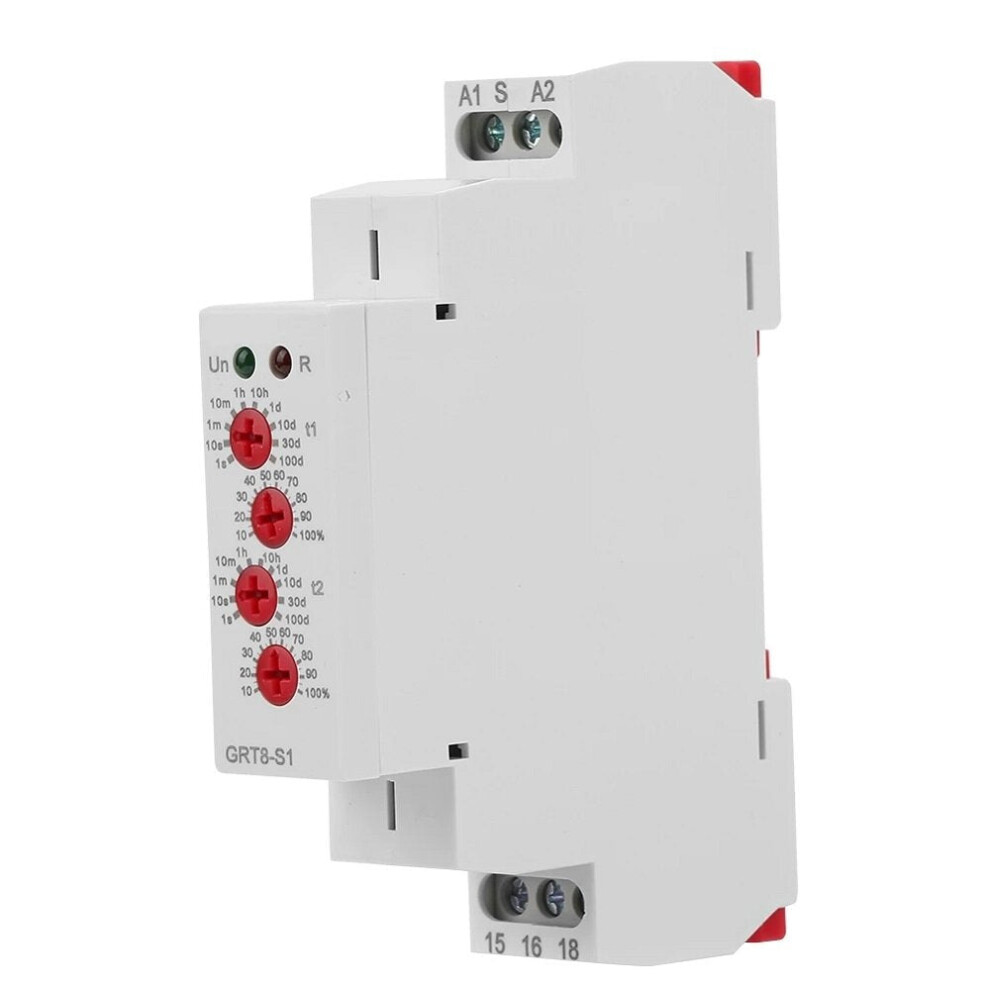

(AC/DC12-240V, S2) Mini Timer Relay Asymmetric Cycle Timer ON/OFF Repeat Cycle Time Relay,230V AC/DC 12-240V

(AC/DC12-240V, S2) Mini Timer Relay Asymmetric Cycle Timer ON/OFF Repeat Cycle Time Relay,230V AC/DC 12-240V Description

Features:
1. Time setting for delay ON and OFF is separated so you can set different delay time.
2. Super wide delay time range, 0.1 second - 100 days settable (10 selections).
3. Switch different working modes by short-circuiting S-A1.
4. Relay working status is indicated by LED indicators.
5. With small volume, this relay can be mounted on 35mm DIN rail.
6. It is used for cycle delay control, providing periodic energizing, lighting control and heating control for electric circuit.

Specification:
Rated supply voltage: AC 230V AC/DC 12-240V(50-60Hz);
Power consumption: S1: AC max.6VA/1.3WS2: AC 0.09-3VA / DC 0.05-1.7W;
Delay time range: 0.1s-100days, NO, NC;
Setting method: knob;
Setting accuracy: 10%;
Repeated accuracy: 0.2%;
Temperature fluctuation error: 0.05%/, at = 20;
Output contact: S1: 1 x SPDT, 16A/AC1S2: 2 x SPDT, 2 x 16A/AC1;
Minimum switching power: 500mW;
Power indicator: Green LED;
Output relay indication: Red LED;
Mechanical life: 1 x 107;
Electrical life: 1 x 106;
Reset time: Max 200ms;
Working temperature: -20~55;
Storage temperature: -35~75;

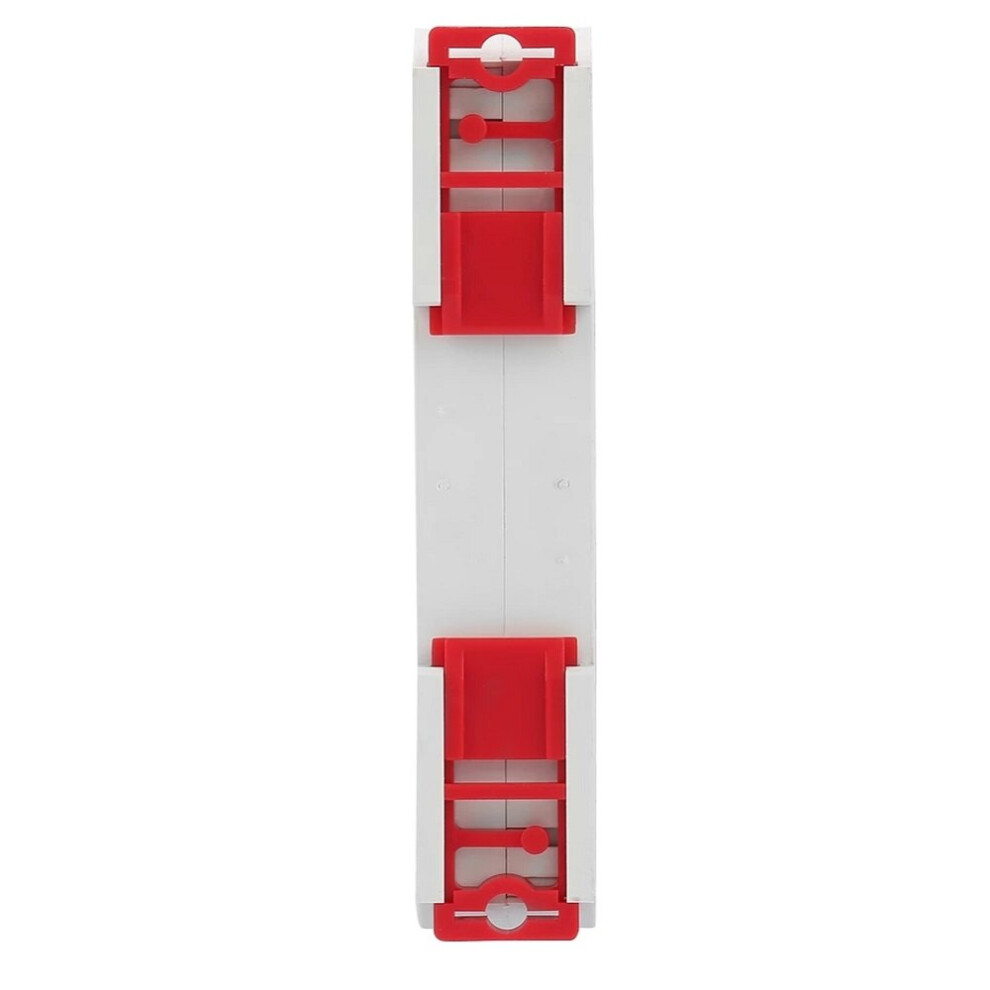

Mounting method: 35mm DIN rail;
Protection grade: IP20;
Wiring capability: 1x2.5mm2 / 2x1.5mm2;
Dimensions: 90 x 18 x 64mm / 3.54 x 0.71 x 2.52in;
Package weight: Approx. 75g/2.6oz;

Package included:
1 x Cycle Timer Relay
