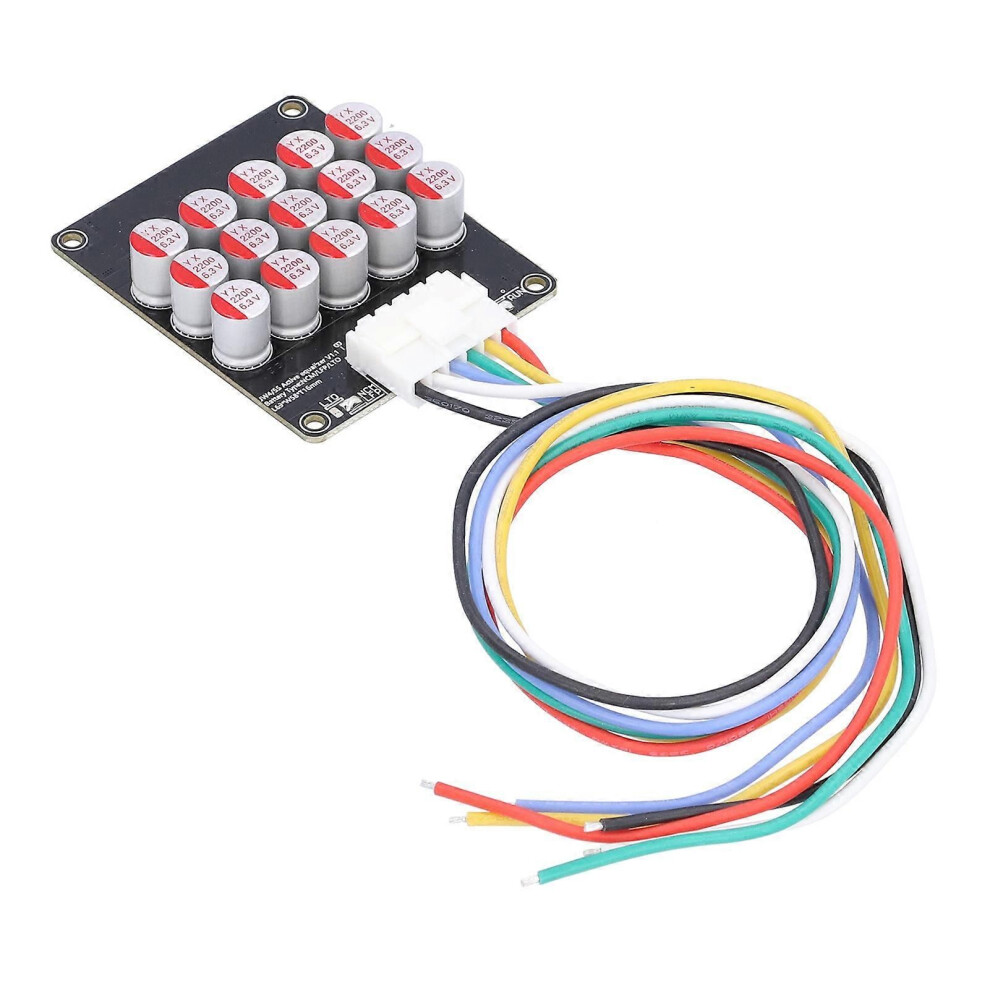

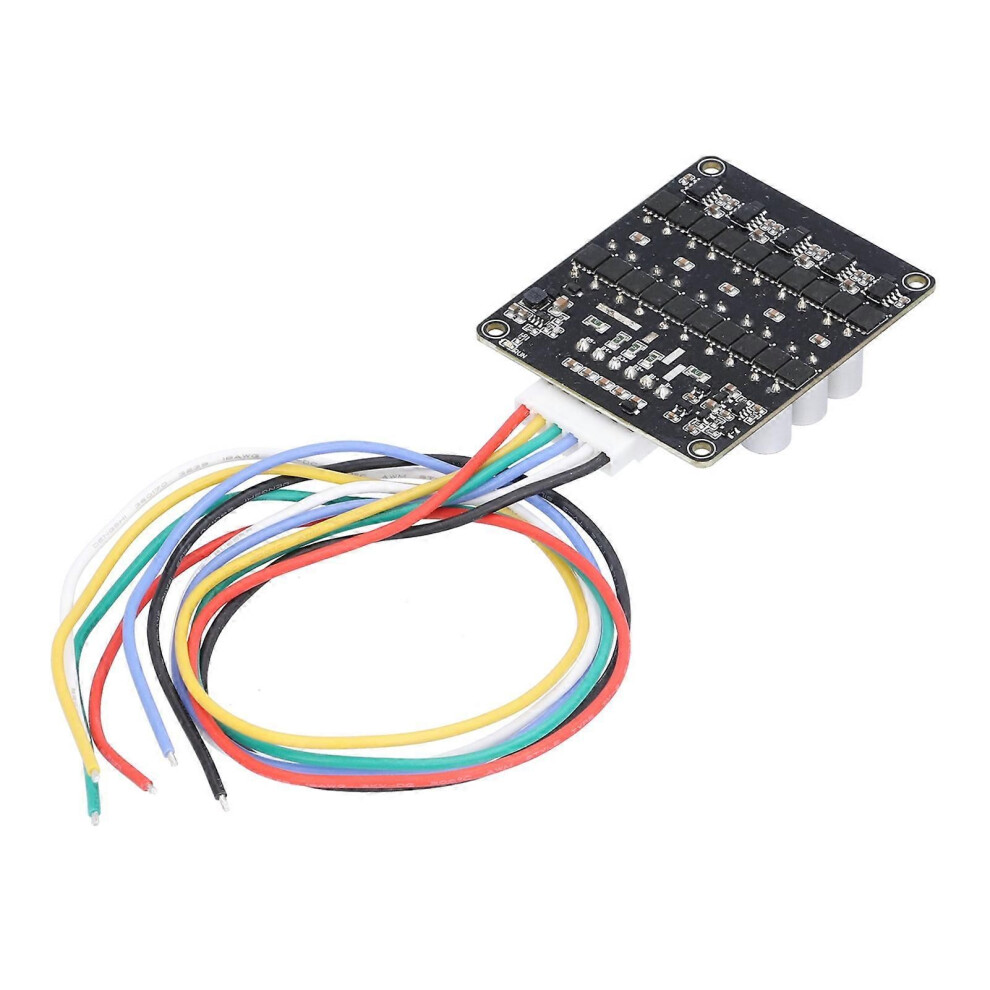

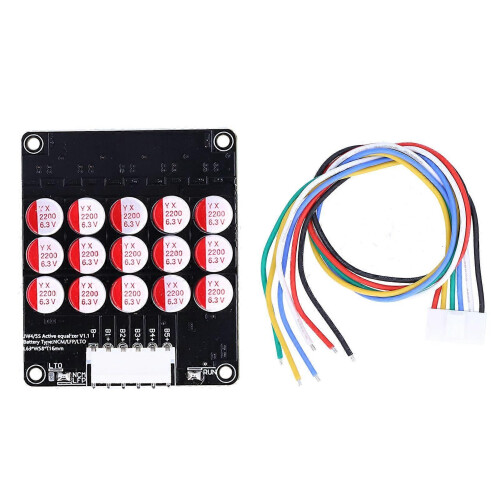

Active Battery nce Power Transfer Board Accessory for NCM LFP LTO5S

Active Battery nce Power Transfer Board Accessory for NCM LFP LTO5S Description

Active Battery nce Power Transfer Board Accessory for NCM LFP LTO5S
Feature:
1. This battery active equalizer suite for ternary lithium battery, lithium iron phosphate battery, and LTO battery.
2. Using ultra low internal resistance MOS and premium Printed Circuit Board, ensuring excellent balance effect.
3. The working voltage is 1.8V to 4.2V, and when it's lower than 3.0V, it will automatically stop and enter dormant state.
4. The balance accuracy is 5MV, the sleep current is less than 0.1mA, and the efficiency is very high.
5. No external power supply is required, and the transfer is carried out by means of the internal energy transfer of the battery and the balance of the entire battery pack.
Specification:
Item Type: Battery Active Equalizer
Material: Printed Circuit Board
Function: Suitable for NCM battery, LFP battery, LTO battery.
Sleep Current:
Balance Current: 0-5.5A
Working Environment Temperature: -10 - 60.
Parameter
Model
3S
4S
5S
Applicable Serial Number
3s
3/4s
4/5s
Applicable Battery Type
NCM/LFP/LPO
Single Voltage Working Range
NCM/LFP: 3.0-4.2V LTO:1.8-3.0V
Voltage Balance Accuracy
5mv(typical)
Balance Mode
The entire battery participates in the active balance of energy transfer at the same time.
Undervoltage Protection Sleep Voltage
NCM/LFP: 3.0V LTO：1.8V
Quiescent Working Current
14mA
12mA
9mA
.
Package List:
1 x Battery Active Equalizer1 x Connecting Cable
Note:
The quiescent current is about 12 mA, and it is recommended to be used for batteries with a battery capacity of 60‑300 AH.
