Adjustable 360 PIR Infrared Body Motion Sensor Light Switch for Ceiling AU

Adjustable 360 PIR Infrared Body Motion Sensor Light Switch for Ceiling AU Description

Mini Adjustable 360 Ceiling PIR Infrared Body Motion Sensor Detector Lamp Light Switch
Description:

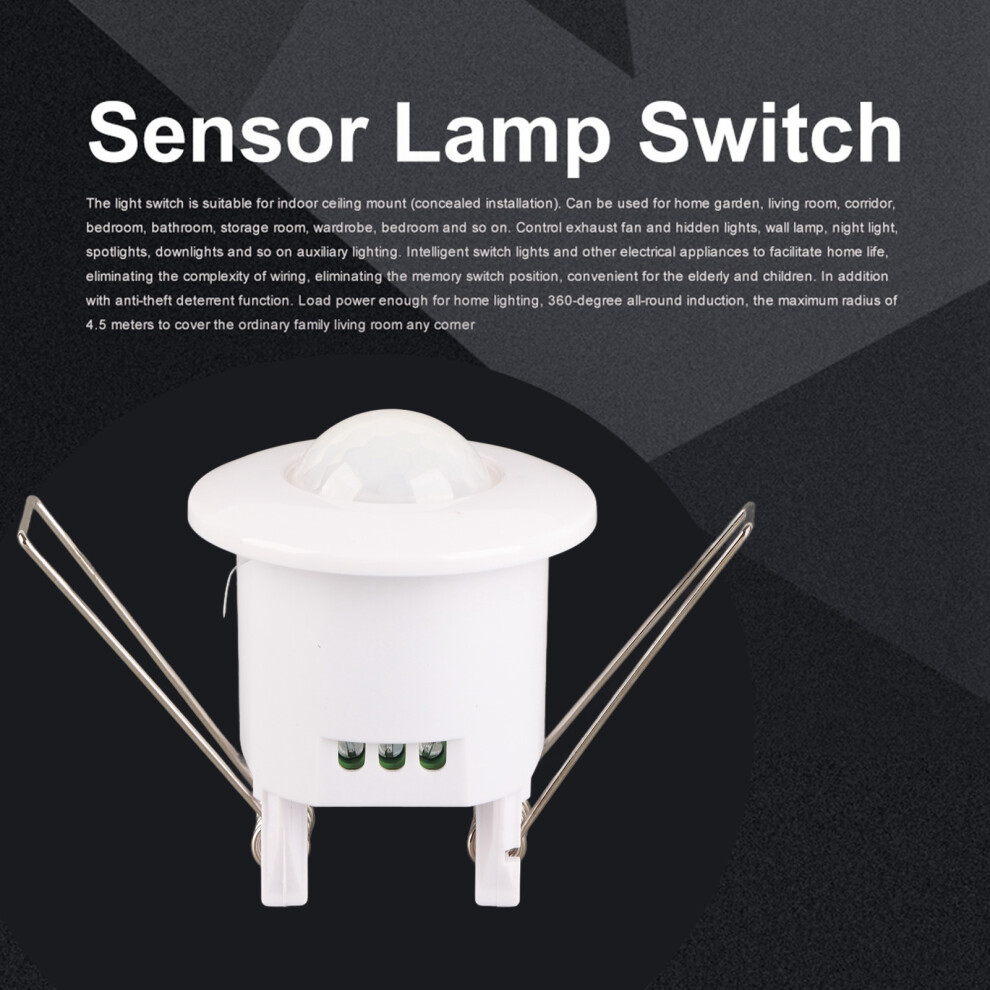

The light switch is suitable for indoor ceiling mount (concealed installation). Can be used for home garden, living room, corridor, bedroom, bathroom, storage room, wardrobe, bedroom and so on. Control exhaust fan and hidden lights, wall lamp, night light, spotlights, downlights and so on auxiliary lighting. Intelligent switch lights and other electrical appliances to facilitate home life, eliminating the complexity of wiring, eliminating the memory switch position, convenient for the elderly and children. In addition with anti-theft deterrent function. Load power enough for home lighting, 360-degree all-round induction, the maximum radius of 4.5 meters to cover the ordinary family living room any corner.
Features:
1.The product adopts good sensitivity detector, integrated circuit.

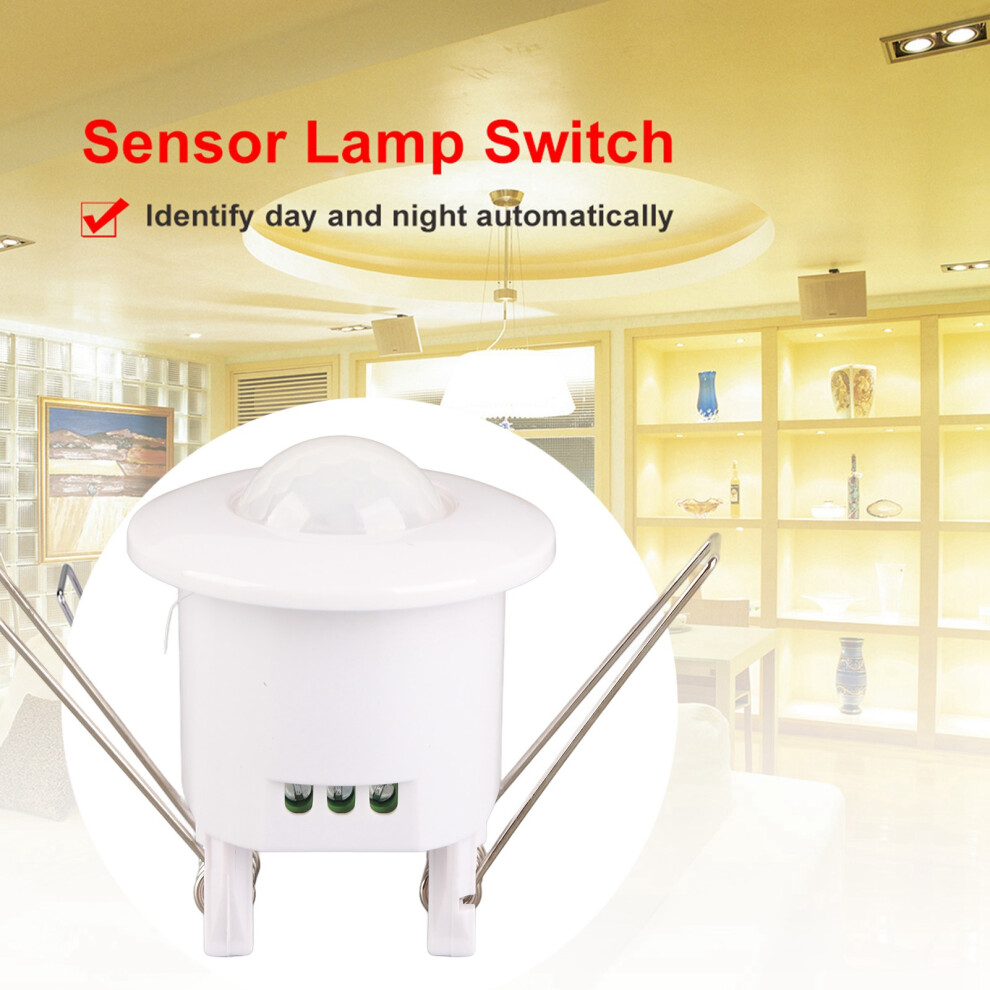

2.Identify day and night automatically.
3.Time-delay is added continually.
4.It gathers automatism, convenient safe, saving-energy and practical function.
5.CE certification is acquired.
Specifications:
1. Power Frequency: 50Hz / 60Hz
2. Ambient Light: 3-2000LUX (Adjustable)
3. Time-delay Adjustment: Minimum 10+-3sec; Maximum 7+-2min.
4. Rated Load: 800W Maximum Tungsten; 300W Maximum Florescent
5. Detection Range: 360
6. Working Temperature: -10~+40
7. Working Humidity: <93%RH
8. Installing Height: 2.5m~3.5m
9. Power Consumption: 0.45W (Work); 0.1W (Static)
10. Detection Motion Speed: 0.6~1.5m/s

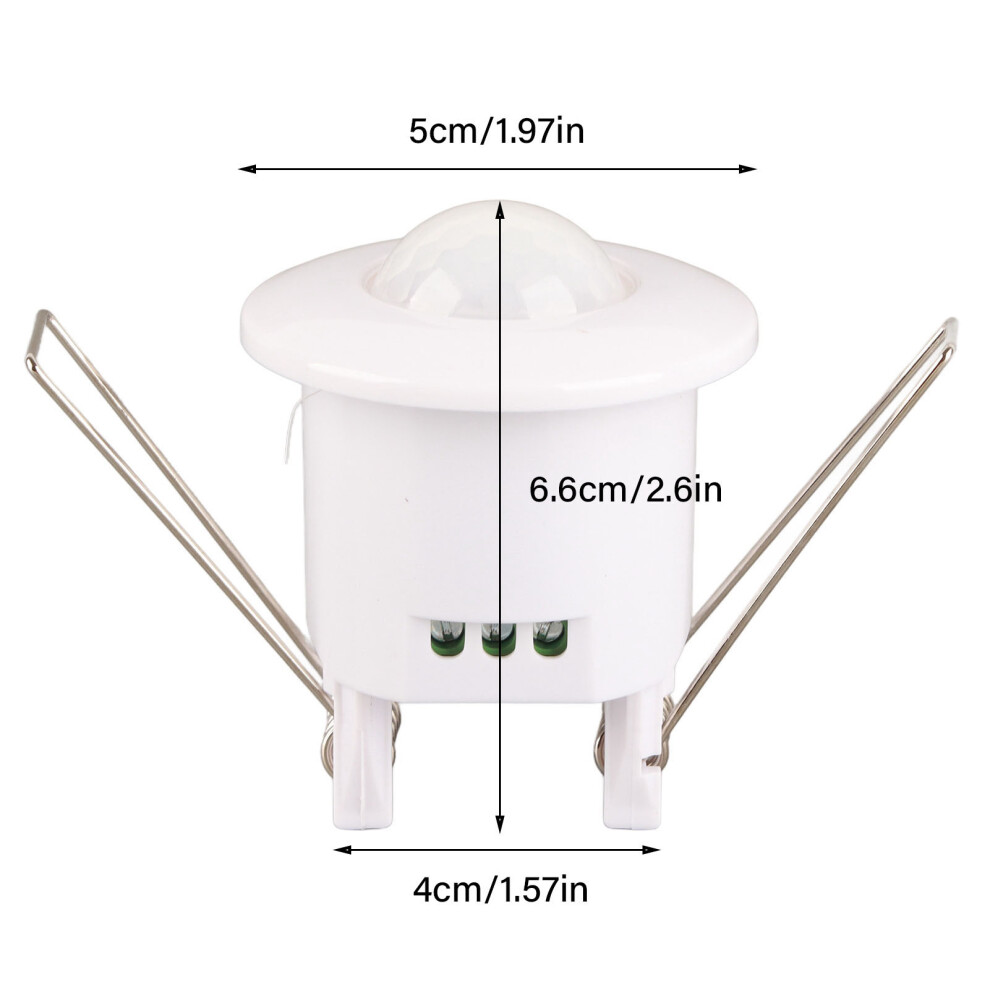

11. Size: Approx. 6.6 * 5cm / 2.6 * 2.0inch
12. Weight: Approx. 72g
Installation:
1. Turn off the power.
2. Removing the transparent vinyl cover what is in the bottom of the sensor.
3. Loosing the screws in the connection terminal, connecting the power and rated load to connection terminal of sensor according to connection sketch map.
4. Tighten the screws; put the transparent vinyl cover into the the original station.
5. Folding the metal spring of the sensor to upwards, until they are in "I" position with sensor, then put the sensor into the hole or installation boa what is in the ceiling, the size is similar with item. Releasing the spring, the sensor will be set in this installation position.
Package Included:
1 x Infrared Motion Sensor
Note:
1. It should be installed by electrician or experience man.
2. Avoid installing it on the unrest objects.
3. Please allow 1-2cm error due to manual measurement. Thanks for your understanding.
4. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
