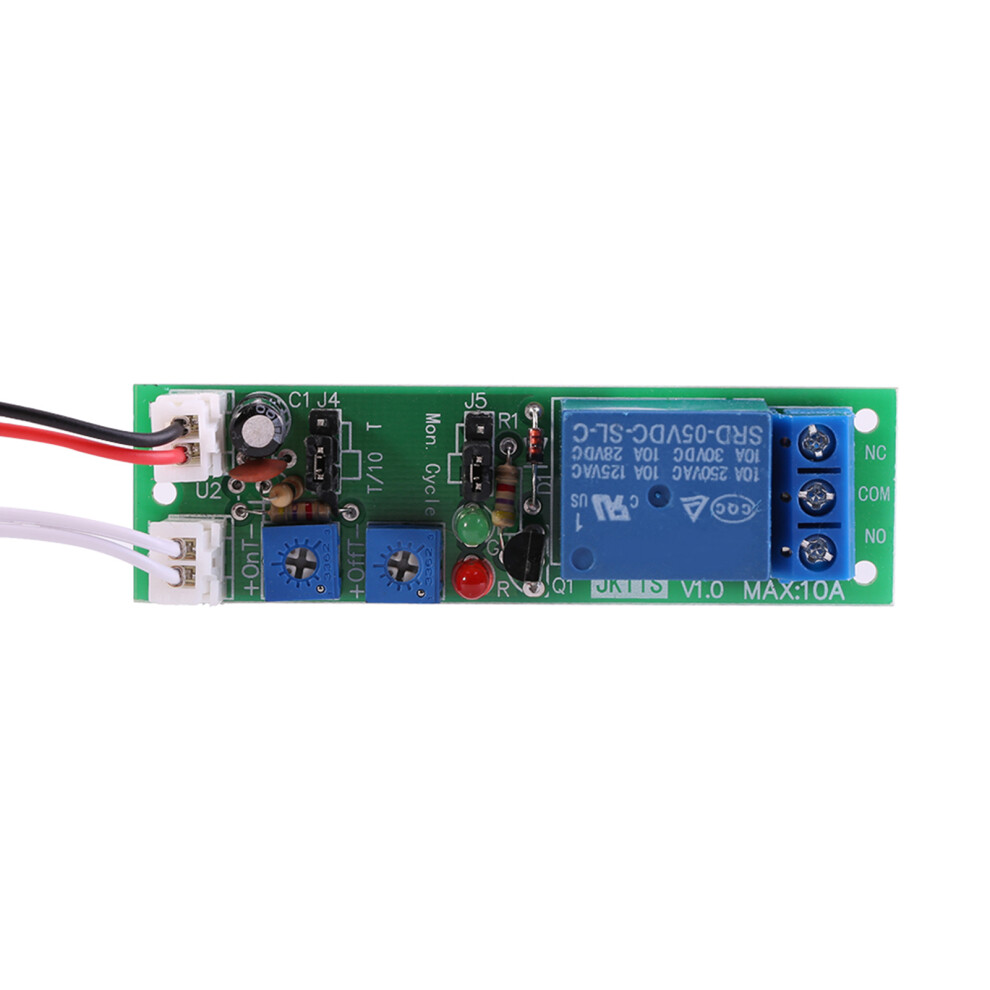

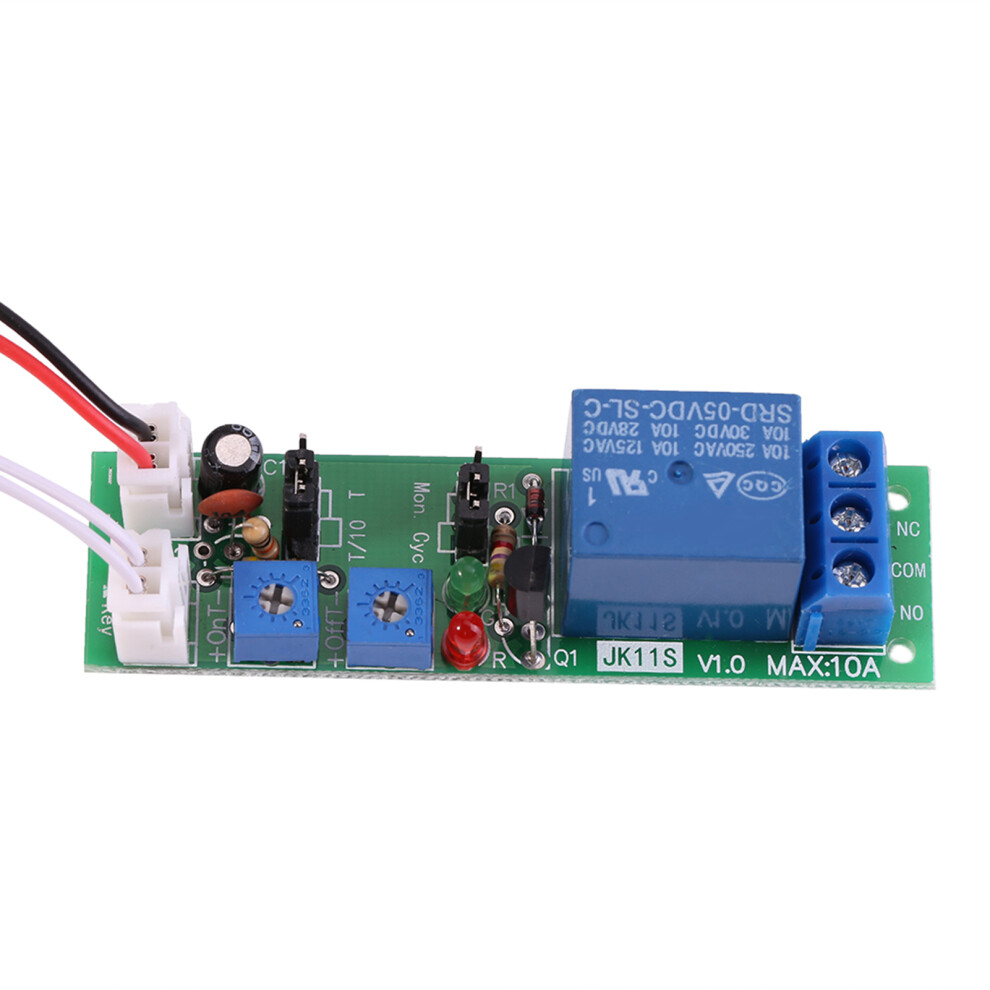

Adjustable Cycle Timer Delay On/Off Relay Module 5V 70*20*18mm

Adjustable Cycle Timer Delay On/Off Relay Module 5V 70*20*18mm Description

Adjustable Cycle Timer Delay On/Off Switch Relay Module (DC5V,0-24hr)

Features:

It is a timer relay module with high precision, stable and reliable performance.


Support 2 modes, mon mode(once) and cycle mode, and you can simply switch mode by adjusting the jumper.

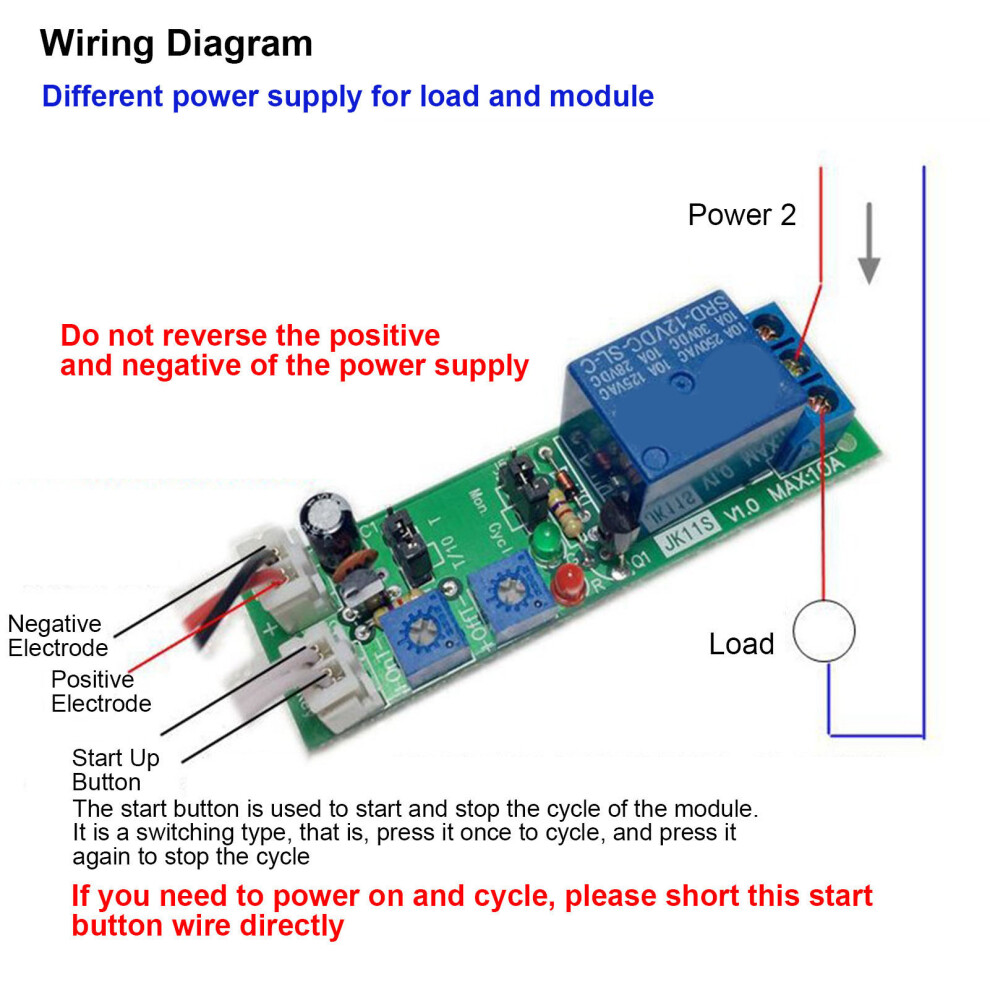

Connect 2 wires of "Key" if you need module to work recurrently after power on.



Widely used on timer operating equipment, machine repetitive test circuit, fish tank intermittent pump, etc.


Specifications:
Quiescent Current: <10mA
Dynamic Current: 45mA@12V; 90mA@5V; 30mA@24V
Contact: 1 group NO+NC
Size: 70*20*18mm / 2.75*0.78*0.7"
Time Accuracy: Max value*0.001

Mon. Mode:
    1. The module Power-on, When triggered the relay is switched on, timer delay off.
    2. When triggered on the delay process, again triggered, it will immediately interrupt the delay.
Cycle Mode:
    1. The module Power-on, When triggered the relay is switched on, (T1) timer delay off. (T2) timer delay
       on. Such cycle. T1 and T2 are set by two adjustable resistors, respectively.
    2. When triggered on the delay process, again triggered, it will immediately interrupt the delay.

Package Includes:
1 x Timer Relay Module
