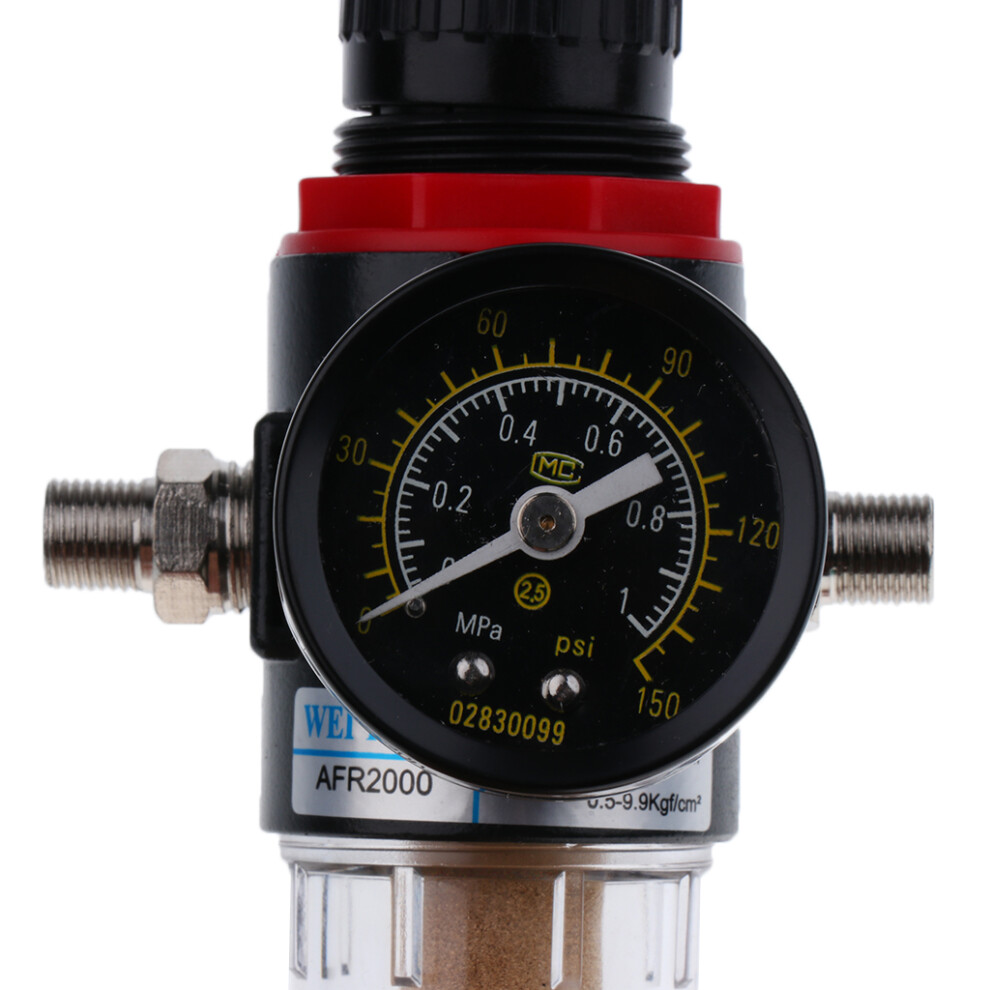

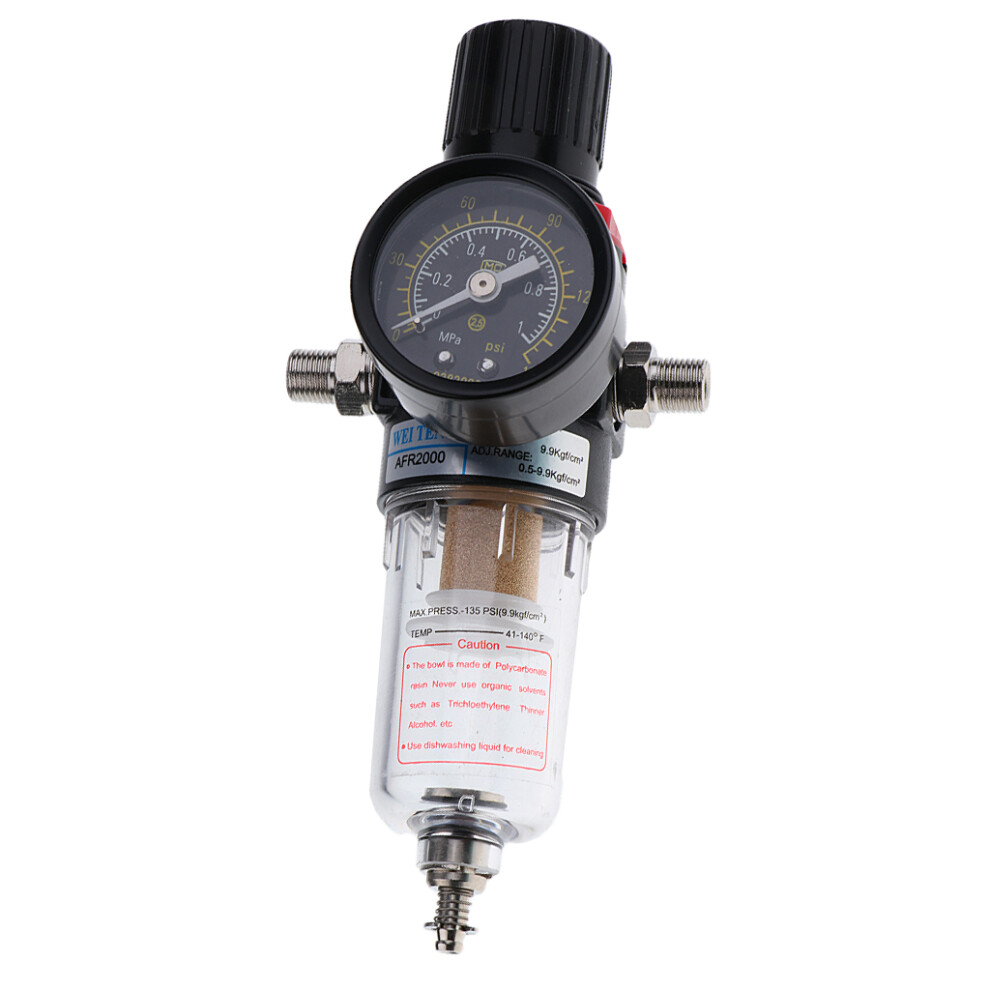

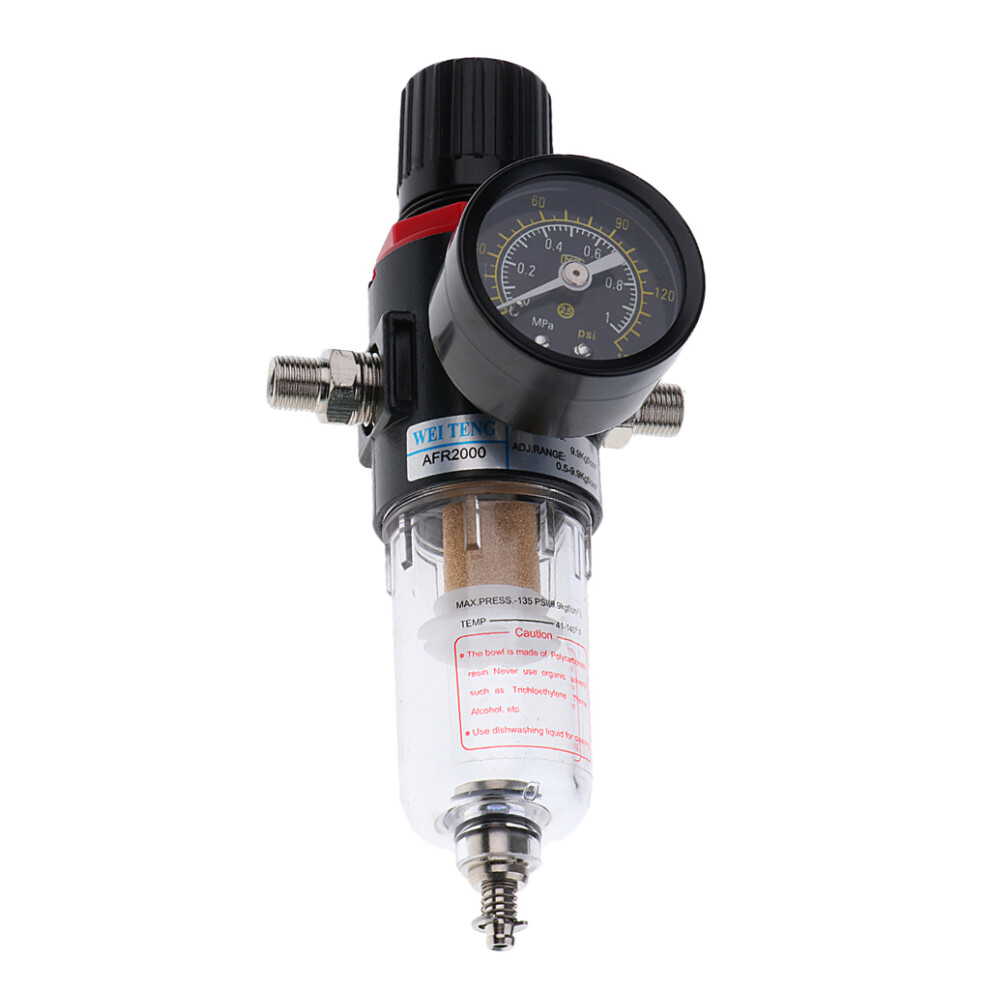

AFR-2000 G1/4'' Air Compressor Water Filter w/ Regulator Air Tool Clea

AFR-2000 G1/4'' Air Compressor Water Filter w/ Regulator Air Tool Clea Description

Description:

• Discharge water automatically

• Regulator valve adopts balanced inlet structure

• Widely used for pneumatic tool and components

• Help filter liquid and foreign particles from compressed air line

• With the advantages of stable pressure, high precision, and

• Filter adopts novel vane design with high division efficiency and differential pressure discharge device

Specification:

• Model: AFR2000 (AFR is the model, 2000 refers to the port size)

• Operating Fluid: Air

• Joint pipe bore: /4"

• Range of Adjustable Pressure: 0.05-0.99 Mpa

• Max. Adjustable Pressure: 0.99 Mpa

• Ensured Pressure Resistance: 1.5 MPa

• Operating Temperature Range: 5~60

• Filter Grade: 40 µ

• Capacity of Body: 15 cc

• Material: Metal,

• Size (After installation): Approx. 6.29 x 2.75 x 2.75 inch/16 x cm

• Color: Black or white(Random)


Package Includes:

• 1 x Pneumatic Filter Regulator

• 1 Gauge

• 2

Note:

Caution:

• 1. The bowl is made of polycarbonate resin never use solvents such as trichloroethylen, thinner alcohol .etc

• 2. Use dish washing liquid for cleaning.
