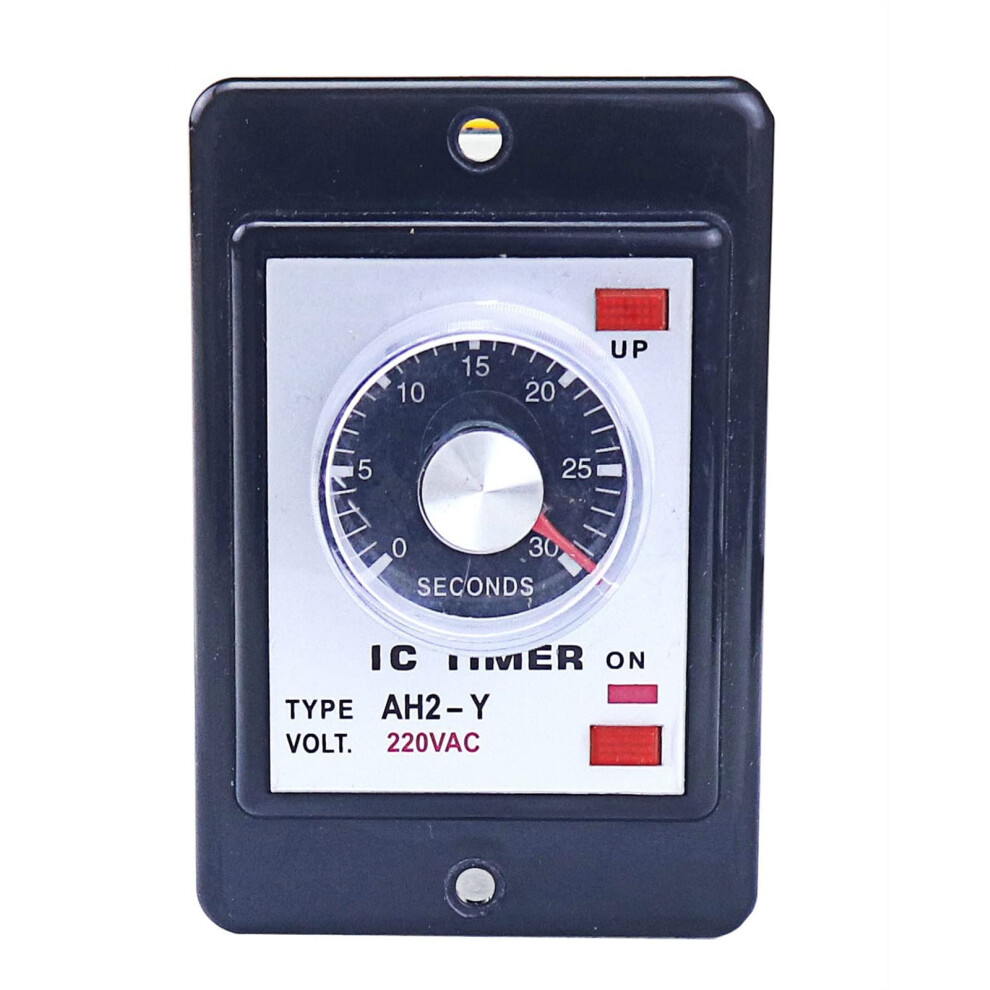

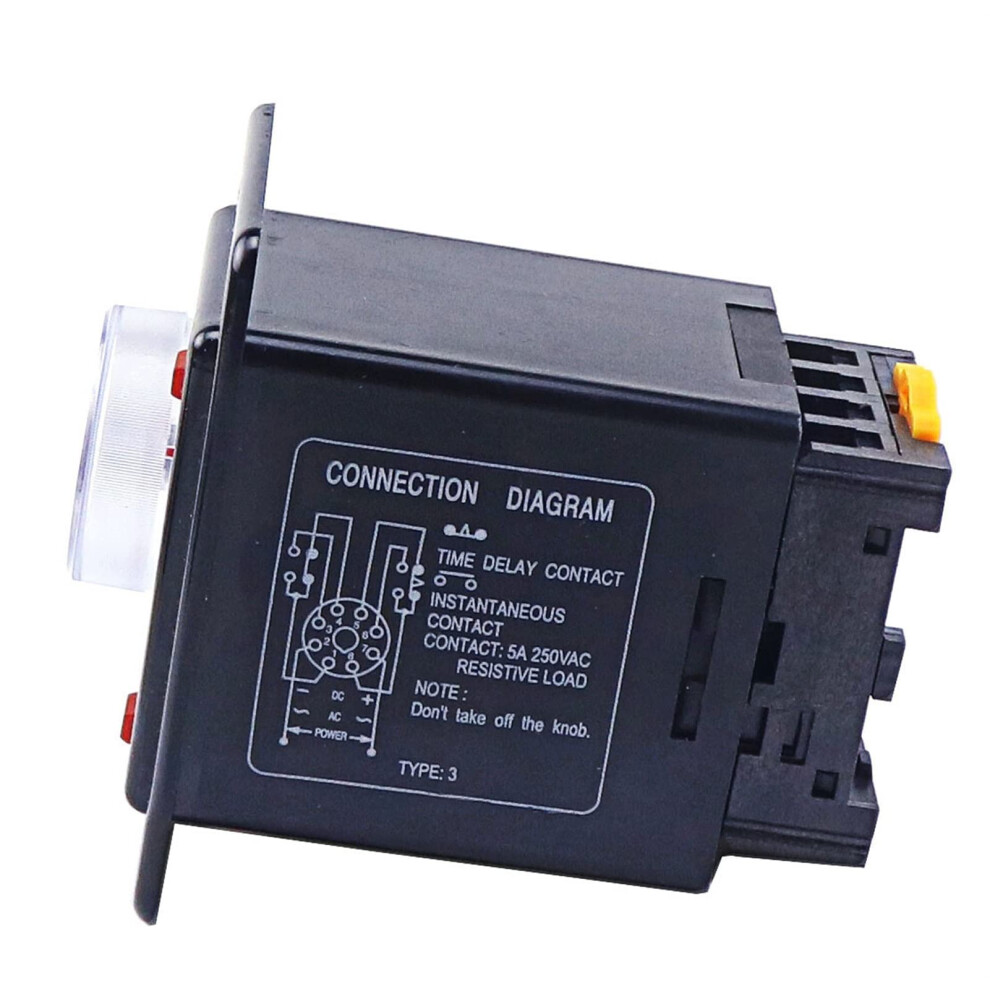

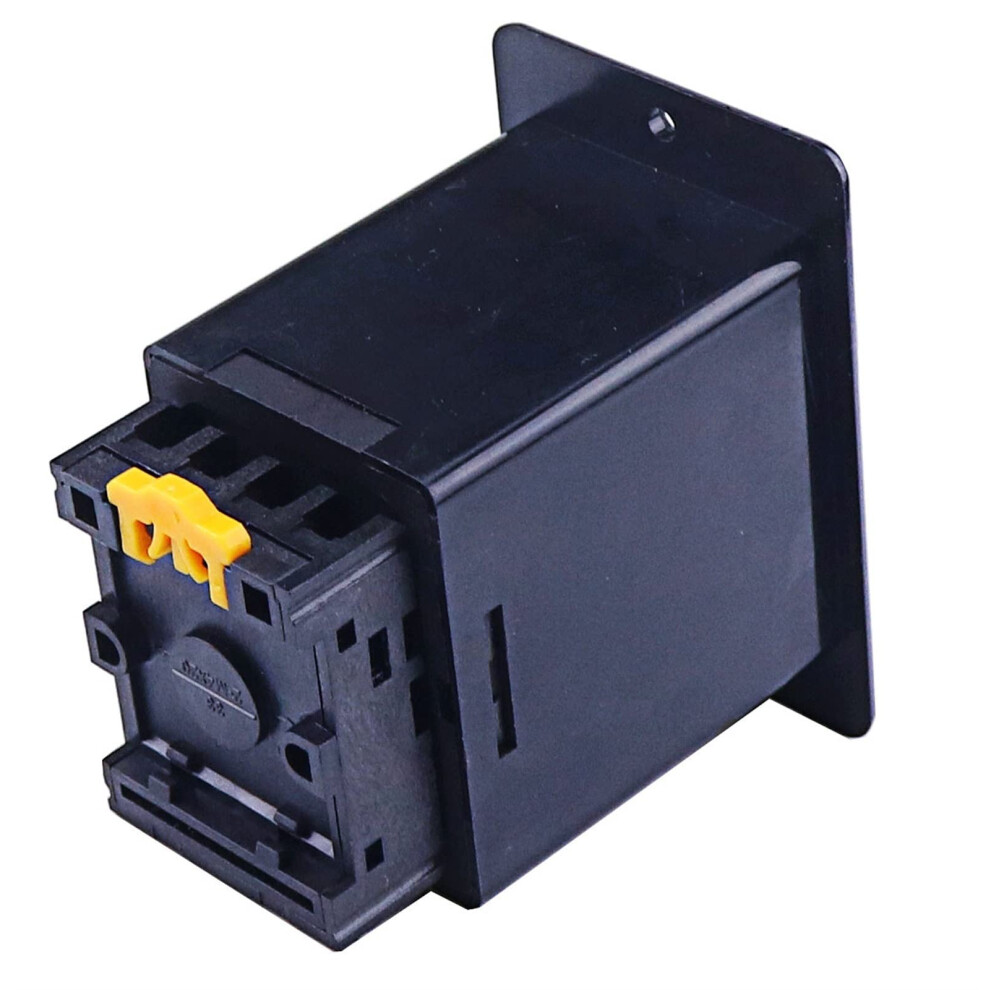

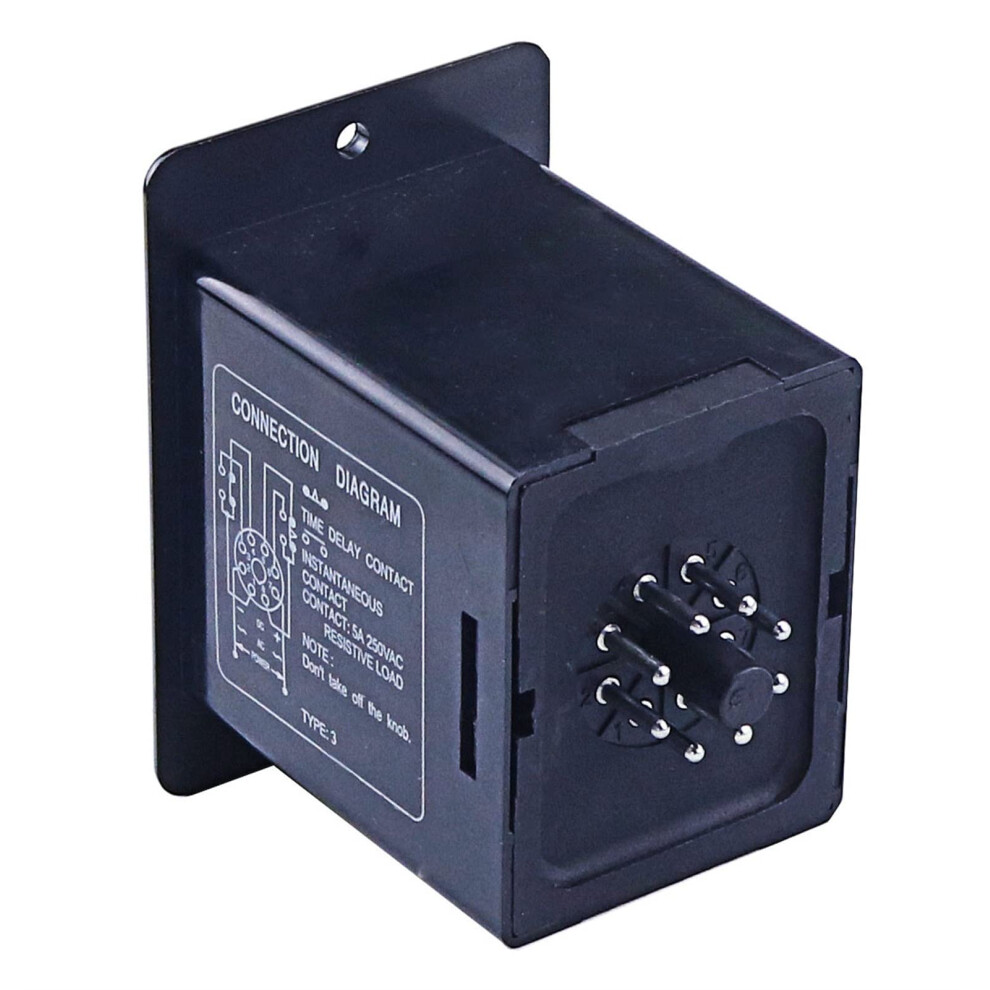

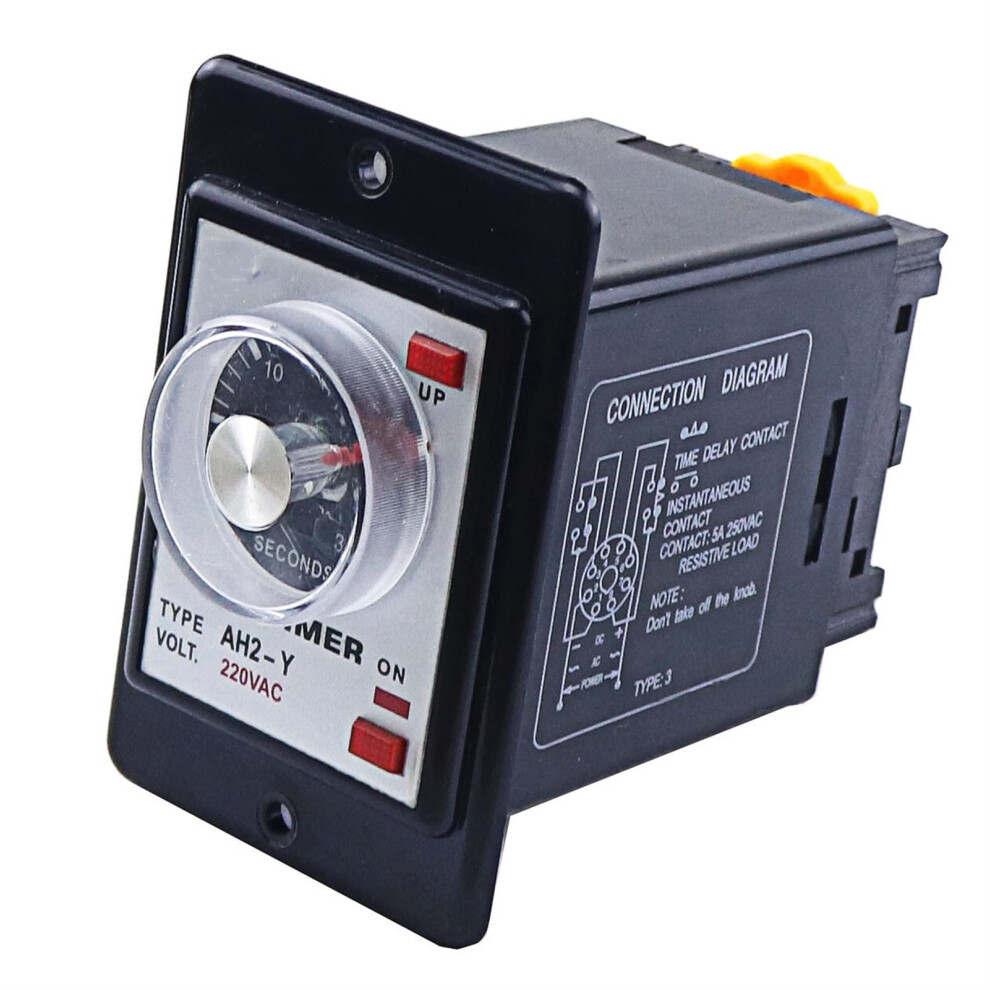

AH2Y Time Delay Relay 220V Power On Delay Timer 0–60 Min Adjustable Control Panel Mount with Socket

AH2Y Time Delay Relay 220V Power On Delay Timer 0–60 Min Adjustable Control Panel Mount with Socket Description

Poweron Delay Timer Relay AH2Y, 060 Minutes, Panel Mount with Socket Base, Size 60S Key benefits Precise time control: Adjustable delay from 0 to 60 minutes for dependable timed starts and sequencing. Simplifies automation: Builtin socket base and panel installation design make wiring, replacement, and maintenance quick and straightforward. Compact and compatible: Size 60S and standard electrical ratings fit common control panels and industrial equipment. Main specifications Model: AH2Y Time range: 0 to 60 minutes Default voltage: AC 220V will be. If you need DC12V, DC24V, or AC380V, please leave a message when ordering. Power consumption: DC 1.0 W, AC 1.0 VA Control output: 3 A at 250 VAC, 50/60 Hz Insulation resistance: DC 500 V, 100 megaohm Mounting: Panel installation with socket base What this relay solves Prevents simultaneous starts and reduces inrush current stress by delaying power to downstream devices. Automates timed sequences without complex programming, saving setup time in control cabinets. Enables easy replacement and service thanks to its socketmounted design. Performance and compatibility Operates on standard 50 Hz or 60 Hz supply frequencies. Contact rating supports common small loads and control circuits; check the 3 A 250 VAC rating against your load requirements. Multiple supply voltage options available on request to match different systems. Typical applications Motor and compressor start delay to avoid large inrush currents when multiple devices start at once. Lighting and pump control where staggered or delayed activation is needed. Industrial control panels and automation systems for timed sequencing of relays, valves, or actuators. Installation notes Supplied in the AC 220V version by default. Specify alternate supply voltage requirements when ordering. Designed for panel mounting with the provided socket base for straightforward installation and replacement. This timer relay AH2Y offers reliable, adjustable delay control for a wide range of electrical and automation needs while remaining compact and easy to service.
