Air Cylinder DoubleActing Rotary Clamping Corner

Air Cylinder DoubleActing Rotary Clamping Corner Description

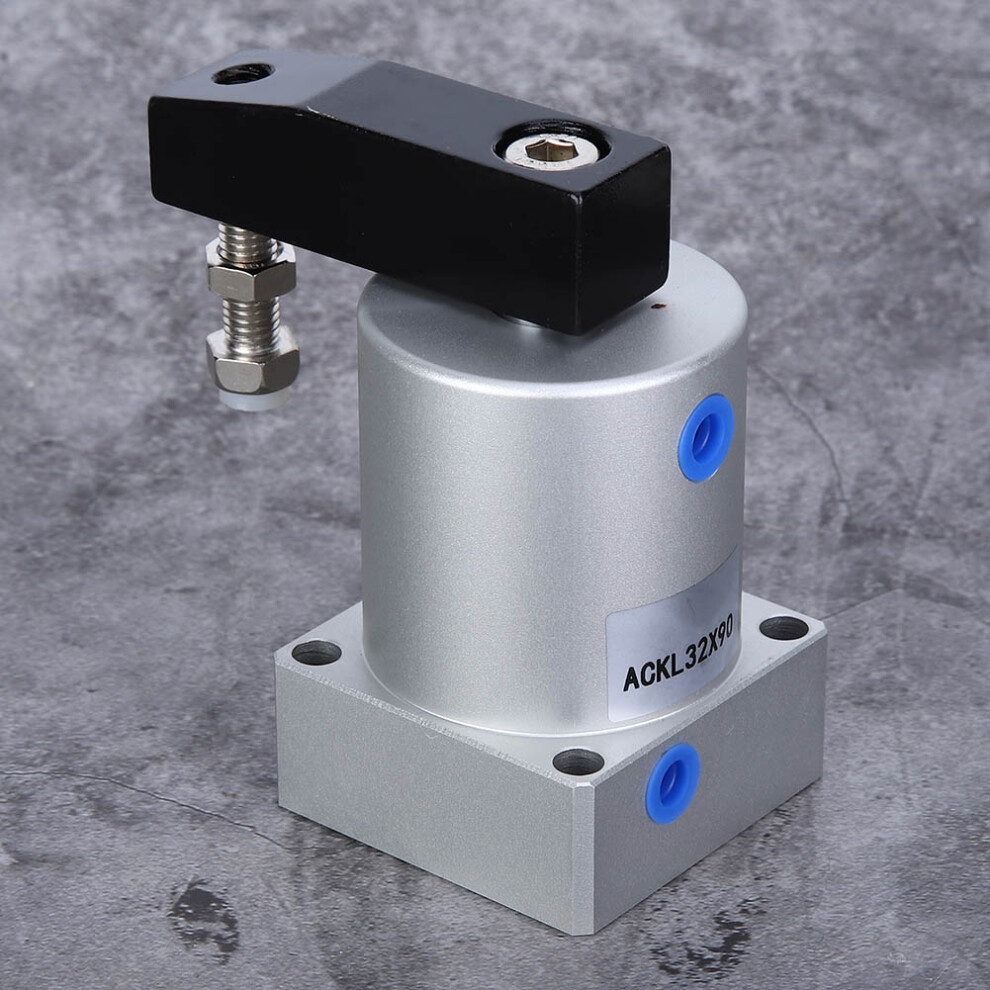

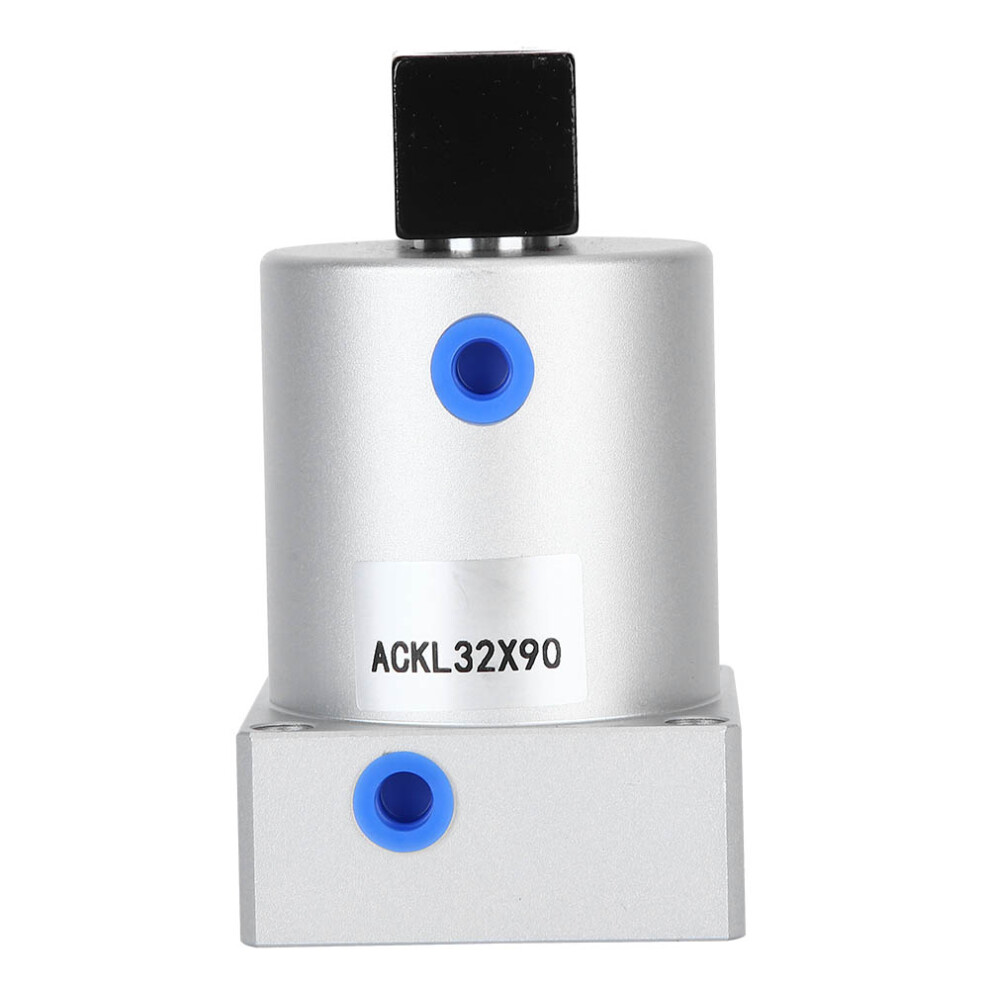

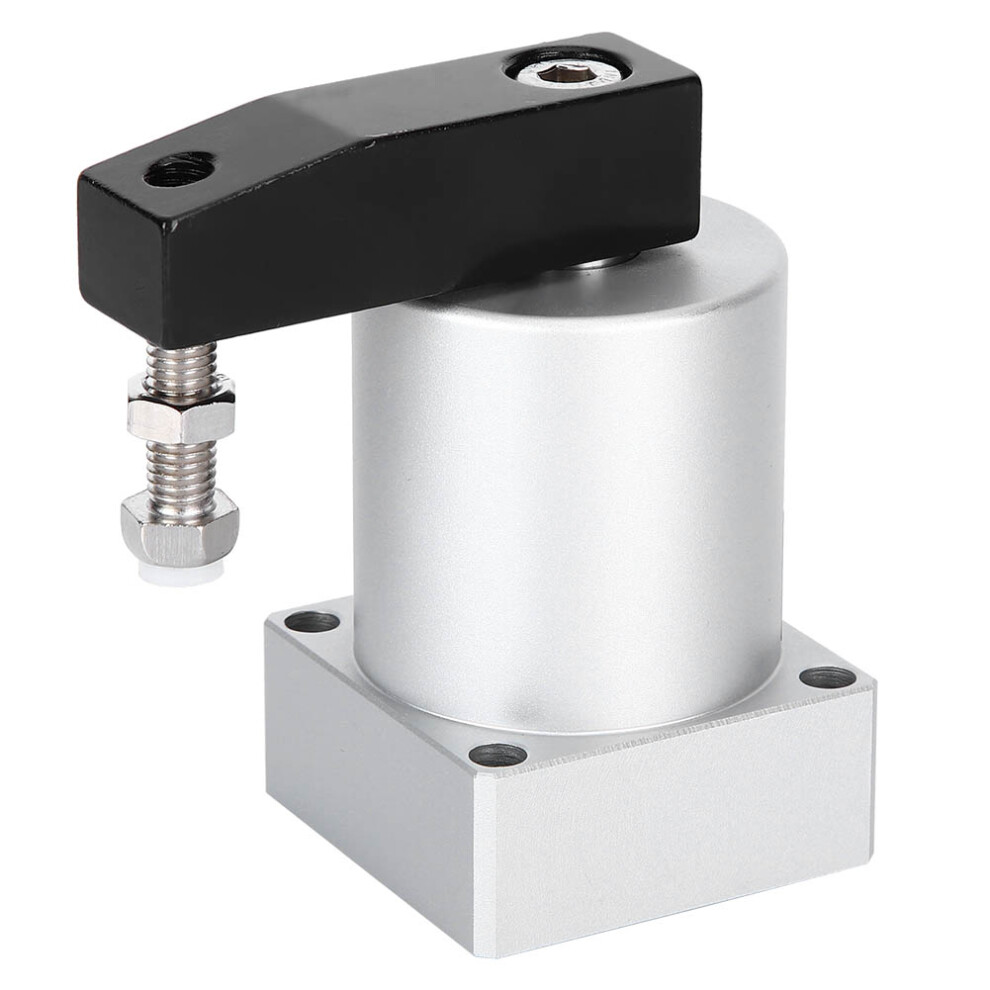

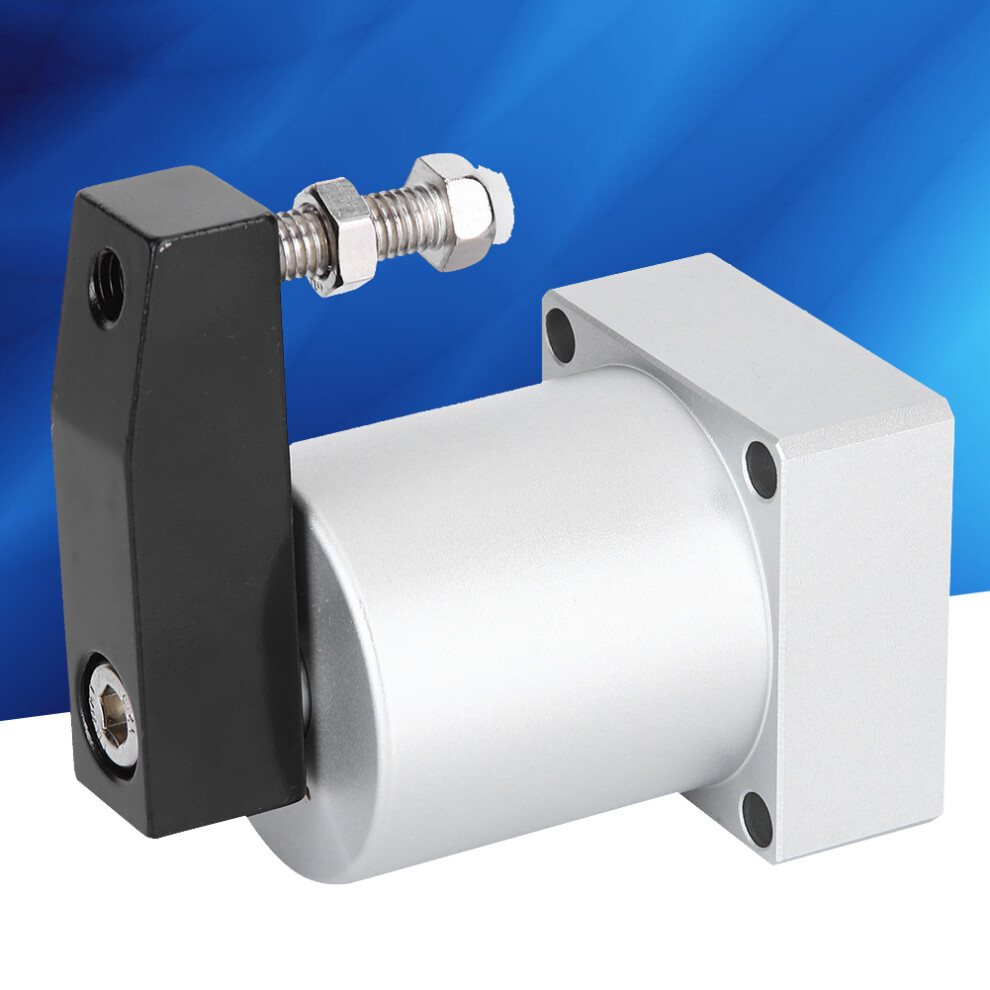

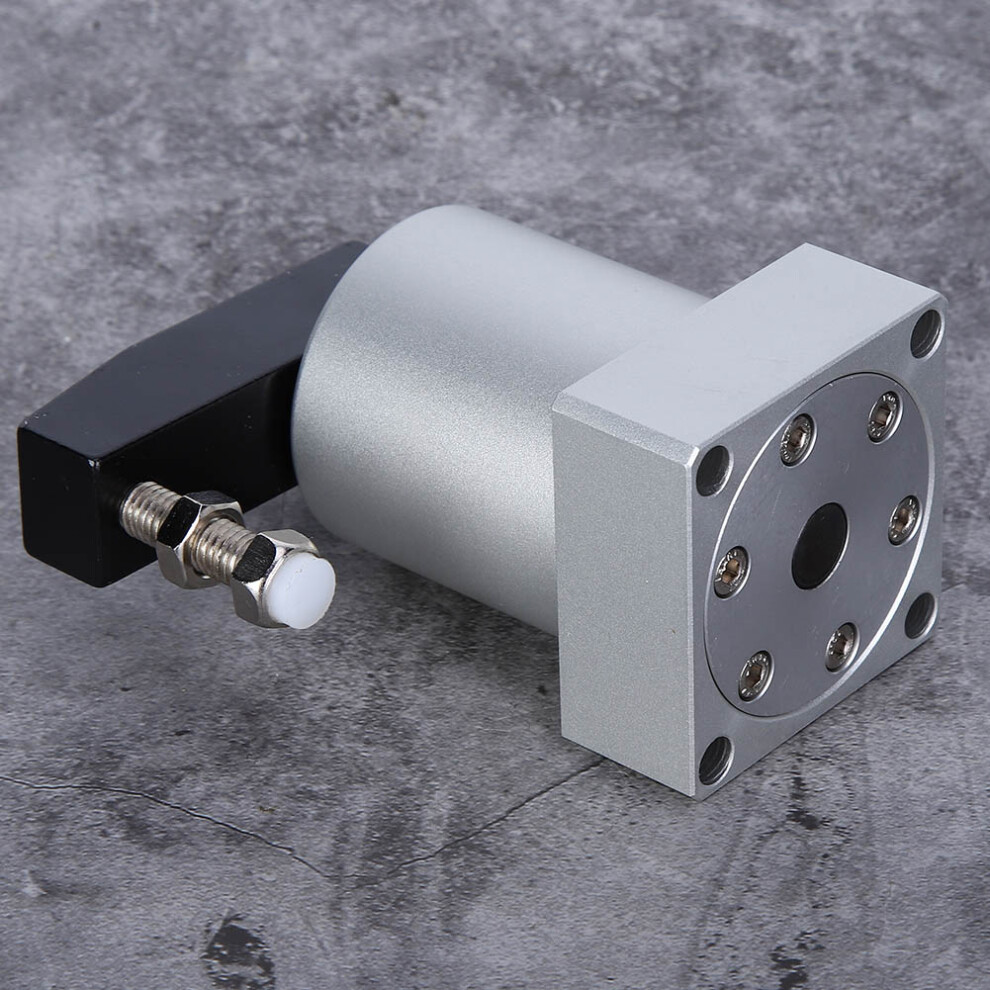

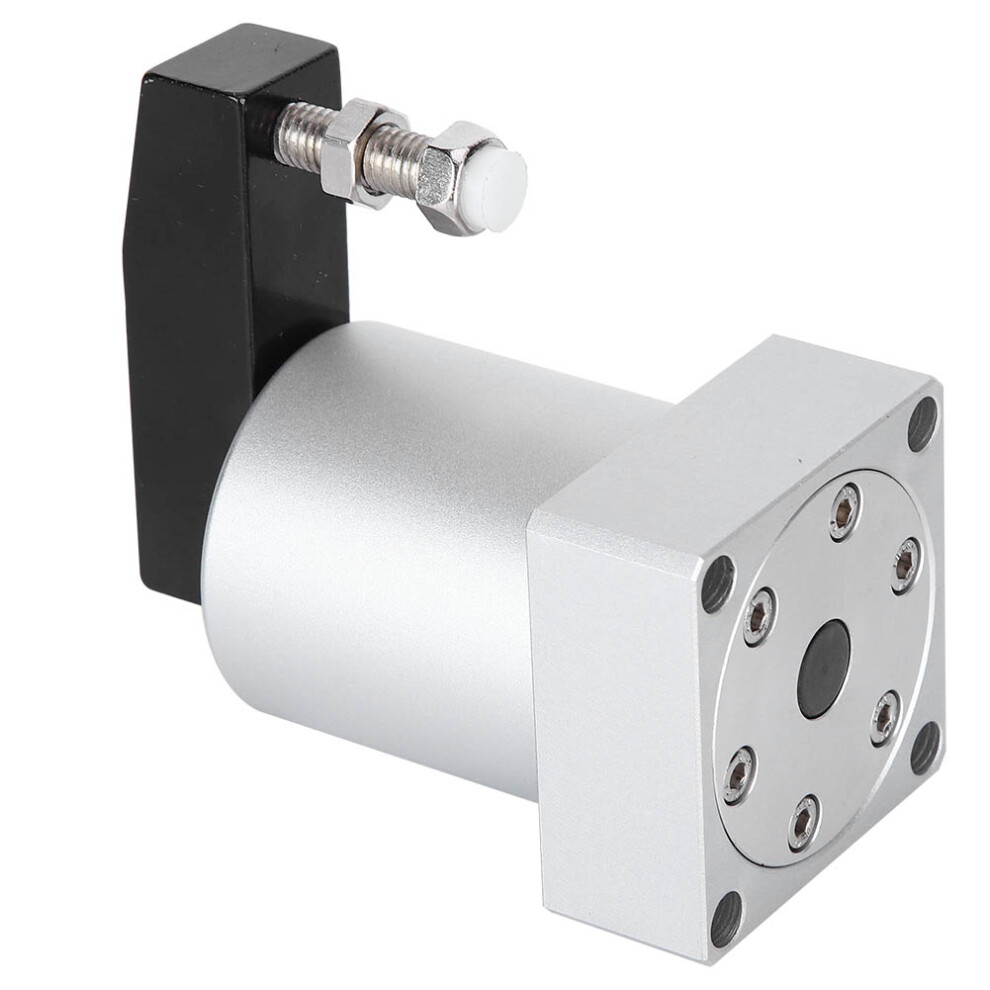

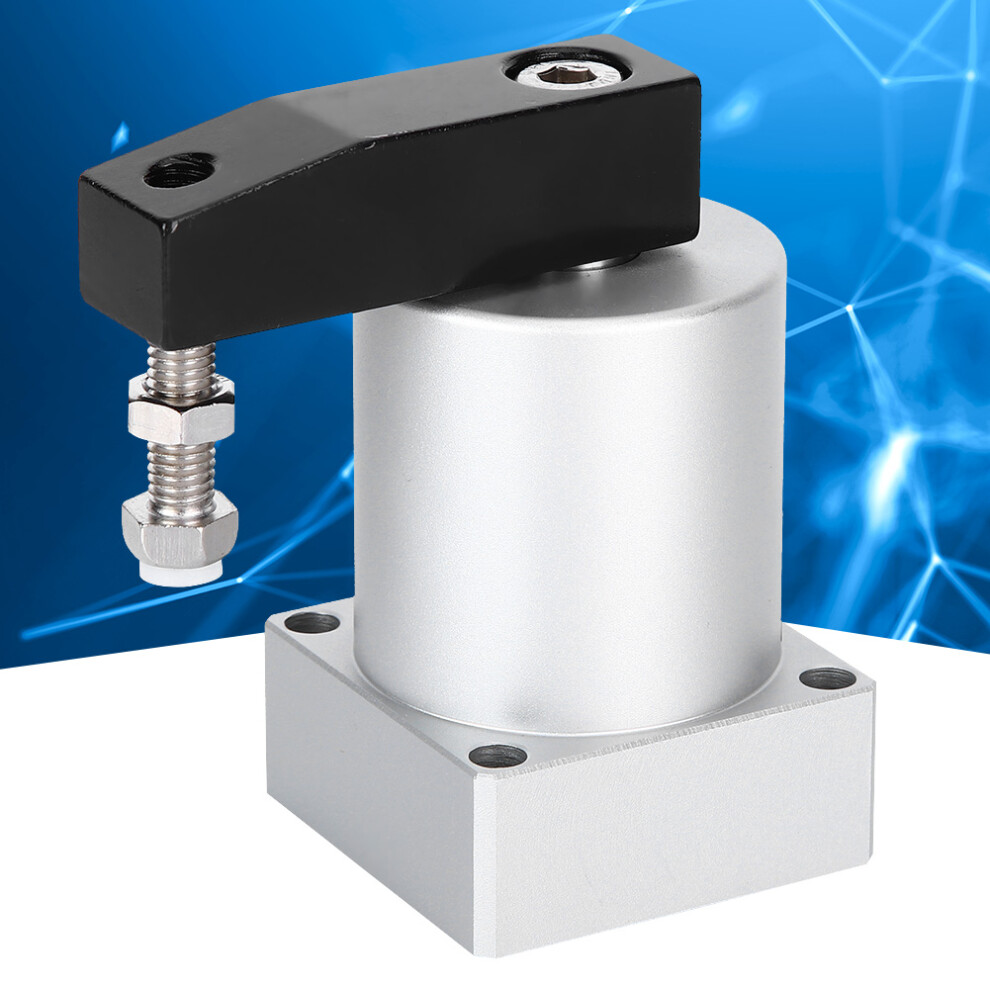

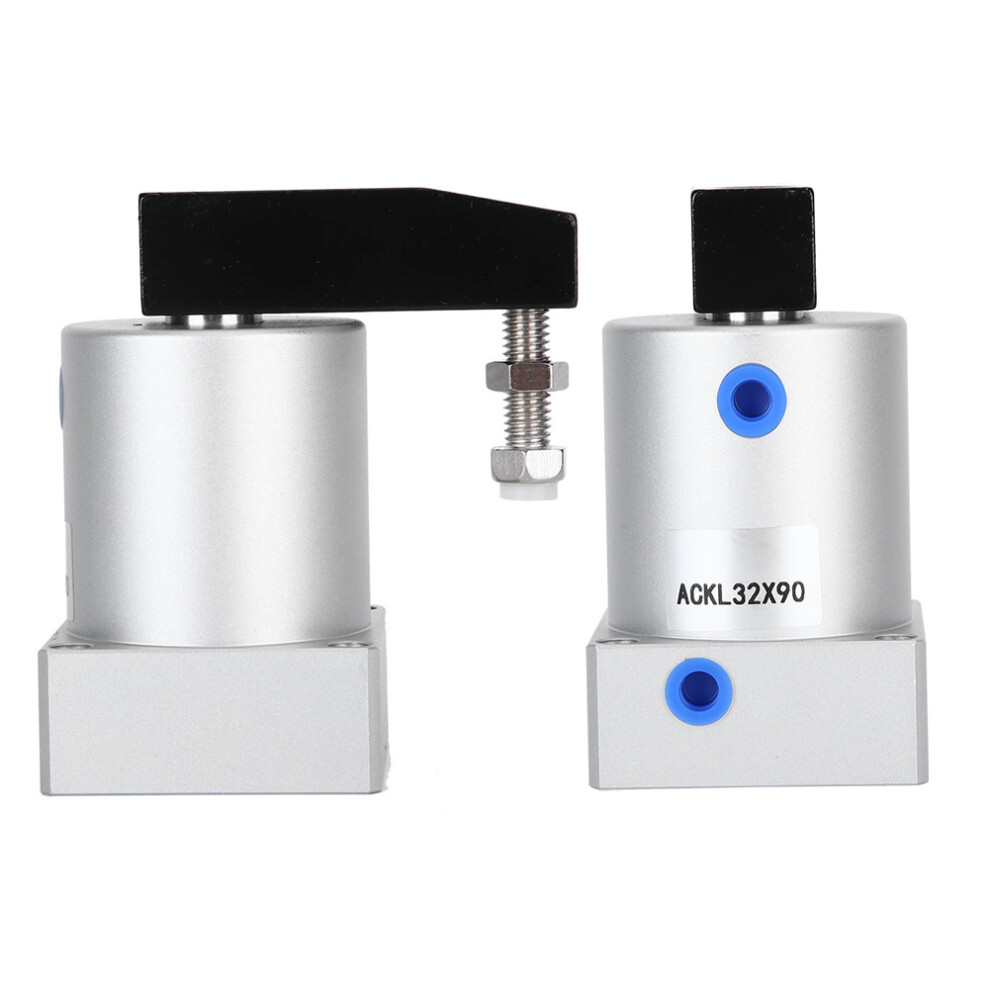

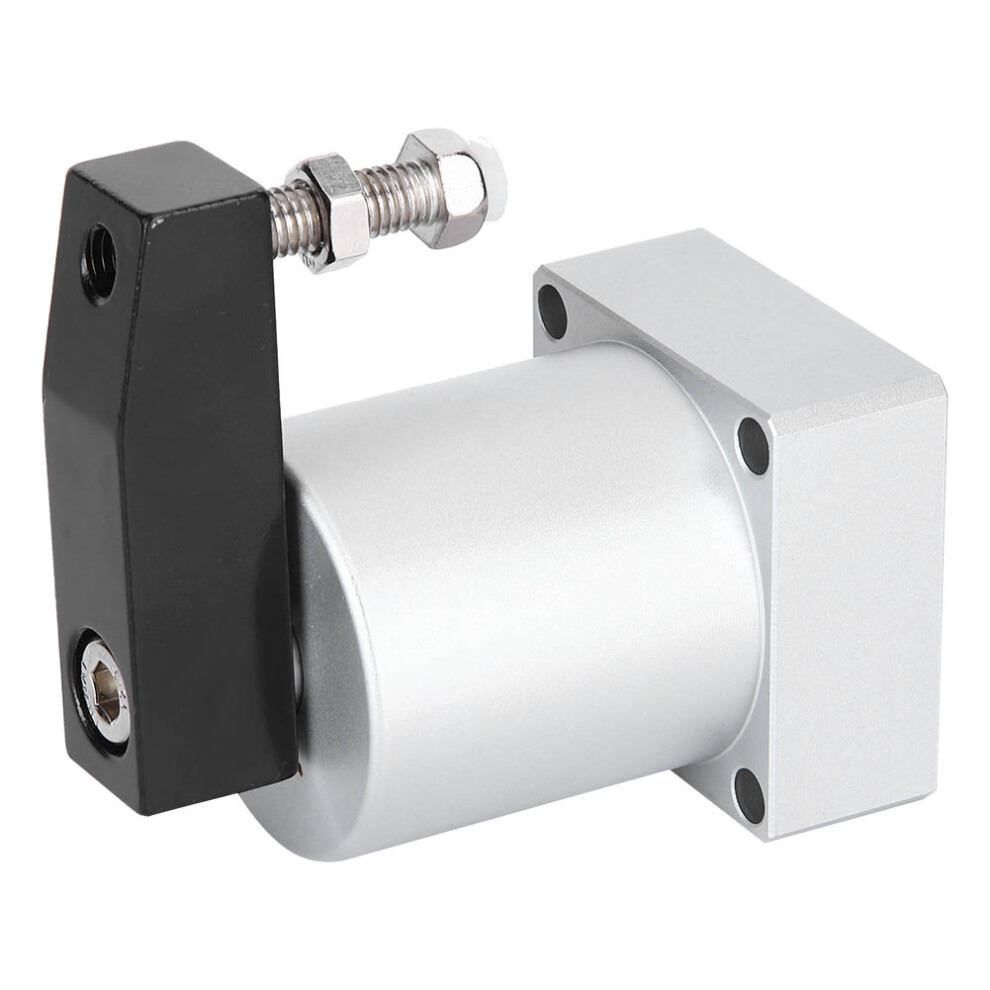

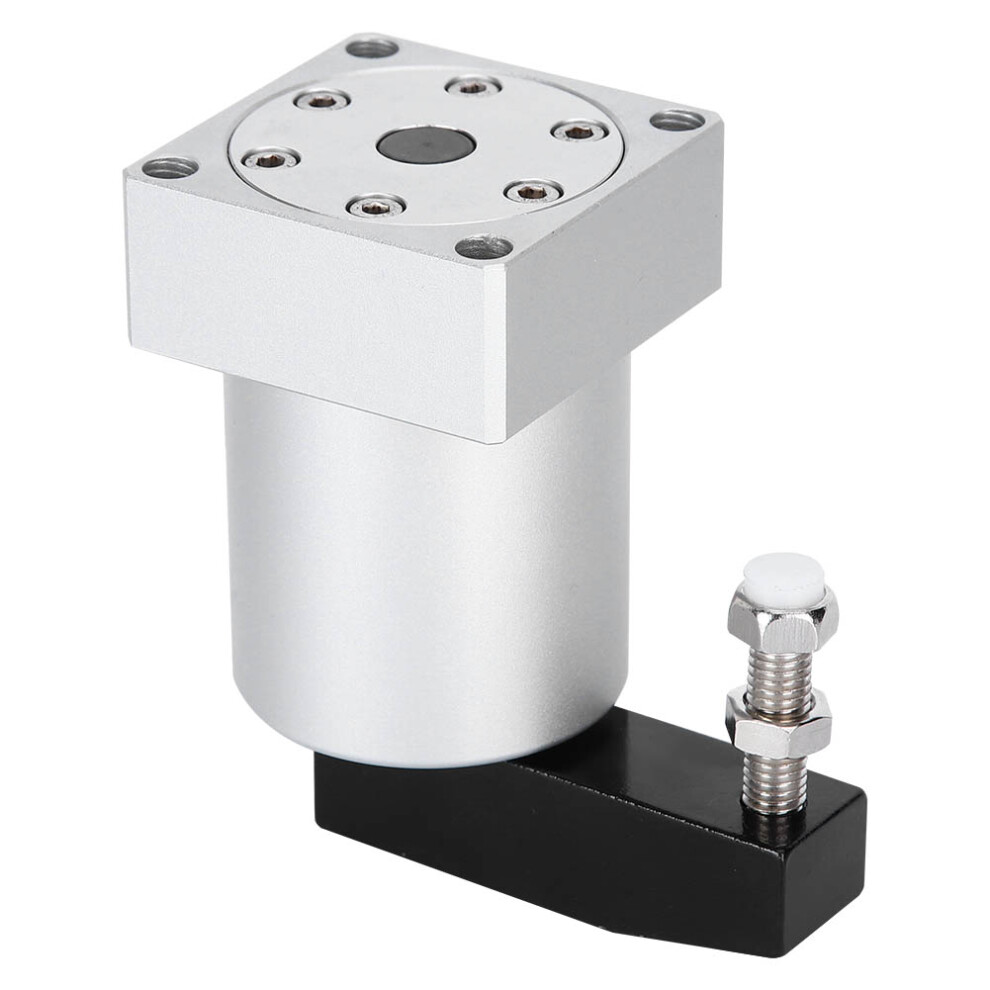

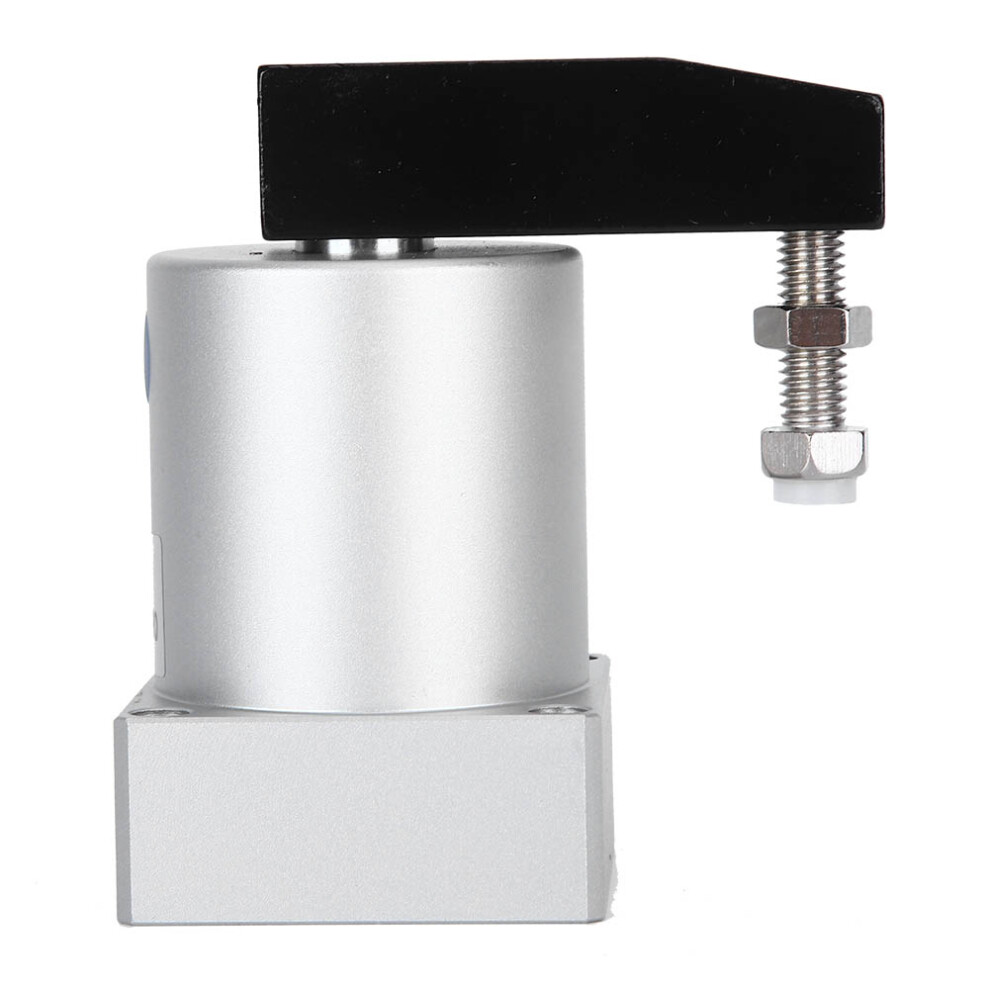

Air Cylinder DoubleActing Rotary Clamping Corner Pressing Pneumatic Parts ACK3290r L(ACK3290R )

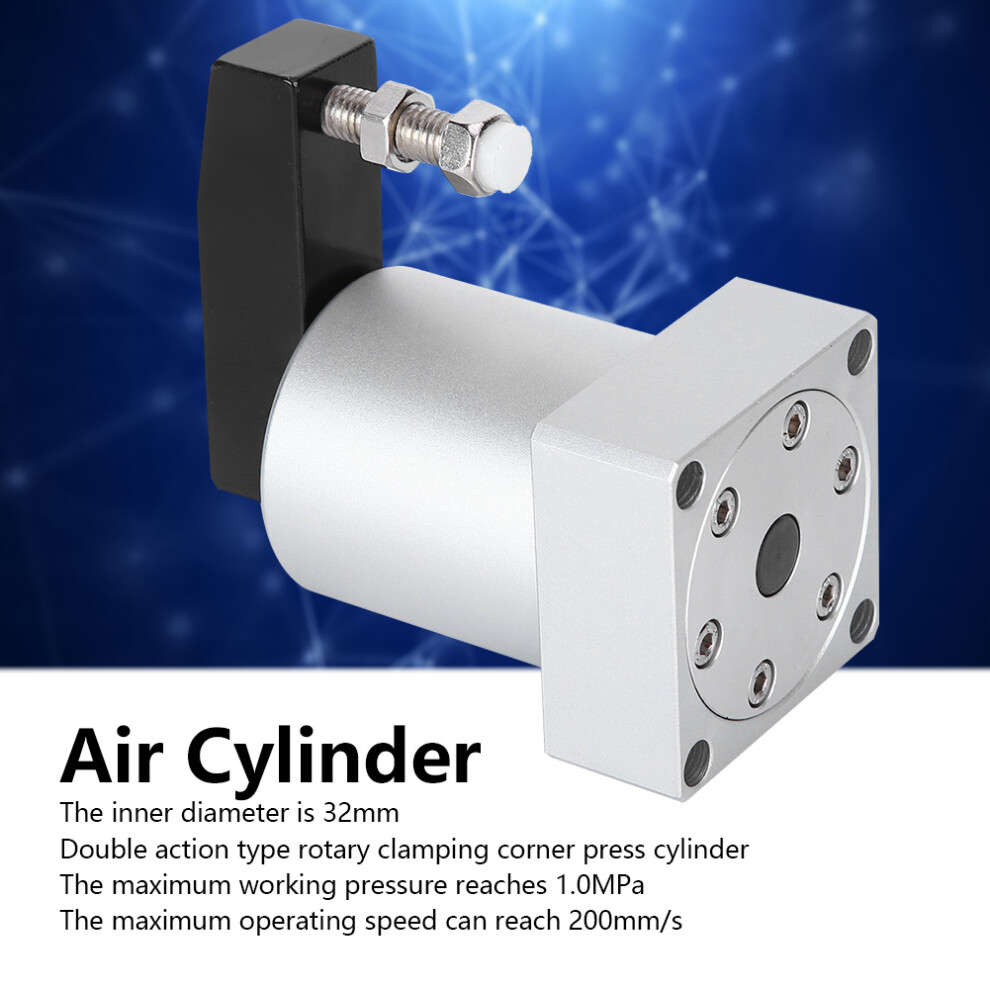

1、This is a double‑acting rotary clamping corner press cylinder with an inner diameter of 32mm 2、The maximum working pressure reaches 1.0MPa, and the performance is very good 3、The maximum use speed can reach 200mm/s, which can perfectly meet your needs 4、Using high‑quality materials, strong and durable, has a long service life 5、Small size, easy to carry and store, convenient to use and with good performance

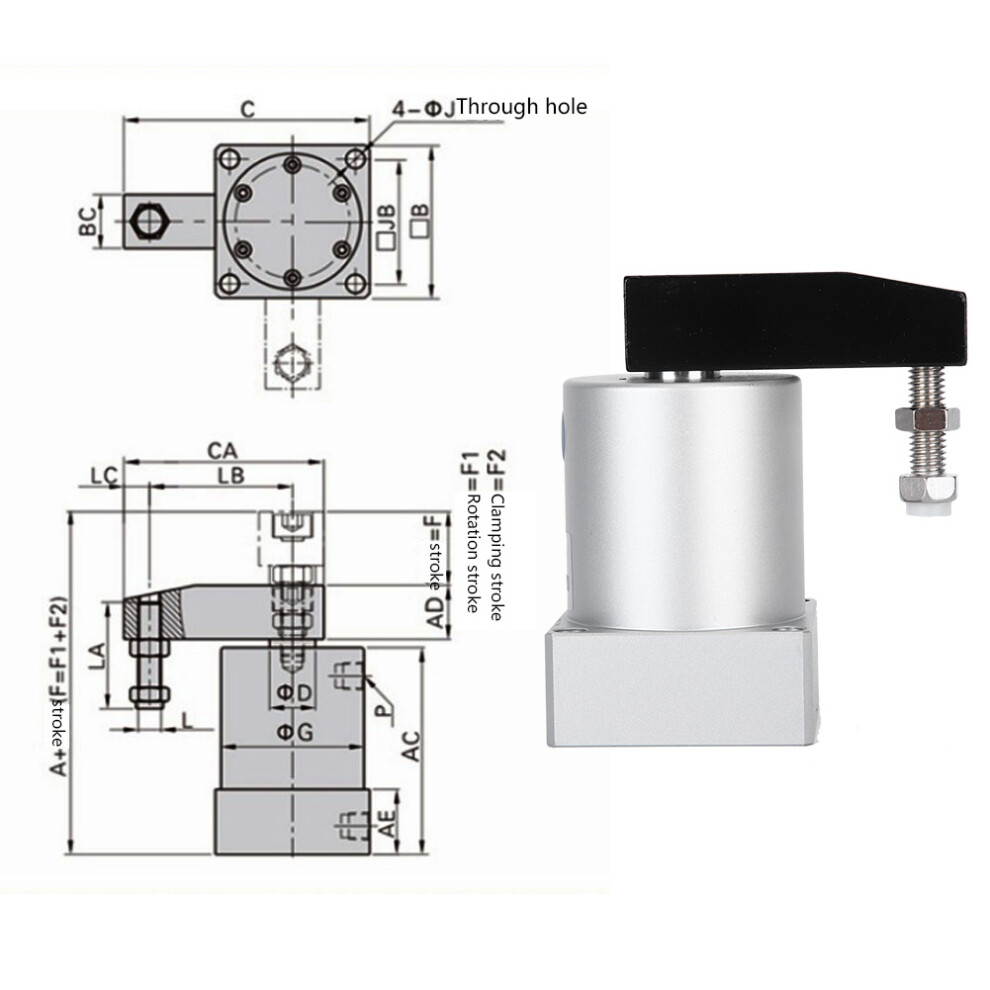

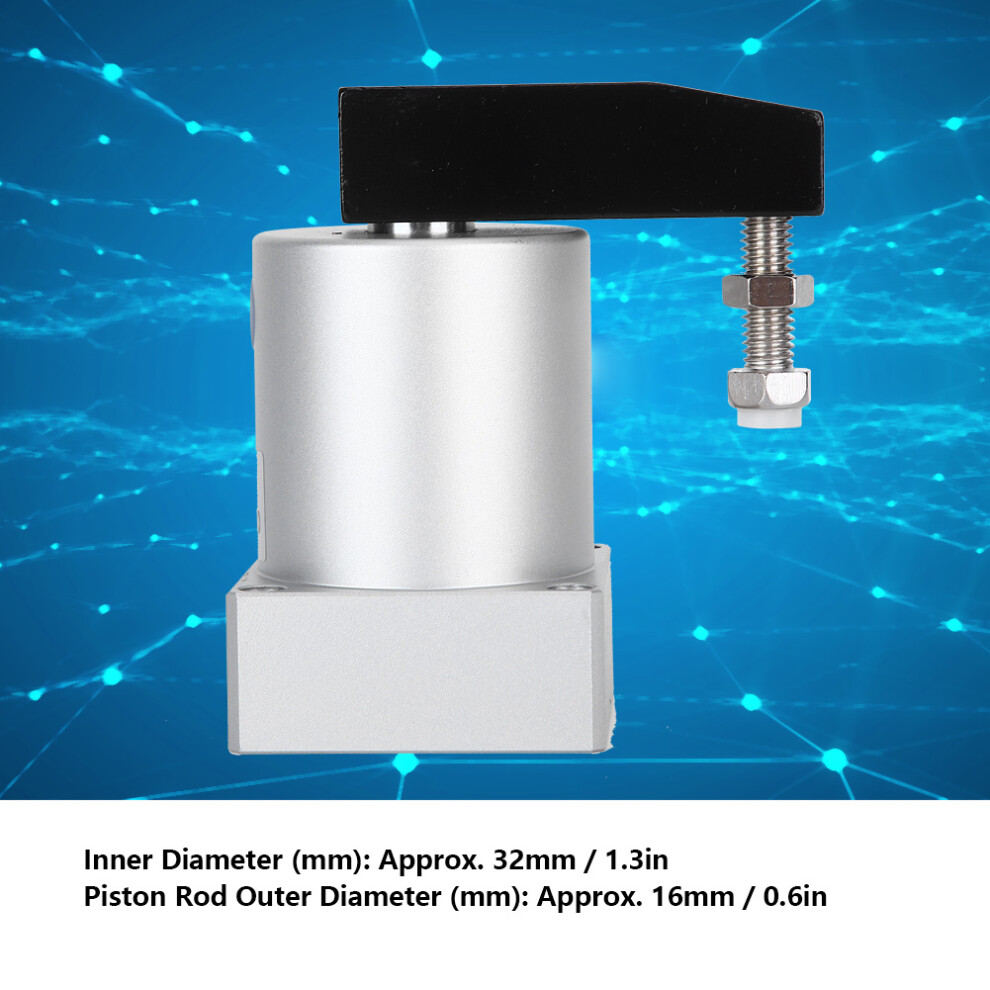

Item Type: Air Cylinder Optional Style: ACK32‑90L, ACK32‑90R Inner Diameter (mm): Approx. 32mm / 1.3in Piston Rod Outer Diameter (mm): Approx. 16mm / 0.6in Action Type: Double action Working Medium: Air (filtered by a filter screen above 40μm) Operating Pressure Range: 0.15~1.0MPa (22~145psi) Guaranteed Pressure Resistance: 1.5MPa (215psi) Working Temperature (): -20~80 Operating Speed Range (mm/s): 50~200 Travel Tolerance Range: 1.0 Rotation Angle Tolerance Range: 1.5 Buffer Type: None Take Over Caliber: PT1/8 Installation and Use: 1. When the cylinder clamps the workpiece, it must be performed within the clamping stroke, and the clamping operation cannot be performed within the rotation stroke; 2. The clamping plane must be perpendicular to the cylinder. After the workpiece is clamped, please do not move the workpiece; 3. Before piping the cylinder, the debris in the pipe must be removed to prevent debris from entering the cylinder; 4. The medium used in the cylinder should be filtered by a filter part above 40μm before use; 5. When the cylinder is removed and not used for a long time, pay attention to anti-rust on the surface, add anti-dust blocking caps to the intake and exhaust ports, and apply anti-rust oil to the end of the piston rod.



1 x Air Cylinder
