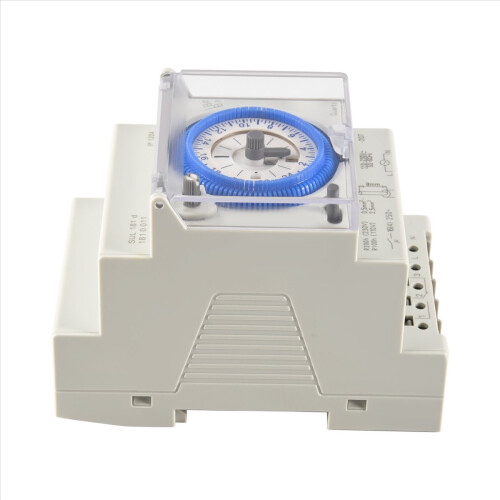

Analog Mechanical Timer 24 hours Daily Programmable Switch Relay

Analog Mechanical Timer 24 hours Daily Programmable Switch Relay Description

Product range: control range / industrial / complete / street light / lighting / farm / industrial control / home / household appliances
Electrical life: (under power load) more than 100,000 times; Mechanical life: (DC) = 10 million times or more; Mechanical life: (AC) = 10 million times or more
Insulation voltage: (between coil and contact) less than equal 1000VAC; Insulation voltage: (between contacts and contacts) less than equal 1000VAC
Contact resistance less than equal 50Ohm Ambient temperature: -20 Celsius ~ +55 Celsius
Time range: 24h/24 hours storage time 150/minimum setting unit 15 points/time total 96

Model: SUL181D
Rated voltage: 250VAC
Coil power supply: 230VAC
Rated current: 16A
Coil power: 0.2W
Contact switching current: 16A
Contact switching voltage: 250VAC
Protective features: plastic type
Contact load: 16A
Contact form: 1H
Frequency: 50~60 Hz
Number of contacts: 1
Cycle: 24 hours
Installation form: DIN rail
Terminal block form: plug-in terminal
Cycle: 4 hours
Power outage retention hours: approximately 100 hours at 110 V
Contact capacity at 250 V AC, cos Diameter = 1: 16 A
Contact capacity at 250 V AC, cos Diameter = 0,6: 4 A
Minimum switching time: 15 minutes
Minimum setting interval: 15 min
Time accuracy: Less than equal +/- 1 s/day (quartz)
Output contact: 1c x 1
Switch output: Potential-free and phase-
Number of switch segments: 96
Standby consumption: 0,5 W
Test light: VDE
Shell and insulation material: high temperature , high temperature , fire thermoplastic material
Protection level: IP 20
Security level: II as per EN 60 730-1
Applicable ambient temperature: -20 ~ +55 Celsius
colour: white
Material: ABS+ electronic components

Package Contents:
1 * Programmable switch
1 * Instruction manual

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
