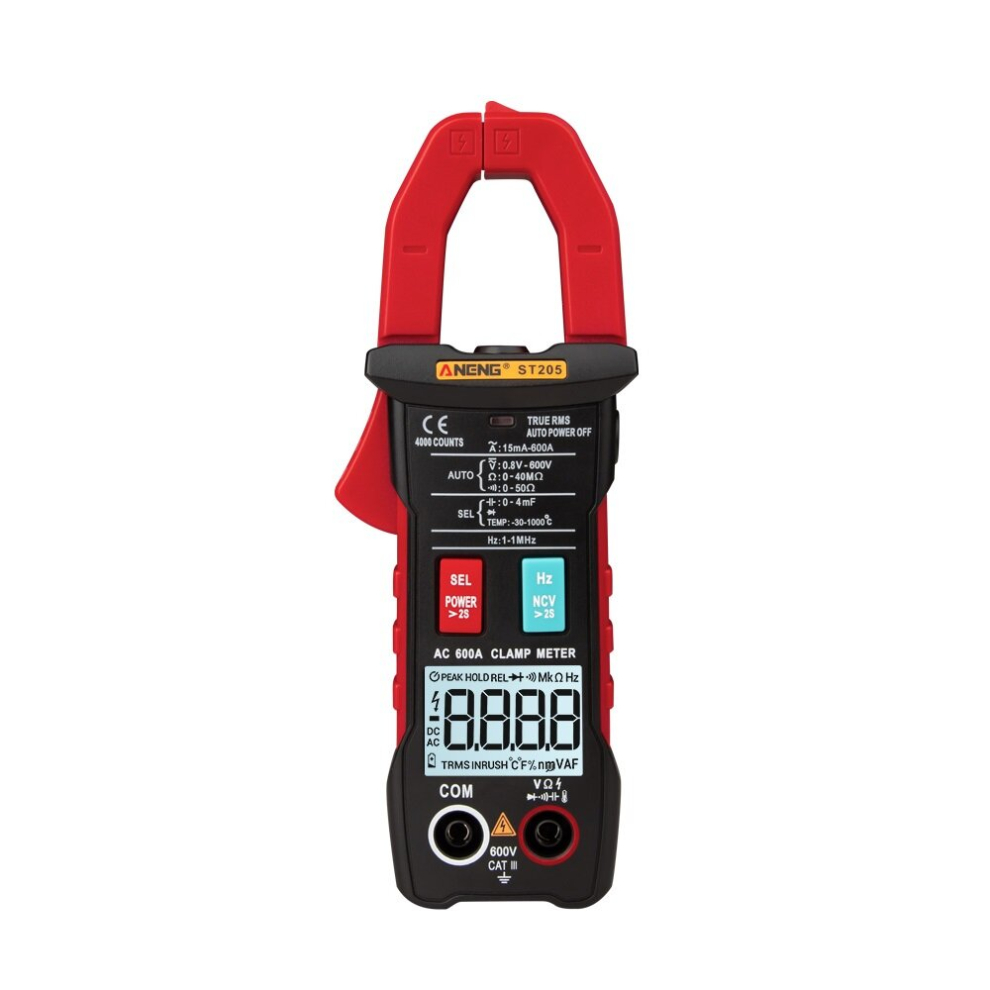

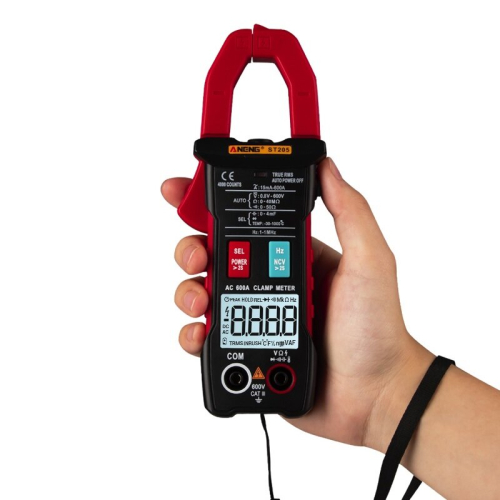

ANENG ST205 Digital Clamp Meter Analog Multimeter Current Clamp DC/AC Intelligent AUTO Range Meter with Temperature Tester

ANENG ST205 Digital Clamp Meter Analog Multimeter Current Clamp DC/AC Intelligent AUTO Range Meter with Temperature Tester Description

ANENG ST205 4000 digital fully intelligent automatic range digital current multimeter (with temperature measurement) Characteristics: 1. Display: liquid crystal display (LCD); 2. Maximum display: 4000 (3 3/4) bit automatic polarity display; 3. Measurement method: double integral A/D conversion; 4. Sampling rate: about 3 times per second; 5. Over range display: The highest position shows “OL”; 6. Low voltage display:symbol appears; 7. Working environment:(0 ~ 40)°,relative humidity 80%; 8. Power: AAA 1.5V battery (Batteries excluded) 9. Volume (size): 170×65×30mm (L×W×H); 10. Weight:about160g(Batteries excluded 1.5V battery); Functional parameters: DC voltage DCV :yes AC voltage ACV :yes AC current ACA :yes Capacitance measurement :yes Resistor / On-Off Test :yes Diode measurement:yes(Diode forward voltage drop. Forward DC current is about 1mA, open circuit voltage is about 3V) Buzzer:yes (The buzzer sounds long and the resistance of the test is less than (50±20) Ω. auto recognition (AUTO) temperature measurement :yes Frequency :yes NCV :yes Zero line / Fire line test :yes Full unit symbol :yes Backlight manual/Auto off :yes True RMS measurement :yes Flashlight lighting :yes HOLD :yes Technical Specifications: DC voltage (DCV):4V-40V-400V-600V ±(0.5%+3) AC voltage (ACV): 4V-40V-400V-600V ±(1%+3) AC current(ACA):0.1A-4A-40A-400A-600A ±(2.5%+8) Resistance: 4kΩ-4'0kΩ-400kΩ-4MΩ-40MΩ ±(0.5%+3) Frequency measurement: 4Hz-40Hz-400Hz-4kHz-4'0kHz-400kHz-1MHz ±(0.1%+2) Capacitance measurement:4nF-40nF-400nF-4μF-40μF-400μF-4mF ±(2%+5) temperature measurement : -30~1000° / 22~1832° ±(2.5%+5) Package Includes: 1 x ANENG ST205 Clamp Meter 1 x English User Manual 1 x Outer Packaging Box 1 x Pair of Test Leads 1 x Thermocouple 1 x Portable Storage Bag Details Pictures:
