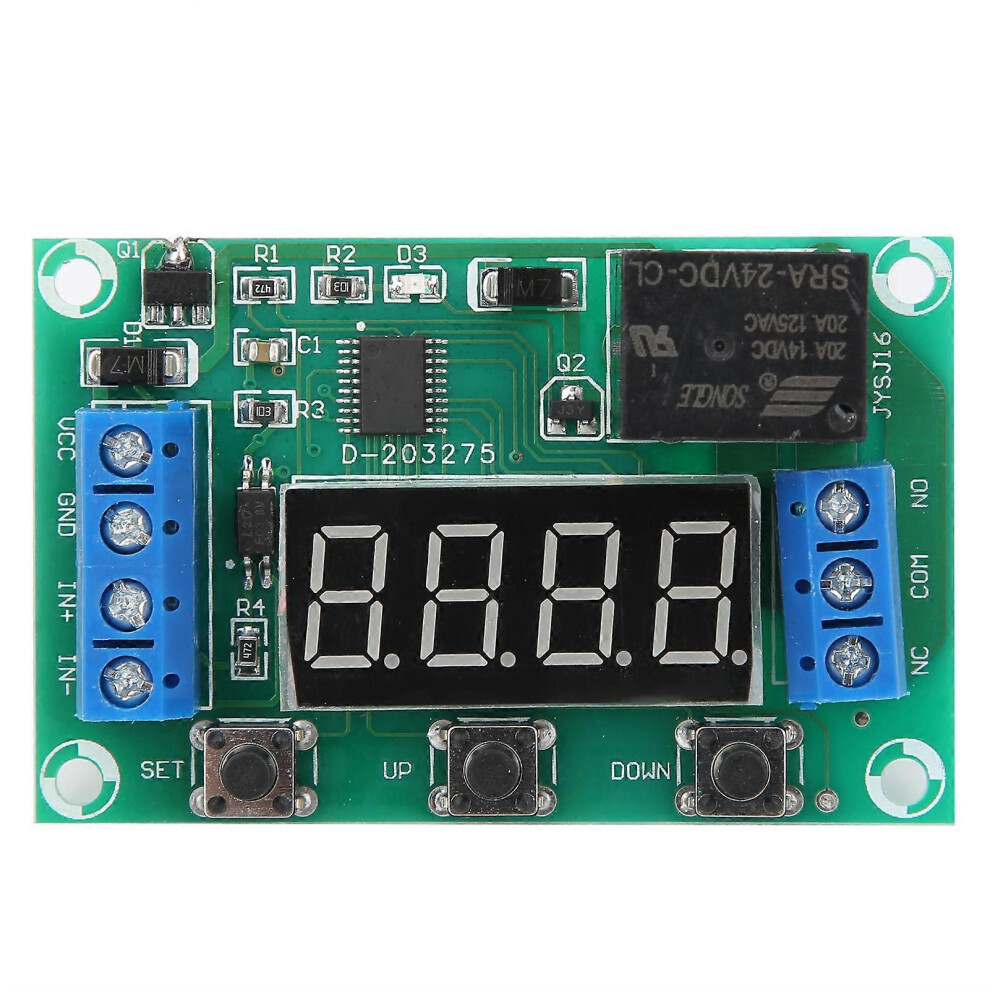

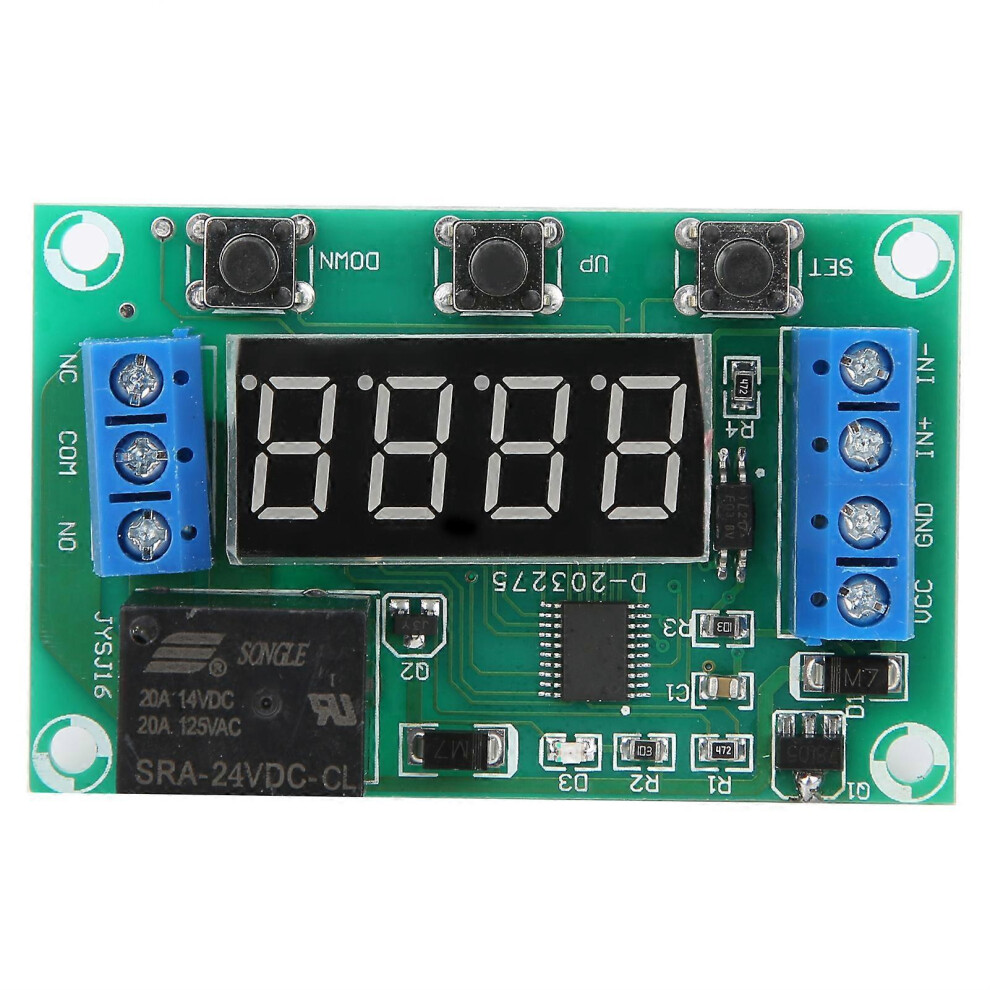

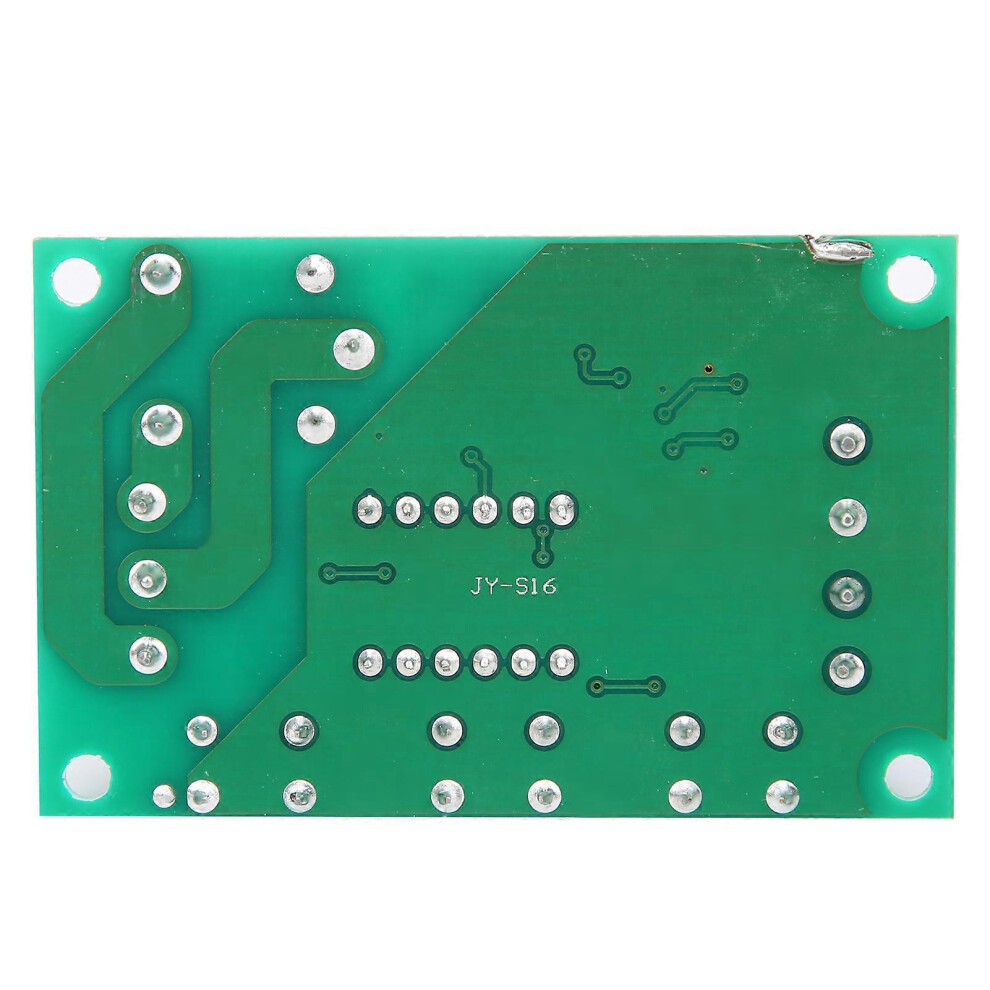

(As show, One size) YX-SJ13 Time Relay Module 20A Timer Delay Cycle Control Board 31 Working Modes(24V )

(As show, One size) YX-SJ13 Time Relay Module 20A Timer Delay Cycle Control Board 31 Working Modes(24V ) Description

Feature:1. Multiple functions, a total of 31 working modes. The maximum control current of the relay is 20A.2. Multiple supply voltages are optional: DC5V, DC 12V, DC24V, which can meet your different needs.3. The output terminal is isolated from the circuit by a relay, which can control lowvoltage electrical appliances, direct current, etc., and can also control 220V lines.4. To meet various testing and automatic control applications, the delay time is adjustable from 0.01 second to 999 minutes.5. Built to meet standard specification, strictly follow factory quality control.Specification:Condition: 100% Brand NewItem Type: Time Relay Control ModuleMaterial: PlasticColor: As picture shownModel: JYSJ13Optional Supply Voltage: DC5V, DC12V, DC24VMaximum Relay Control Current: 20AInstructions for Use:Setting of Working Parameters:Press and hold the SET button without letting go. After 0.5 seconds, the display shows PXX, press UP and DOWN to change the working mode. After selecting the working mode, short press the SET key to enter the A time setting, the screen displays Axxx, press the UP and DOWN keys to modify the A time parameter, press the and keys shortly to add or subtract 1, long press to quickly add or subtract 10, press The S key can set the position of the decimal point. After setting the A time, press the SET button to set the B time, and the screen displays bxxx. At this time, press the UP and DOWN buttons to modify the B time parameter, press the UP and DOWN buttons to shortly press to add or subtract 1, and long press to quickly add or subtract 10. Press the S4 key to set the position of the decimal point. After setting the B time, press the SET key again to enter CXXX, press the SET key again to enter dXXX, and press the SET key again to exit the setting state and save all parameters.The above settings such as B time or other time have no effect, no need to set, press SET to skip.P2 is the stop and start function (triggered as described below). The individual functions are invalid.The meaning of the decimal point position:Ax.xx The decimal point is in the hundred, and the time range is 0.01~9.99 secondsAxx.x The decimal point is in the tenth place, and the time range is 0.1~99.9 secondsAxxx. The decimal point is in the ones place, and the time range is 1~999 secondsAxxx has no decimal point, the time range is 1~999 minutesTurn off the display: In the nonsetting state, press the S key to turn off the display, and then press it again to turn it on again.Operating Mode:P00: Invalid (skip)P01: The relay is disconnected after poweron or triggered, and the relay is closed after a delay of time AP02: Pullin after poweron or trigger, the relay is disconnected after delay A timeP03: Jog mode, pullin with signal, disconnect without signalP04: Selflocking mode, the relay state flip once after each triggerP05: After triggering, the relay pulls in and stops after a delay of time A. Repeated triggering is not allowed during the delay periodP06: After triggering, the relay is closed, and it will stop after a delay of A time. Repeated triggering during the delay period will retimingP07: After triggering, the relay is closed, and it stops after a delay of A second. Repeated triggering during the delay period, the time will accumulateP08: After triggering, the relay is closed, and it will stop after a delay of A second, and it can stop immediately after triggering again during the delay.P09: After triggering, the relay is closed. After the signal disappears, the delay will stop for A second, and the trigger will restart during the delay.P10: After poweron, pullin time A, disconnect time B, infinite loopP11: When there is a continuous signal, pull in A time, disconnect B time, infinite loop, stop immediately after the signal disappearsP12: Trigger once, pull in A time, disconnect B time, infinite loop, trigger again to stopP13: The relay is switch on when the power is on, the relay is disconnected after triggering, and the relay is switch on after the delay time AP14: There is a continuous signal, the relay is closed after the time A is exceeded, and the signal disappears and the relay is disconnectedP15: The relay with continuous signal is disconnected, and the relay is closed after the signal disappears for more than A timeP16: When there is a continuous signal for more than A time, the relay is closed, and after the signal disappears for more than A time, the relay is disconnectedP17: The relay is closed after a continuous signal exceeds the A time. After the signal disappears, the relay is disconnected after a continuous signal exceeds the A time.P18: Trigger, the relay will be closed after time A is exceeded, and triggered again, the relay will be disconnected after time A is exceededP19: There is a continuous signal that the relay pulls in for A time and then stops, and then if the signal disappears, the relay pulls in for A time and then stopsP20: There is pulse signal (rising edge or falling edge), the r
