AstroAI Digital Multimeter, 2000 Counts with Ohm Volt Amp and Diode Voltage Tester Meter Measurement Tool Electronic Test Meter

AstroAI Digital Multimeter, 2000 Counts with Ohm Volt Amp and Diode Voltage Tester Meter Measurement Tool Electronic Test Meter Description

AstroAI Digital Multimeter, 2000 Counts with Ohm Volt Amp and Diode Voltage Tester Meter Measurement Tool Electronic Test Meter

• ACCURATELY MEASURES: Voltage, DC current, resistance, diode, continuity and more

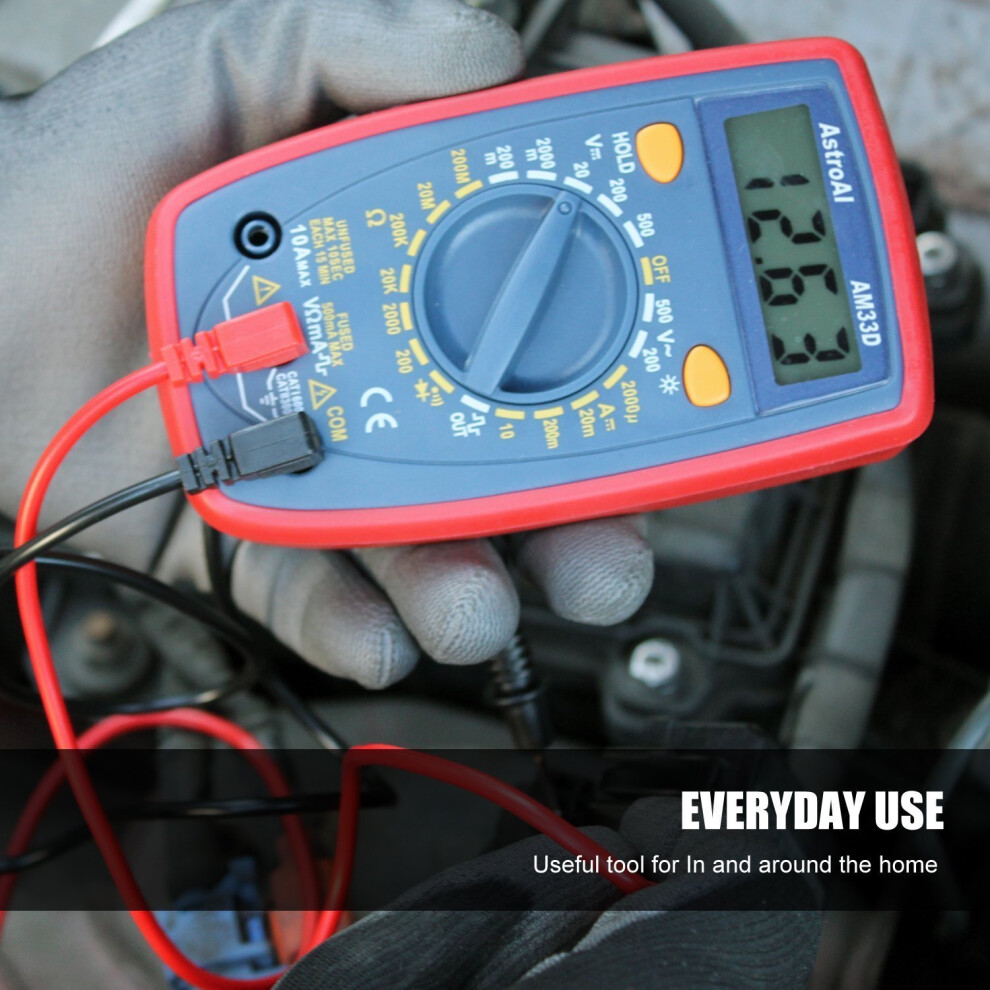

• TROUBLESHOOTS: Automotive and household electrical problems safely and accurately

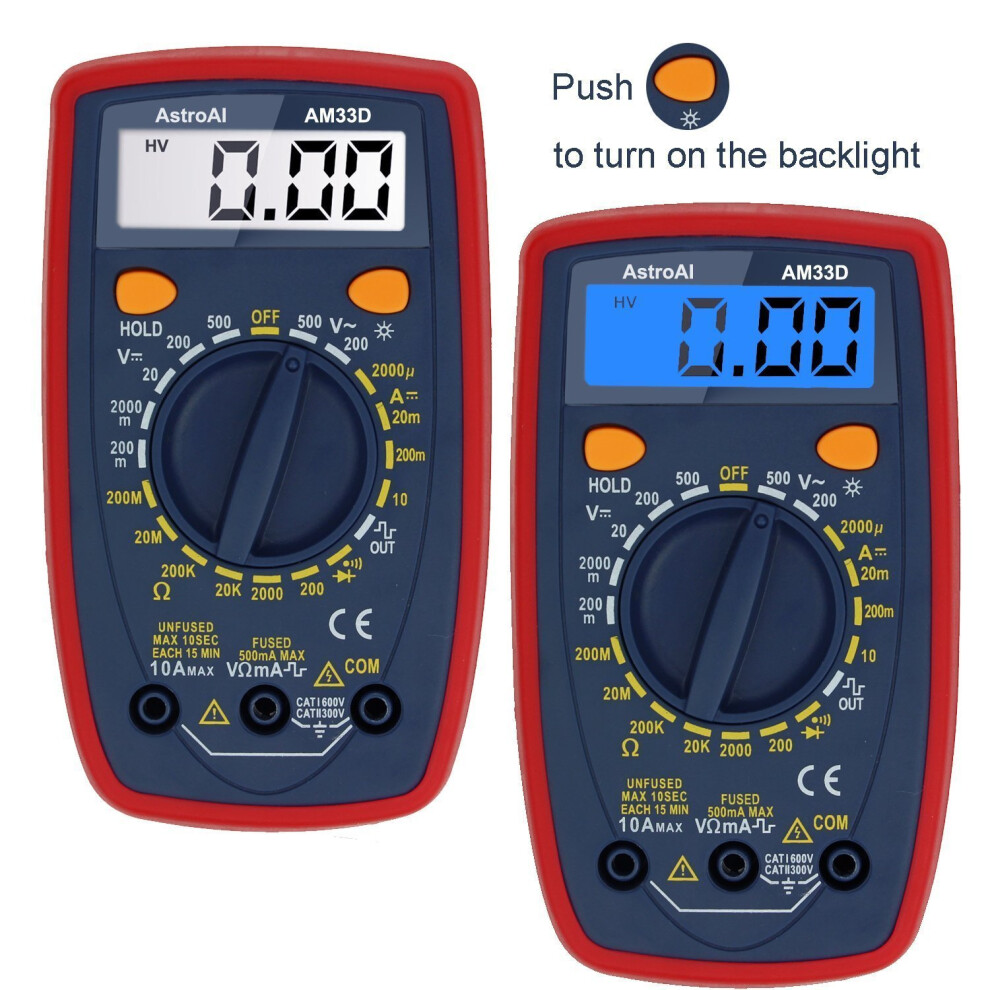

• EASE OF USE: Data hold and large digital display with backlit LCD for visibility in dimly light areas
• SAMPLING SPEED: 2 times per second. Overload protection on all ranges

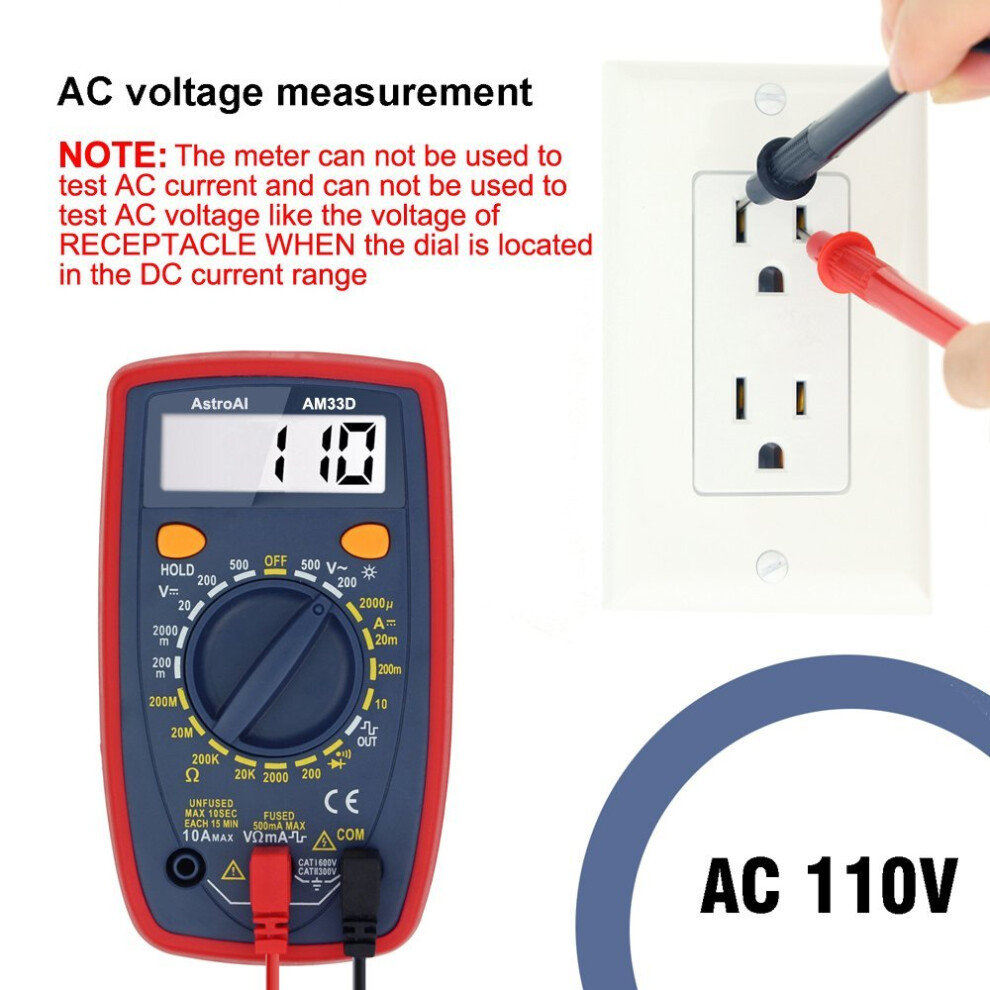

• 1 Year Warranty. Built-in kickstand for hand free use. Protective rubber corner guards for drop protection; Note: the meter can not be used to test AC current and can not be used to test AC voltage like the voltage of RECEPTACLE WHEN the dial is located in the DC current range

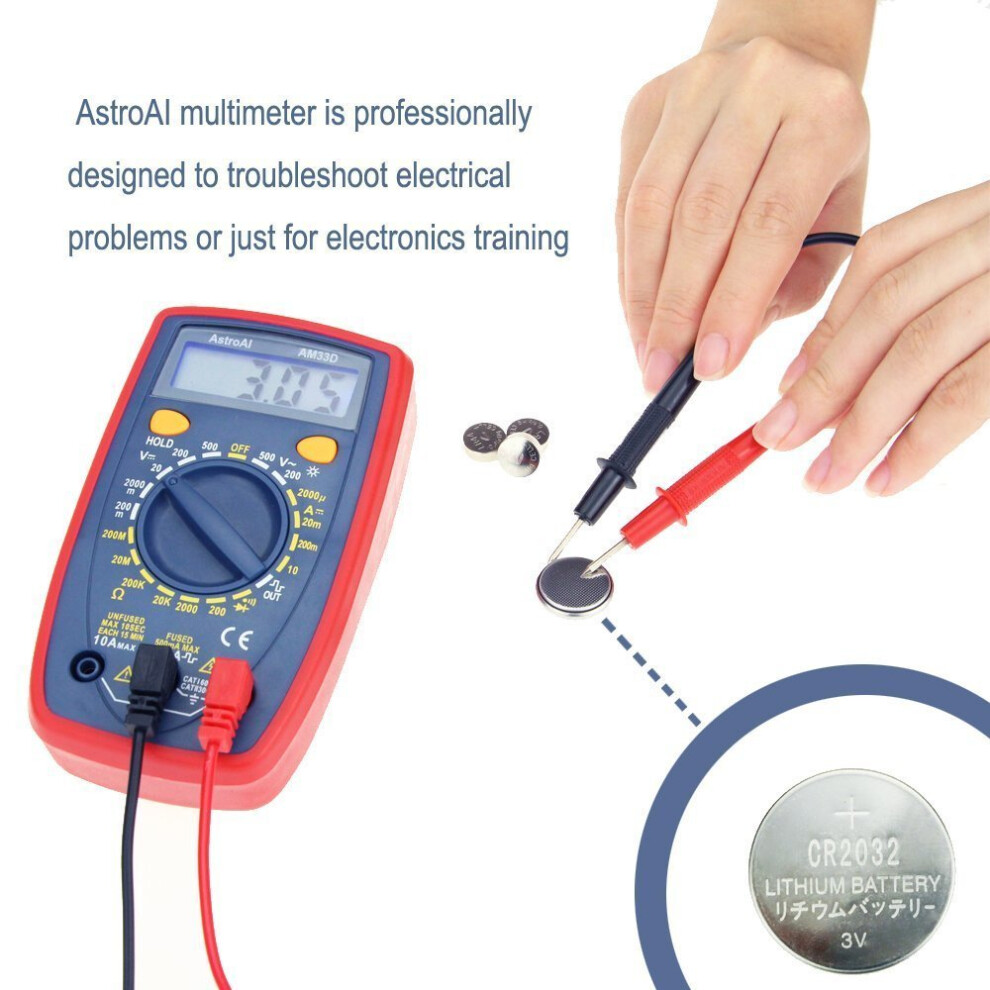

The AstroAI AM33D Multimeter is designed to safely and accurately troubleshoot a variety of automotive and household electrical problems. It's easy and safe to operate and features many different functions for measuring current, voltage, and resistance, as well as continuity, transistor, and diode testing, which is both for automotive and household uses. Use this multimeter for: household outlets, fuses, wiring, general-purpose batteries, vehicle battery and charging system, automotive circuits and more.

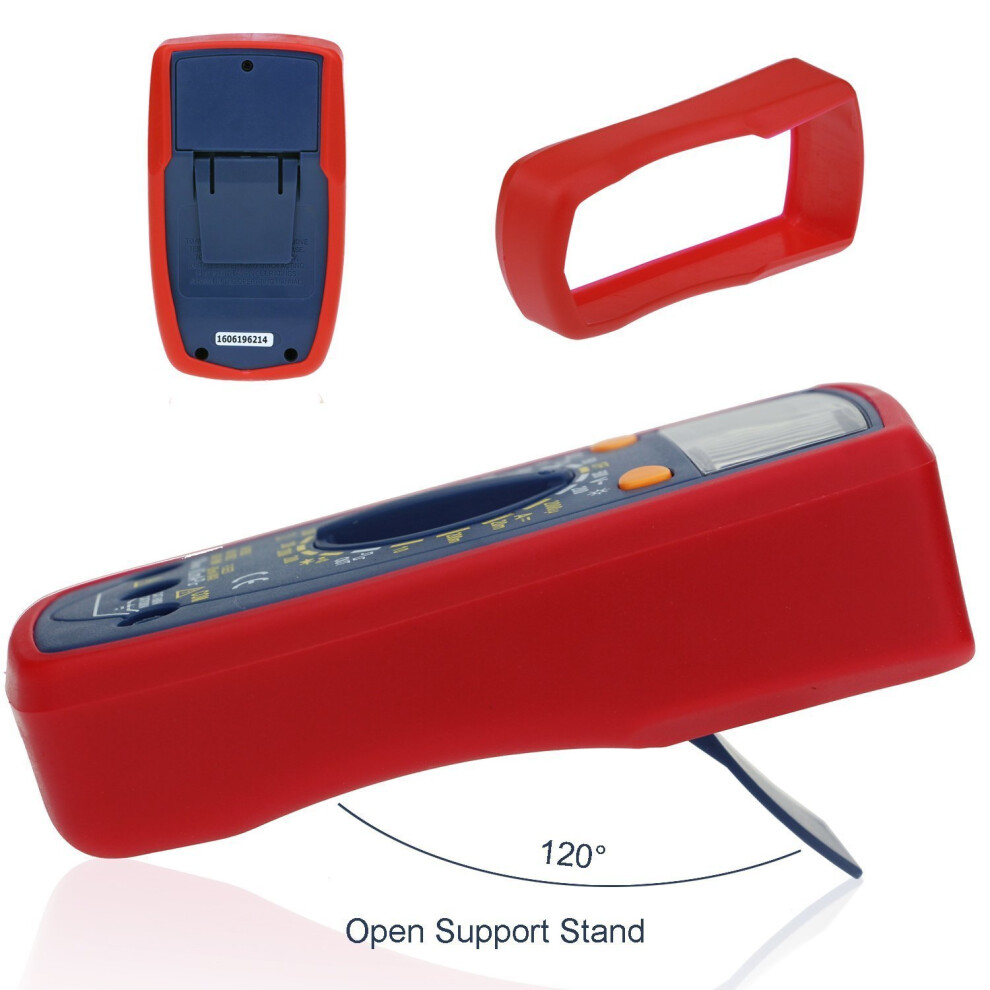

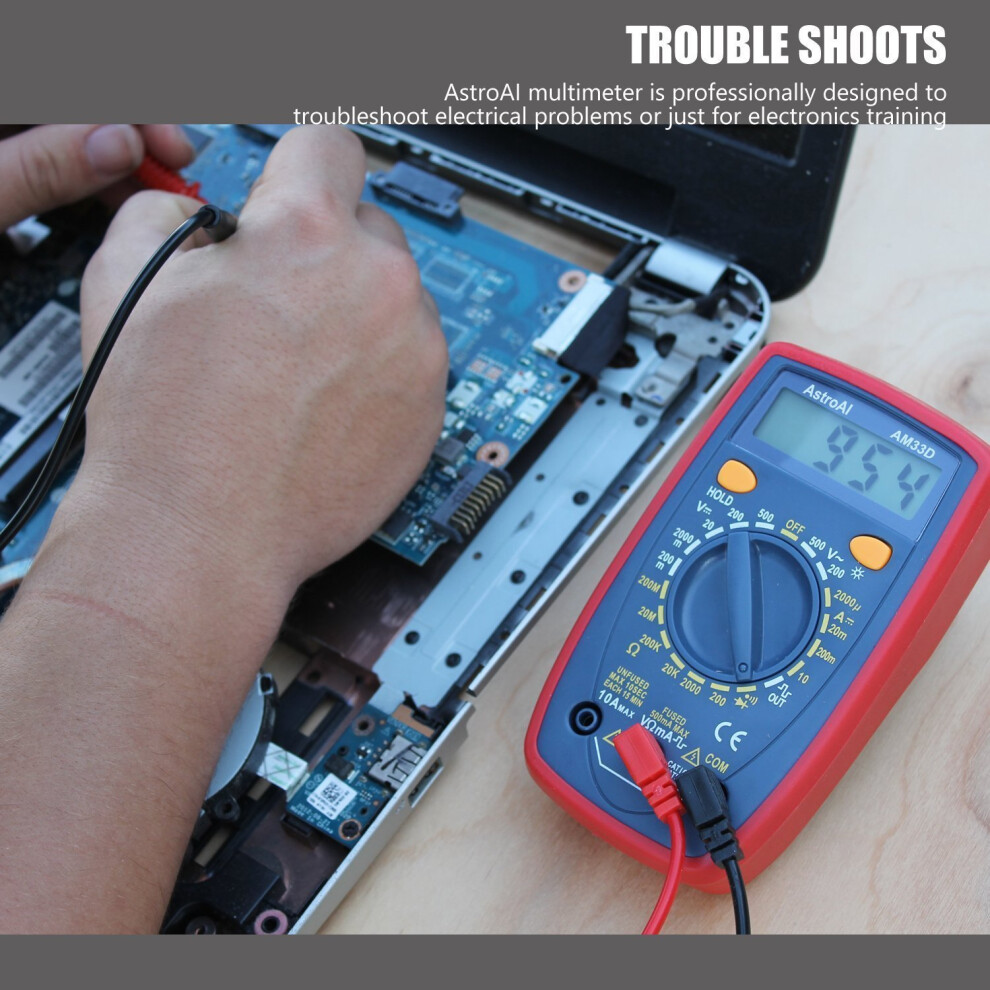

The grip of the multimeter is around the edge of the entire multimeter and a kickstand on the back so you don't have to be holding the entire time when you want to use it. It can also be used to diagnose, assemble, and repair circuitry and wiring. Other features include a low battery indicator, continuity buzzer, and overload protection.

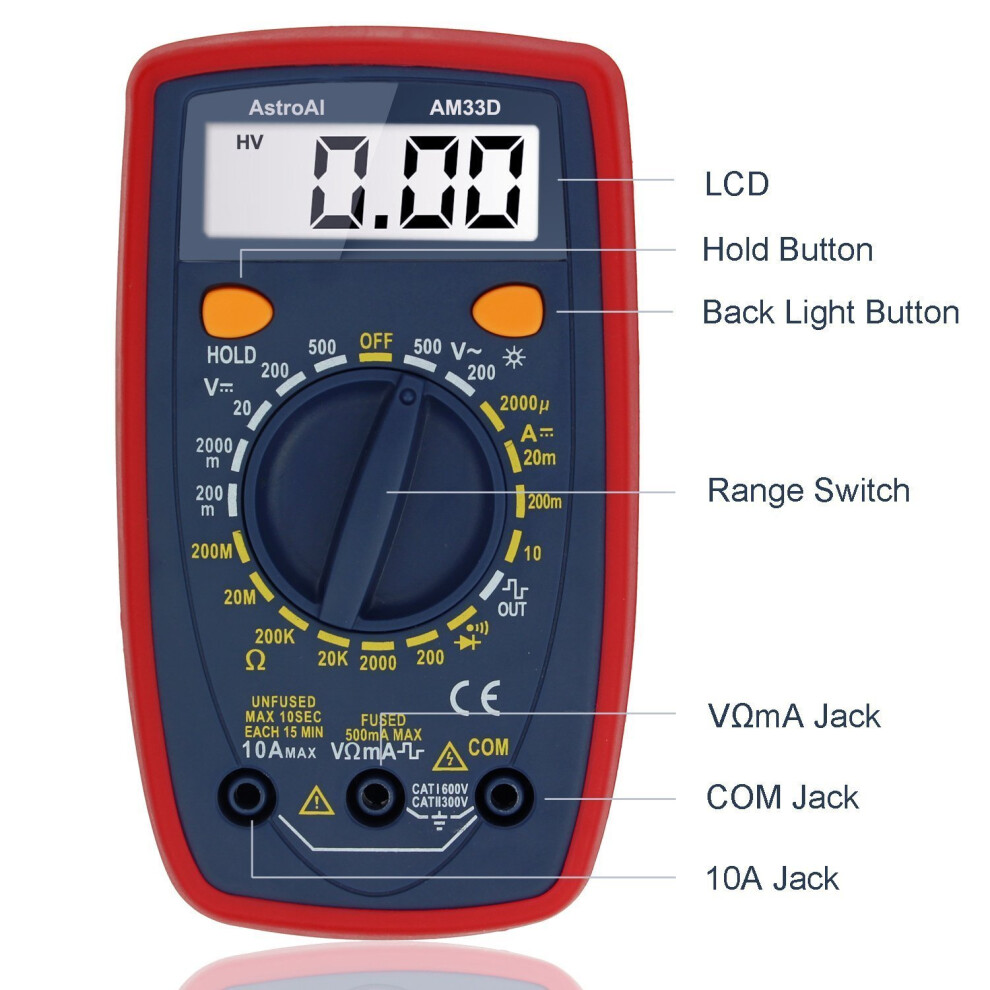

The Hold Button can be useful when it's for more precise measurements. For example if measuring a sensor you might want to make a note that the meter reads 2.984 V and it's more convenient than trying to remember the value while you write it down on a piece of paper or enter the value into a spreadsheet etc.

Specifications
Max.display: 1999, 3 1/2 digits
Range selection: Manual ranging
Overload display: "1" is displayed
Sampling Speed: 2 times per second
Low Battery Indication
Power: 1 x 9V 6F22 Battery Included
Diode Test: Yes
Continuity Test: Yes
Square Wave Output: Yes

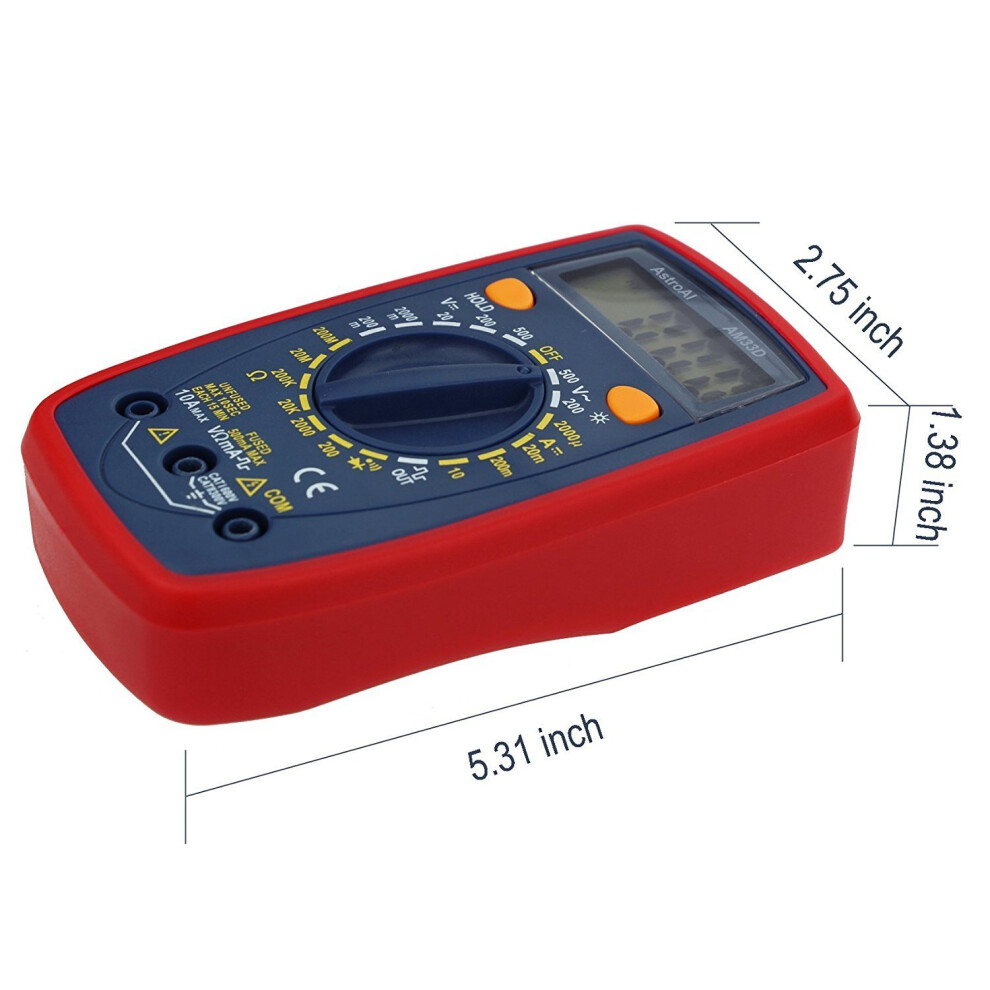

Dimensions: 5.1" x 2.8" x 1.4"
Safety/Compliances: IEC61010 CAT.I 600V, CAT.II 300V, double insulation
DC Voltage: 200mV/2000mV/20V/200V ±(0.5%+3), 500V (1%+5)
AC Voltage: 200V/500V ±(2%+10)
DC Current: 2000μA/20mA ±(1.8%+2), 200mA ±(2%+2), 10A ±(2%+10)
Resistance: 200Ω ±(1%+10), 2000Ω/20KΩ/200KΩ ±(1%+4), 20MΩ ±(1%+10), 200MΩ ±[5%(reading-10)+10]

Package Includes

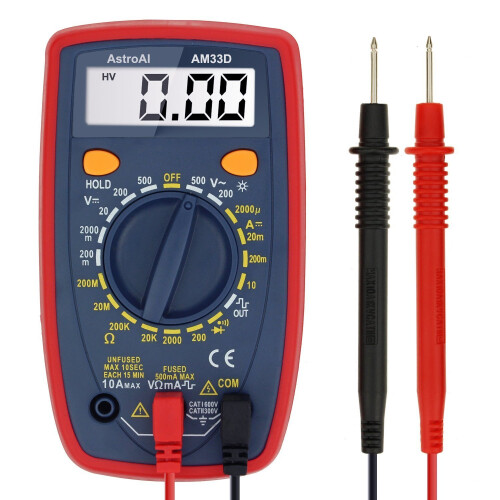

1 x AstroAI AM33D Digital Multimeter
1 x 9V 6F22 Battery
2 x Test Leads
1 x User Manual
