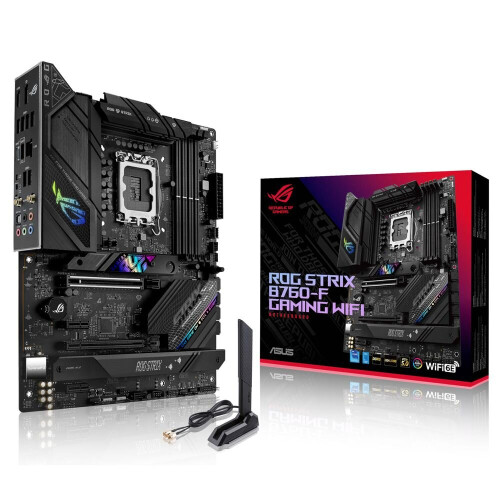

ASUS Gaming WIFI Mainboard ROG Strix B760-F - ATX - Socket Intel 1700 - Intel B760
Brand ASUS
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 131,000 Trustpilot reviews and an 'Excellent' rating
£308.80
FREE Delivery
1%
Earn £3.09 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Sat 8th - Mon 10th Aug
There is 1 other seller
Returns: 30 days
180-day payment protection
You might also like
Description & Details
ASUS Gaming WIFI Mainboard ROG Strix B760-F - ATX - Socket Intel 1700 - Intel B760 Description
ASUS Gaming WIFI Mainboard ROG Strix B760-F - ATX - Socket Intel 1700 - Intel B760
Details
| OPC | PBBFBD7 |
|---|---|
| Brand | |
| Codes | 4711081974666 (EAN) |
| Links | ASUS Motherboards |
External product information
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Network
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
|---|---|
| Bluetooth version | 5.3 |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Features
| Motherboard chipset | Intel B760 |
|---|---|
| Motherboard form factor | ATX |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10, Windows 11 |
| Power source type | ATX |
| Motherboard chipset family | Intel |
| Component for | PC |
| Audio chip | Realtek ALC4080 |
Packaging data
| Package weight | 1.27 kg |
|---|---|
| Package depth | 71 mm |
| Package height | 265 mm |
| Package width | 280 mm |
Processor
| Processor manufacturer | Intel |
|---|---|
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
BIOS
| BIOS memory size | 256 Mbit |
|---|---|
| BIOS type | UEFI AMI |
| Clear CMOS button | Yes |
Rear panel I/O ports
| Line-in | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| WiFi-AP antenna jack | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Memory
| Maximum internal memory | 192 GB |
|---|---|
| ECC | No |
| Non-ECC | Yes |
| Supported memory clock speeds | 7800,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 7800 MHz |
| ECC сompatibility | Non-ECC |
Storage controllers
| RAID levels | 0, 1, 5, 10 |
|---|---|
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Number of storage drives supported | 7 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
Weight & dimensions
| Width | 305 mm |
|---|---|
| Depth | 244 mm |
Packaging content
| Cables included | SATA |
|---|---|
| User guide | Yes |
Internal I/O
| USB 2.0 connectors | 2 |
|---|---|
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
Graphics
| Parallel processing technology support | Not supported |
|---|---|
| On-board graphics card | No |
Other features
| Back-to-BIOS button | Yes |
|---|
Expansion slots
| PCI Express x1 (Gen 3.x) slots | 2 |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
