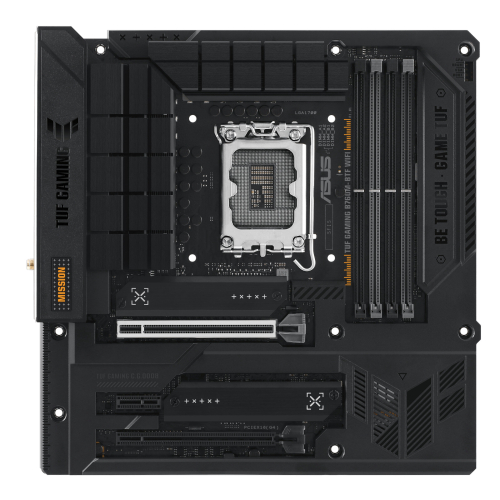

ASUS Mainboard B760M-BTF - Mirco ATX - Socket LGA 1700 - Intel
Brand ASUS
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 131,000 Trustpilot reviews and an 'Excellent' rating
£251.43
FREE Delivery
1%
Earn £2.51 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Sat 8th - Mon 10th Aug
There is 1 other seller
Returns: 30 days
180-day payment protection
You might also like
Description & Details
ASUS Mainboard B760M-BTF - Mirco ATX - Socket LGA 1700 - Intel Description
ASUS Mainboard B760M-BTF - Mirco ATX - Socket LGA 1700 - Intel
Details
| OPC | PCS66RX |
|---|---|
| Brand | |
| Codes | 4711387324547 (EAN) |
| Links | ASUS Motherboards |
External product information
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Other features
| Special features | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 only (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** M.2_3 slot shares bandwidth with PCIEX16(G4) slot. When M.2_3 slot has be installed a device, PCIEX16(G4) slot will be disabled. |
|---|---|
| Audio output | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Other features | 4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics output | 1 x DisplayPort** 1 x HDMITM port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
Network
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
|---|---|
| Bluetooth version | 5.2 |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Features
| Motherboard chipset | Intel B760 |
|---|---|
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Windows operating systems supported | Windows 11, Windows 10 |
| Power source type | ATX |
| Motherboard chipset family | Intel |
| Component for | PC |
Processor
| Processor manufacturer | Intel |
|---|---|
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
BIOS
| BIOS memory size | 128 Mbit |
|---|---|
| BIOS type | UEFI AMI |
| Clear CMOS button | Yes |
Rear panel I/O ports
| Line-in | Yes |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| WiFi-AP antenna jack | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Memory
| Maximum internal memory | 192 GB |
|---|---|
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 7200 MHz |
| ECC сompatibility | Non-ECC |
Storage controllers
| RAID levels | 0, 1, 5, 10 |
|---|---|
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Number of storage drives supported | 7 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
Weight & dimensions
| Width | 244 mm |
|---|---|
| Depth | 244 mm |
Packaging content
| Cables included | SATA |
|---|---|
| User guide | Yes |
Internal I/O
| USB 2.0 connectors | 2 |
|---|---|
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
Graphics
| Parallel processing technology support | Not supported |
|---|
Expansion slots
| Number of M.2 (M) slots | 3 |
|---|---|
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
