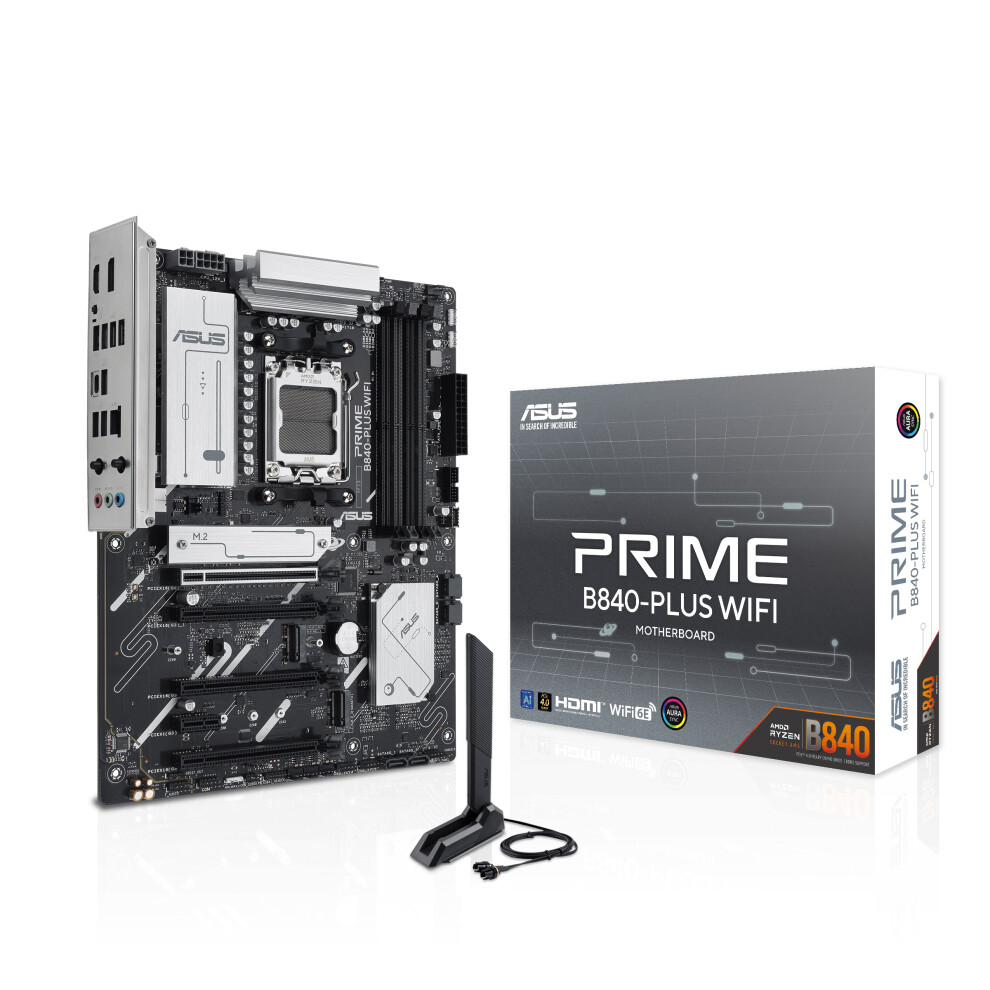

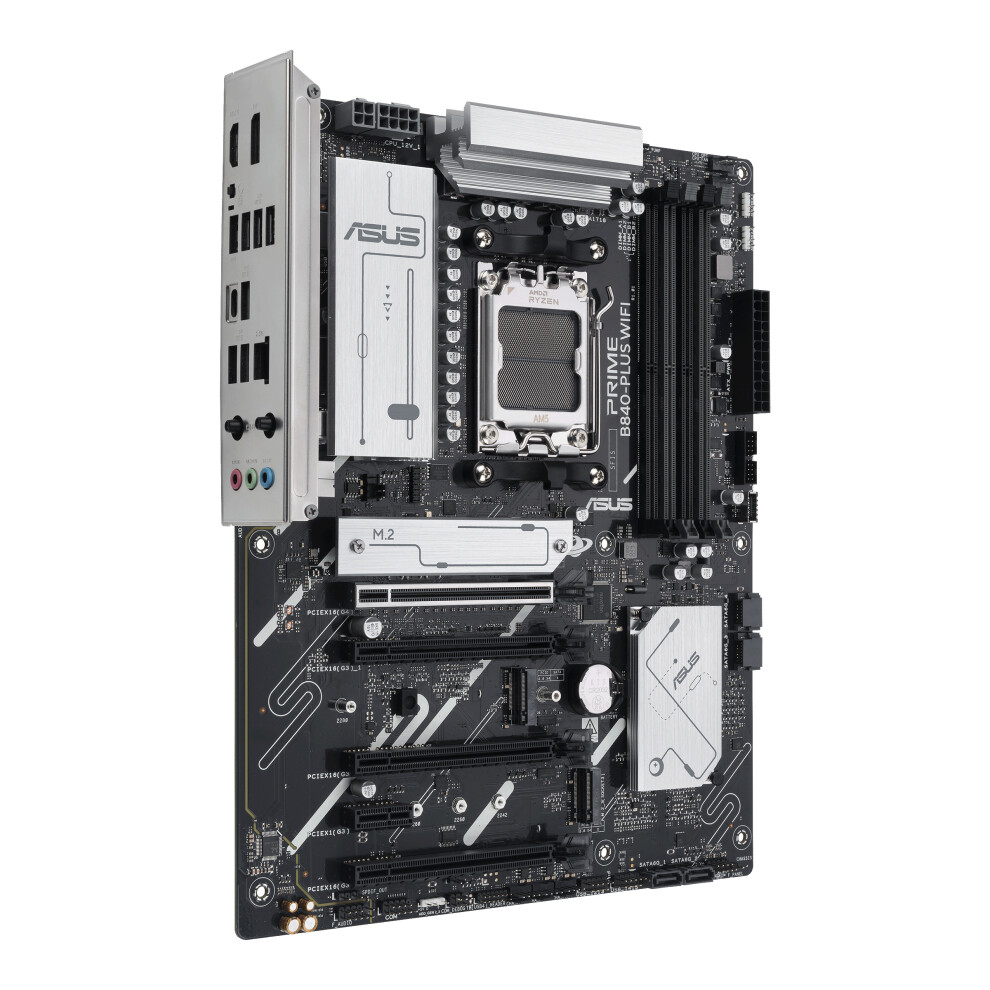

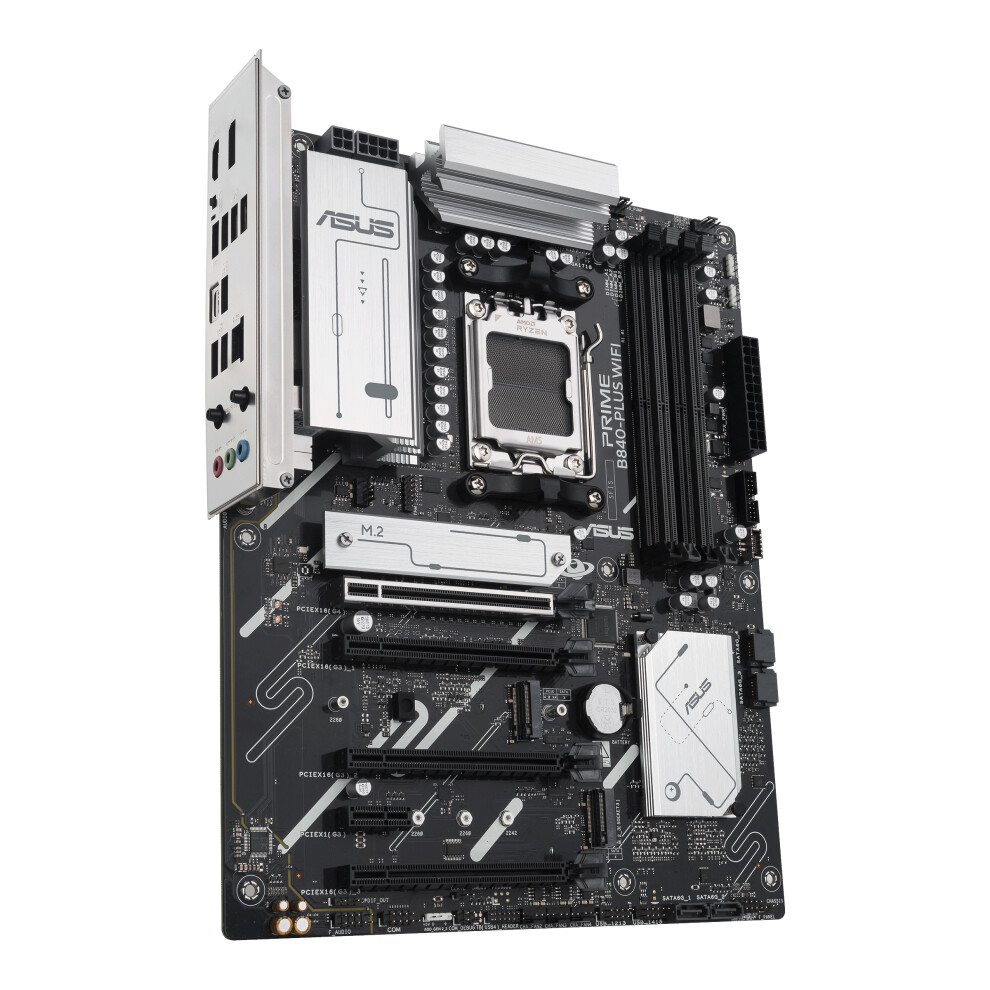

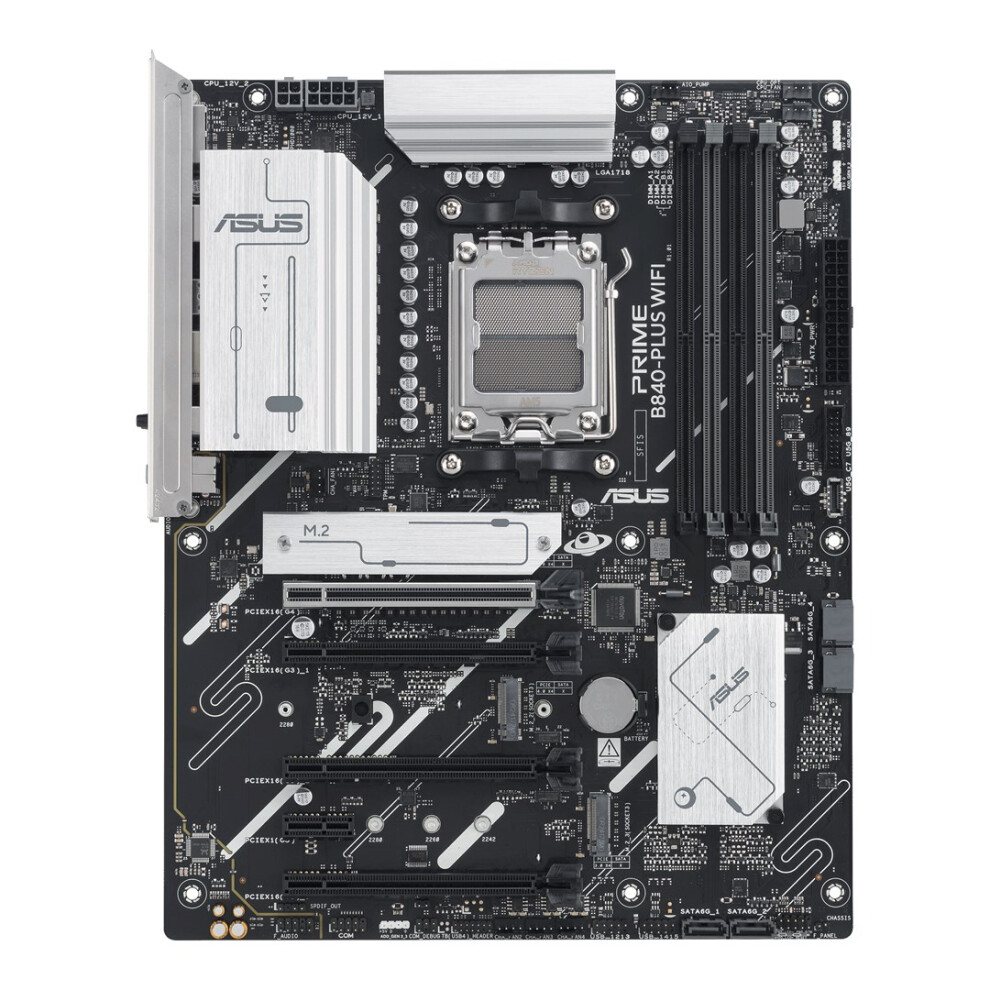

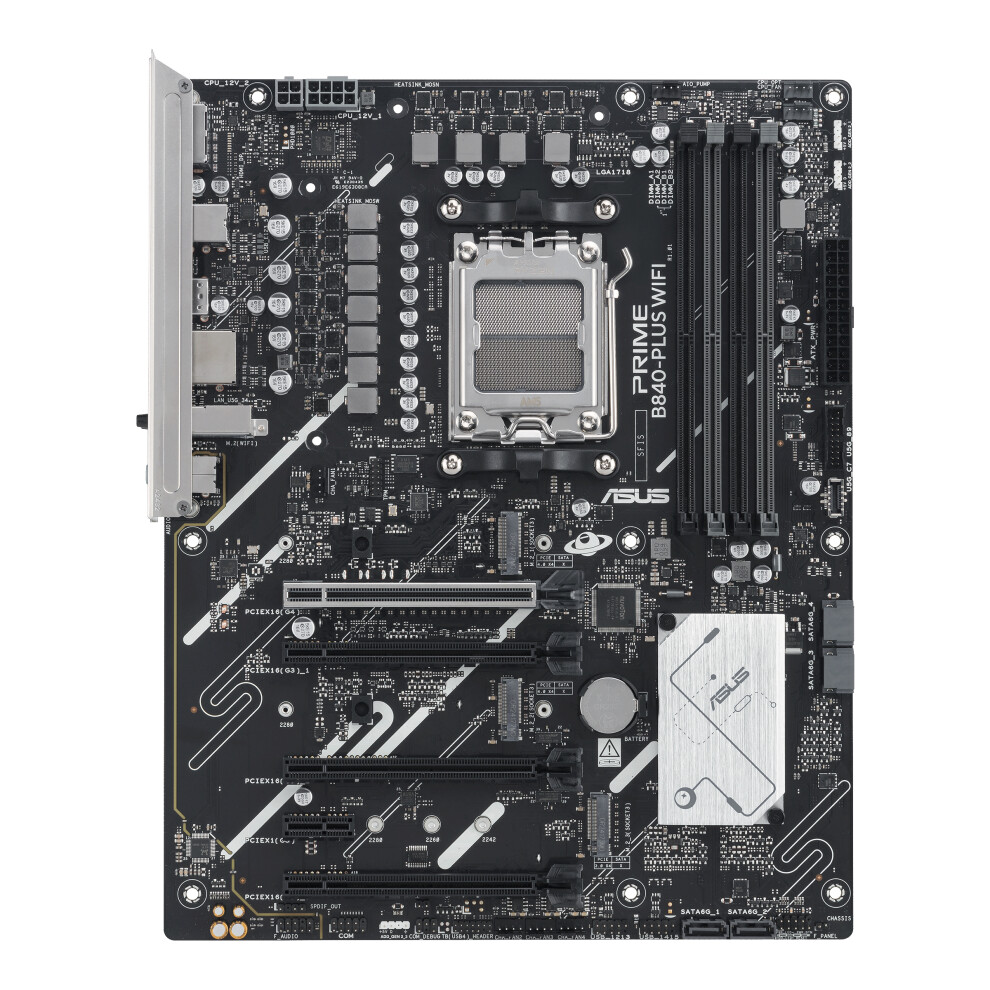

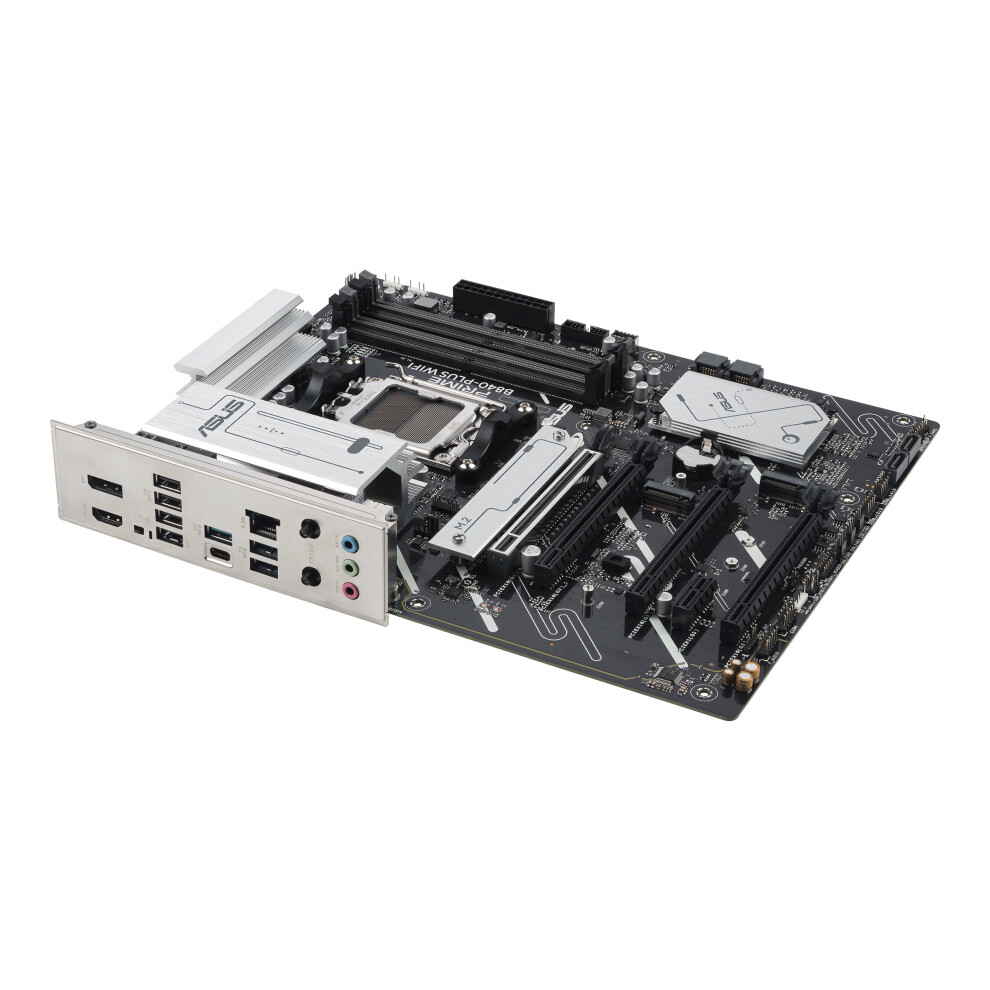

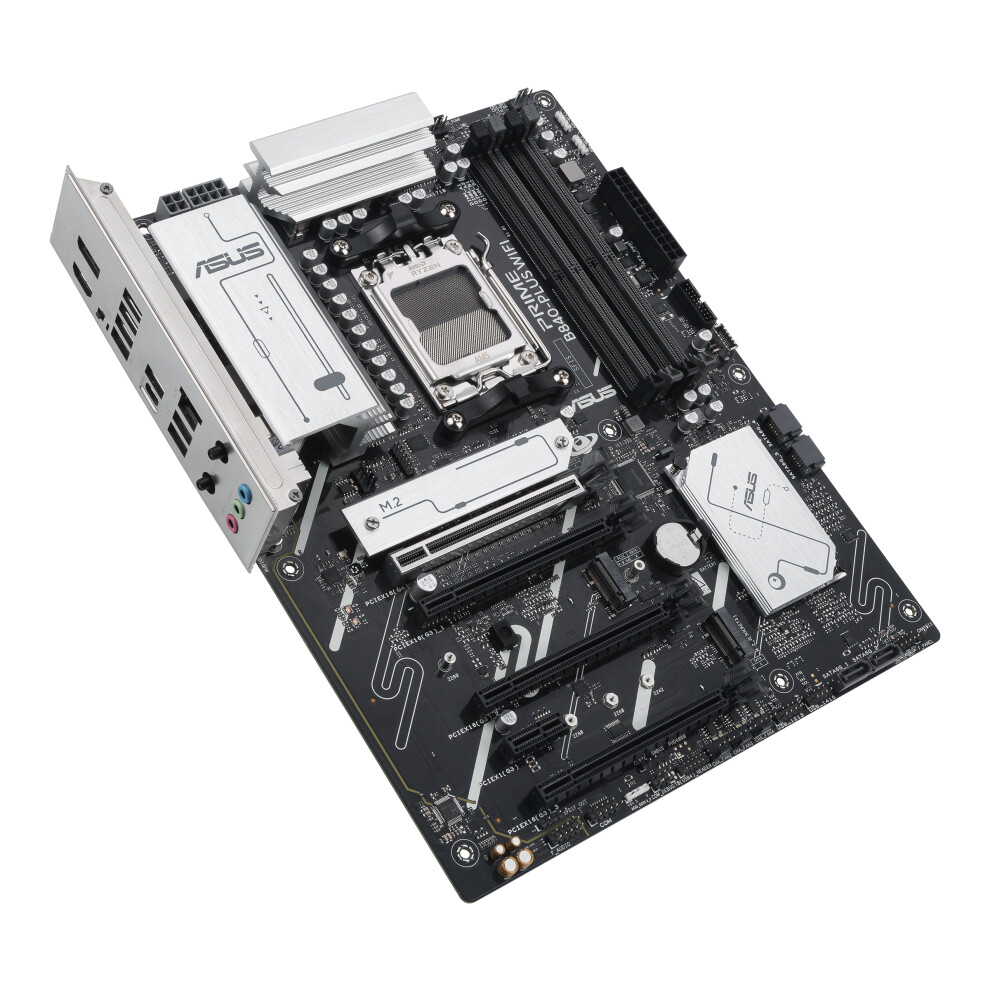

ASUS PRIME B840-PLUS WIFI AMD B840 Socket AM5 ATX
Brand ASUS
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 131,000 Trustpilot reviews and an 'Excellent' rating
£252.08
FREE Delivery
1%
Earn £2.52 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Mon 24th - Sat 29th Aug
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC ATX AMD B840 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
- BIOS type: UEFI AMI 256 Mbit
ASUS PRIME B840-PLUS WIFI AMD B840 Socket AM5 ATX Description
ASUS PRIME B840-PLUS WIFI AMD B840 Socket AM5 ATX
Details
| OPC | PFX2BFS |
|---|---|
| Brand | |
| Codes | 4711387797273 (EAN) |
| Links | ASUS Motherboards |
Detailed Product Information
| RAM Type | DDR5-SDRAM |
|---|---|
| Processor Socket | Socket AM5 |
External product information
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Network
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
|---|---|
| Bluetooth version | 5.3 |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Features
| Motherboard chipset | AMD B840 |
|---|---|
| Motherboard form factor | ATX |
| Product colour | Aluminium, Black |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Motherboard chipset family | AMD |
| Component for | PC |
Packaging data
| Package weight | 1.26 kg |
|---|---|
| Package depth | 273 mm |
| Package height | 68 mm |
| Package width | 353 mm |
Processor
| Processor manufacturer | AMD |
|---|---|
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
BIOS
| BIOS memory size | 256 Mbit |
|---|---|
| BIOS type | UEFI AMI |
Memory
| Maximum internal memory | 192 GB |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
Storage controllers
| RAID levels | 0, 1, 5, 10 |
|---|---|
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Number of storage drives supported | 7 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
Weight & dimensions
| Width | 305 mm |
|---|---|
| Depth | 244 mm |
Packaging content
| Cables included | SATA |
|---|---|
| Screws included | Yes |
| Antenna included | Yes |

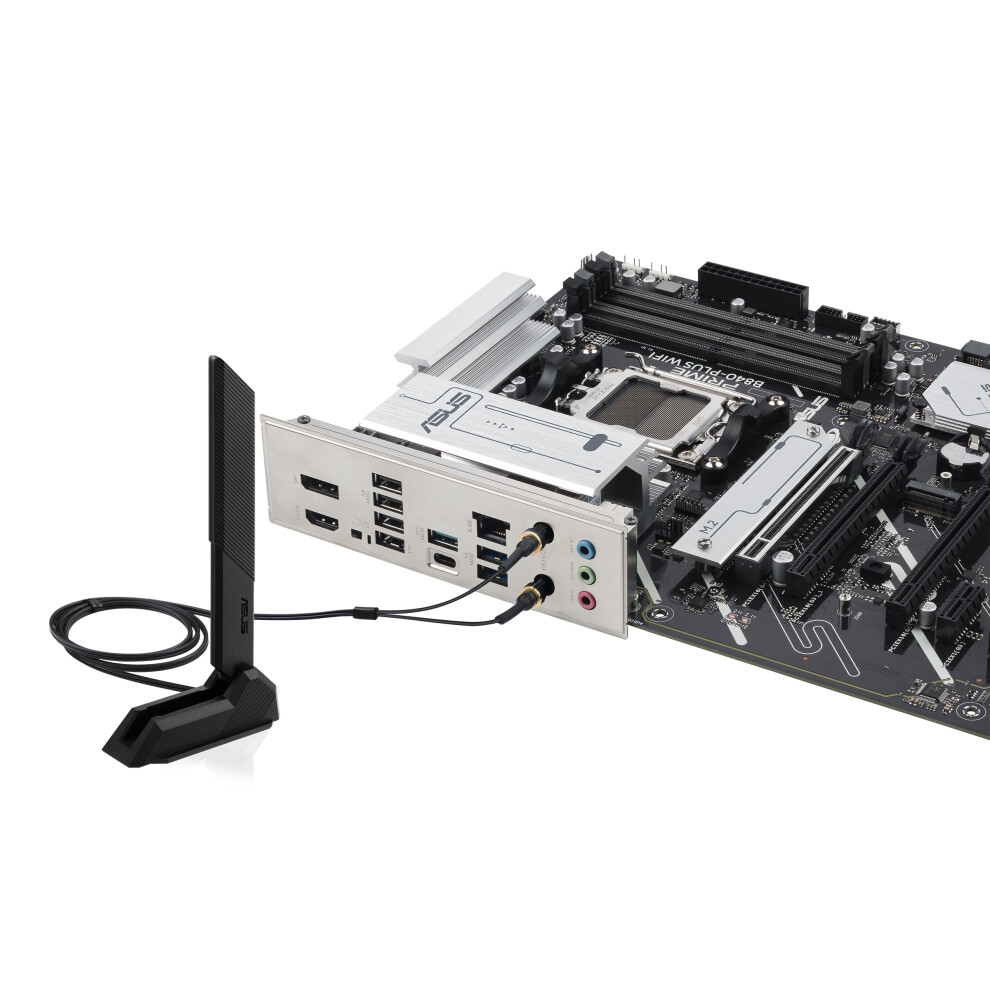

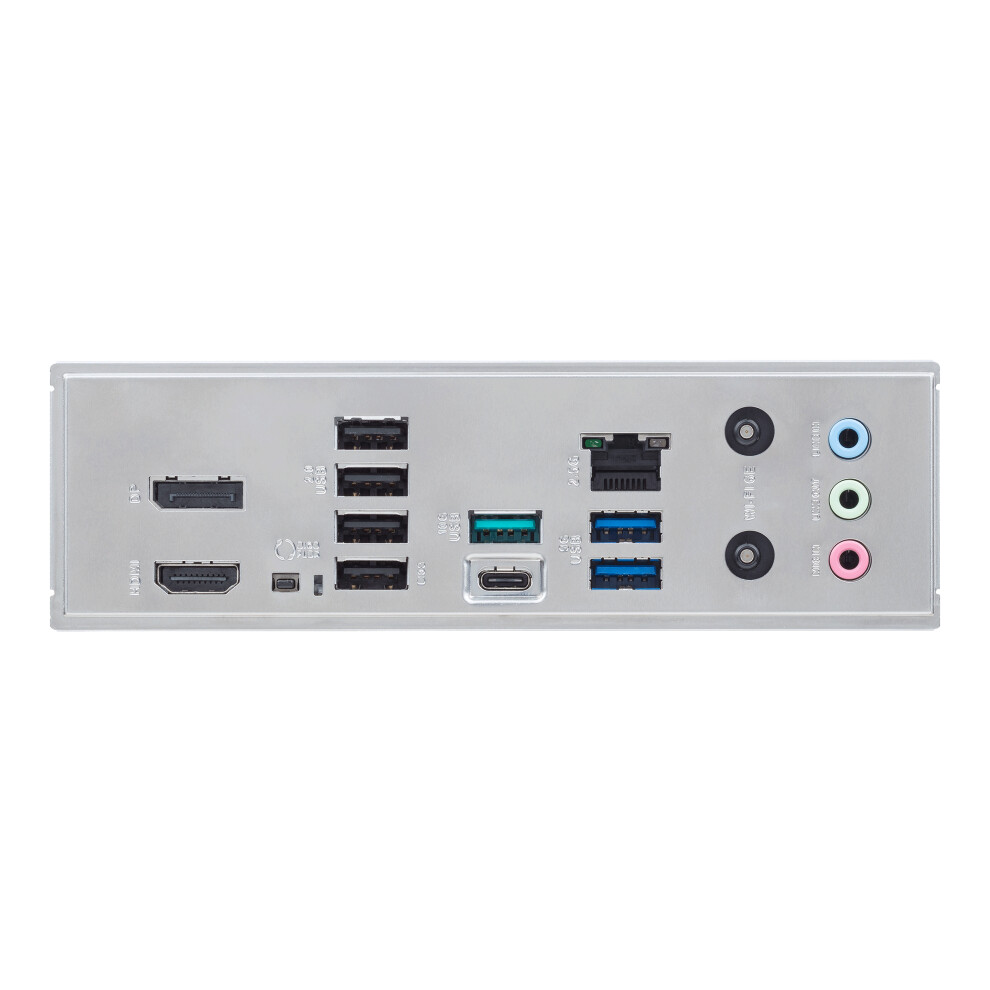

Rear panel I/O ports
| USB 2.0 ports quantity | 4 |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| WiFi-AP antenna jack | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Internal I/O
| USB 2.0 connectors | 2 |
|---|---|
| S/PDIF out connector | Yes |
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Thunderbolt headers | 1 |
| 12V power connector | Yes |
Graphics
| Parallel processing technology support | Not supported |
|---|---|
| On-board graphics card | No |
Expansion slots
| PCI Express x1 (Gen 3.x) slots | 1 |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 3 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 highest PCI Express generation | 3.0 |
