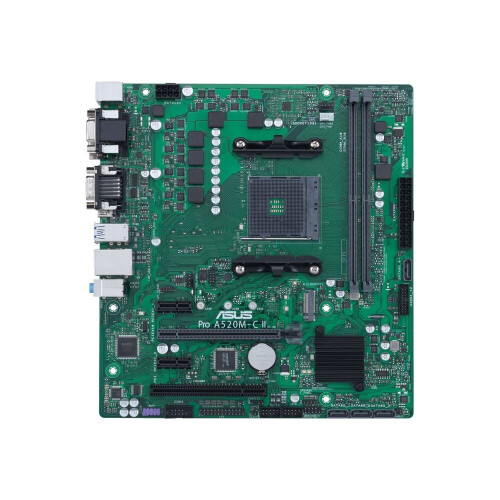

ASUS Pro A520M-C II/CSM - motherboard - micro ATX - Socket AM4 - AMD A520
Brand ASUS
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 133,000 Trustpilot reviews and an 'Excellent' rating
£145.66
FREE Delivery
1%
Earn £1.46 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Wed 16th - Tue 22nd Sep
Returns: 30 days
180-day payment protection
You might also like
Description & Details
ASUS Pro A520M-C II/CSM - motherboard - micro ATX - Socket AM4 - AMD A520 Description
ASUS Pro A520M-C II/CSM - motherboard - micro ATX - Socket AM4 - AMD A520
ASUS
If you're looking for high-quality computer components and accessories, ASUS is the brand for you. Delivering top tech and electronics across the board, they're world-renowned as specialists in what they do. Browse our range here at OnBuy and see what they have to offer.
Details
| OPC | PBWVRQH |
|---|---|
| Brand | |
| Codes | 4711081250098 (EAN) |
| Links | AM4 Motherboards |
| ASUS Motherboards |
External product information
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Features
| Motherboard chipset | AMD A520 |
|---|---|
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64 |
| Motherboard chipset family | AMD |
| Component for | PC |
| Audio chip | Realtek ALC897 |
Packaging data
| Package weight | 910 g |
|---|---|
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Package width | 270 mm |
Processor
| Processor manufacturer | AMD |
|---|---|
| Maximum number of SMP processors | 1 |
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7 |
| Processor socket | Socket AM4 |
| Supported processor sockets | Socket AM4 |
BIOS
| BIOS memory size | 128 Mbit |
|---|---|
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
Rear panel I/O ports
| PS/2 ports quantity | 2 |
|---|---|
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| COM ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
Network
| Ethernet LAN | Yes |
|---|---|
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Top Wi-Fi standard | Not available |
Memory
| Maximum internal memory | 64 GB |
|---|---|
| ECC | Yes |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4400,4600 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| ECC сompatibility | ECC |
Storage controllers
| RAID levels | 0, 1, 10 |
|---|---|
| RAID support | Yes |
| Number of storage drives supported | 5 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
Weight & dimensions
| Width | 244 mm |
|---|---|
| Depth | 229 mm |
Packaging content
| Cables included | SATA |
|---|---|
| Drivers included | Yes |
Internal I/O
| USB 2.0 connectors | 2 |
|---|---|
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Parallel connector | Yes |
| Serial port headers | 1 |
| Front panel connector | Yes |
Graphics
| Parallel processing technology support | Not supported |
|---|
Expansion slots
| PCI slots | 1 |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
