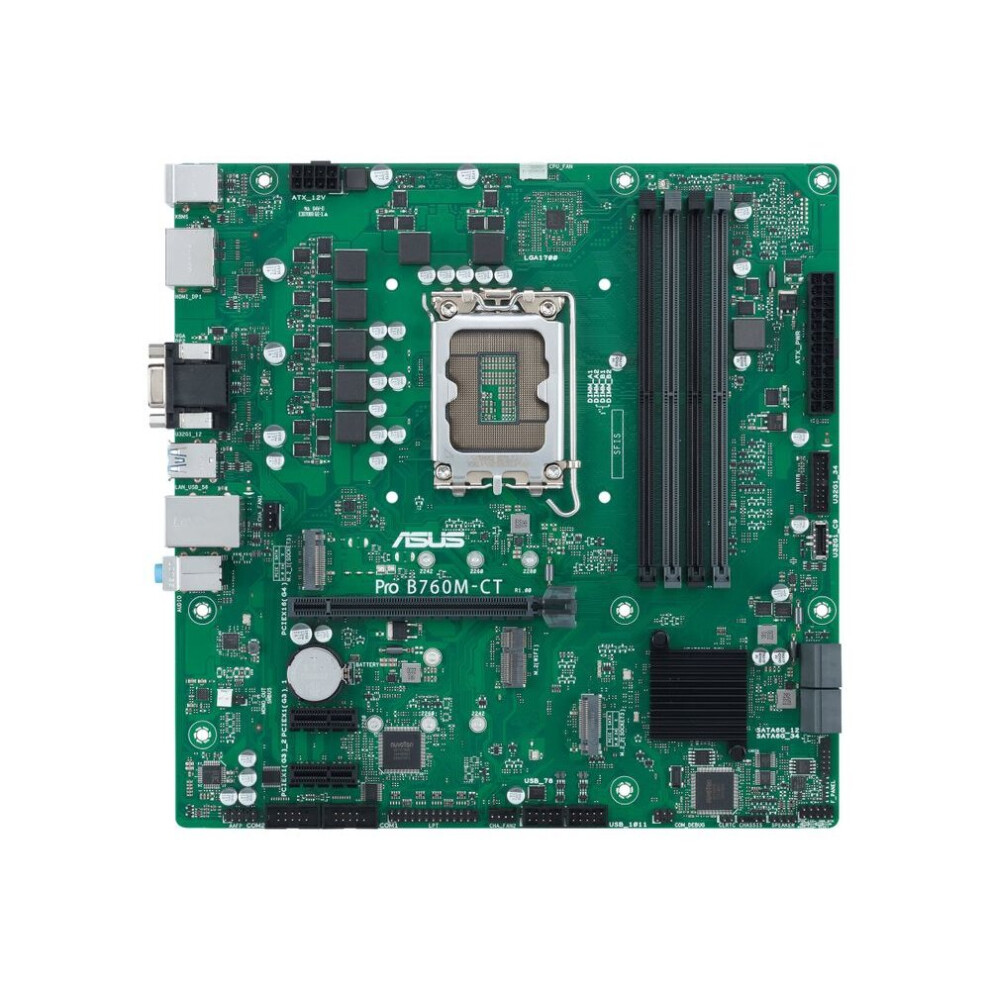

ASUS Pro B760M-CT-CSM - motherboard - micro ATX - LGA1700 Socket - B760
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 136,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Sat 31st Oct - Fri 6th Nov
Returns: 30 days
180-day payment protection
You might also like
ASUS Pro B760M-CT-CSM - motherboard - micro ATX - LGA1700 Socket - B760 Description
ASUS Pro B760M-CT-CSM - motherboard - micro ATX - LGA1700 Socket - B760
Details
| OPC | PBWVRQF |
|---|---|
| Brand | |
| Codes | 4711387019610 (EAN) |
| Links | ASUS Motherboards |
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Features
| Motherboard chipset | Intel B760 |
|---|---|
| Motherboard form factor | micro ATX |
| Product colour | Green |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Motherboard chipset family | Intel |
| Component for | PC |
Processor
| Processor manufacturer | Intel |
|---|---|
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
BIOS
| BIOS memory size | 128 Mbit |
|---|---|
| Clear CMOS button | Yes |
Rear panel I/O ports
| PS/2 ports quantity | 2 |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Network
| Ethernet LAN | Yes |
|---|---|
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
Memory
| Maximum internal memory | 128 GB |
|---|---|
| Non-ECC | Yes |
| Supported memory clock speeds | 4800,5000,5400,5600,5800,6000,6200 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 6200 MHz |
| ECC сompatibility | Non-ECC |
Weight & dimensions
| Width | 244 mm |
|---|---|
| Depth | 244 mm |
Packaging content
| Cables included | SATA |
|---|
Internal I/O
| USB 2.0 connectors | 2 |
|---|---|
| CPU fan connector | Yes |
| Number of COM connectors | 3 |
| Chassis intrusion connector | Yes |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Audio connector | Yes |
Graphics
| Parallel processing technology support | Not supported |
|---|---|
| On-board graphics card | No |
Expansion slots
| PCI Express x1 (Gen 3.x) slots | 2 |
|---|---|
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
Storage controllers
| Supported storage drive types | HDD & SSD |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
Other features
| Number of M.2 (E) slots | 1 |
|---|
