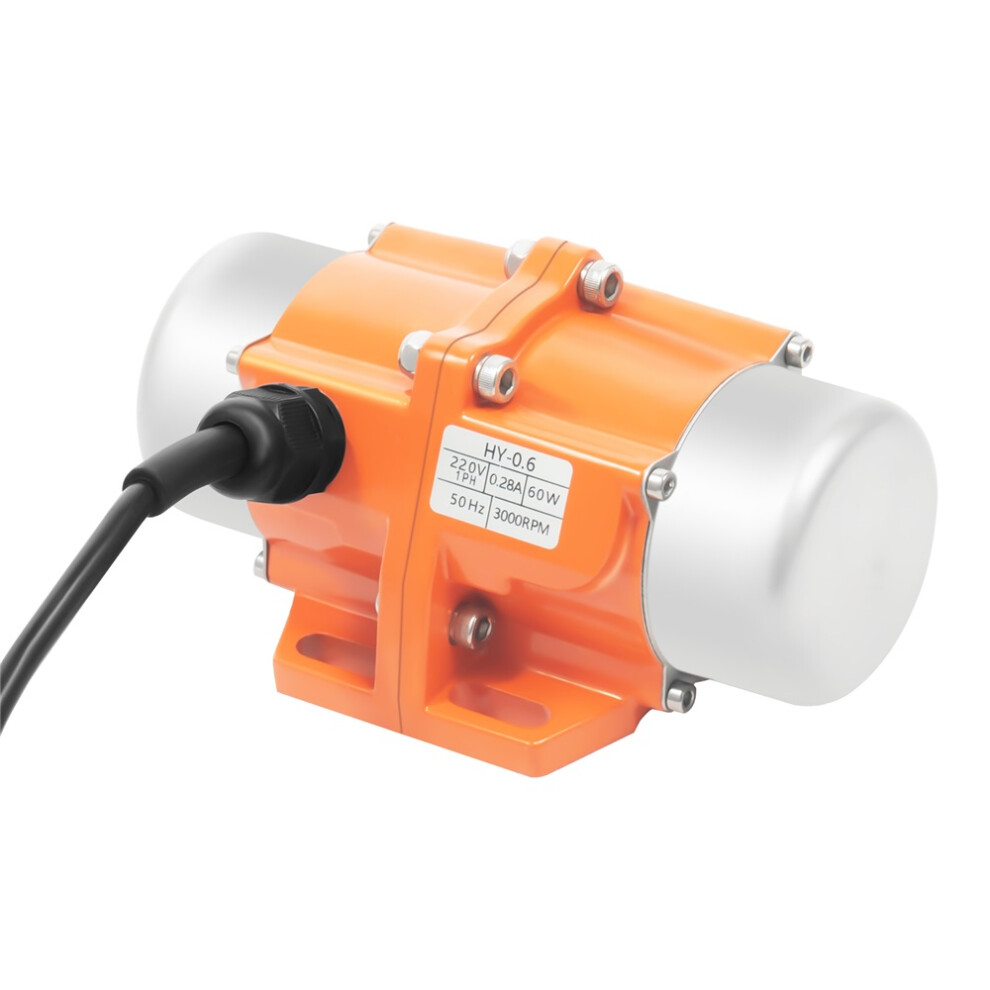

Asynchronous Vibration Motor 60W mini Vibration Motor
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 136,000 Trustpilot reviews and an 'Excellent' rating
£29.93
£31.50
5% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 22nd - Sat 24th Oct
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- Enhanced Efficiency: This single-phase asynchronous motor hits up to 85% efficiency, with fast start and effective heat release to maintain stable, prolonged use.

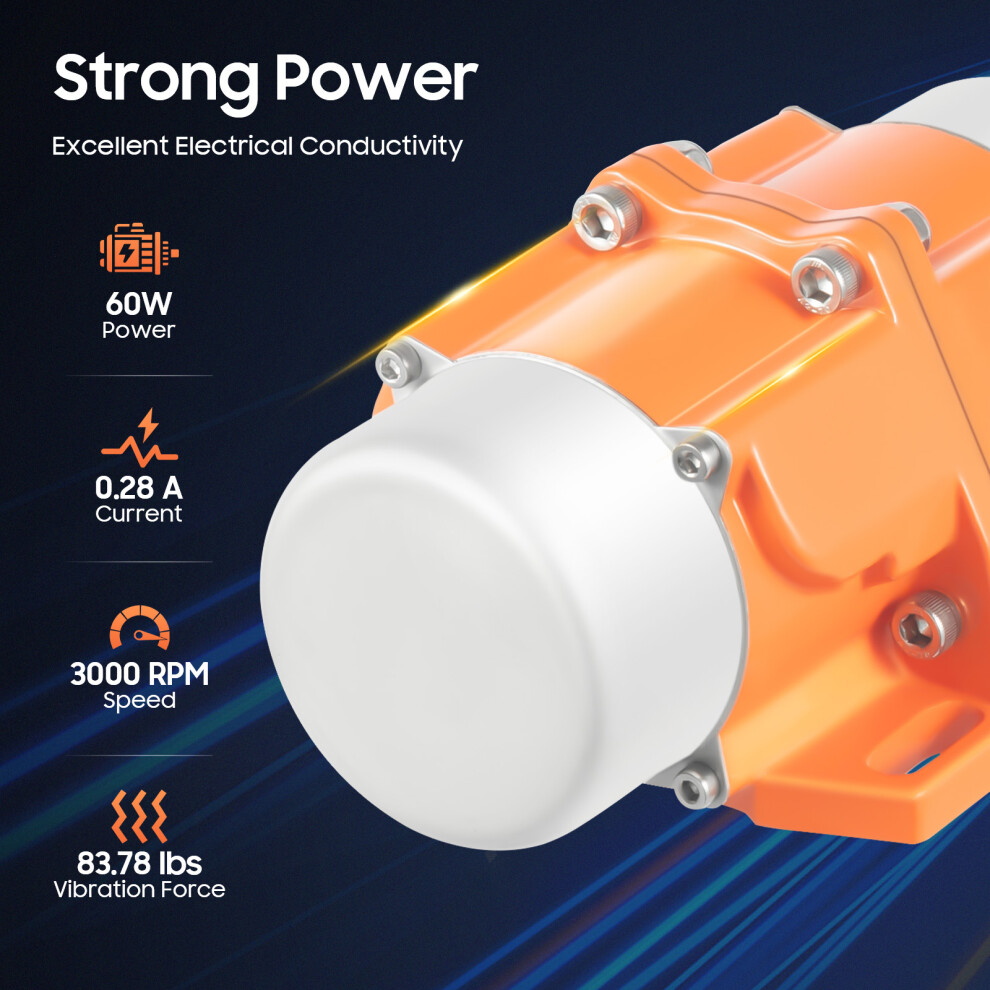

- Powerful Performance: The pure copper motor boasts superior electrical conductivity, providing 60W power and 3000rpm to produce 83.78 lbs of robust vibration force for multiple industrial scenarios.
- Good Performance: It adopts an all-copper coil, cold-rolled silicon steel sheet, high-precision rotor, and high-precision carbon steel bearings, which are not only resistant to high temperature, with good insulation, low noise, low temperature rise, and high efficiency but also can ensure the efficient, stable and safe motor working.
- Customizable Eccentric Block: The vibration motor’s eccentric block features adjustable angles, enabling vibration force modification to enhance working adaptability for various working demands.
- Versatile Application: It is compatible with various machinery including vibrating feeders, screens and slurry sprayers for diverse needs, enabling one motor to serve multiple uses.
Asynchronous Vibration Motor 60W mini Vibration Motor Description
Application
It is suitable for mining, metallurgy, coal, electricity, construction, chemical industry, medical equipment, food machinery, and other fields. It is widely used in a snow plow, vibration elevator, mortar spraying machine, vibrating screen, specific gravity stone remover, vegetable washing machine, vibration feeder, and so on. Whether indoor or outdoor, for home use or business, it will greatly match your requirements.
Specification
Color: Orange+Silver
Material: Aluminum Alloy, Copper, Cold-rolled Silicon Steel, Carbon Steel
Type: Single-phase Asynchronous Motor
Voltage: 220 V
Power: 60W
Current: 0.28 A
Speed: 3000 RPM
Frequency: 50Hz
Waterproof Rating: IP65
Insulation Class: F
Cooling Method: Self-cooling
Output Efficiency: 85%
Operating Temperature Range: -20 ~ 50C/ -4-122 F
Power Cord Length: 1.5 m/ 4.92ft

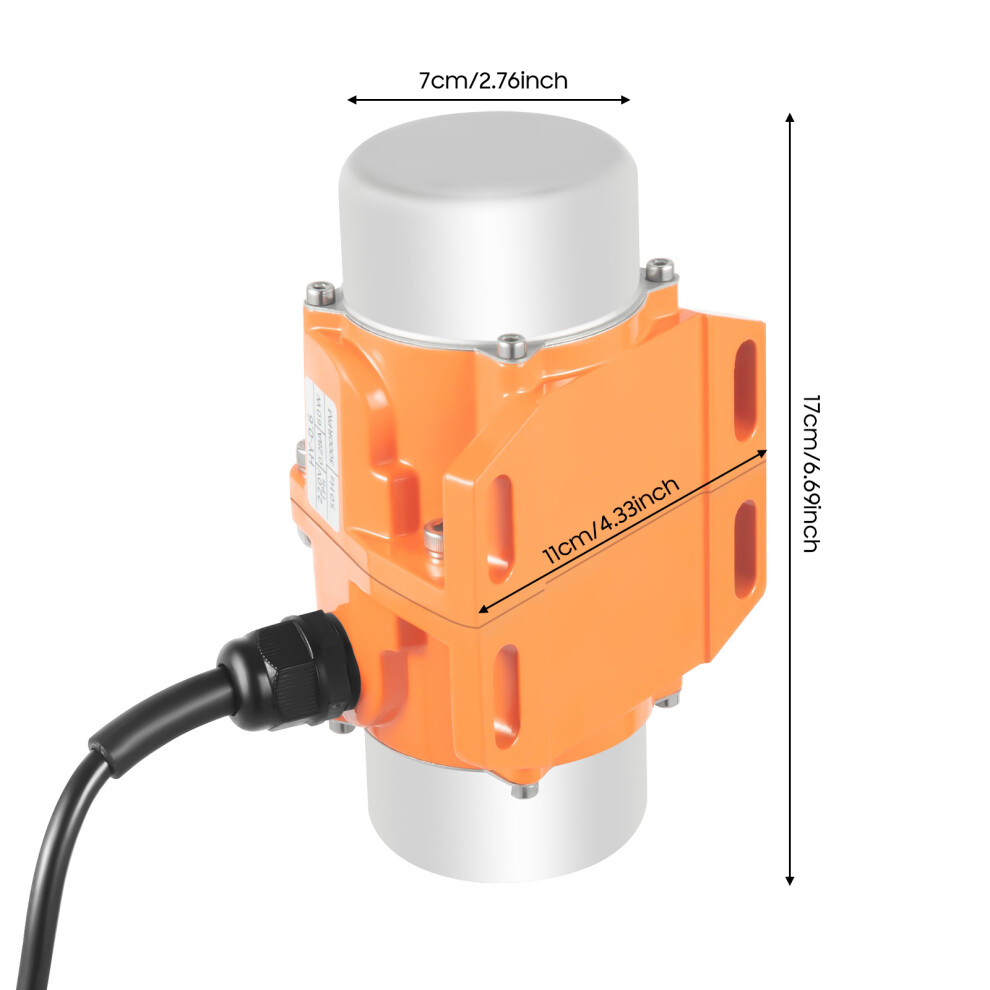

Product Size: About 17*11*7cm/ 6.69 *4.33*2.76 in
Package Size: 20*15*10.5 cm/7.87*5.9*4.13 in
Vibration Force: 38 kg/83.78 lbs
Gross Weight: 2.12 kg/4.67 lbs
Net Weight: 2.01 kg/4.43 lbs

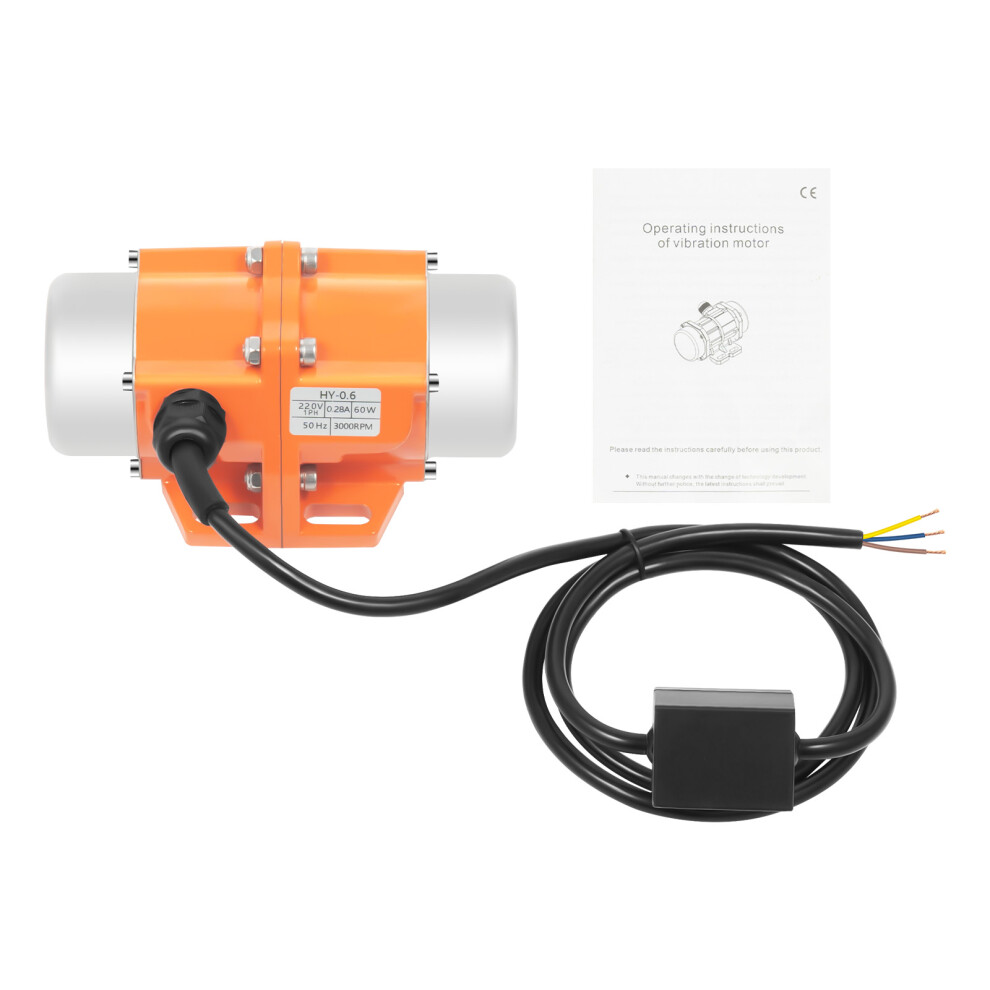

Package Included
1* Vibration Motor
1* English Manual
Notes
1. Please check the style and size before purchasing.
2. Please note that it does not include plugs.
3. The wiring mode is that the yellow wire connects to the ground wire, the blue wire connects to the neutral wire, and the brown wire connects to the live wire.
4. Please read the instruction manual and labels completely before installation and use, and pay particular attention to the safety instructions included.
5. The eccentric blocks on both sides of the vibration motor must be confirmed to be symmetrical. After adjustment, the screw should be fixed tightly to prevent the screw from falling off during vibration.
6. Please remember to regularly check the tightness of the mounting screws and clean the dust on the surface of the vibrating motor.
7. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
