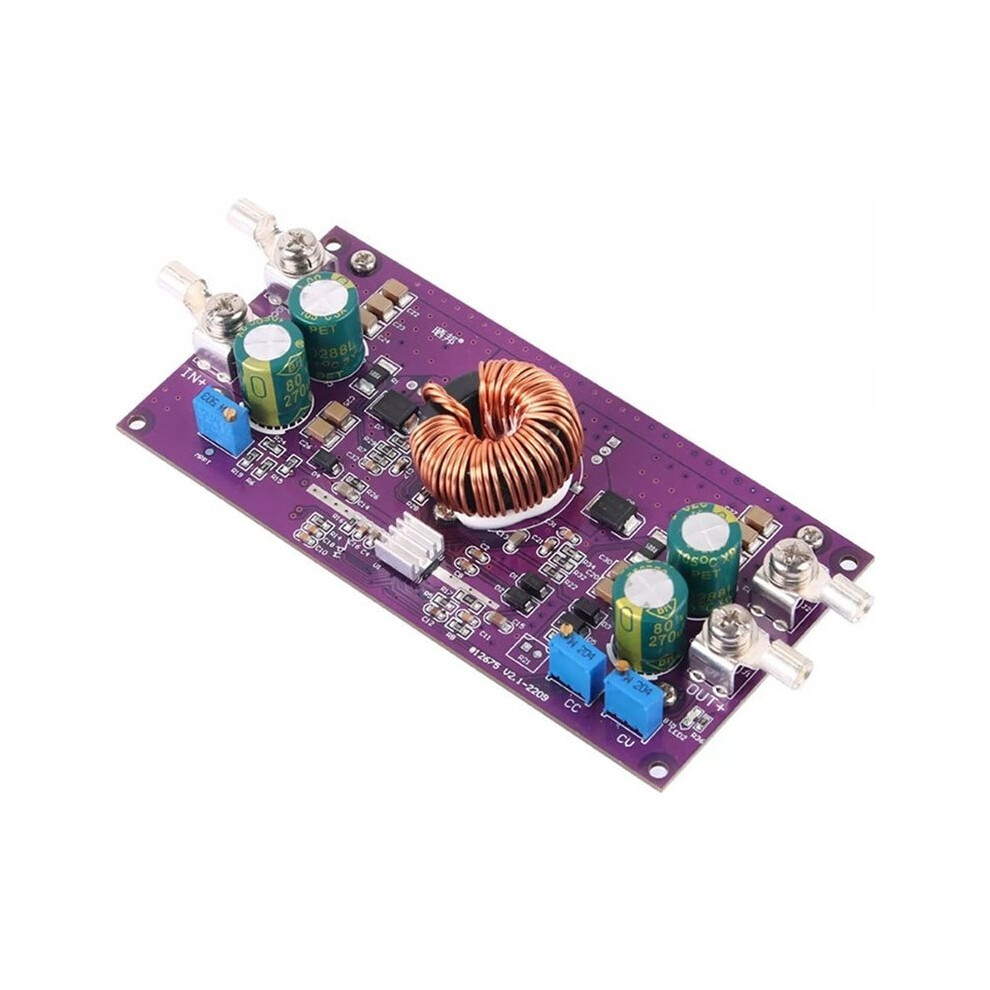

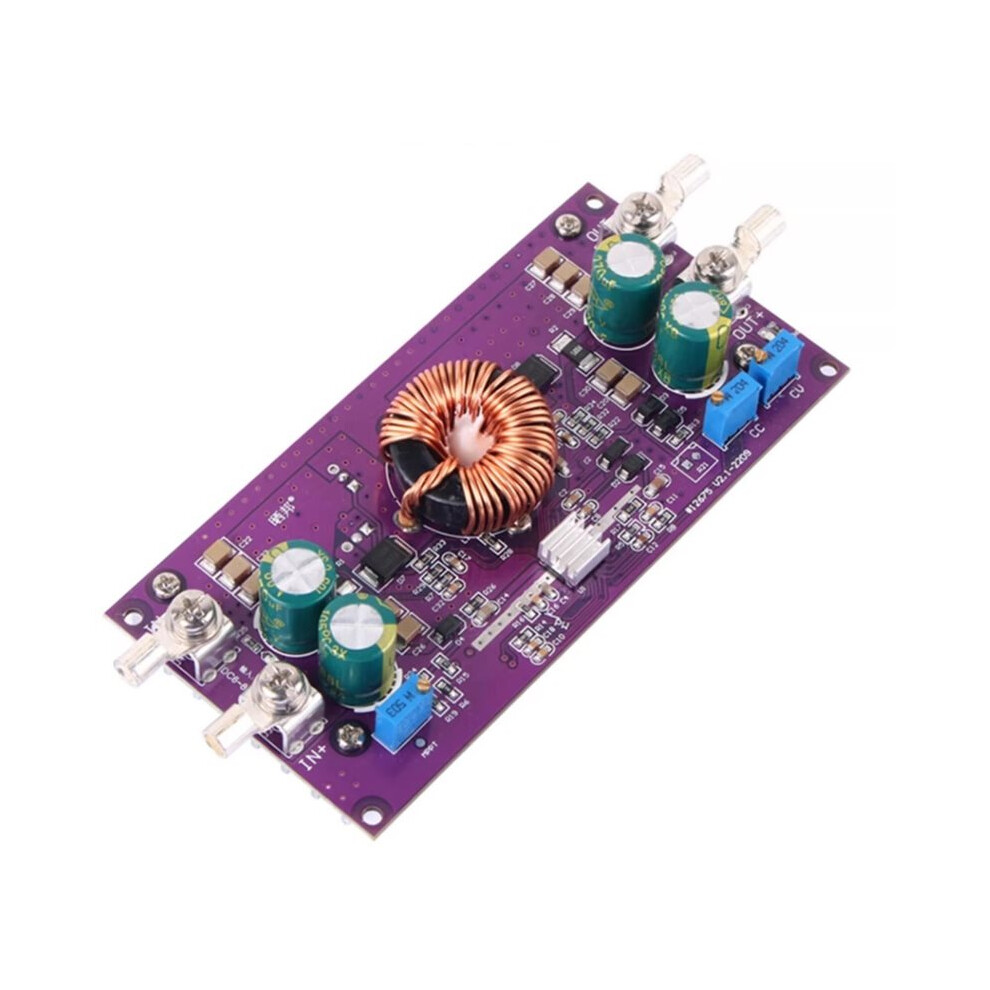

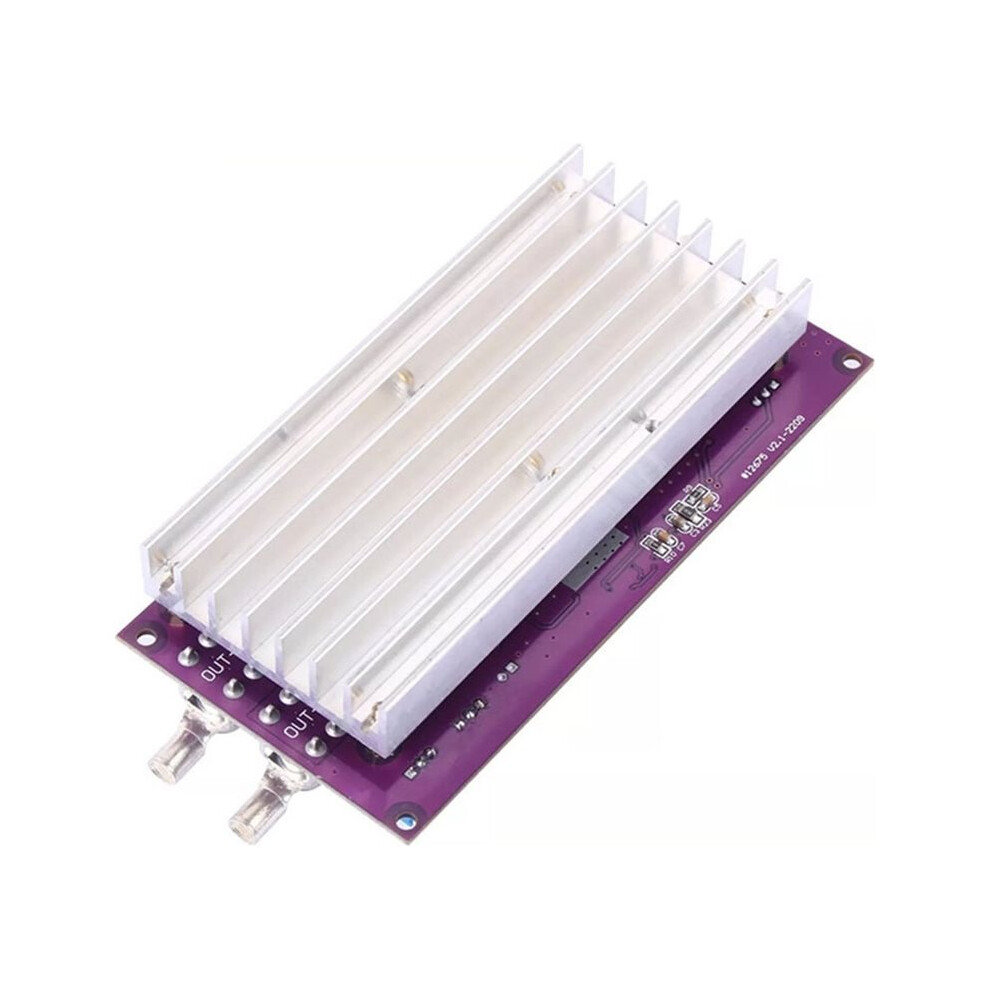

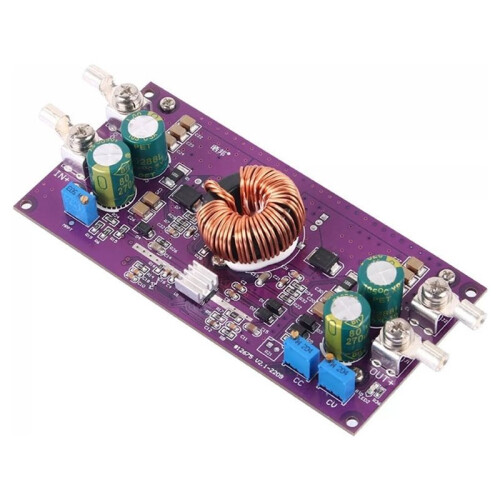

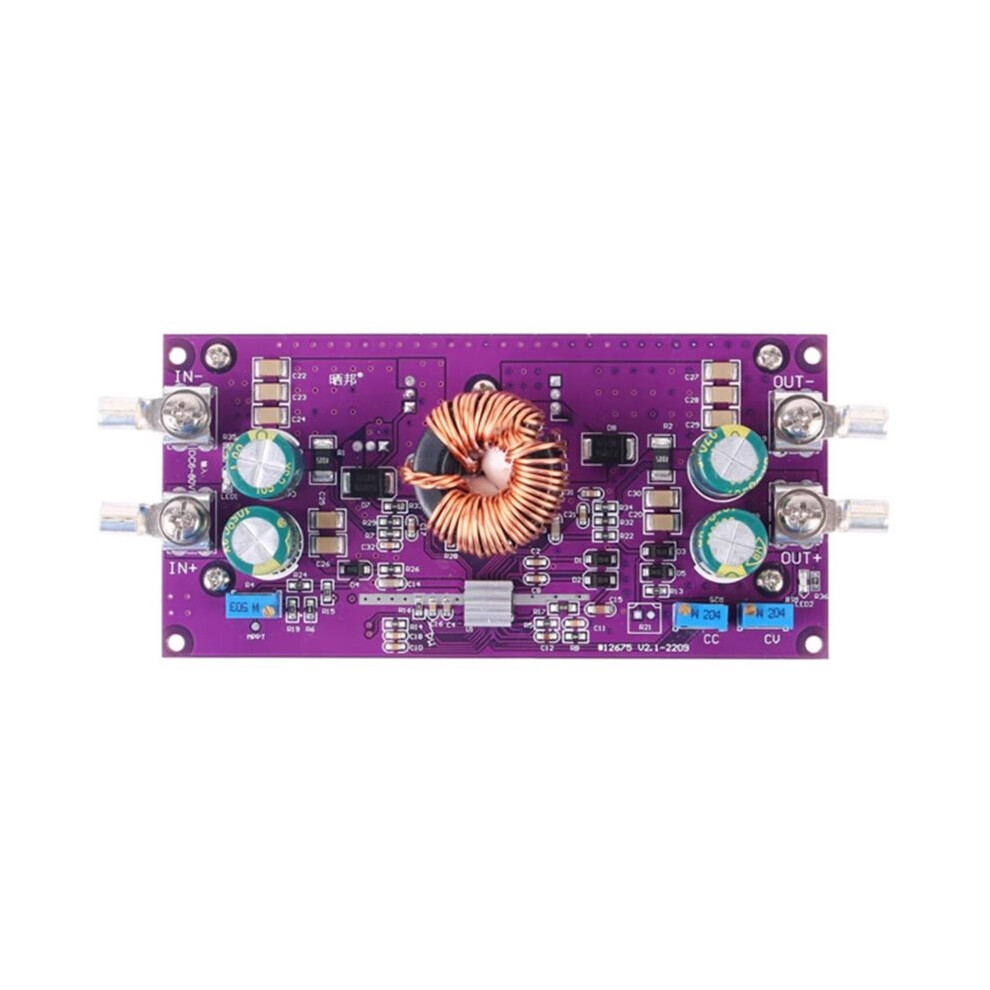

Automatic Buck-Boost Power Module 250W 15A Solar MPPT Synchronous Rectification CC-CV Charging Board

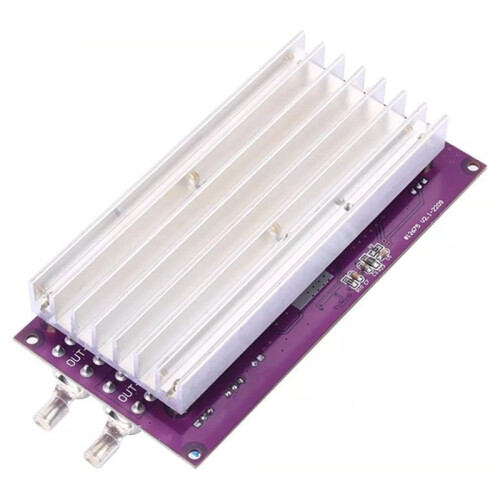

Automatic Buck-Boost Power Module 250W 15A Solar MPPT Synchronous Rectification CC-CV Charging Board Description

1) It has a high input working voltage value of more than 60V and can withstand 80 pulse voltage
2) High output current: The output current can reach 15A for long-term operation, and the maximum current is 20A.
3) Adjustable input and output current: The adjustable input current is suitable for input as a constant current source, and the adjustable output current is especially suitable for high-current charging of batteries, as well as high-current charging of iron-lithium batteries, which basically covers all batteries.

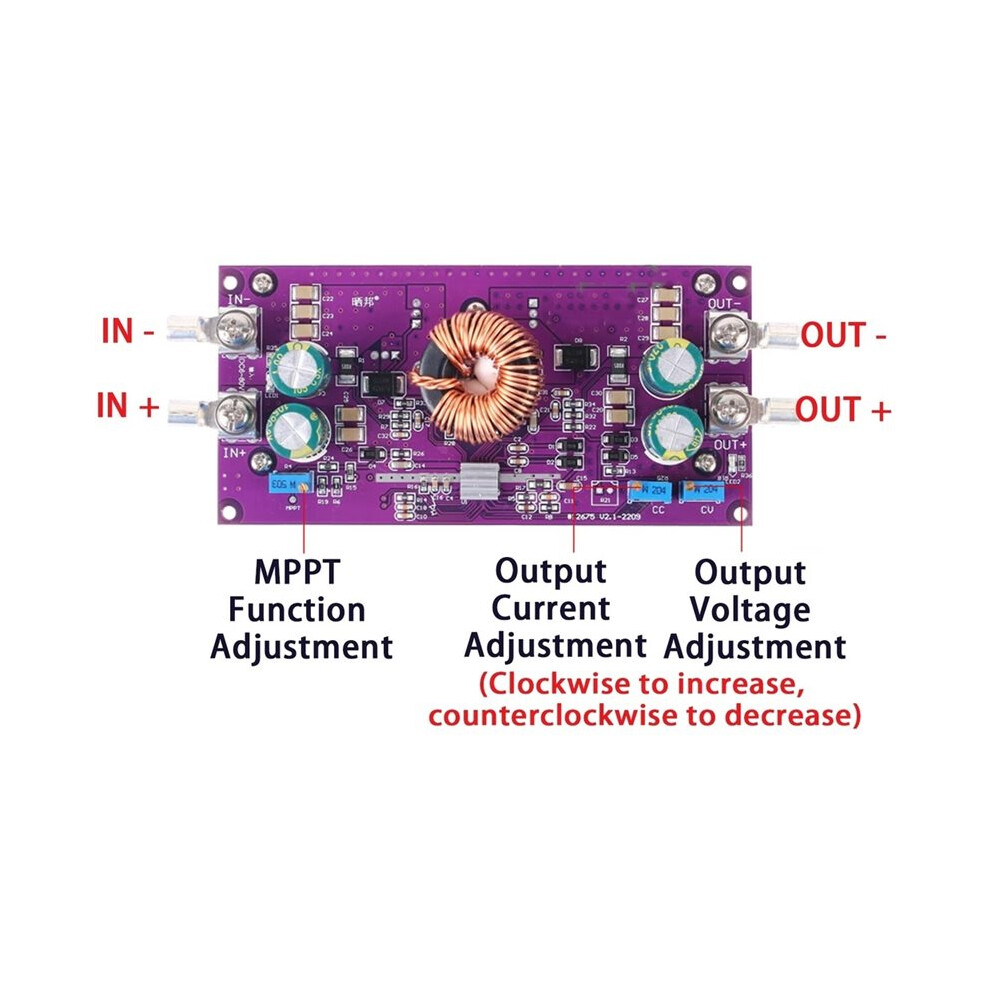

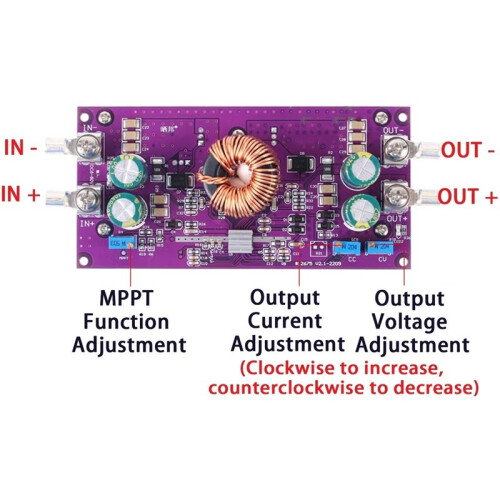

4) With input and output voltage adjustment function: input voltage adjustment is suitable for tracking the maximum power point voltage of the solar panel, achieving the maximum power point tracking function to a certain extent.

Power:250W
Power supply control: current mode control (the difference between current mode and voltage module is as follows, the former is better than the latter)

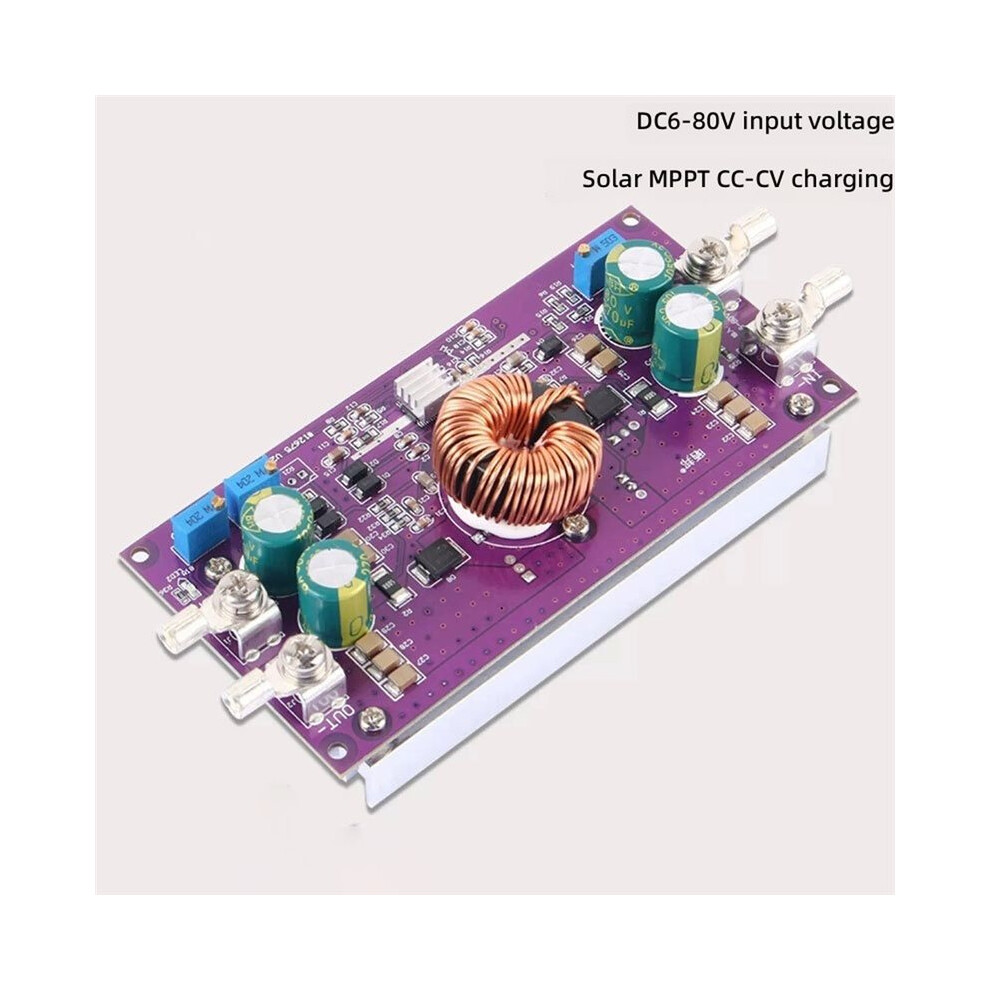

Input voltage: D6V-80V input
Input current adjustable: 0.5-15A
Adjustable input voltage: 9-60V (this function is suitable for MPPT solar panels)
Output voltage adjustment: 1.3-80V
Output current adjustment: 0.5-15A (strongly recommended being used within 15A, relatively stable, the waveform will not shake)
Color: & Silver
Material: PCB+Plastic+Metal

Package Contents:
1 * Automatic step- and step-down module
