Automatic Sliding Door Beam Sensor Kit Security Sensor Device Automatic Sensor Door Closer Anti-Clip Sensor Door Beam

Automatic Sliding Door Beam Sensor Kit Security Sensor Device Automatic Sensor Door Closer Anti-Clip Sensor Door Beam Description

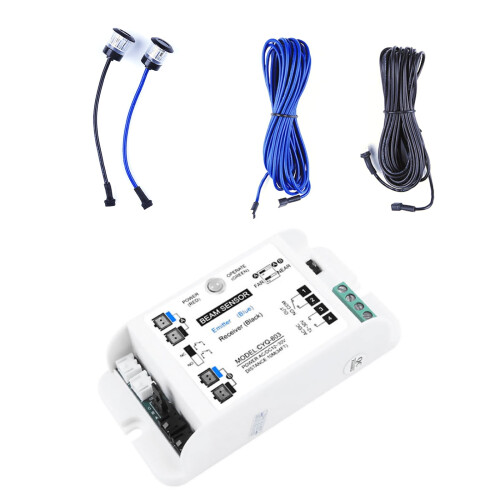

Automatic Sliding Door Safety Beam Sensor, Beam Sensors For Autodoor,Automatic Sensor Door Safety Infrared Anti-Clip Device Specifications: Voltage: AC/DC 12-30V quiescent current: 18mA (when the voltage is 12V) working current: 58mA (when the voltage is12V) Max emitting/receiving distance: 10m Choosing method of NO/NC: knob Emitting line: Blue wire- 5.5m receiving line: Black wire- 5.5m Beam amount: Single or double Working temperature: -42C-45C Working humidity: 10-90%RH Dimension (Beam sensor): 110*47*28mm(L*W*H) Dimension (end): 19*13mm (L*D) Features: 1. Adopt plug in socket. Easy and convenient wiring method. Connect wire by matching color. 2. t is controlled by micro computer which is highly integrated and stable. 3. Wide range of voltage: AC/DC 12~30V. 4. It has long transmitting distance, low power consumption. Package includes: 1x Beam Sensor 1x Emitting end (blue wire) 1x Receiving end( black wire) 2x Wire(Black and Blue) Voltage: AC/DC 12-30V quiescent current: 18mA (when the voltage is 12V) working current: 58mA (when the voltage is12V)
