Automotive Wire Short Open Finder Circuit Detector Power Cable Tester

Automotive Wire Short Open Finder Circuit Detector Power Cable Tester Description

and High Quality!

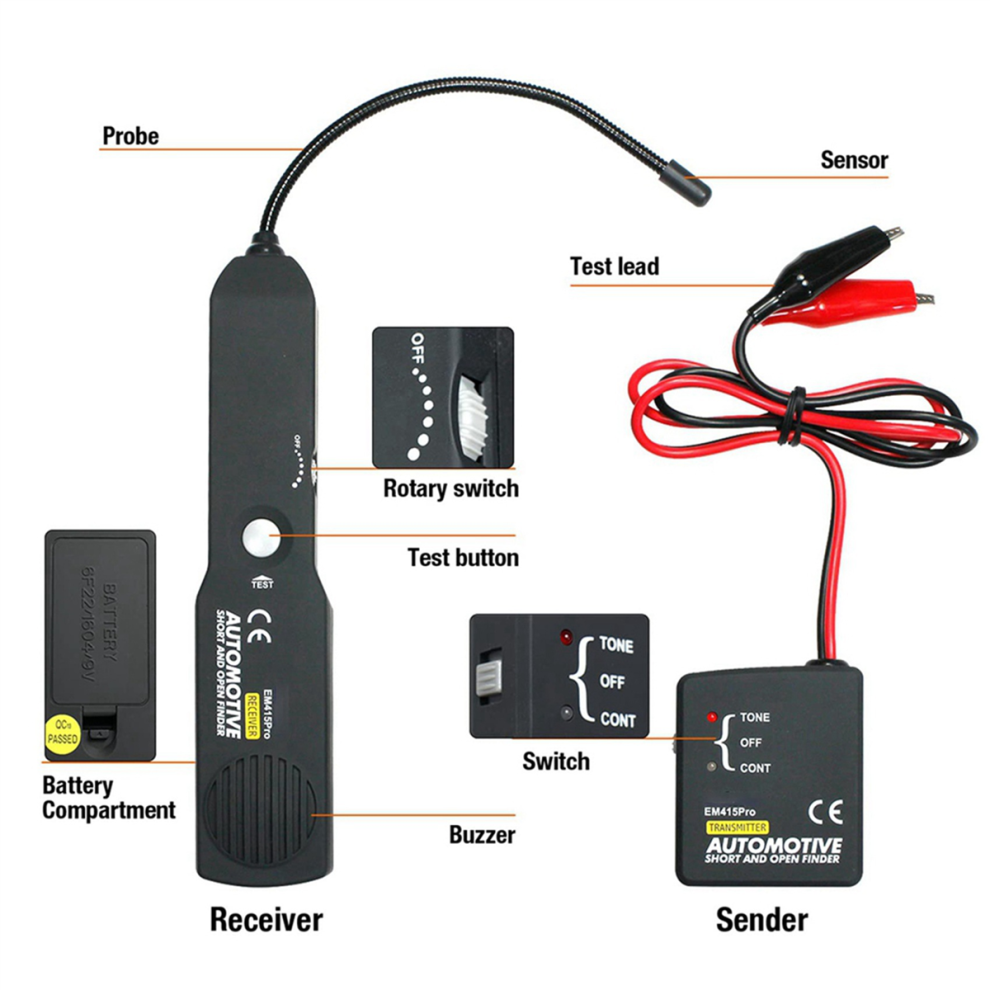

This instrument is designed to identify and trace wires or cables without damaging the insulation. You can also use it to check short circuit and loacting open circuit and so on. There are a Sender and a Receiver included in the instrument.
Tracing of wires is made possible even inside bundles, conduits, behind panels, under carpets, upholstery, etc

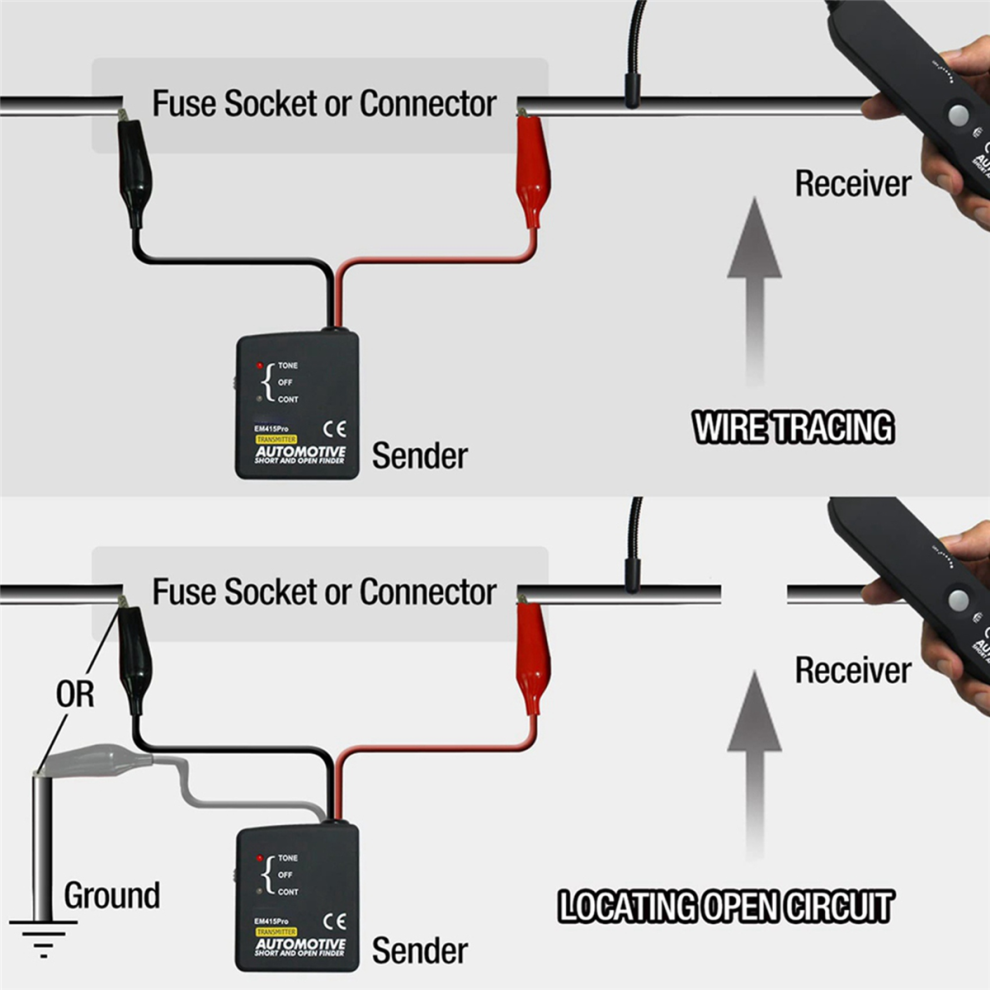

Easy to use: simply connect the transmitter in series with the circuit or wire under test, (.: in place of a blown fuse, across a connector,in series with an open wire, a light bulb socket, etc.), and scanning the circuit/wire with the tracers flexible probe to find the trouble spot
6-42 V Ready: for use in the of vehicles with mixed or single 42 Volt systems

Operates on DC voltages from 6 to 42 volts
Internally protected against power surges and overloads
7inch flexible probe allows reaching wires in congested places
Transmitter and Receiver LEDs show open or short circuit conditions
Adjustable sensitivity for all tracing situations
No wire piercing required, non-contact technology!
Specification:
Wire Tracing
Checking for short circuit
locating open circuit
Wire identification

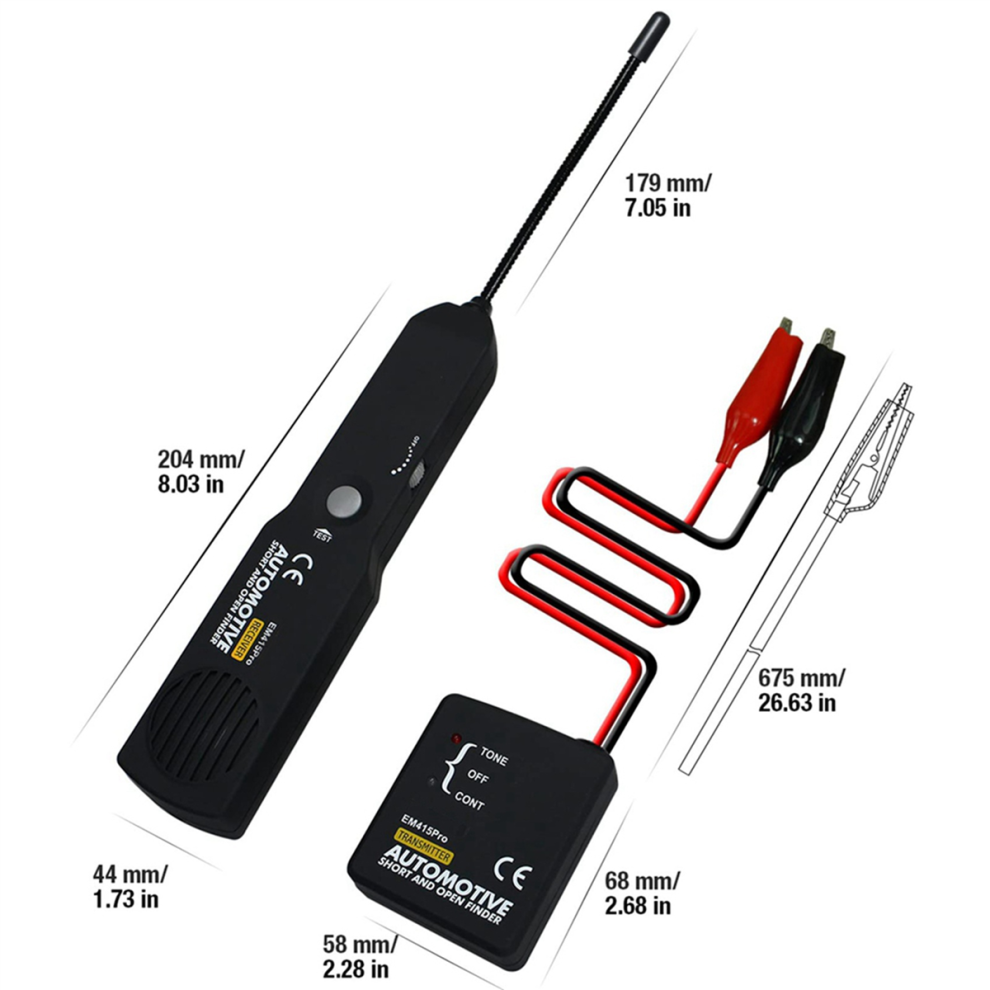

Item Length:20.4 cm
Item Width:4.4 cm
Item Type:Electrical Testers & Test Leads
Special Features:short cable finder.
Power Supply:Two 9V batteries Required
Item Type: Electrical Testers & Test Leads
Item Weight: 0.88kg
color:As shown
Material:plastic

Package Contents:

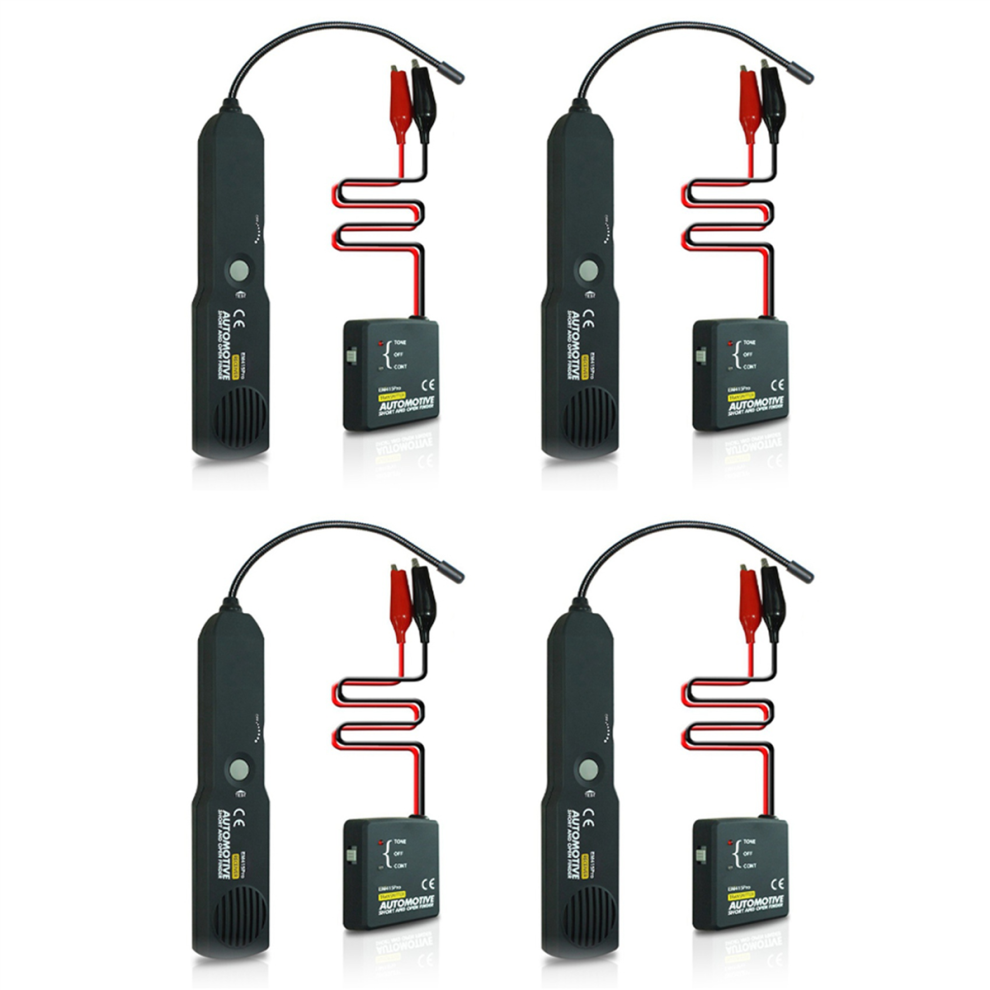

4 x Automotive Short and Open Finder (9 Volt Battery Not included)
4 x English manual

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
