BDM Frame Pin for 40pcs Need Les Support BDM100 ECU Programmer Ecu BDM PIN

BDM Frame Pin for 40pcs Need Les Support BDM100 ECU Programmer Ecu BDM PIN Description

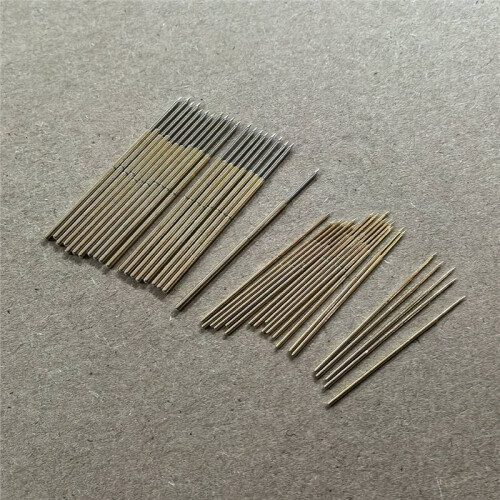

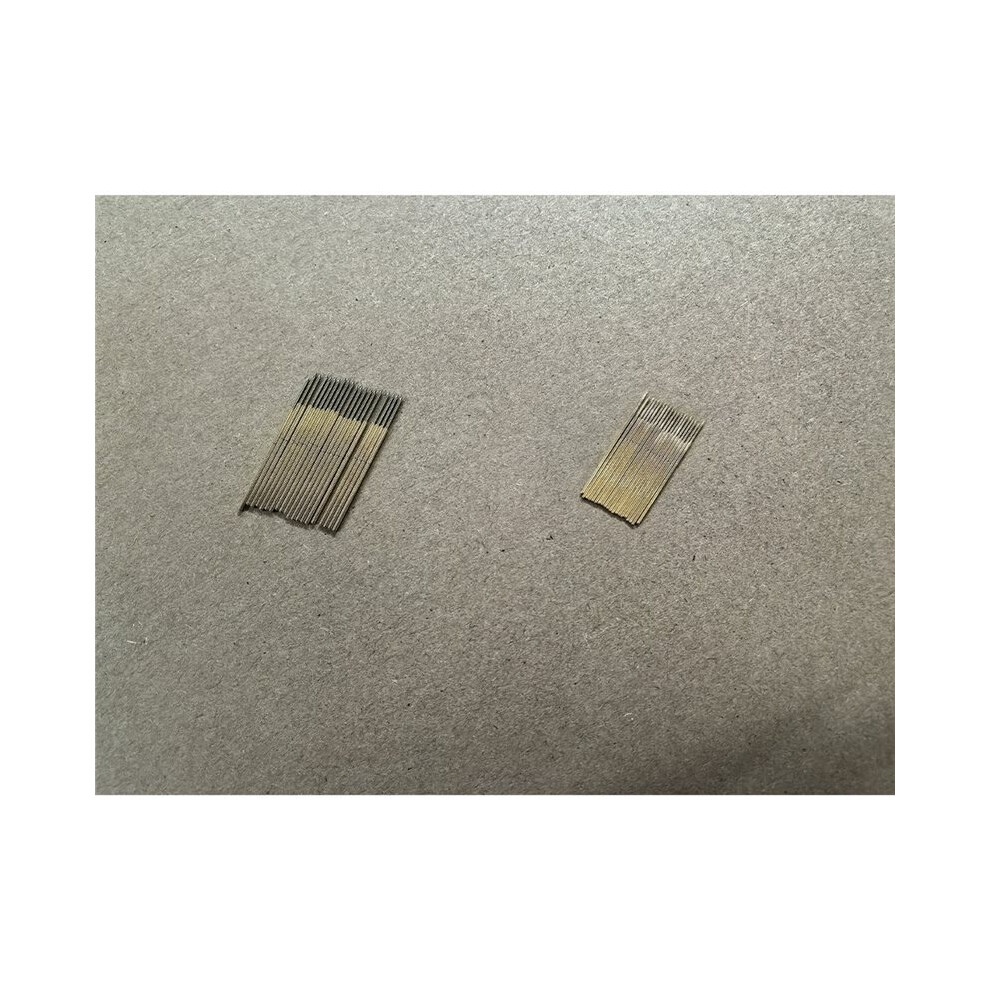

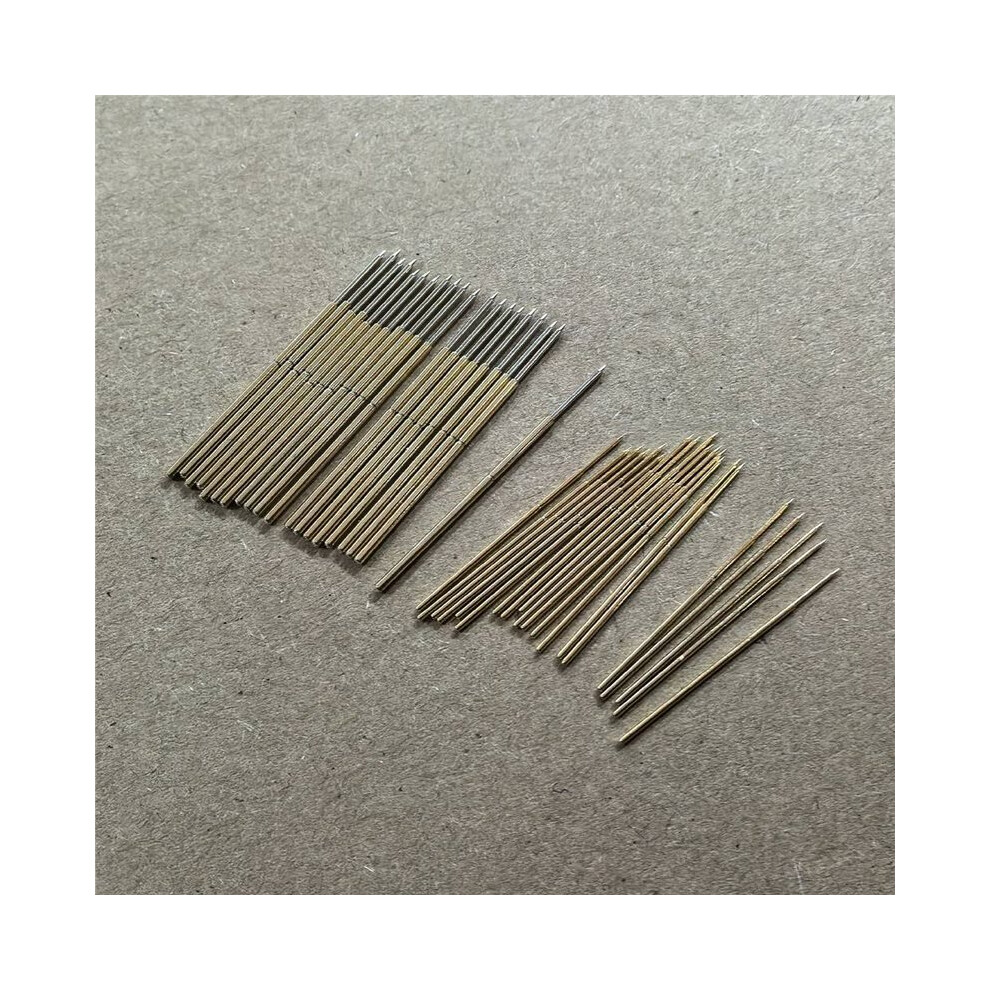

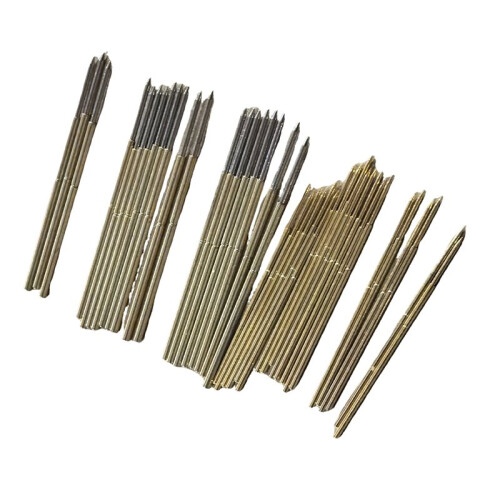

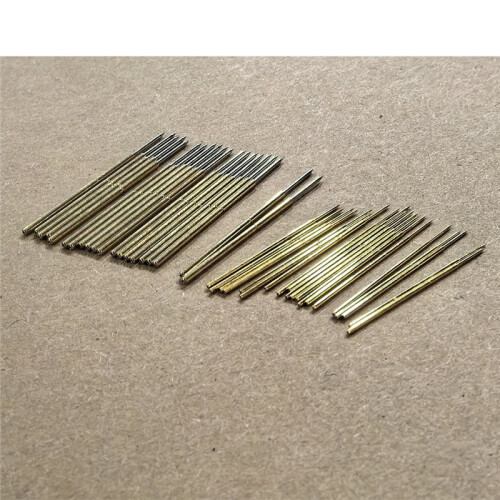

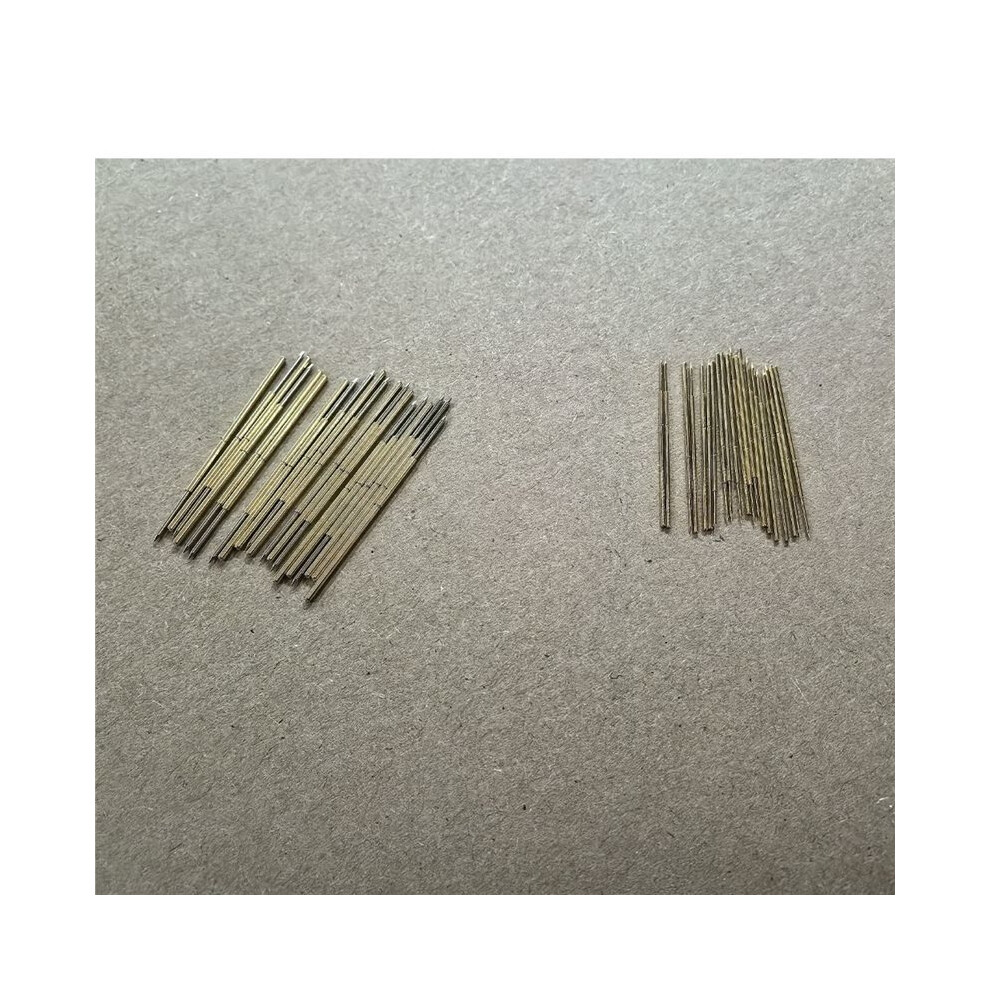

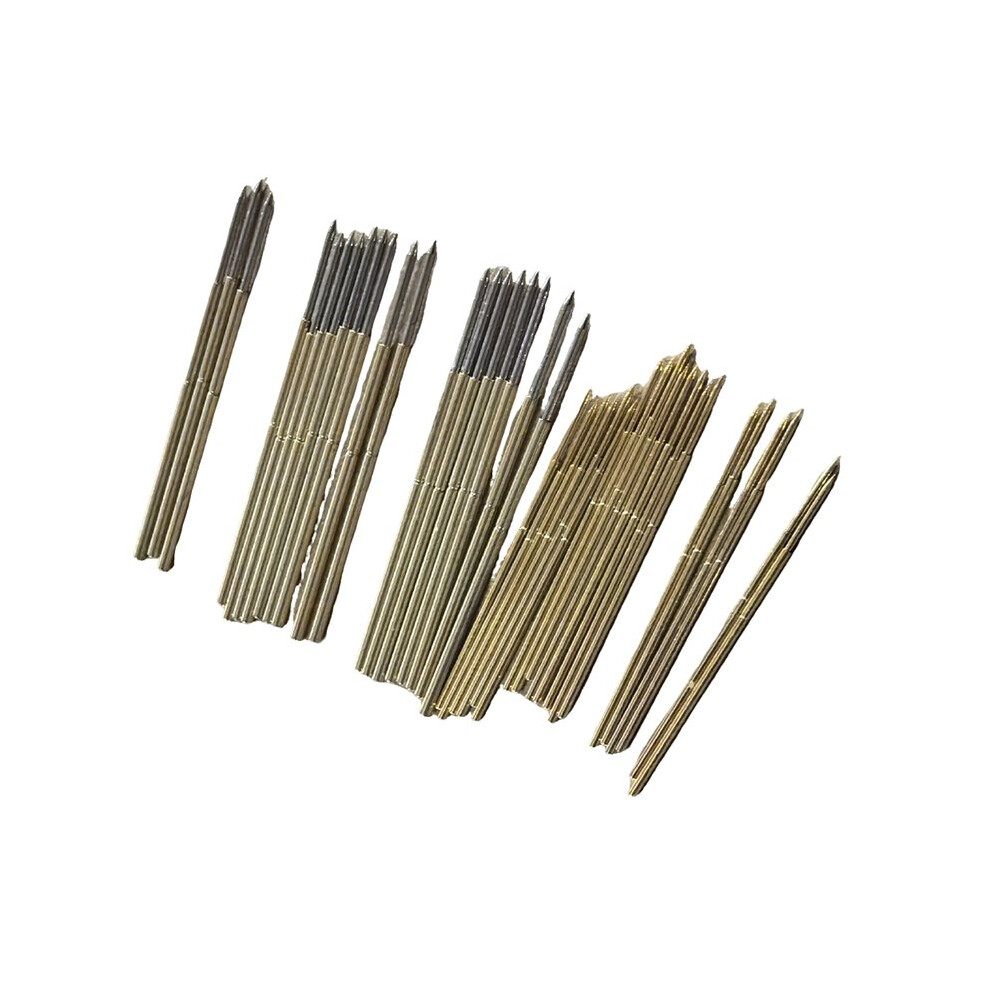

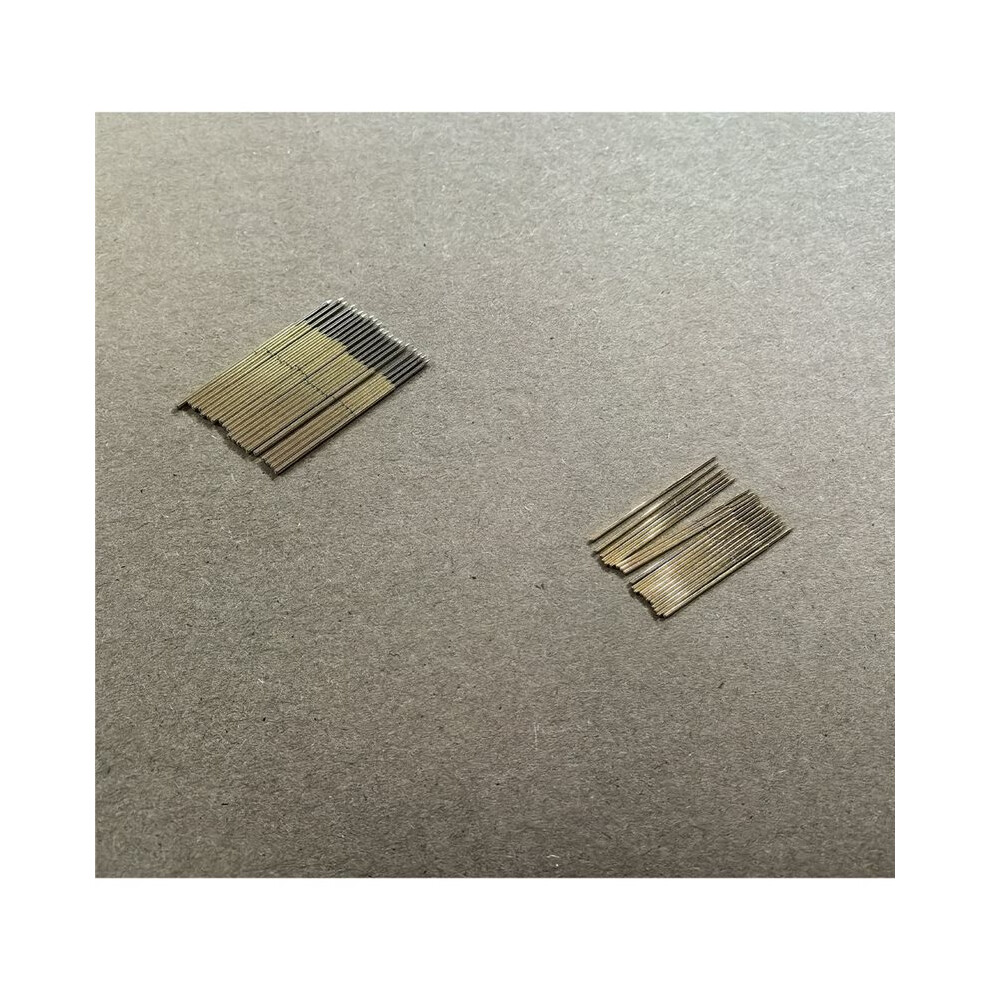

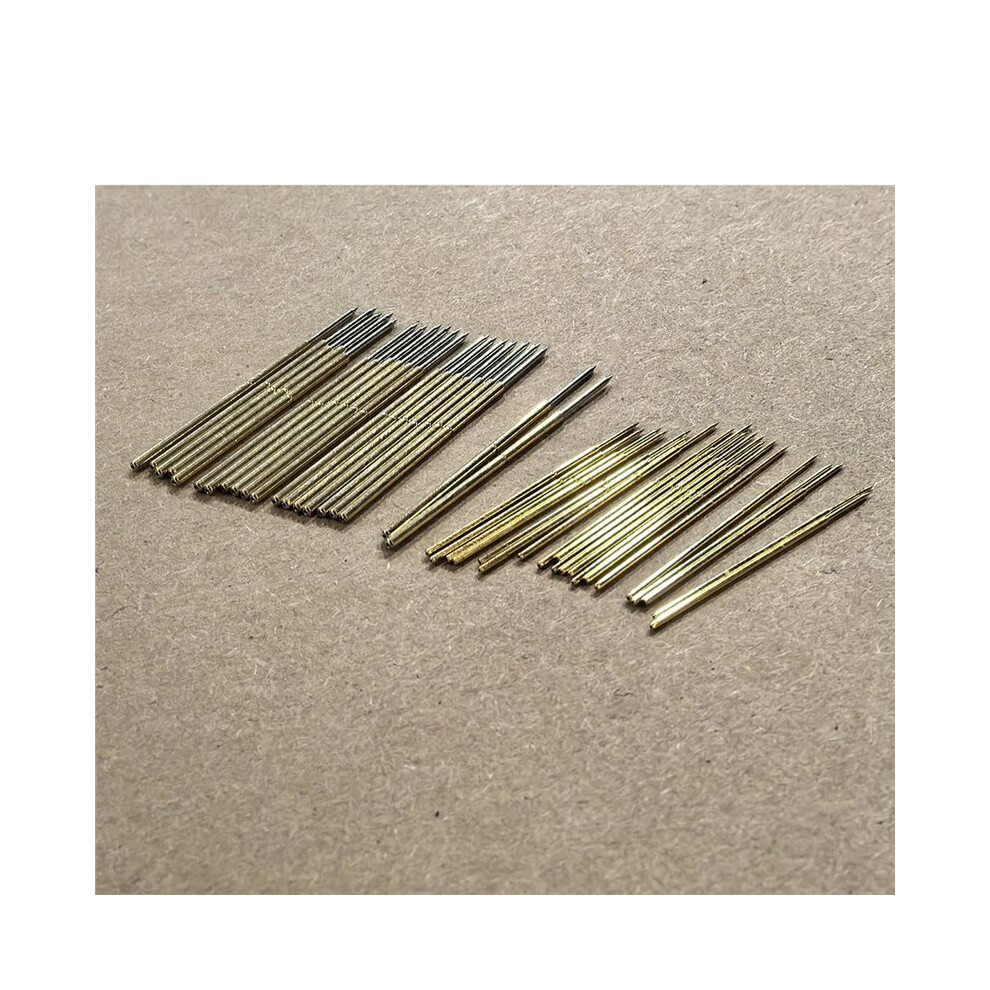

Precise Adaptation: The combination of 20 small pins and 20 large pins corresponds to different ECU chip pin sizes, perfectly matching the BDM interfaces of various vehicle ECUs, eliminating the need to purchase other specifications.
Stable Design: Only compatible with the BDM Frame test stand, the pins and the test stand interface fit precisely, ensuring stable signal transmission during ECU programming.
Applicable Scenarios: ECU Repair: Used with the test stand + programmer to read/repair faulty ECU chip data. Power Tuning: Connects to the ECU chip via a KTAG/FGTECH programmer for power parameter tuning.
BDM frame pin: Essential component for BDM100 ECU programmer compatibility
Easy to install: Simplifies setup for automotive code readers and scan tools
This product is a dedicated pin accessory for the BDM Frame test stand. When used with the test stand, it is compatible with mainstream ECU programmers such as FGTECH, BDM100, and KTAG, and is used for connecting to the pins of automotive ECU chips. It is a core auxiliary tool for ECU data reading, writing, tuning, and fault repair.
BDM Frame Pin use
for bdm frame testing jig and bdm 100 program and fgtech galletto 2 master
Compatible Carrier: BDM Frame test stand
Compatible Devices: FGTECH/BDM100/KTAG ECU programmers

Instructions for Use:
Take the corresponding size pin (small/large pin) and insert it into the BDM Frame test stand interface;
Connect the test stand to the FGTECH/BDM100/KTAG programmer;
Align the pins with the ECU chip pins to perform data reading, writing, and programming operations.
Color: As Shown
Material: Metal

Package Contents:
1*BDM frame pin set
