BERM Cycle Delay Relay Module Anti Interference Low Power Consumption Twin Timer Relay AC220V

BERM Cycle Delay Relay Module Anti Interference Low Power Consumption Twin Timer Relay AC220V Description

BERM Cycle Delay Relay Module Anti Interference Low Power Consumption Twin Timer Relay AC220V
Feature:

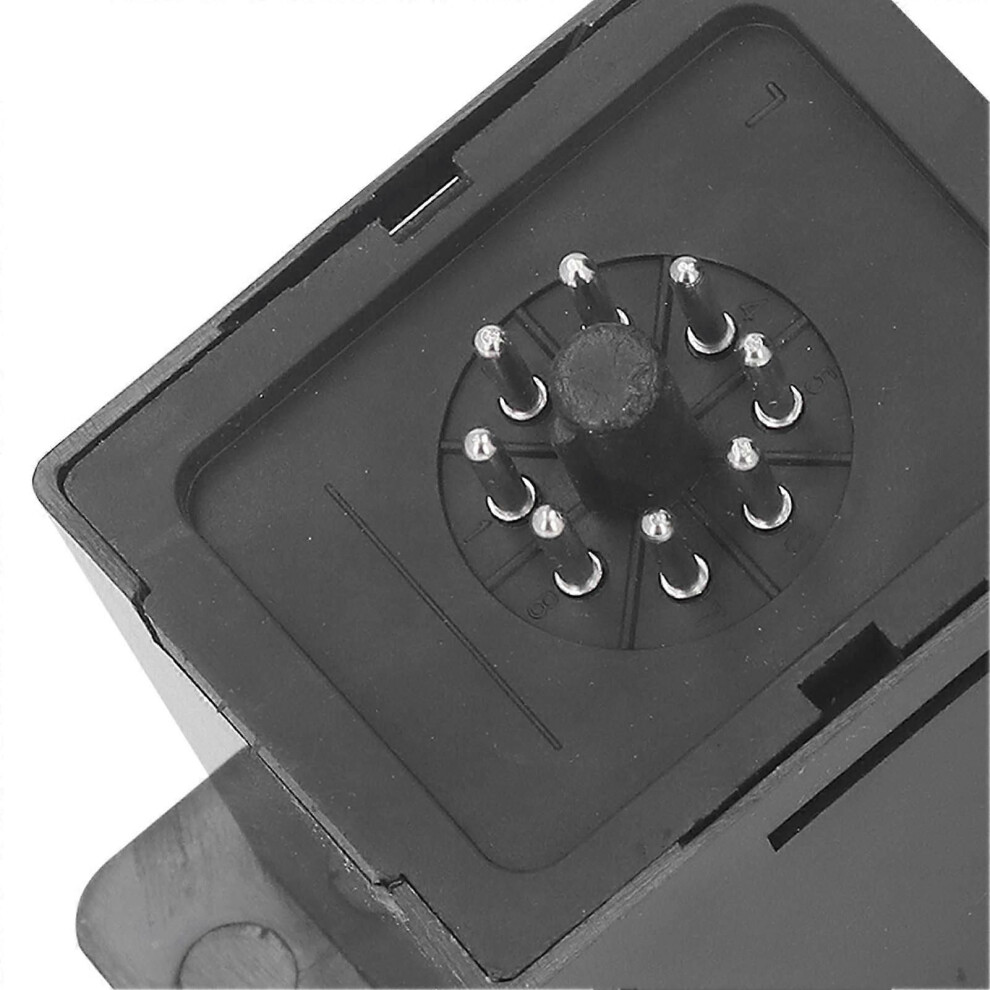

1. [Copper Galvanized Pins] Relays have eight pin terminals with tightly connected copper galvanized pins that are corrosion resistant and not easily rusted.
2. [Cycle Working] The time limit relay can control both stop and run cycle working of one machine, and alternate cycle working of two machines at the same time
3. [Durable Function] The relay adopts copper core coil and silver contacts, which increases the durability performance 10 times.
4. [Excellent Performance] Double adjustable time limit relay with CMOSIC inside has low power consumption, strong anti interference, high accuracy, reciprocal error less than 1%.
5. [ABS Shell] The relay uses ABS shell, which has good comprehensive physical and mechanical properties, strong wear resistance, long life and excellent electrical performance.
Specification:
Item Type: Cycle Delay Relay Module
Material: ABS
Operating Mode: Cyclic time delay
Control Output: 5A 250VAC
Contact Life: 1,000,000 times of suction and closure
Voltage Specification: AC220V 50/60HZ
Ambient Temperature: -10-50
Delay Range: 60M
Number of Contacts: 1 normally open 1 normally closed
Repetition Error: 1%.
Package List:
1 x Cycle Delay Relay Module
Note:
Pay attention to electricity safety
