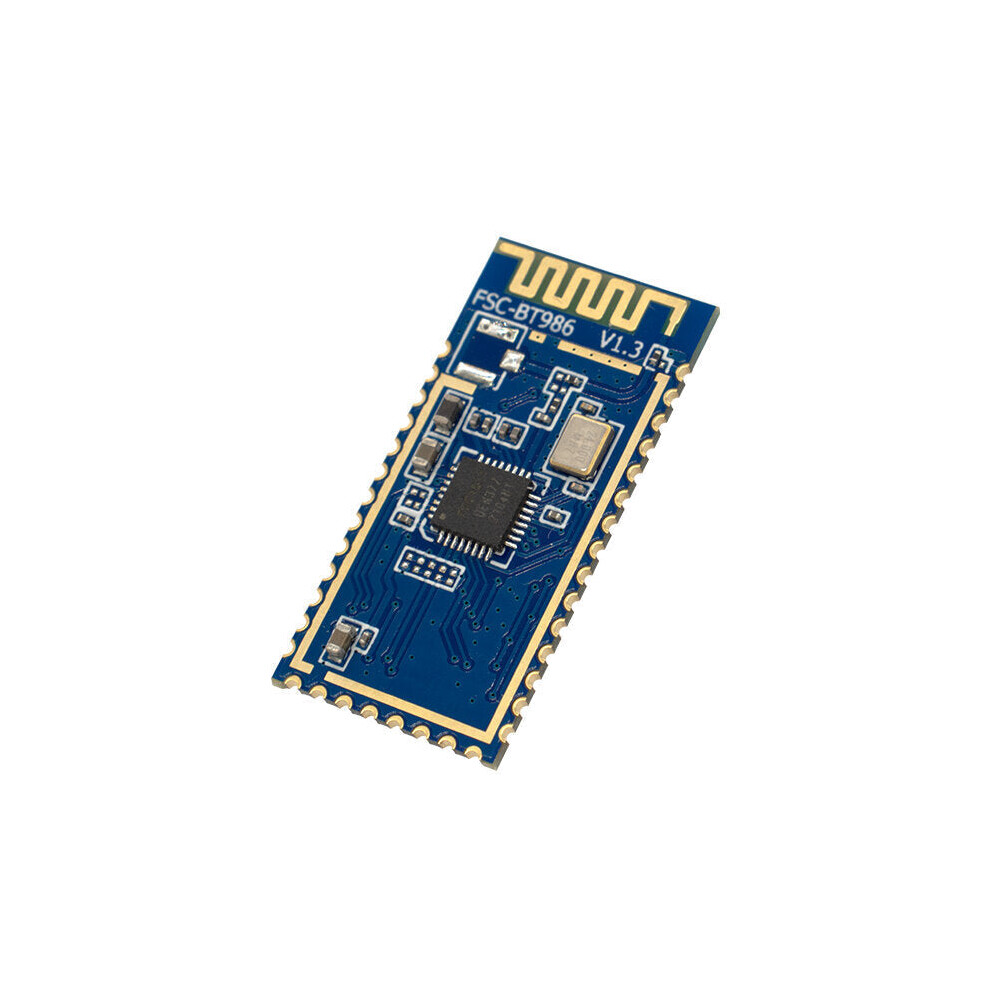

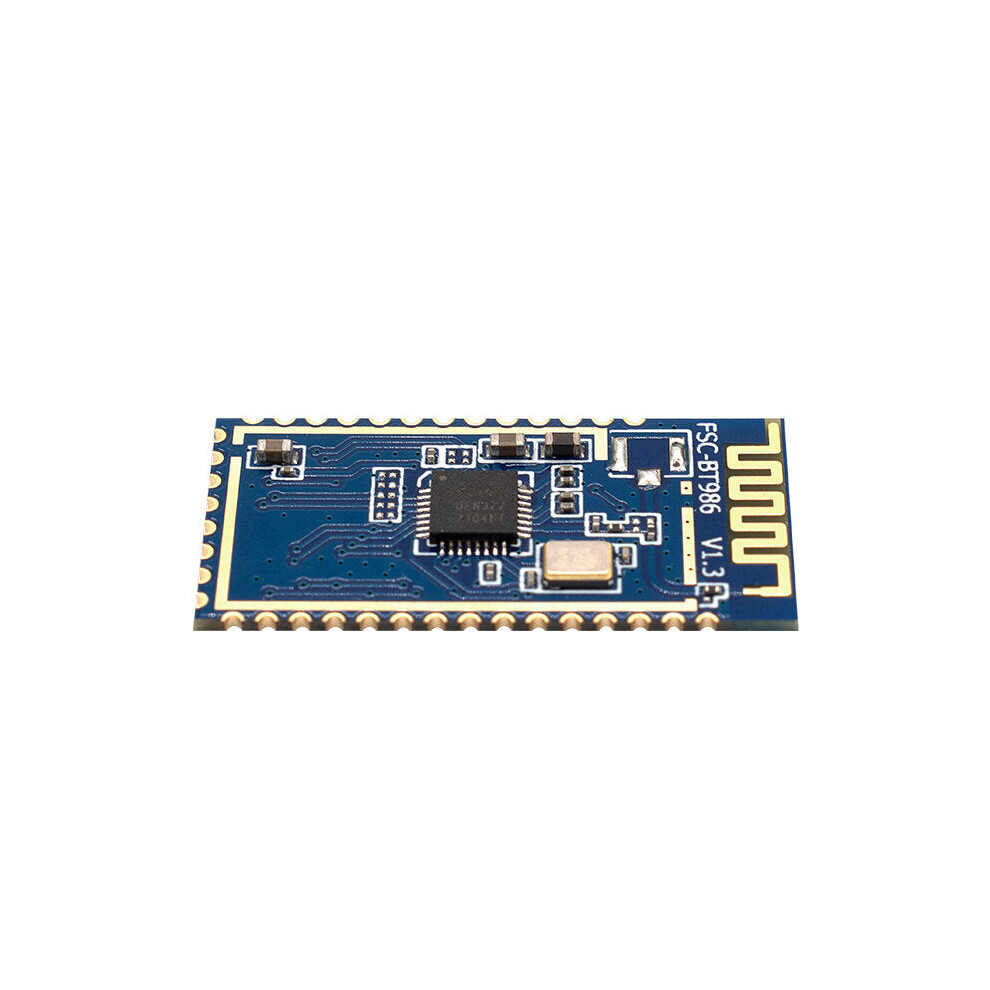

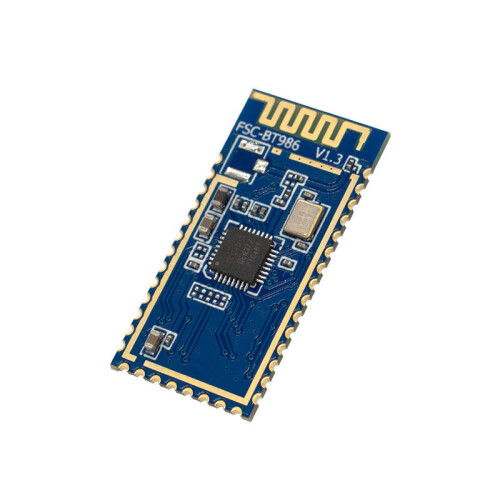

Bluetooth Module Master-slave Integration Speed Serial Port 4.2 Transparent Transmission Module

Bluetooth Module Master-slave Integration Speed Serial Port 4.2 Transparent Transmission Module Description

Description:
- The product is a high-performance, highly integrated Bluetooth 5.2 BR/EDR/BLE, designed to operate on the 2400MHz to 2480Mhz ISM frequency band.
- Abundant peripherals, power-on reset (POR) and I2C/USB, arithmetic accelerators further reduce the cost and size of the entire system.
- Support communicating with the FeasyBlue app and many other Bluetooth apps.

Data transmission Bluetooth modules solution:
Bluetooth version: Bluetooth 5.2 dual mode.
Dimension: 13mm X 26.9mm X 2.4mm; Pad Pitch 1.5mm.
Interfaces: UART.
Profiles: SPP, GATT.
Frequency: 2.400-2.480 GHz.
Transmit power: 5 dBm (Maximum).
Power supply: 3.3-3.6V.
Antenna: Built-in PCB Antenna(Default), supports external antenna(Optional) .
Power Consumption: Working current 5mA.
Storage Temperature: -20 to +85 degree.
Operating Temperature: -20 to +85 degree.
Highlights: Excellent compatibility, Multiple connections, Low cost, HC-05 pin-to-pin solution, Low power consumption.

Application:
- Printer.
- Health Thermometer.
- Heart Rate.
- Blood Pressure.
- Proximity.

Package includes:
1 x Dual mode module
