Bluetooth Module Supports MESH Networking APP Transparent Transmission Master-slave Integration

Bluetooth Module Supports MESH Networking APP Transparent Transmission Master-slave Integration Description

Descrption:

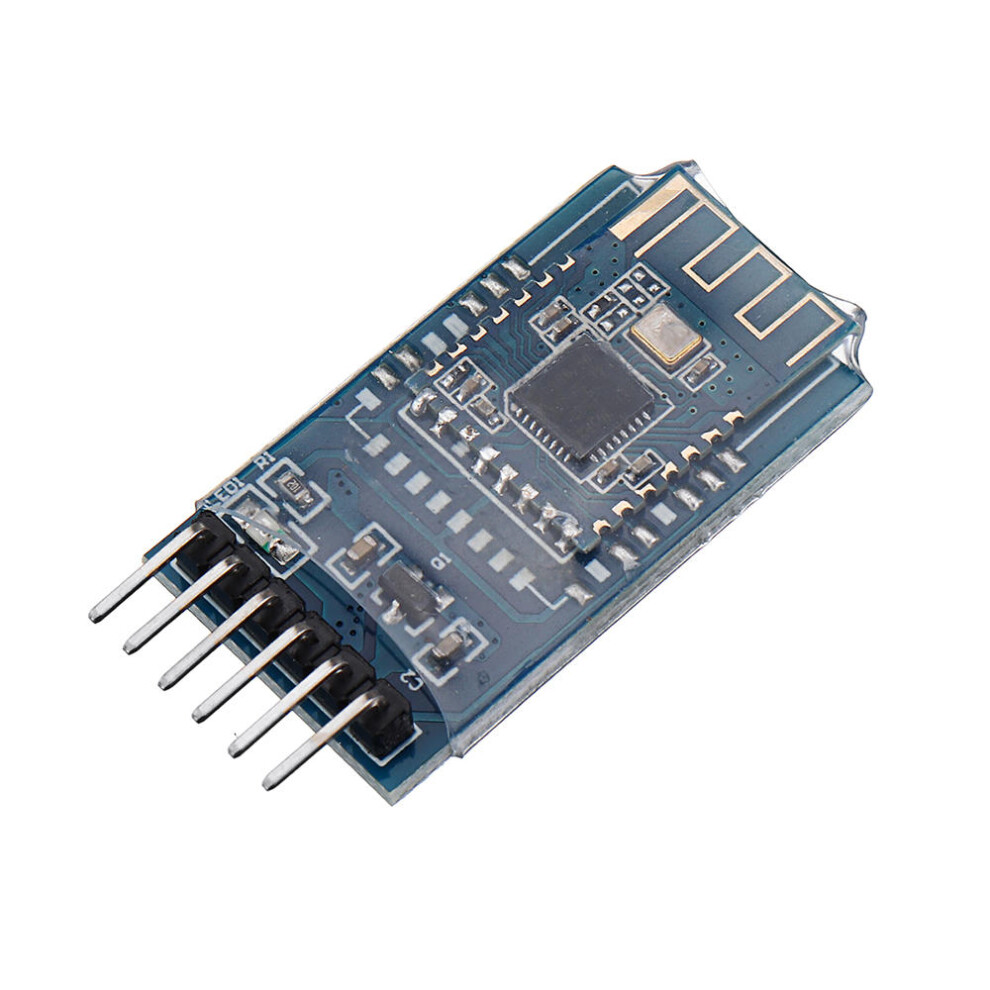

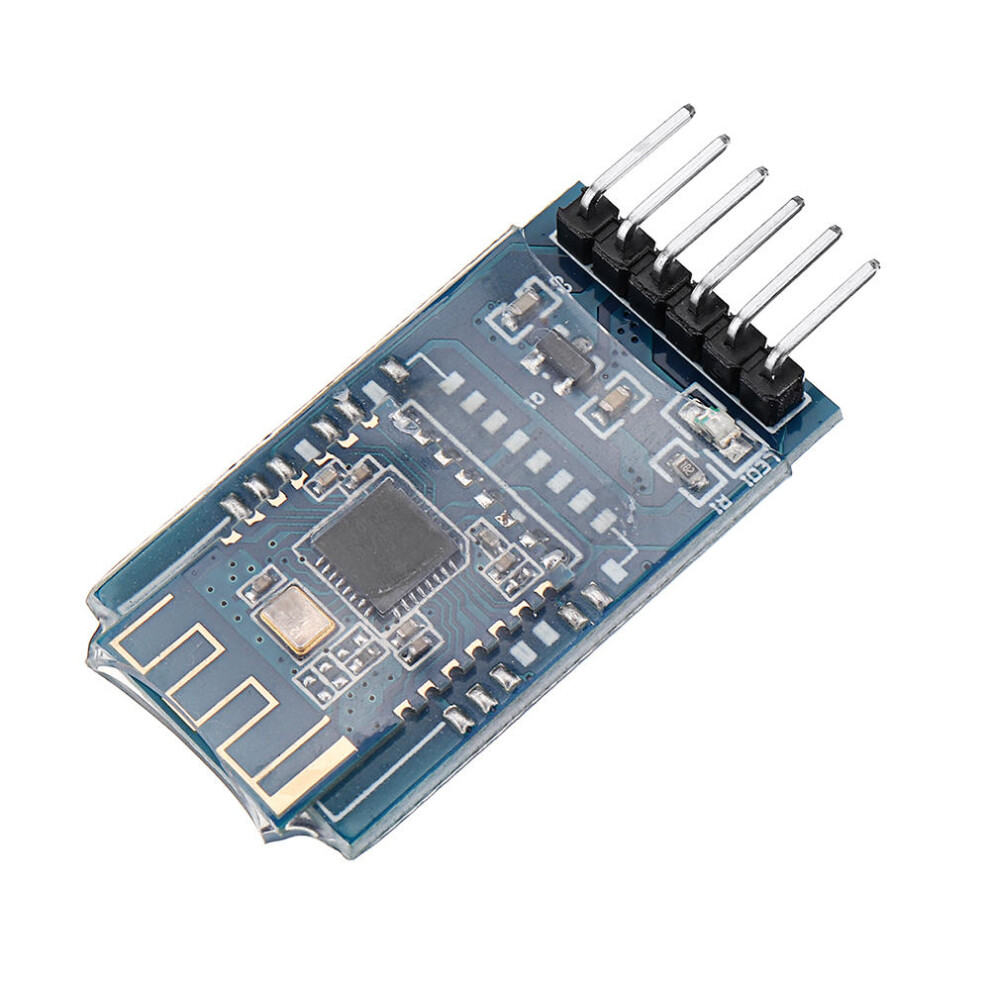

Transparent transmission module is based on Bluetooth 4. 0 protocol standard, working frequency band is 2. 4GHZ range, modulation mode is GFSK, maximum transmission power is 8db, maximum transmission distance is 50 meters, low power consumption, small size, strong signal, data transmission and other characteristics.

Features:
1. Support Android, IOS mobile phone number transmission.
2. Support one-to-many, many-to-one, many-to-many data transmission and control.
3. Support networking LED lights (26 scene modes, panel mode), brightness, white light, speed adjustable.
4. Support networking GPIO control (one-to-many, many-to-one, many-to-many).
5. Can be certified by standards such as FCC/CR.
6. Support network remote control (ultra-low power consumption), test two dry batteries for at least one year.
7. Support networking 4-channel PWM control.
8. Maximum number of networking 255.
9. Support broadcast and unicast MESH to send data.
10. Support BLE master and slave work at the same time, no need to switch between master and slave.
11. At least 60% of smart home applications JDY-10M can be competent.

Product application range:
1. Bluetooth networking LED lights (one-to-many, many-to-one, mobile or remote control, many-to-many control).
2. Bluetooth networking motor control application (one-to-many, many-to-one, mobile or remote control, many-to-many control).
3. Network panel switch, 86 switch (ultra-low power consumption).
4. Networking smart home application (gate, relay, curtain) control.
5. Network sensor application.
6. WiFi networking gateway application.
7. Zigbeel networking application.
8. Mobile network control application.

Package includes:
1 x Module
