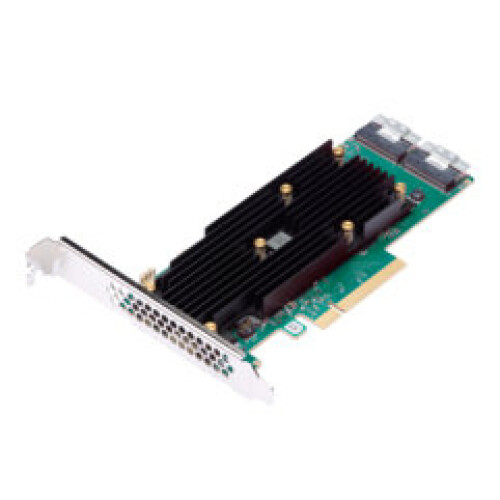

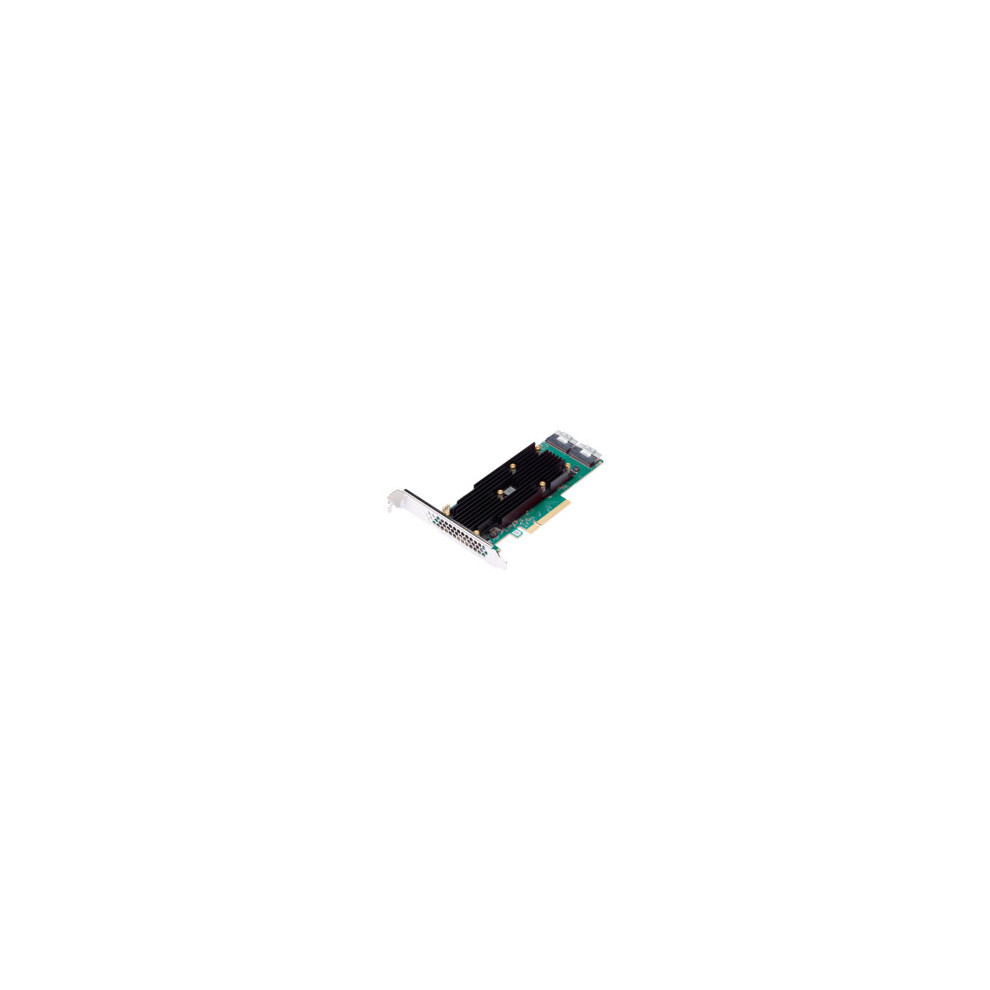

Broadcom MegaRAID 9560-16i RAID controller PCI Express x8 4.0 12...
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 132,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Sat 5th - Fri 11th Sep
Returns: 30 days
180-day payment protection
You might also like
Broadcom MegaRAID 9560-16i RAID controller PCI Express x8 4.0 12... Description
PCIe 4.0 RAID controller increases performance and maximizes design flexibility with Tri-Mode connectivity and NVMe devices The MegaRAID 9500 series is the industry’s first PCIe Gen 4.0 RAID adapter family, offering PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9560-16i adapter, based on the SAS3916 high-port count PCIe 4.0 x8 RAID-on-Chip (RoC), delivers twice the performance of previous generations. The 9560-16i is compatible with existing PCIe SFF-8639 Module (U.2) backplanes, allowing users to boost performance for today’s ever increasing bandwidth environments. Coupled with two industry initiatives expanding the deployment of Tri-Mode SerDes technology, which enables the operation of NVMe, SAS or SATA devices in a single drive bay, the 9560-16i is instrumental in getting the most performance and flexibility out of U.3 backplanes: - SFF-TA-10001...
Details
| OPC | P5YHBXX |
|---|---|
| Codes | 0830343007462 (EAN) |
| MPN | 05-50077-00 |
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
PCIe 4.0 RAID controller increases performance and maximizes design flexibility with Tri-Mode connectivity and NVMe devices
The MegaRAID 9500 series is the industry’s first PCIe Gen 4.0 RAID adapter family, offering PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9560-16i adapter, based on the SAS3916 high-port count PCIe 4.0 x8 RAID-on-Chip (RoC), delivers twice the performance of previous generations.
The 9560-16i is compatible with existing PCIe SFF-8639 Module (U.2) backplanes, allowing users to boost performance for today’s ever increasing bandwidth environments. Coupled with two industry initiatives expanding the deployment of Tri-Mode SerDes technology, which enables the operation of NVMe, SAS or SATA devices in a single drive bay, the 9560-16i is instrumental in getting the most performance and flexibility out of U.3 backplanes:
- SFF-TA-10001 Specification (U.3), which defines a common bay type for SAS, SATA and NVMe
- Universal Backplane Management (UBM), which defines a common backplane control and management framework
With Tri-Mode SerDes technology, the adapter negotiates between speeds and protocols to seamlessly work with any of the three types of storage devices. Tri-Mode support provides a non-disruptive way to evolve existing data center infrastructure.
Alternative names:
- Broadcom MegaRAID 9560-16i RAID controller PCI Express x8 4.0 12 Gbit/s
Detailed Product Information
Performance
| RAID levels | 0,1,5,6,10,50,60,JBOD |
|---|---|
| Data transfer rate | 12 Gbit/s |
| Number of devices supported | 240 |
Ports & interfaces
| Host interface | PCI Express x8 |
|---|---|
| PCI Express slots version | 4.0 |
| Supported storage drive interfaces | PCI Express, SAS, Serial ATA III |
