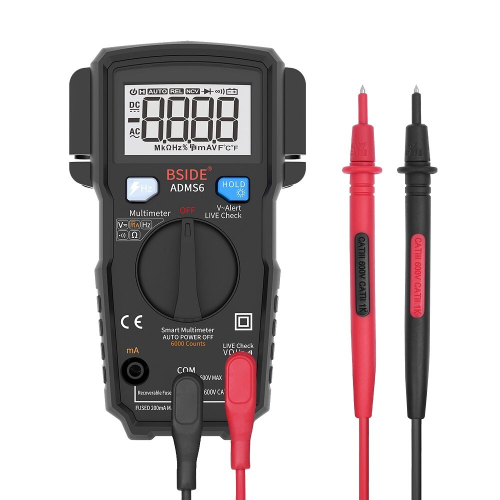

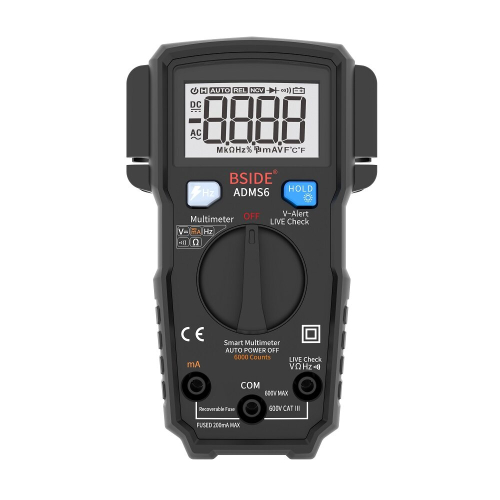

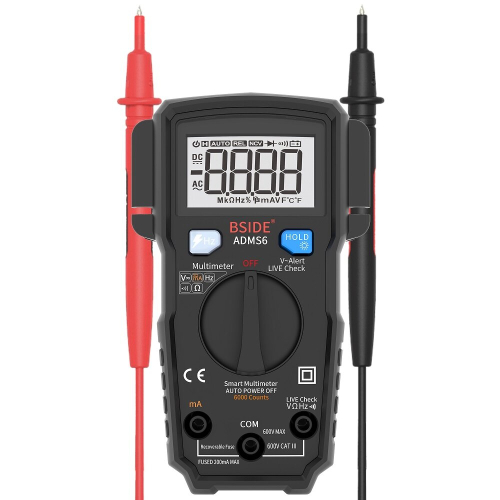

BSIDE ADMS6 Digital 6000 Counts True RMS Multimeter Tester Autoranging Multimeter With V-alert Test

BSIDE ADMS6 Digital 6000 Counts True RMS Multimeter Tester Autoranging Multimeter With V-alert Test Description

Please Click Here to Download the ADMS6 manual(English/German/French/Japanese/Spanish/Italian) Features: Display: 6000 counts DC/AC Current Measurement DC/AC Voltage Measurement Resistance/Continuity/Frequency Measurement Automatic measuring range Full measuring range overload protection True RMS Auto power off Backlight Low Battery indication Date hold V-alert Test(dangerous voltage alarm ) Live wire and wire test Specifications: Max voltage allowed at the measuring end. : 600V DC or 600AC(RMS). Work height: max 2000m Display : LCD. Max display value: 5999 digits. Polarity indication : Self-indicating, ‘-’ means Negative polarity. Over-range display : ‘0L’ or ‘-0L’. Sampling time : The meter figures show about 0.4 seconds Unit display : Function and battery unit display. Automatic Power off time: 15 minutes Operational power : 1.5Vx2 AAA battery.(not included) Battery low voltage indication: LCD display symbol. Temperature coefficient : Less than 0.1 x Accuracy / â Operational temperature and humidity : 0 ~ 40 â/32 ~ 104â 45%-80%RH Storage temperature and humidity : -10 ~ 60 â/-4 ~ 140â 45%-80%RH Boundary dimension : 139×83×36mm Weight: ~160g 1. Voltage DC Range Resolution Accuracy 600V 0.1V ±(0.8%+3counts) Sensitivity: min 0.5V DC voltage Input impedance: 1MΩ Max input voltage : 600V DC&AC ( RMS ) 2. Voltage AC Range Resolution Accuracy 600V 0.1V ±(1.2%+5counts) Sensitivity: min 0.5V DC voltage Input impedance: 1MΩ Max input voltage : 600V DC&AC ( RMS ) Frequency range: 50Hz~60Hz, true RMS response. 3. Resistance Range Resolution Accuracy 6000Ω 1Ω ±(1.2% +3counts) Overload protection : 600V DC or AC ( RMS ) 4. Current DC Range Resolution Accuracy 200mA 0.1mA ±(1.2%+3 counts) Sensitivity: min 0.5mA DC current. Overload protection : 600V/200mA self-recovery fuse. Frequency range: 50Hz~60Hz. 5. Current AC Range Resolution Accuracy 200mA 0.1mA ±(1.5%+5counts) Sensitivity: min 1mA AC current. Overload protection: 600V/200mA self-recovery fuse. Frequency range: 50Hz~60Hz. 6. Frequency Range Resolution Accuracy 1000Hz 1Hz ±(1.0%+5counts) Frequency range: 40Hz~1000Hz. 7. Measure Continuity Function Accuracy buzzer If the resistance is 30Ω, the continuity beeper sounds. Overload protection : 6000V DC or AC ( RMS ) 8. V~Alert Range Explanation Low file Show -EF-, green V~Alert light continue light on, the beep sounds Hgh file Show -EF-, red NCV light continue light on, the buzzer sounds an alarm at a higher frequency Package Includes: 1 x 1 x Pair of Probes 1 x English User Manual 1 x Package Box Detail Pictures:
