C1 Portable ToF Laser Scanner Kit 12m 360 Scanning for Robot Positioning, Mapping, Obstacle Avoidance

C1 Portable ToF Laser Scanner Kit 12m 360 Scanning for Robot Positioning, Mapping, Obstacle Avoidance Description

Features: 360 Degree 2D laser Scanner: Offers 360-degree full-range laser scanning with a sampling frequency of 5000 times per second.
Enhanced Perception Capabilities Beyond Flat Surfaces: Not only captures position information data but also provides reflectivity data and 2.5D multidimensional information.
Extended Measurement Range and Low Blind Range: Has an impressive measuring distance of up to a 12-meter radius. It also boasts a remarkably low blind range of only 0.05 meters, enabling precise obstacle avoidance.
Compact and Agile Design: Its small size, low levels of noise and vibration, and versatility easy to integrate into a wide range of applications, offering flexibility and adaptability.
Compliant with Class 1 Laser Safety Standard: Utilizes a low-power infrared laser light source that is driven by modulated pulses. It adheres to the Class 1 Laser Safety Standard, ensuring the safety of human eyes.

With a measurement distance of up to a 12-meter radius and a minimal blind range of 0.05 meters, the C1 excels in scanning, measuring objects at various distances, and achieving obstacle avoidance.
The C1 Portable ToF Laser Scanner Kit is an advanced 360-degree 2D laser scanner (LIDAR) solution. It is based on the laser flight-of-time (TOF) ranging principle, offering high-speed rotation, allowing it to capture up to 5000 samples of laser ranging per second. By incorporating contactless power and signal transmission technology, it overcomes the limitations of traditional LIDAR systems, ensuring long-term stability and reliability.
Color: Black
Material: plastic

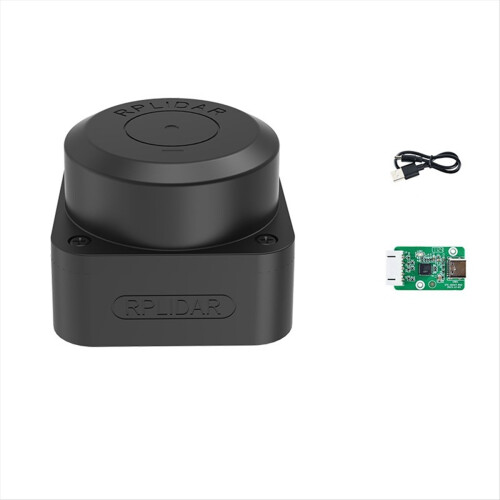

Package Contents:
1 x laser scanner
1 x Adapter board
1 x Connection cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
