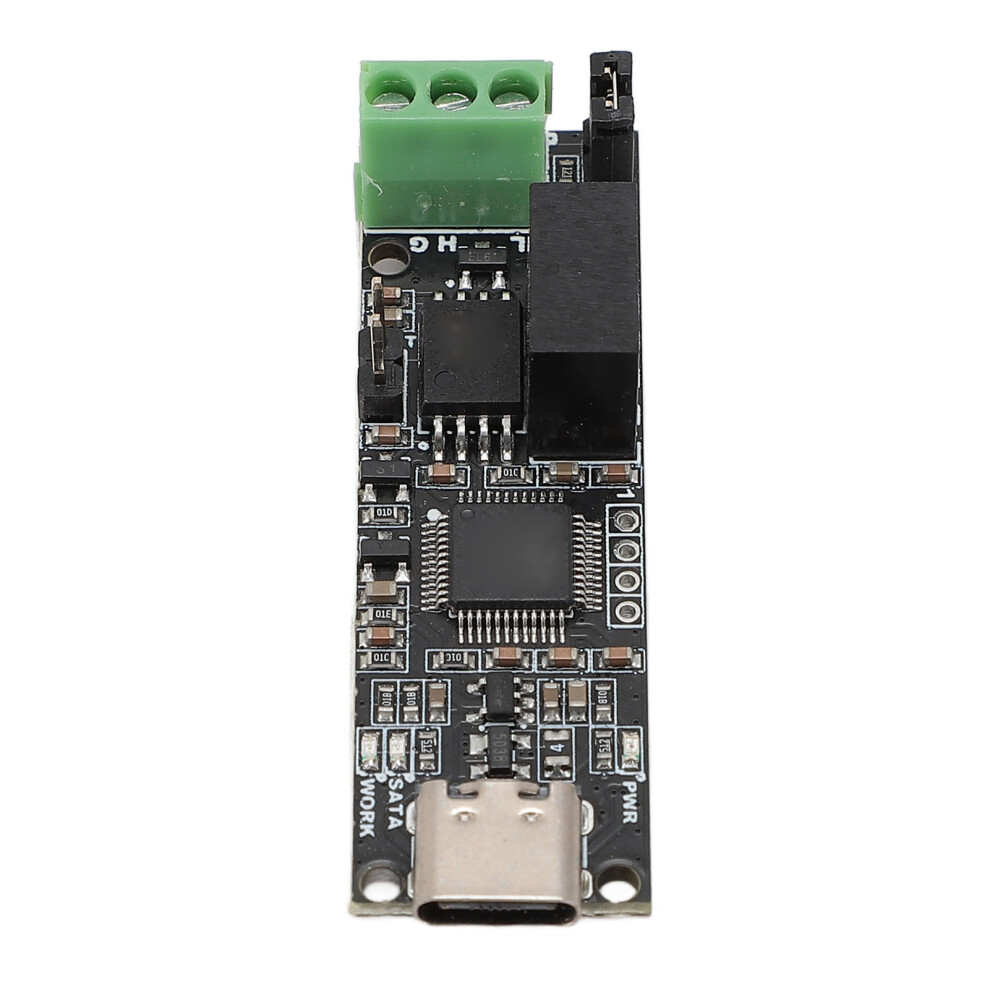

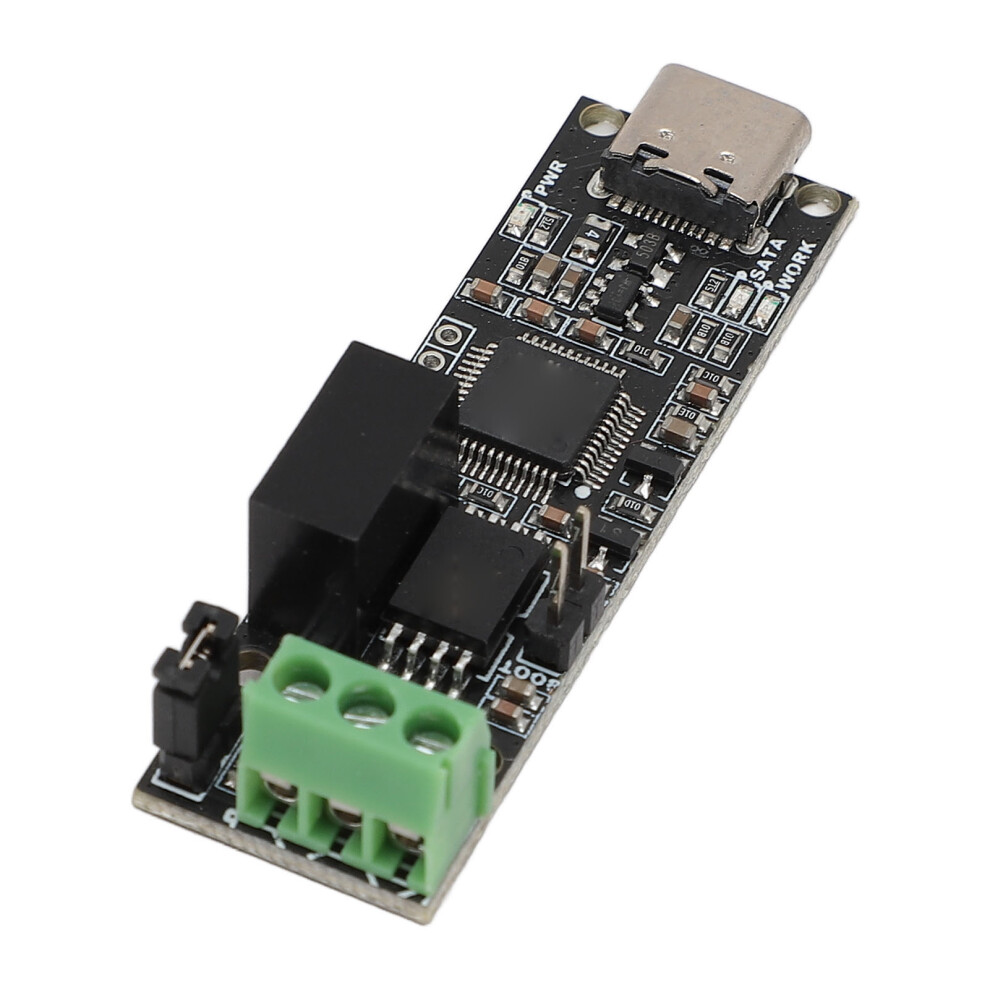

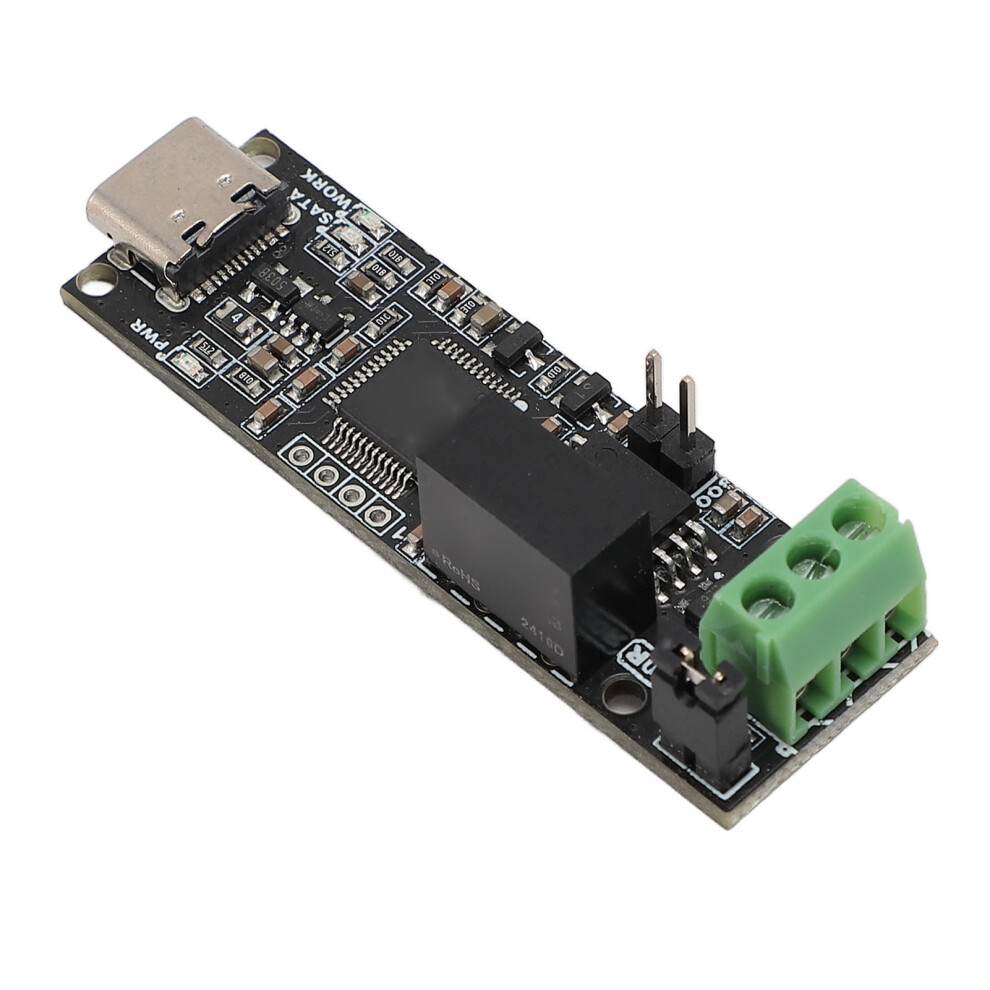

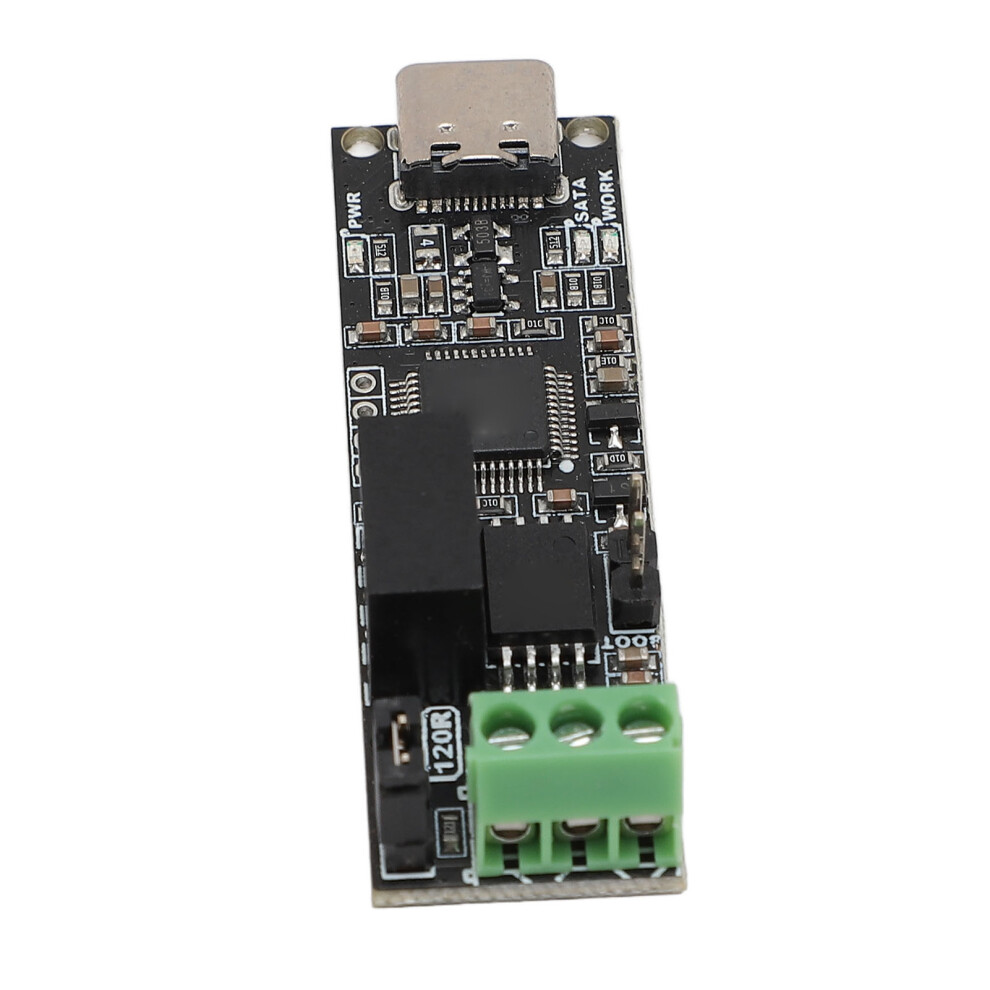

CANable 2.0 Pro USB CAN Analyzer 170MHz USB to PCAN

CANable 2.0 Pro USB CAN Analyzer 170MHz USB to PCAN Description

1、COMPACT OPEN SOURCE DESIGN: The for CANable 2.0 Pro module is a small, open source USB to CAN analyzer, enumerates virtual serial ports on your computer and acts as a serial line for the CAN bus interface. 2、COMPATIBLE WITH MULTIPLE STANDARDS: Supporting standard CAN 2.0A, CAN 2.0B, and CAN FD. When using for candle light firmware, for CANable is enumerated as a local CAN interface on for Linux, which is very stable and practical. 3、HIGH PERFORMANCE PROCESSING: Adopting ARM Cortex M4 for STM32G431C8T6 processor, the operating frequencies can reach to 170MHz, Support Type C USB port, online firmware upgrade and DFU mode firmware upgrade. 4、APPLICABLE MODEL: The CAN analyzer module is compatible with ARM based embedded platforms such as for RasPi, for RasPi Zero, for ODROID, for BeagleBone, etc., making it suitable for integration into OEM products. 5、ANTI INTERFERENCE: The MKS CANable V2.0 Pro module is ideal for industrial commissioning or motor applications because of its high transfer rate and high running stability, as well as its enhanced anti interference capability.
Item Type: CAN Analyzer Module
Material: PCB
Microprocessor: For STM32G431C8T6
Communicating Chip: TJA1051T/3
Voltage: DC 3.3V-5V
CAN FD: Supported
CAN 2.0 A B: Supported
Firmware: candleLight, slcan
Transfer Rate: 1M 2M 5M
ESD Guard: 30kV
Signal Isolation: 5.7kV rms
Common Mode Transient Immunity: > 75kV/us

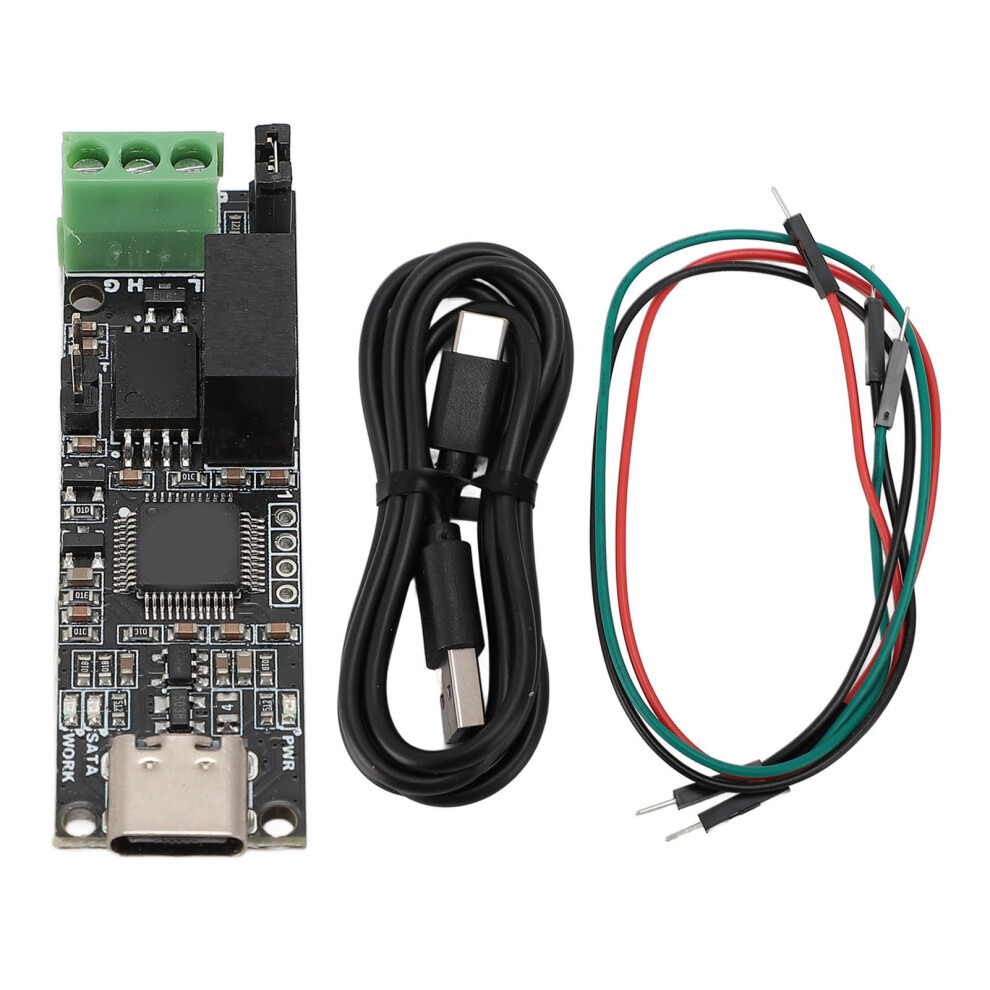

1 x CAN Analyzer Module
1 x USB Cable
1 x Connection Cable
