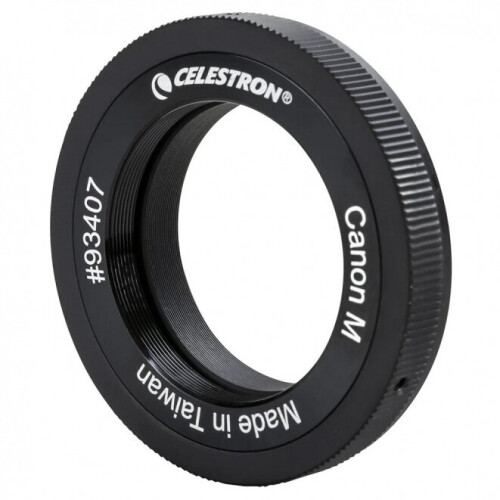

Celestron Canon M Mount T-Ring

Celestron Canon M Mount T-Ring Description

One of the first items you'll need to use a telescope or spotting scope to take photos is a T-Ring. The Celestron EOS M-Mount T-Ring is the best option if you own a Canon EOS mirrorless camera body.

How to Use

Put the M-Mount T-Ring on your Canon mirrorless camera to use this T-Ring. Align the T-Ring with your camera's lens mount, much like you would when replacing a lens. Turn it until you hear a click, then push it in. A strong bayonet flange on the T-Ring locks for a tight fit. You can connect your telescope once the T-Ring has been connected to your camera. The threads on the telescope side of the T-Ring are compatible with a number of camera adapters, including the Celestron T-Adapter. The type of photography you want to do will determine the adapter you select.

Body

The 42mm T-ring for the Canon M-Mount is made of black anodized machined aluminium. For the maximum contrast, the inside surfaces are blackened and glare-threaded. A ribbed surface on the T-Ring provides a firm grip for threading or unthreading. M42 x 0.75 (T-Thread) camera adapters are compatible with the Canon M-Mount 42mm T-Ring.

Terrestrial and Celestial imaging

To transform your telescope or spotting scope into a powerful telephoto lens, combine your T-Ring with a Celestron T-Adapter. Use these adapters with your M-Mount T-Ring, depending on the optics you have:
* Please reference specific product pages for compatibility

Optics                                                            T-Adapter to pair with the M-Mount
Spotting Scope*                                            Universal T-Adapter - 1.25"
Schmidt-Cassegrain telescope                     T-Adapter for Schmidt-Cassegrain Telescopes
Refractor telescope                                       Universal T-Adapter - 1.25"
Newtonian Reflector telescope                     Universal Barlow and T-Adapter - 1.25"
NexStar 4SE                                                 T-Adapter, NexStar 4SE
EdgeHD (8”)                                                  T-Adapter, (EdgeHD 8)
EdgeHD (9.25”, 11”, 14”)                               T-Adapter, (EdgeHD 9.25, 11 & 14)

- T-Ring attaches to M-mount Canon mirrorless camera bodies
- Works with Celestron T-Adapters
- 42mm female diameter thread
- Sturdy bayonet flange locks for a secure fit
- 2 year warranty

This T-Ring fits EOS M-mount mirrorless cameras only. It will not work with other Canon camera bodies like the EOS RF-mount or EOS EF-mount model cameras without adding a Canon adapter to convert those cameras to M-mount.

Thread:    M42-0.75
Camera mount:    Canon M-mount for mirrorless cameras
Construction:    Aluminium black anodized
Outside Diameter:    65mm (2.56")
Thickness from flange:    10mm (0.39")
Weight:    1.76 oz (50 g)

Note: Telescope is for illustrative purposes only and not included.
