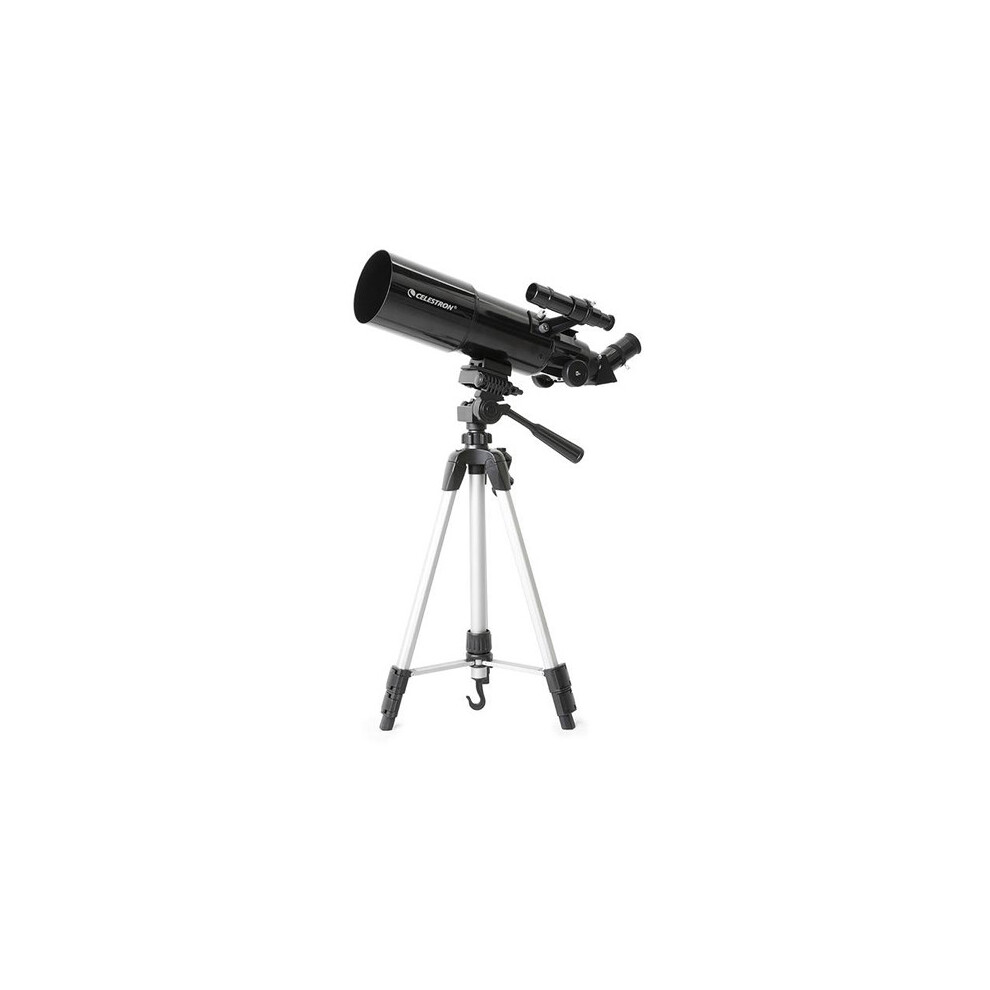

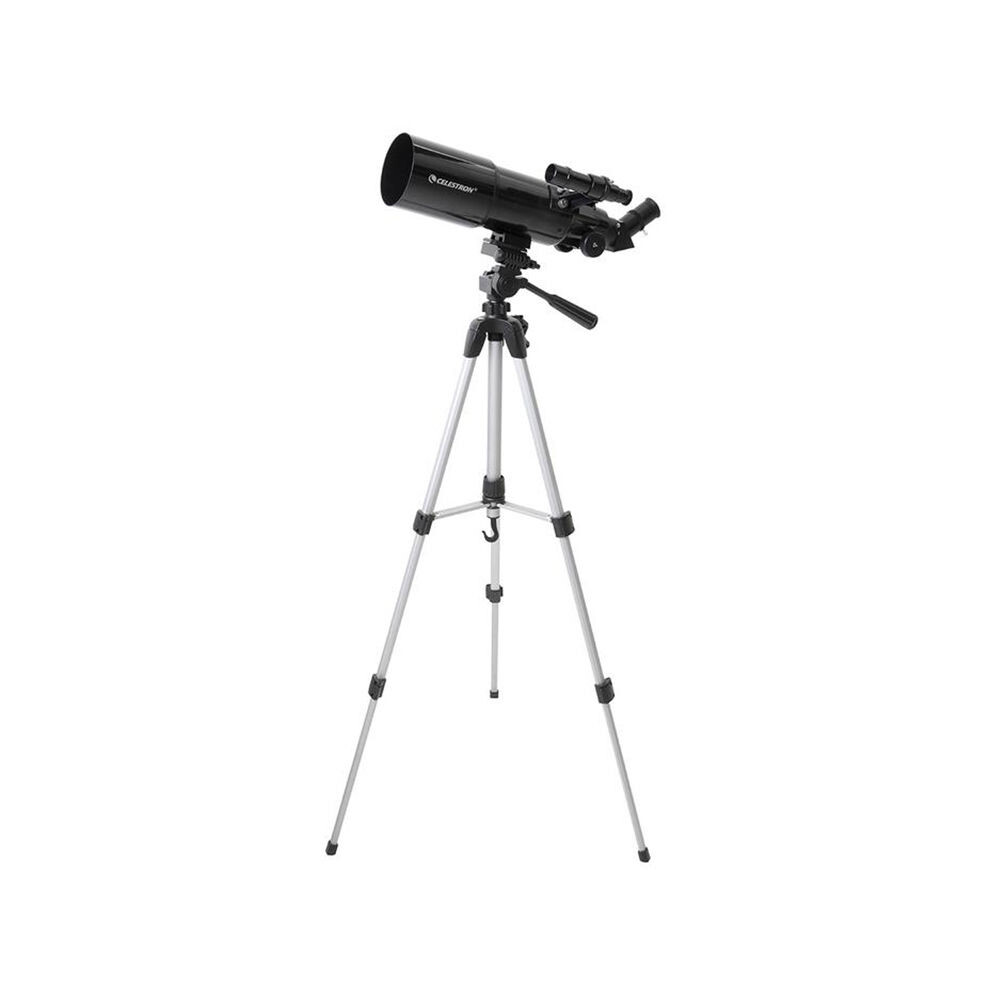

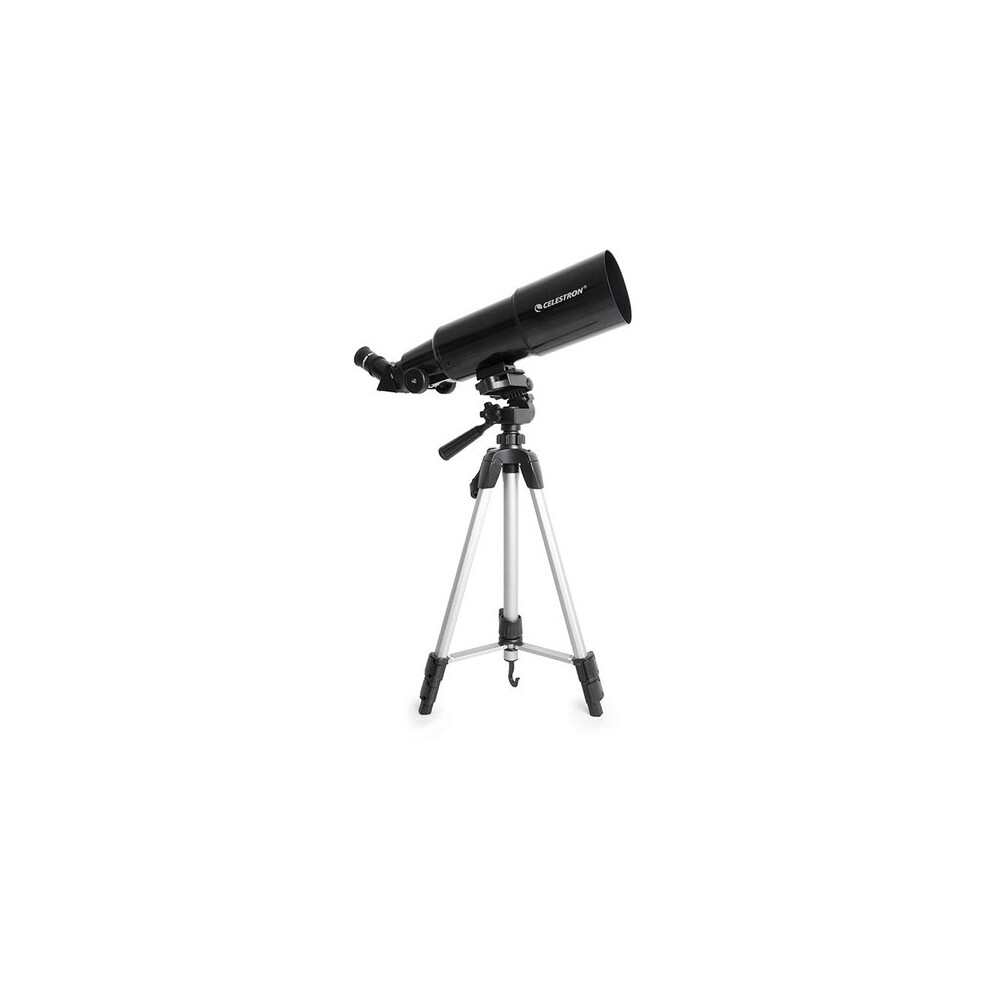

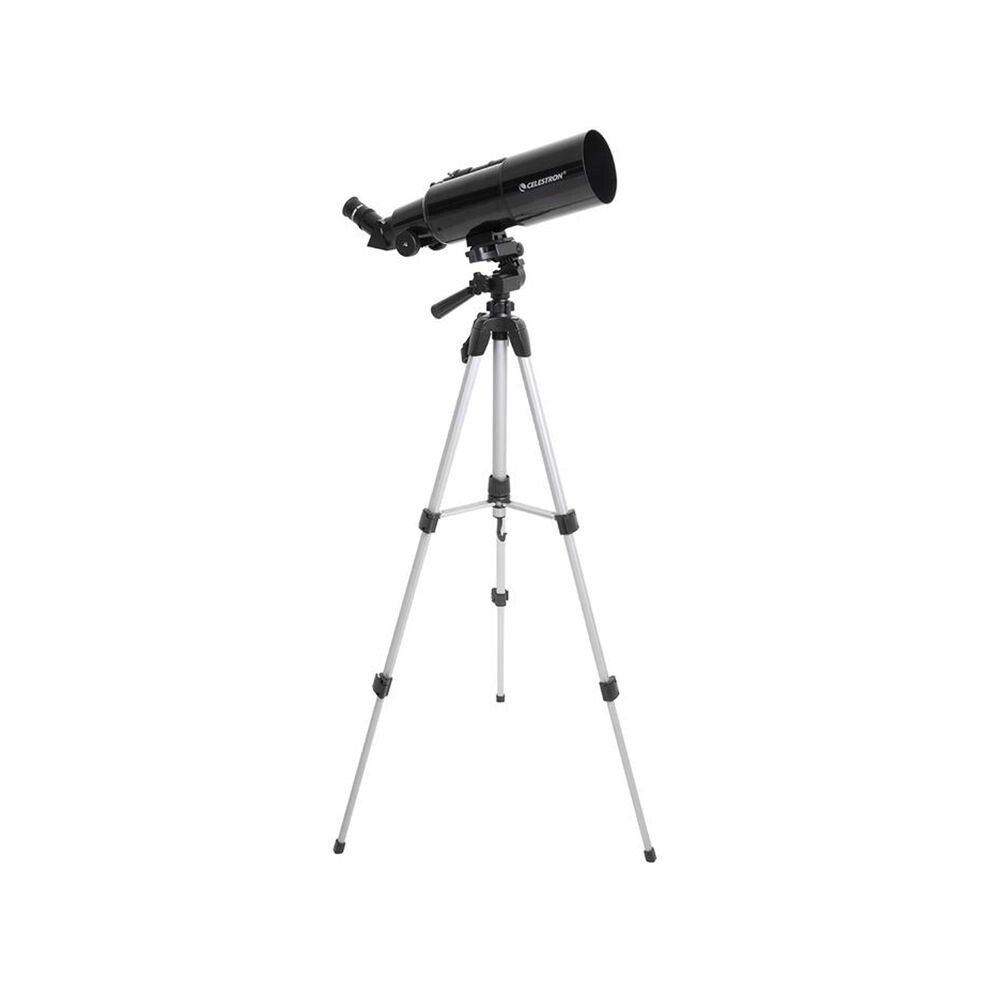

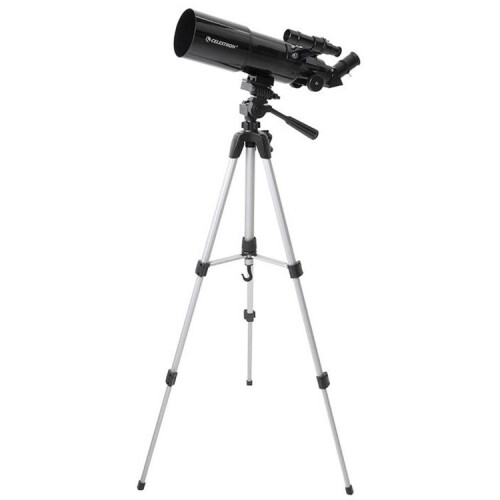

Celestron Travel Scope 80mm f/5 AZ Refractor Telescope

Celestron Travel Scope 80mm f/5 AZ Refractor Telescope Description

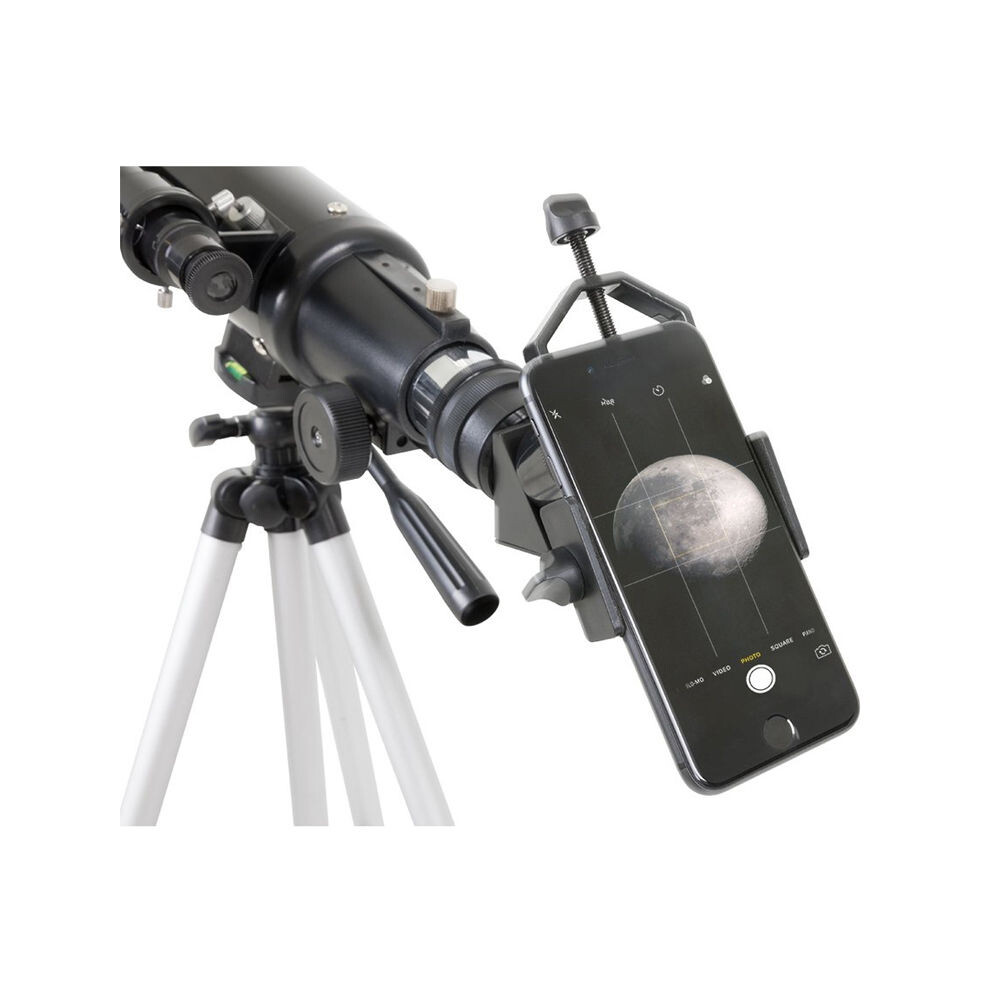

The Celestron Travel Scope 80mm f/5 AZ Refractor Telescope Kit is built for portability and ease of use, suitable for both astronomical and terrestrial viewing. Its refractor-style optical tube has a sufficient aperture to gather enough light for clear, bright views of the moon and planets. This model comes with a universal smartphone digiscoping adapter, enabling users to capture photos and videos through the eyepieces for easy editing, sharing, and enjoyment.

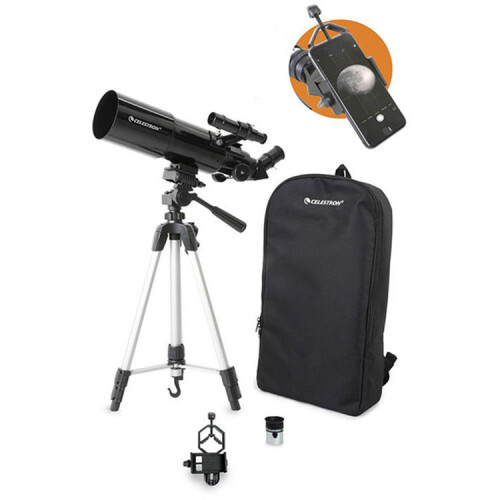

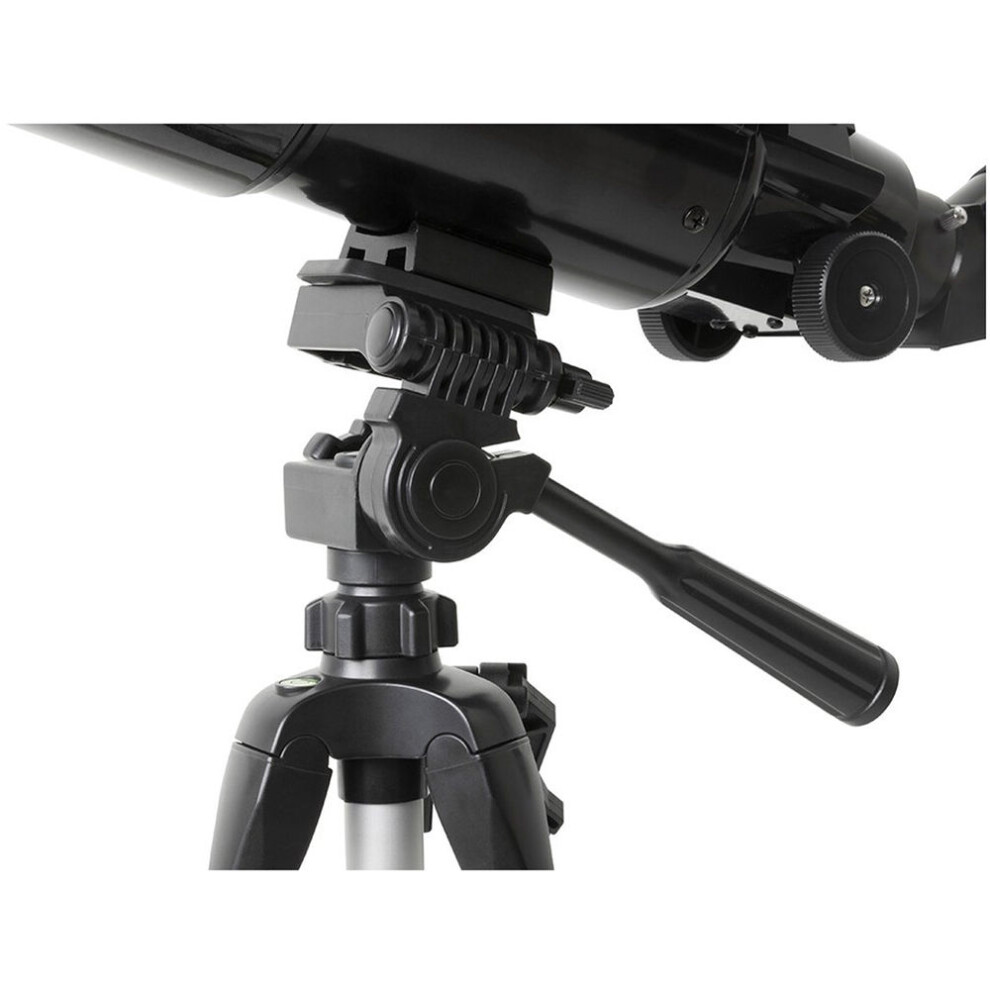

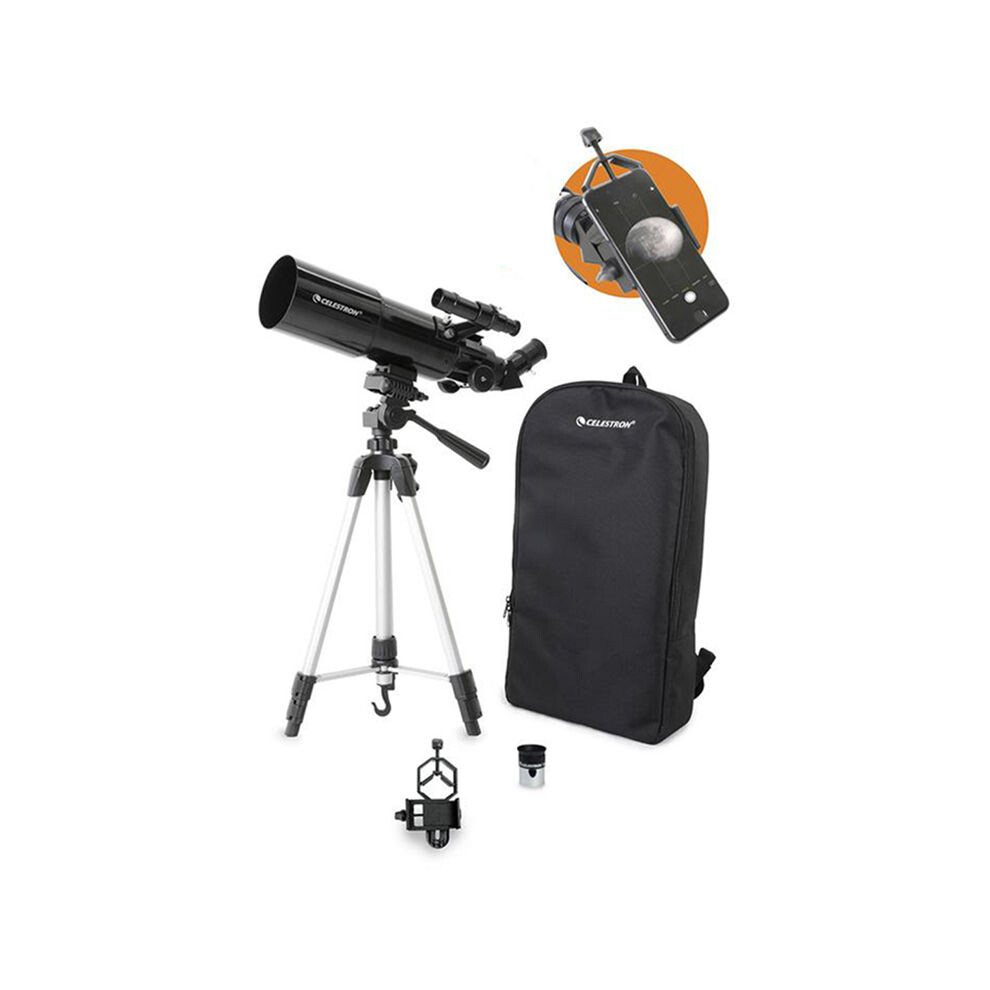

The optical tube assembly (OTA) is mounted onto a photo-style alt-az pan/tilt head using a simple screw. A single control handle allows for smooth movement and locks the altitude in place for hands-free use, reducing vibration. The accompanying photo-style tripod can collapse low enough for tabletop use and extend to full height. With the included erecting prism, views are corrected horizontally and laterally, allowing the Travel Scope to function as a conventional spotting scope. Two eyepieces provide 20x and 40x magnifications, but any 1.25" astronomical eyepiece can be used. The entire kit — OTA, tripod, head, and accessories — fits into the included backpack for maximum portability.


Features: Celestron Travel Scope 80mm f/5 AZ Refractor Telescope

• 80mm Refractor
• 400mm Focal Length, f/5 Focal Ratio
• Anti-Reflection Fully Coated Optics
• 1.25" Rack-and-Pinion Focuser
• Manual Alt-Azimuth Mount with Handle
• 20x and 40x Eyepieces

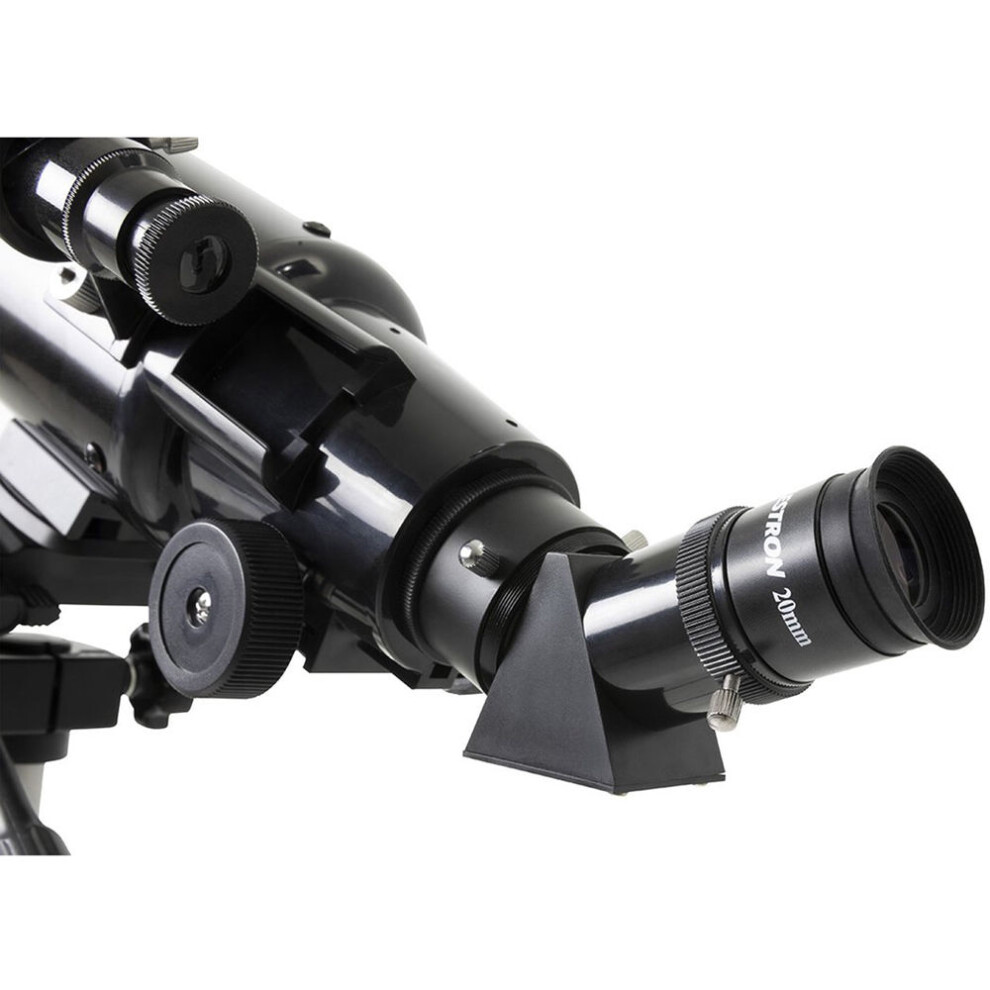

• 45° Erect-Image Prism
• Universal Smartphone Digiscoping Adapter
• Aluminum Photo-Style Tripod
• Backpack Holds OTA, Tripod, Accessories

Specifications: Celestron Travel Scope 80mm f/5 AZ Refractor Telescope

• Manufacturer: Celestron
• Condition: New
• Warranty: 2 Years
• Optical Design: Refractor
• Aperture: 80mm (3.1")
• Focal Length: 400mm (15.74")
• Focal Ratio: f/5
• Focal Length of Eyepiece 1: 20mm (0.78")
• Magnification of Eyepiece 1: 20x
• Focal Length of Eyepiece 2: 10mm (0.4")
• Magnification of Eyepiece 2: 40x
• Barlow Lens: Not Included
• Finderscope: 5x24
• Star Diagonal: Erect Image, 45° (1.25")
• Optical Tube: Aluminum
• Highest Useful Magnification: 189x
• Lowest Useful Magnification: 11x
• Limiting Stellar Magnitude: 12
• Resolution (Rayleigh): 1.74 arc seconds
• Resolution (Dawes): 1.45 arc seconds
• Light Gathering Power (Compared to human eye): 131x
• Optical Coatings: Coated glass
• Optical Tube Length: 457.2mm (18")
• Optical Tube Diameter: 98.4mm (3.87")
• Optical Tube Weight: 2.4 lbs (1.08 kg)
• Dovetail: Vixen/CG-5 Dovetail bar
• Mount Type: Manual Alt-Azimuth
• Height adjustment range (includes mount and tripod): 558.8mm - 1320.8mm (22"-52")
• Tripod Leg Diameter: 16.4 (.645") x 20 (.787") - (rectangular legs)
• Accessory Tray: Yes
• Slew Speeds: Manual
• Tripod Weight: 1.8 lbs (.81 kg)
• Dovetail Compatibility: Vixen/CG-5 saddle plate
• Software: Celestron Starry Night Basic Edition Software and SkyPortal App
• Total Telescope Kit Weight: 4.2 lbs (2 kg)
• Phone Compatibility: Any smartphone
• Compatible Optics: Fits all 1.25" eyepieces or any eyepiece with an outside diameter of 45mm or smaller
• Dimensions: 177.8 x 101.6 x 38.1 mm (7 x 4 x 1.5")
• Weight: 170.1 g

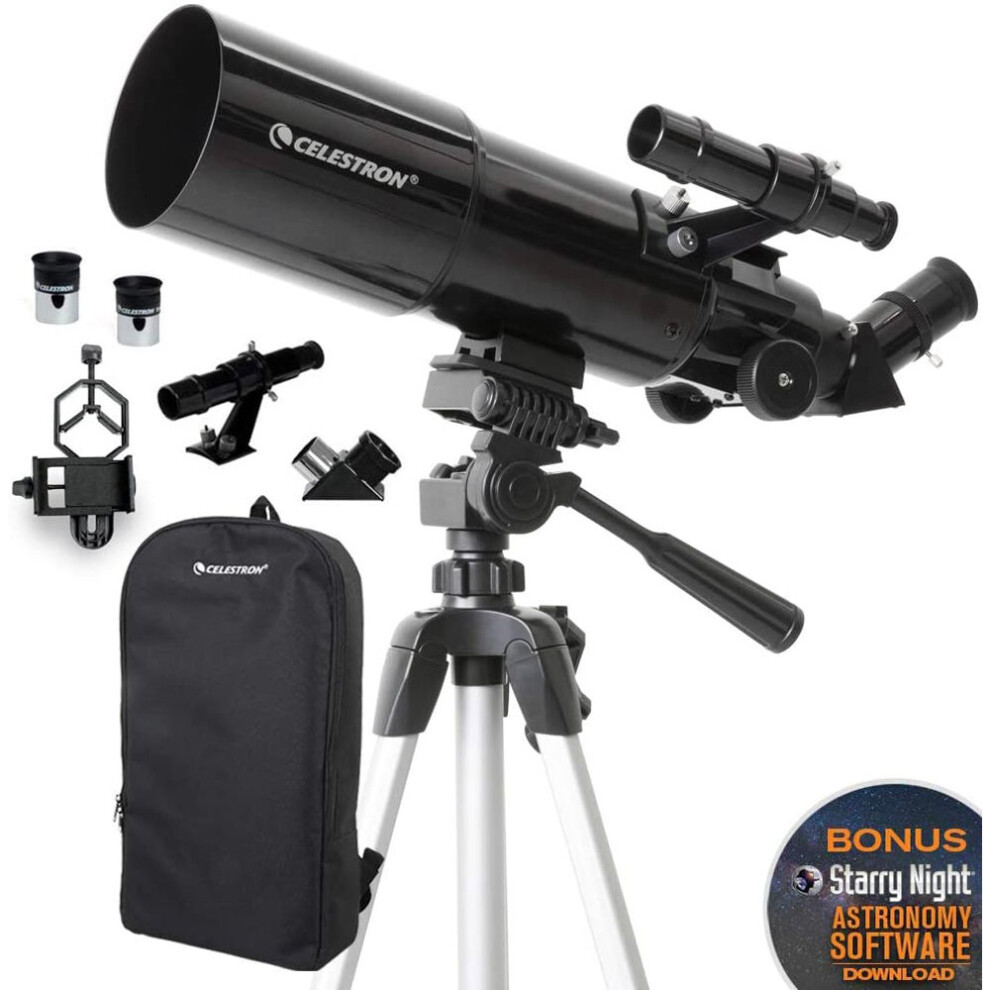

Kit Content
Celestron Travel Scope 80mm f/5 AZ Refractor Telescope
Instruction Manual
Optical tube
Mount and tripod (preassembled)
20mm and 10mm Eyepiece
Erect image diagonal
5x24 Finderscope
Smartphone adapter
SkyPortal app
Backpack
Manufacturer Warranty
