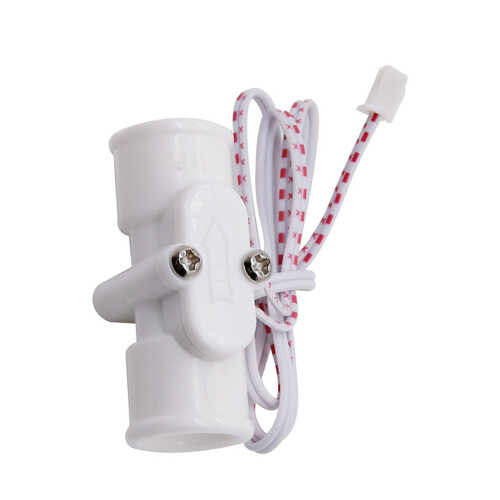

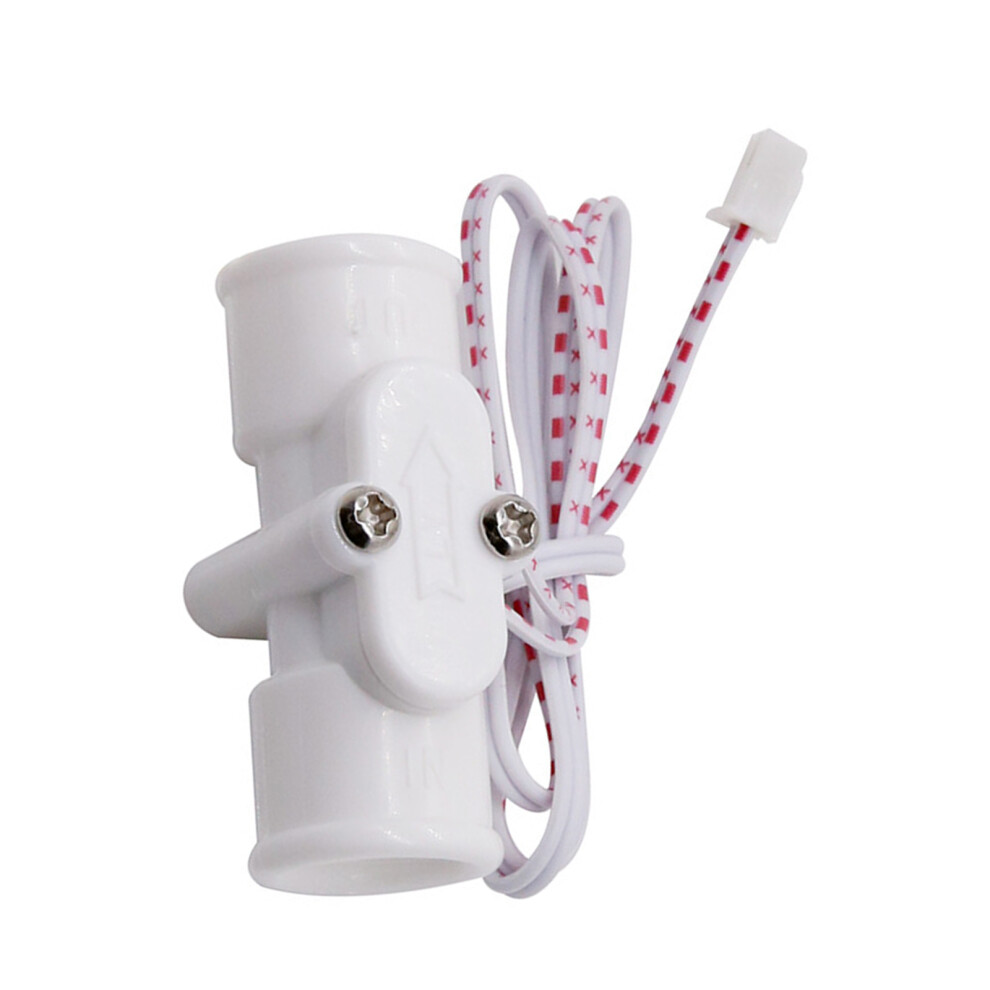

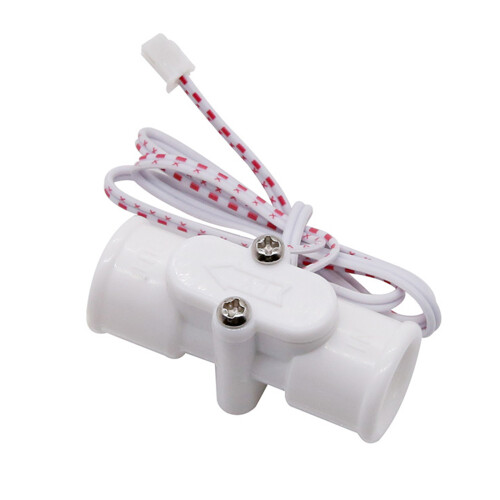

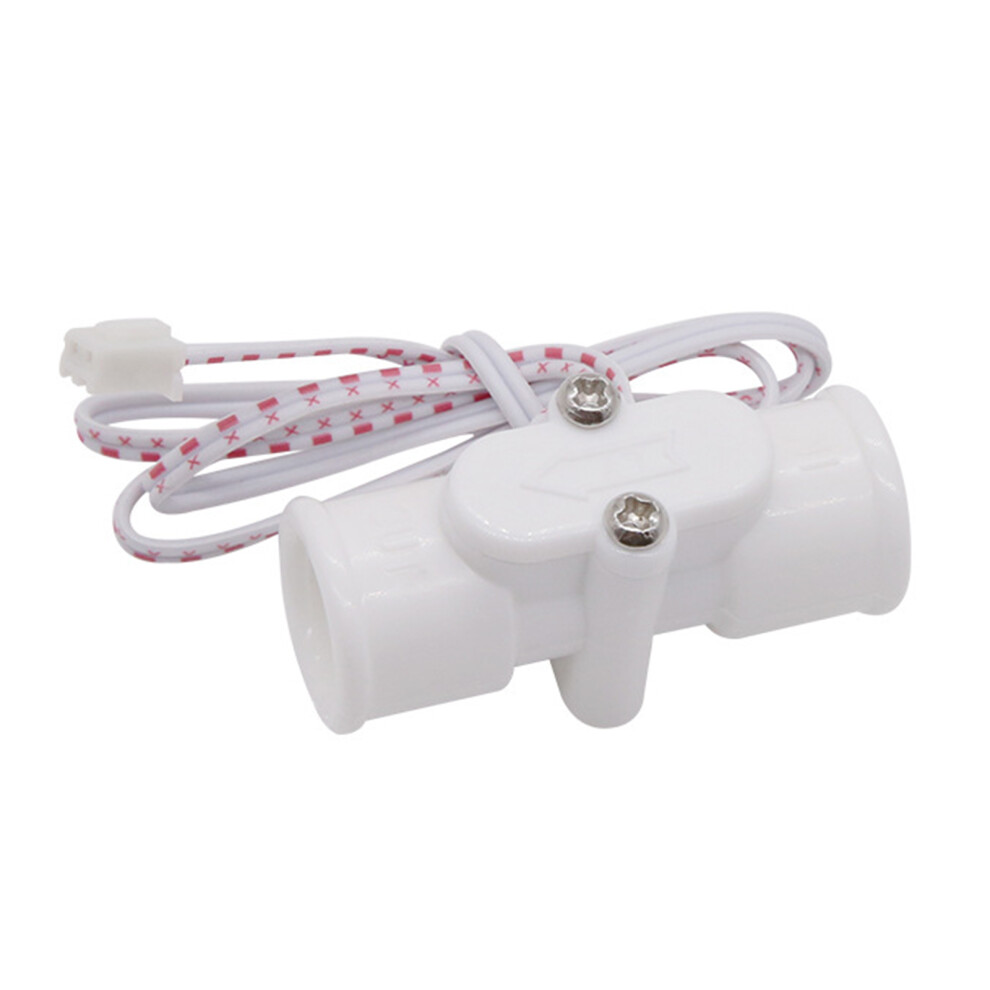

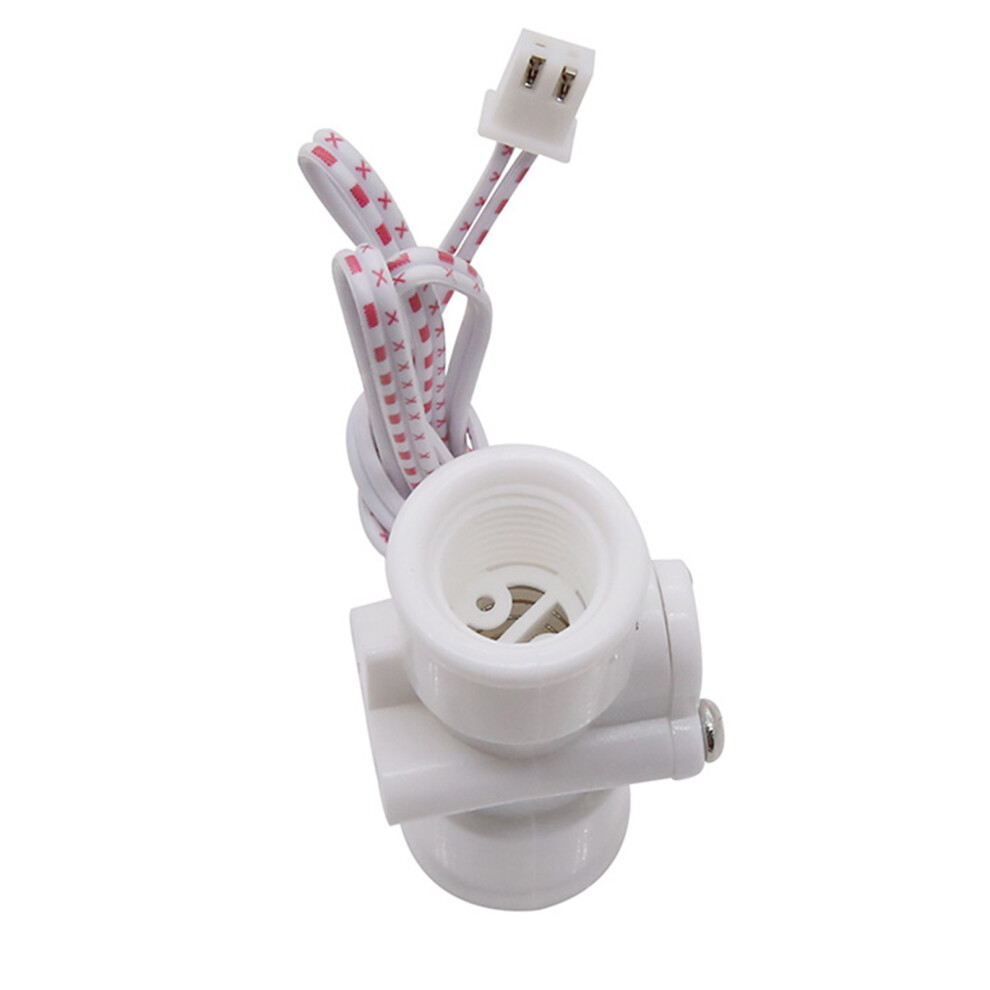

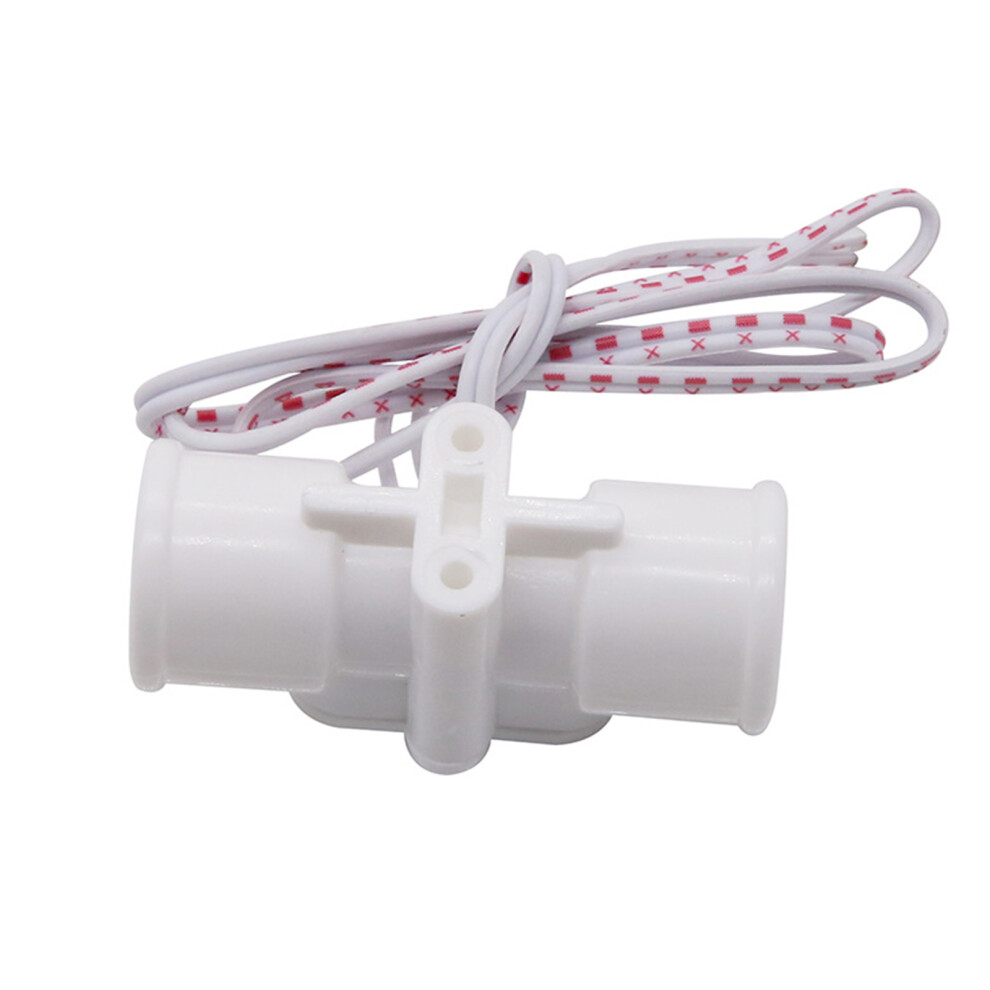

Compact- Flow Sensor G1/4" Liquid Water Flow Sensor Flowmeter

Compact- Flow Sensor G1/4" Liquid Water Flow Sensor Flowmeter Description

Features:
When the water flows in the preset- flow channel, it pushes the magnet- to displace. When it moves to the corresponding reed- tube, the reed- tube conducts after sensing the magnetic field. When there is no water flow, the magnet- returns to its position under the thrust of the spring, and the reed- tube is disconnected after the corresponding reed- tube cannot sense the magnetic field.
Thread: G1/4-inch, startup- flow: 300ml/min-, response time: less than 1s.
Lightweight, reasonable size, stable performance, low water pressure start-, easy to install, safe to use.
Can be perfectly used for water dispenser, water purifier, water vending machine, etc.
High quality material, which is sturdy- and durable in use.

Specifications:
Material: Plastic
Applicable water quality: turbidity less than 1; Fe-, C-o & Ni- less than 0.3Mg-/L
Applicable water pressure: equal or less than 0.8mpa
Applicable water temperature: 5~50
Ambient- humidity: less than 85%
Storage temperature: -20~50

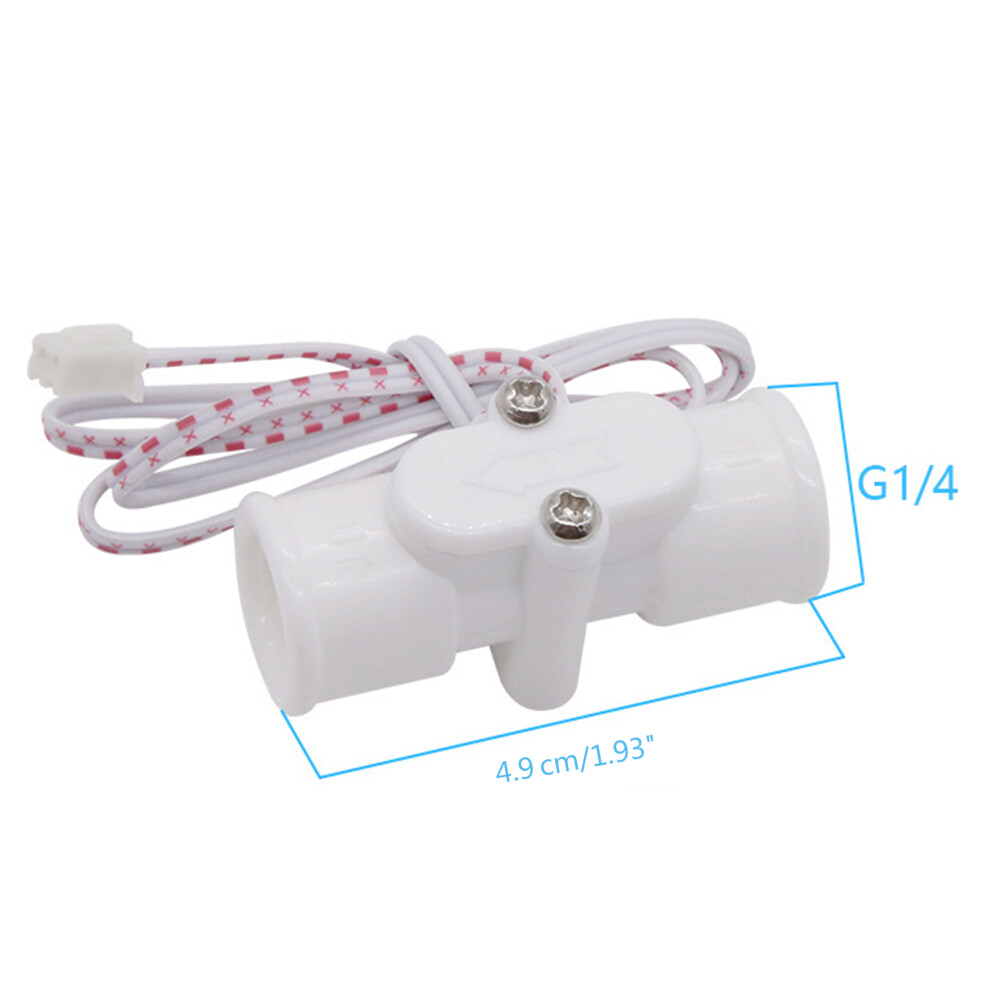

Thread: G1/4
Startup- flow: 300ml/min-
Response time: less than 1s
Switch type: Normally open
Length of wire: 50cm
Cable- connection strength (outlet end of the body) : Exert 20N-10s tensile force along the axis- of the terminal-
Apply 20N-10s pulling force along the vertical direction of the terminal- (no damage at the connection)
Hydrostatic pressure: Open 1.05MPa for 5 minutes (no leakage or damage
Voltage-resistance: applied between live- part and non-live- part
DC160V, 1min or DC200V, 1s
(No flicker or breakdown)
Maximum closing current: 0.5A
Maximum load current :1A
On resistance :0.12Q-
Disconnect-resistance :10120
Power connection capacity :0.2PF

Package Includes:
1x Water Flow Switch

note:
Please allow 1-3cm error due to manual measurement. Please make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item.
