Compatible with Ebike Sw900 Lcd Display Control Electric Bicycle Speed Meter Plug Record Instrument Control/setting

Compatible with Ebike Sw900 Lcd Display Control Electric Bicycle Speed Meter Plug Record Instrument Control/setting Description

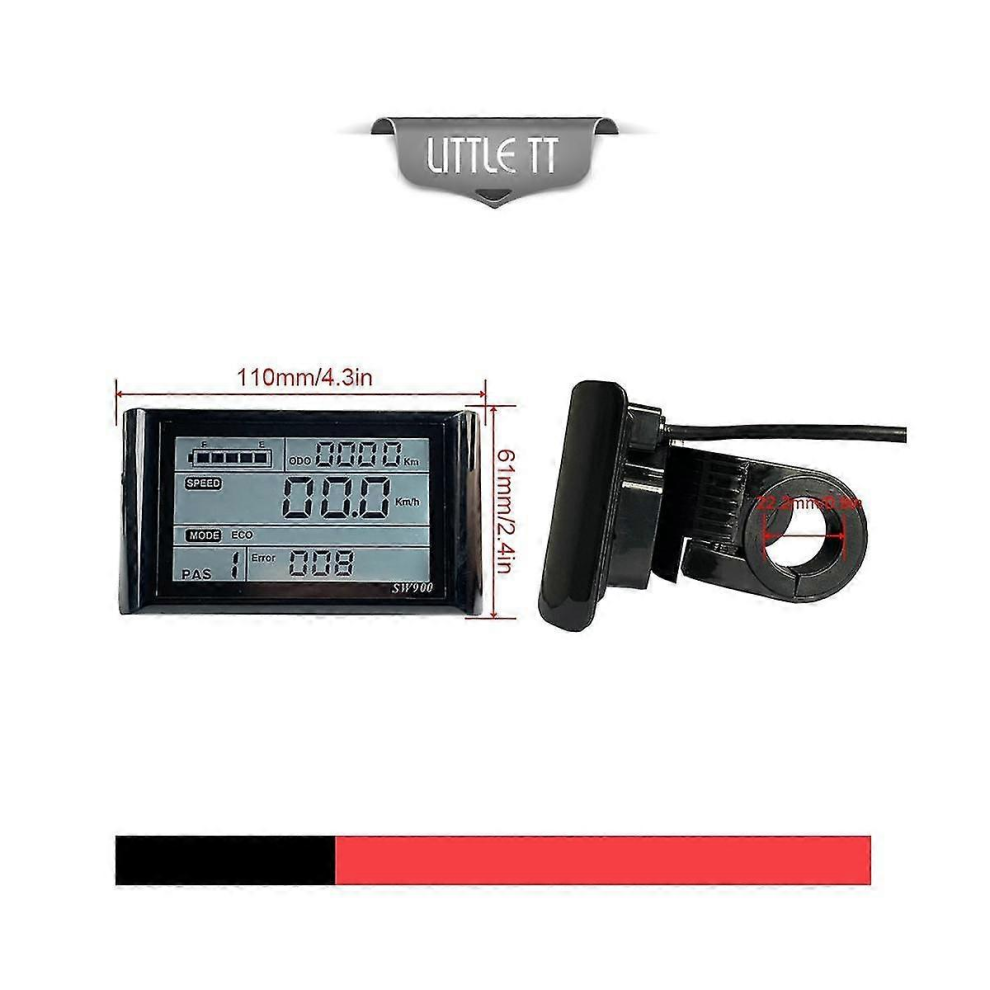

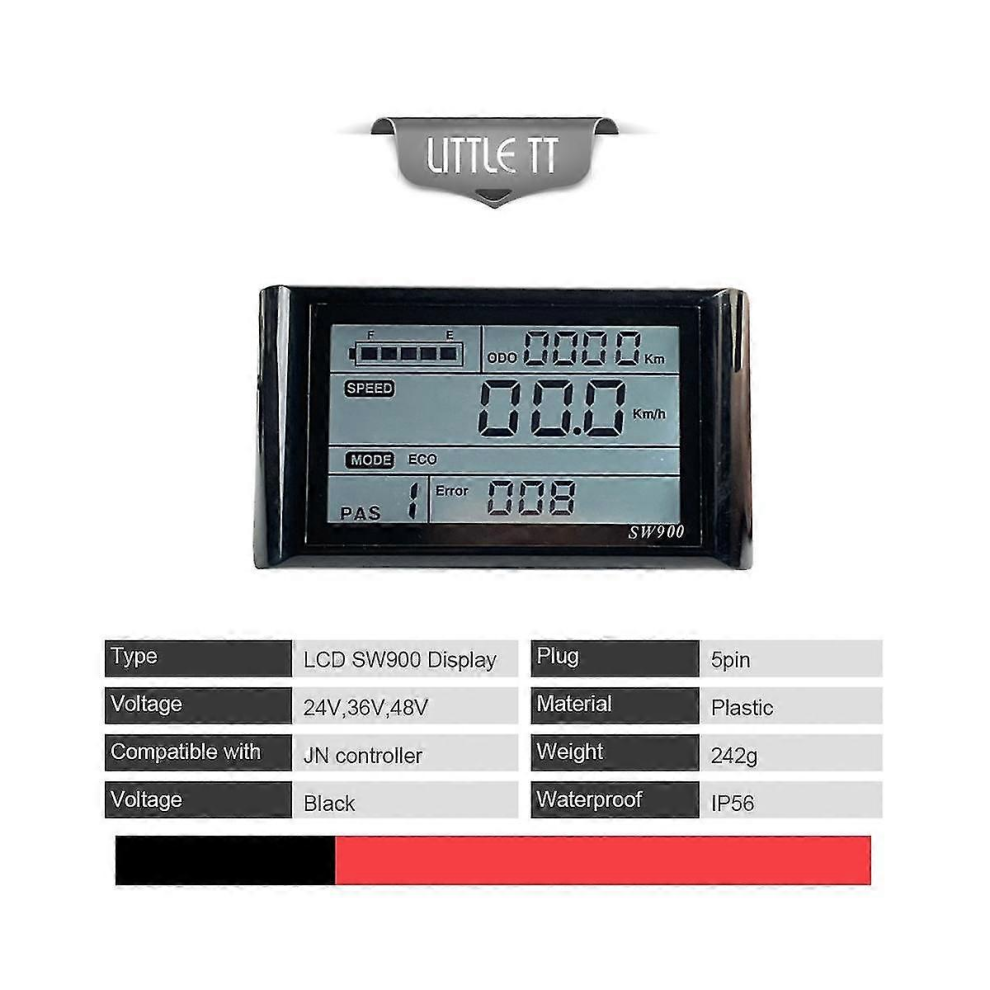

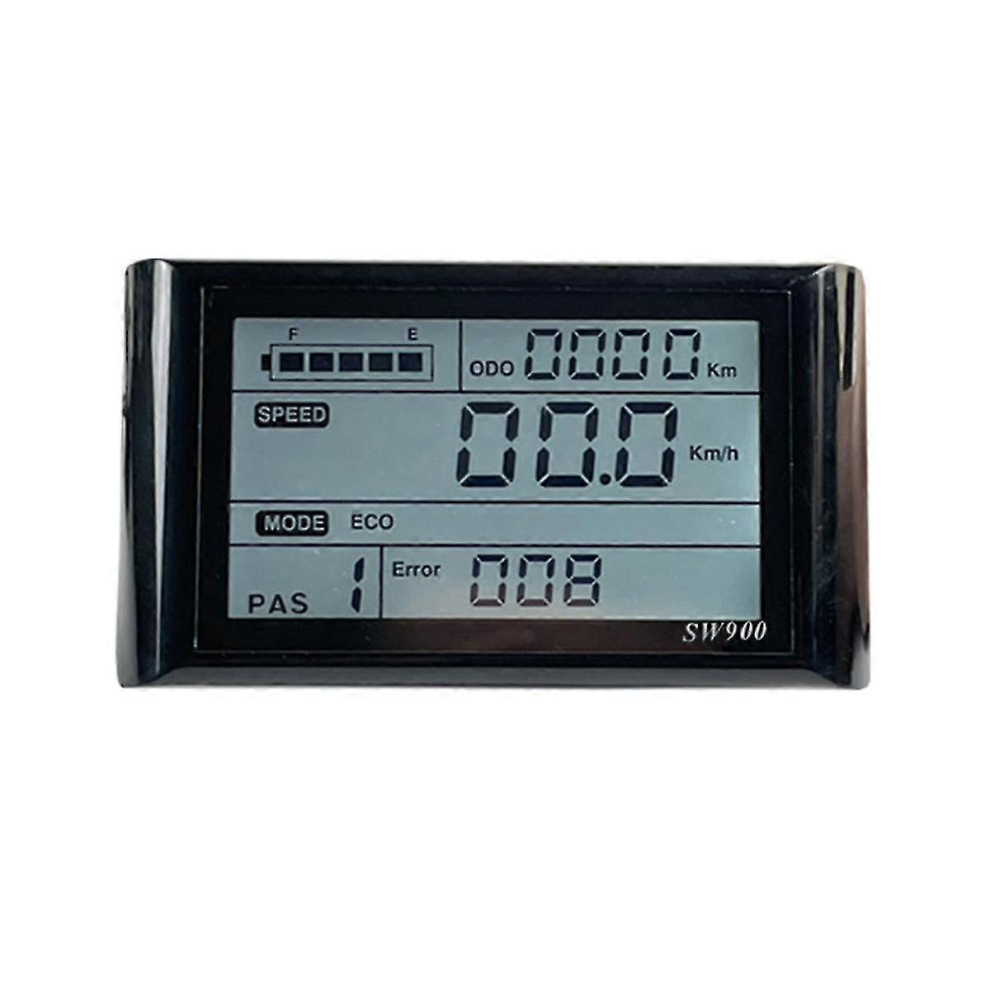

Features: (1) Display Function: Speed display, power-assisted gear display, power indicator, fault prompt, mileage, single mileage, headlights and single driving time display.

(2) Control\/Setting Function: Power switch control, headlight switch control, 6Km\/h boost control, wheel diameter setting, speed limit setting, meter sleep setting, backlight brightness setting, voltage setting.

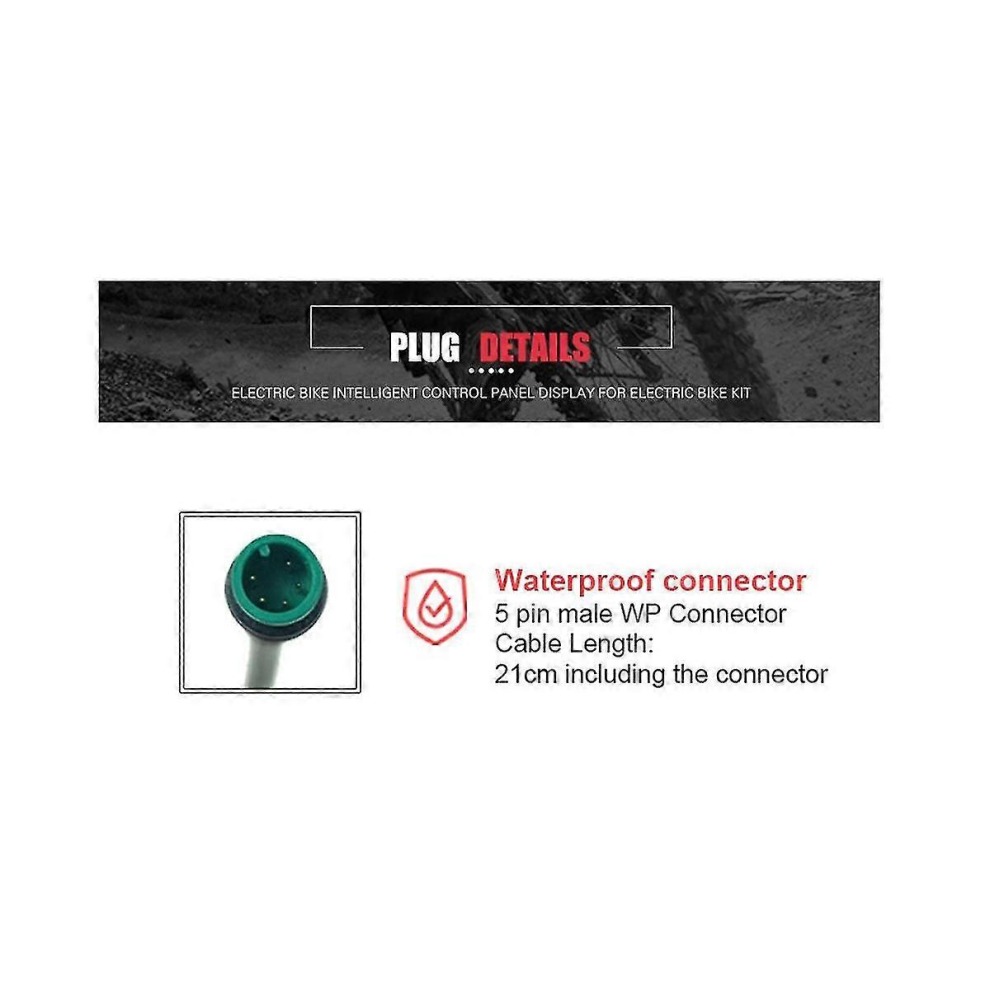

(3) Harness Description: Red (P+) meter power cord; Blue (VCC) electric door lock wire; Black (GND) negative wire; Green () Meter data receiving; Yellow (TX) Meter data transmission

(4) Meter Setting Function: Long press the up and down buttons of the meter to enter the meter .

P01: Backlight brightness, level 1 is the darkest, level 3 is the brightest.

P02: Mileage unit, 0: KM; 1: MILE.

P03: Voltage level: 24V, 36V, 48V.

P04: : 0, no sleep; other numbers are , range: 1-60; unit minutes.

P05: Power assist gear 1-9

P06: Wheel diameter: unit, inch; precision: 0.1.

P07: Number of speed magnets: range: 1-100.

P08: Speed limit: speed percentage range 0-100%, 100 means speed 100%.

P09: Zero start, non-zero start setting, 0: zero start; 1: non-zero start.

P10: Drive mode setting 0: power-assisted drive (the handle is invalid).

1: Electric drive (by turning the handle to drive, the is invalid at this time).

2: Power-assisted drive and electric drive coexist at the same time.

P11: Assist sensitivity setting range: 1-24.

P12: Assist start intensity setting range: 0-5.

P13: Power-assisted magnet type setting There are three types of 5, 8, and 12 magnets, of which 5 and 8 are single Hall power-assisted sensors.

Setting 12 is used for dual Hall assist sensors.

P14: This function is yet.

P15: This function is yet.P16: ODO reset setting, Long press the up button for 5 seconds ODO reset

Features: For Ebike

Placement on Vehicle: Handle

color:Black

Material:plastic

Package Contents:

1 x display

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
