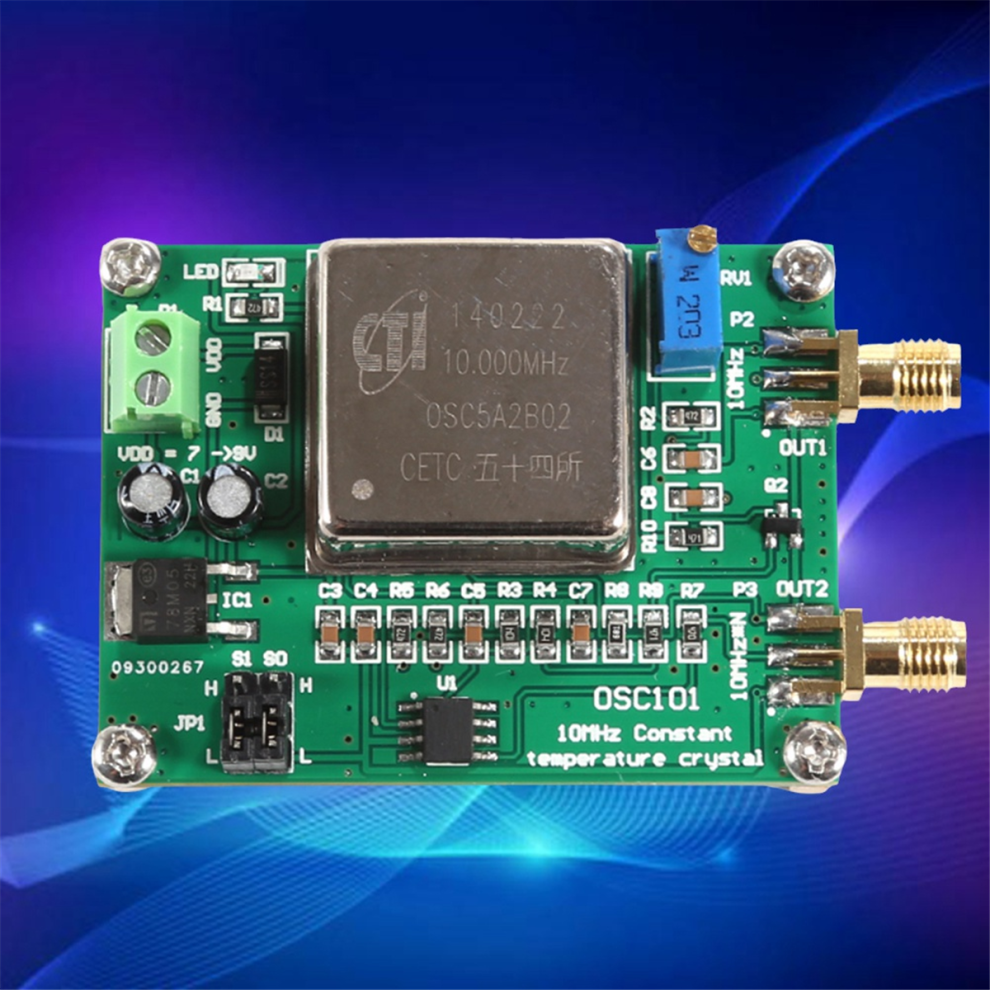

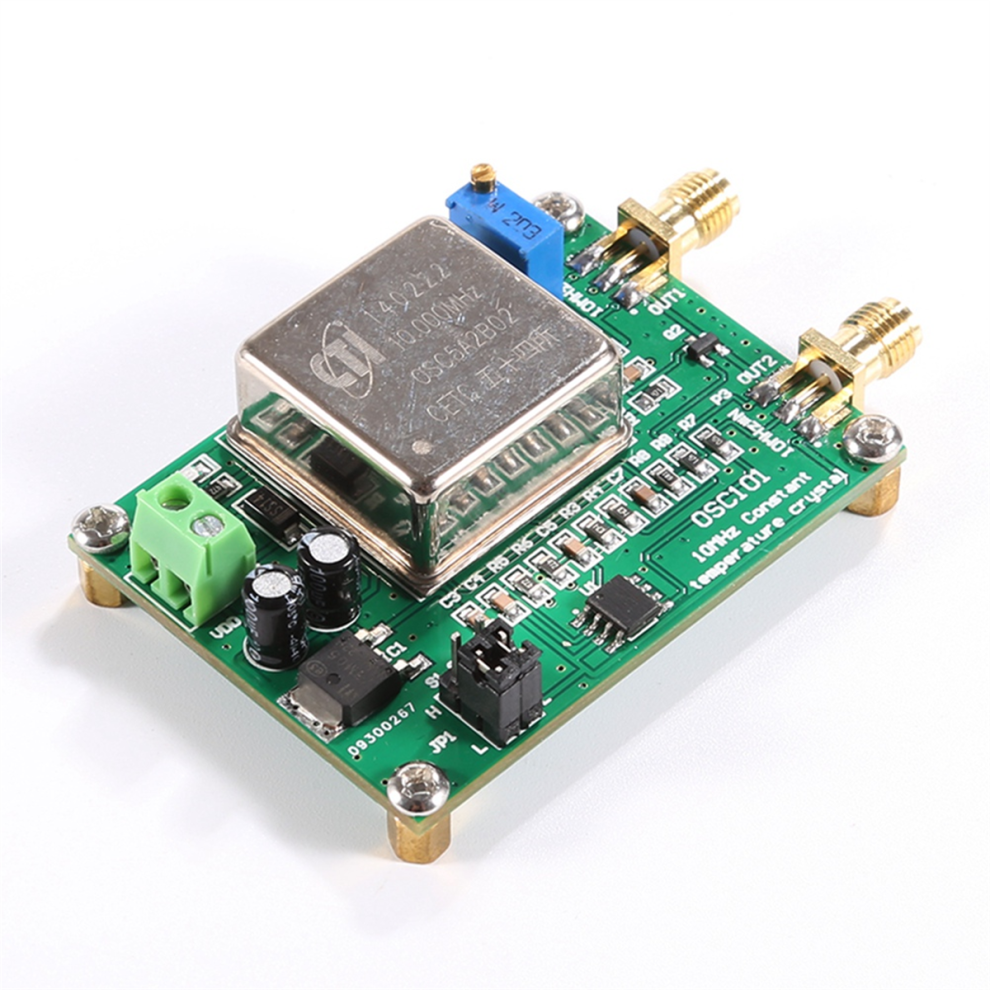

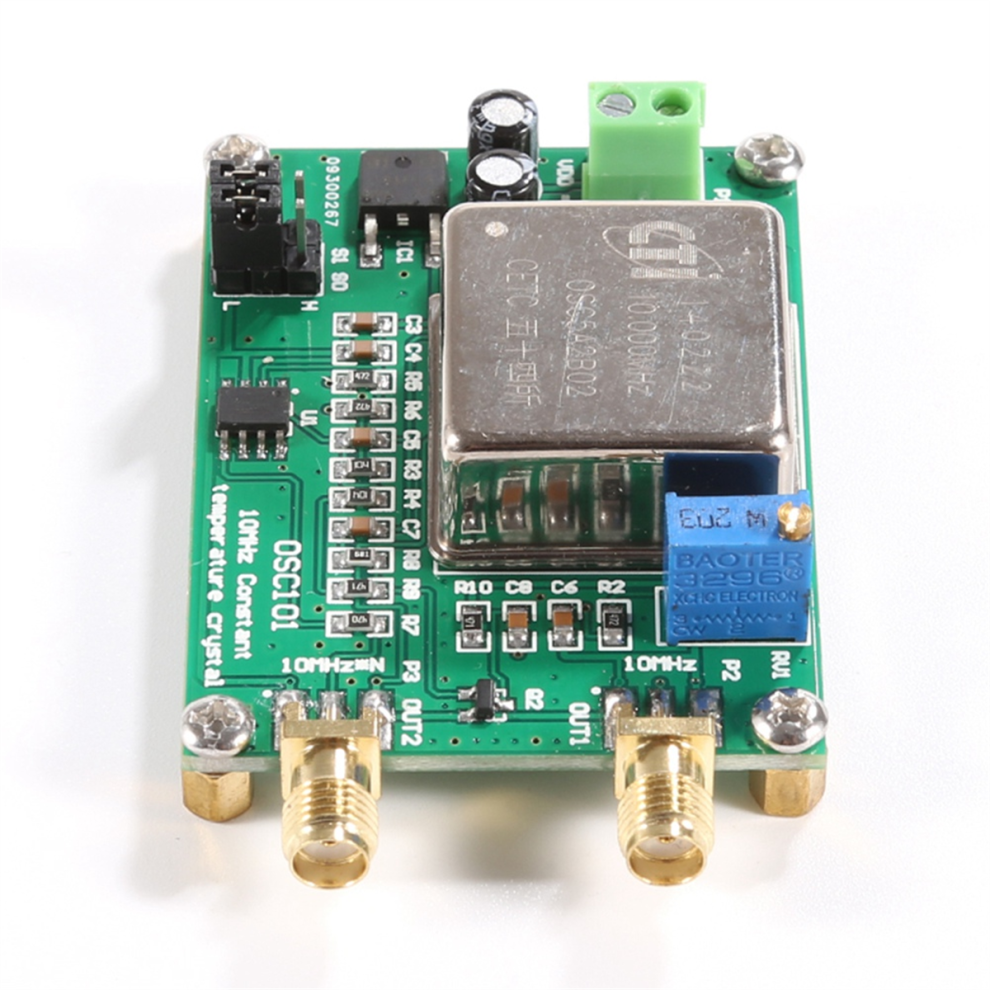

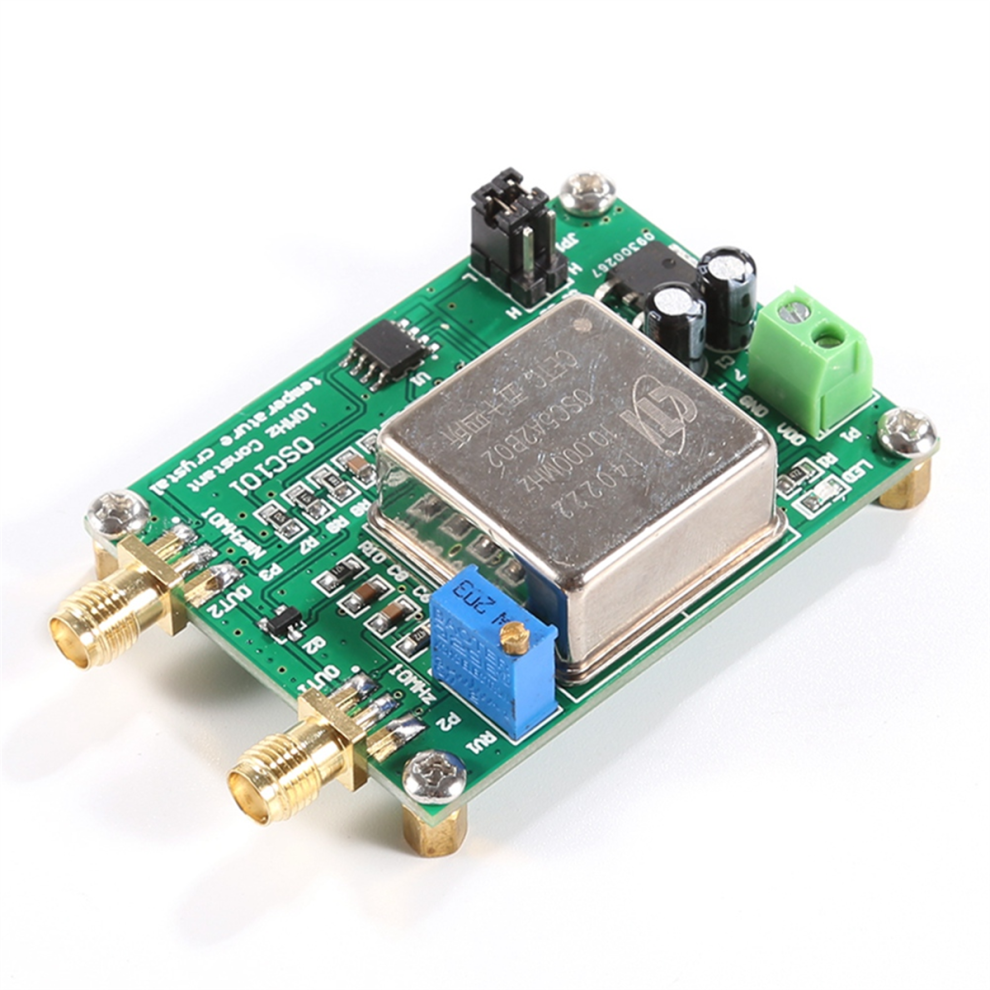

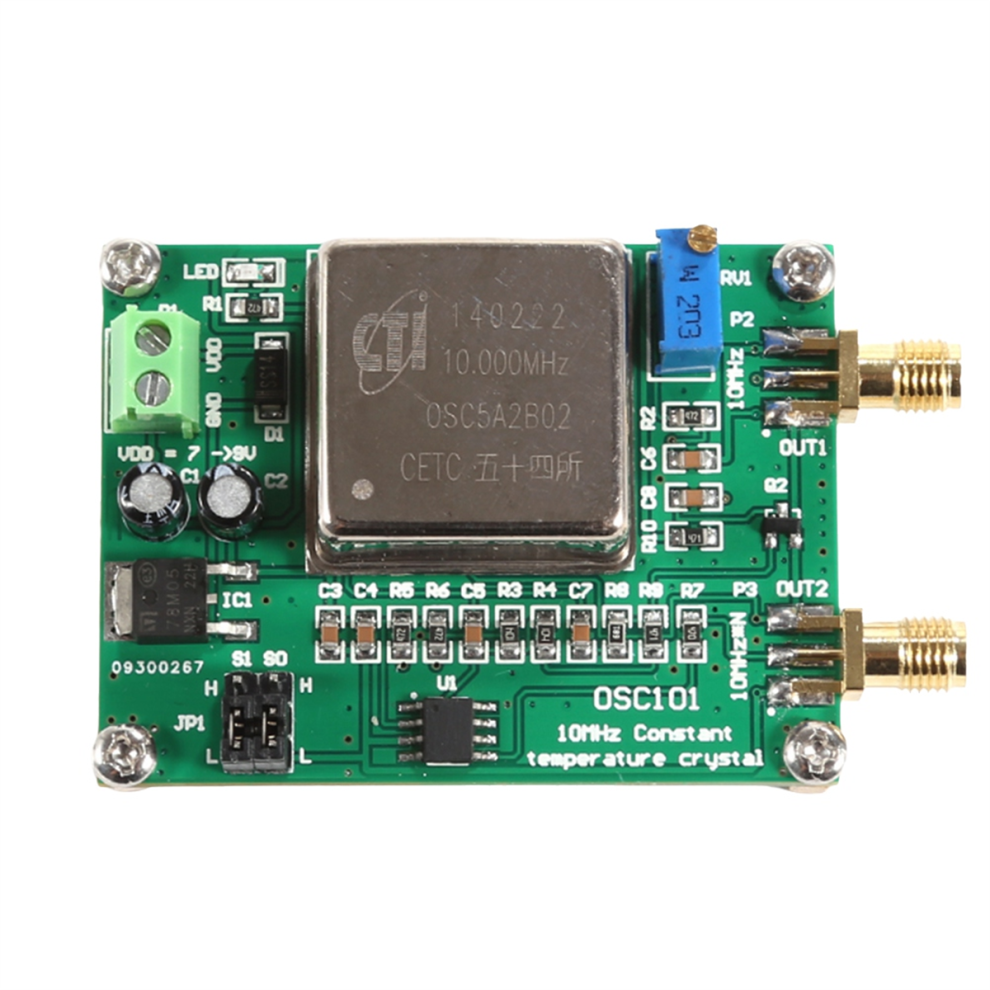

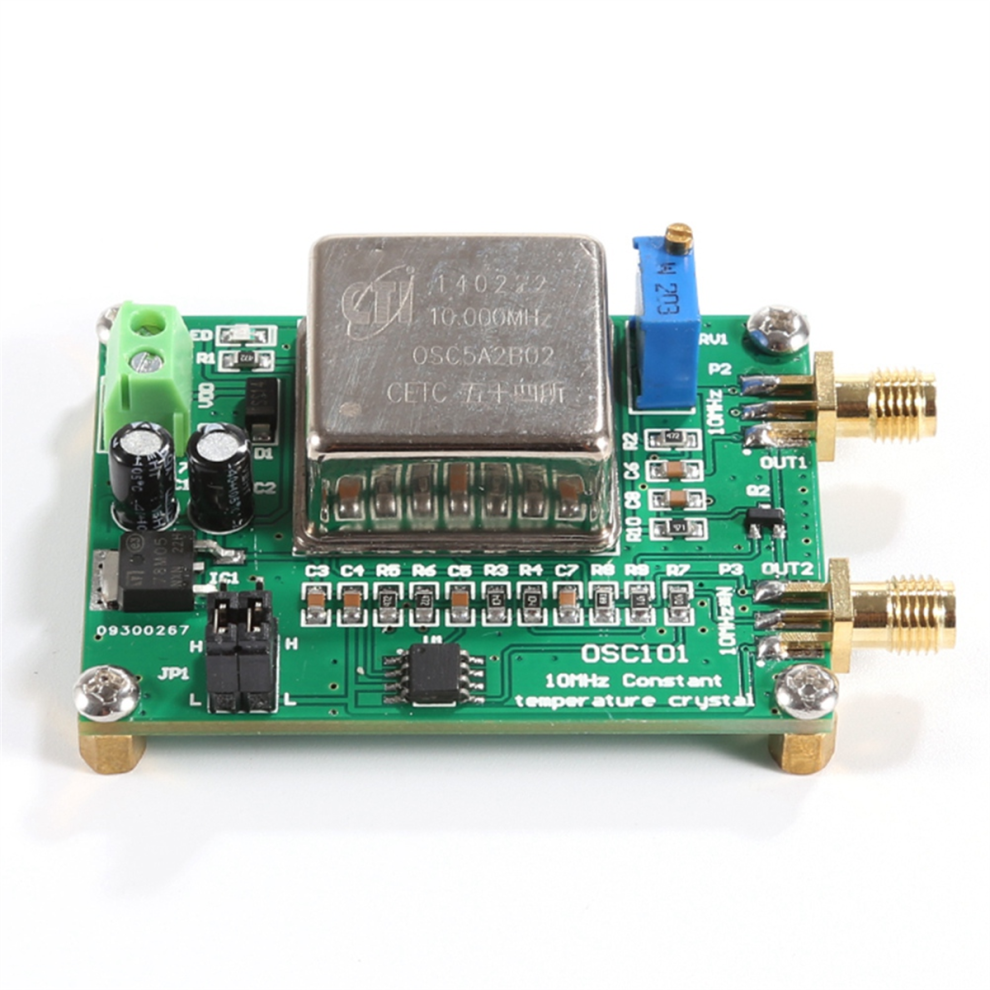

Constant Temperature Crystal Module OCXO 10MHz 20M 30M 80M

Constant Temperature Crystal Module OCXO 10MHz 20M 30M 80M Description

1.Constant Temperature Crystal Module OCXO 10MHz 20M 30M 80M Frequency Reference Module
2.This module outputs the frequency accuracy of the 10MHz signal (+/-200ppb), has two signal outputs, and one is a standard 10MHz signal.
3.The other is a 10MHz multiplier signal. The multiplier signal has 9 selection frequencies, which are 2X, 3X, 3.125X, 4X, 5X, 5.3125X, 6X, 6.25X, 8X.
4.The different multipliers are by the JP1 jumper pin.
5.Correct the deviation of the 10Mhz output frequency (+/-2.0ppm) with the RV1 potentiometer.

1. P1: Power input interface; (7~9V).
2. P2: 10MHz signal output interface; (10Mhz amplitude: 3Vpp) SMA interface
3. P3: N frequency output interface of 10MHz signal; (N*10Mhz amplitude: 5Vpp) SMA interface
4. RV1: Correct the deviation of the 10Mhz output frequency (+/-2.0ppm)
5.JP1 jumper needle selection
S1=0,S0=0, OUT = 4X
S1=0,S0=M, OUT = 5.3125X
S1=0,S0=1, OUT = 5X
S1=M,S0=0, OUT = 6.25X
S1=M,S0=M, OUT = 2X
S1=M,S0=1, OUT = 3.125X
S1=1,S0=0, OUT = 6X
S1=1,S0=M, OUT = 3X
S1=1,S0=1, OUT = 8X
0 = connect directly to ground(L)
1 = connect directly to (H)
M = leave unconnected(floating)
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Not Affect The Use
Colour:As Shown
Material:PCB

Package Contents:
1 x Constant Temperature Crystal Module

Only the above package content, other products are not included.
