CT-02B Multi-Purpose Audio Cable XLR Test Instrument Engineering Wiring Multifunctional Cable Tester Audio Side

CT-02B Multi-Purpose Audio Cable XLR Test Instrument Engineering Wiring Multifunctional Cable Tester Audio Side Description

Color: Yellow
Material: Metal

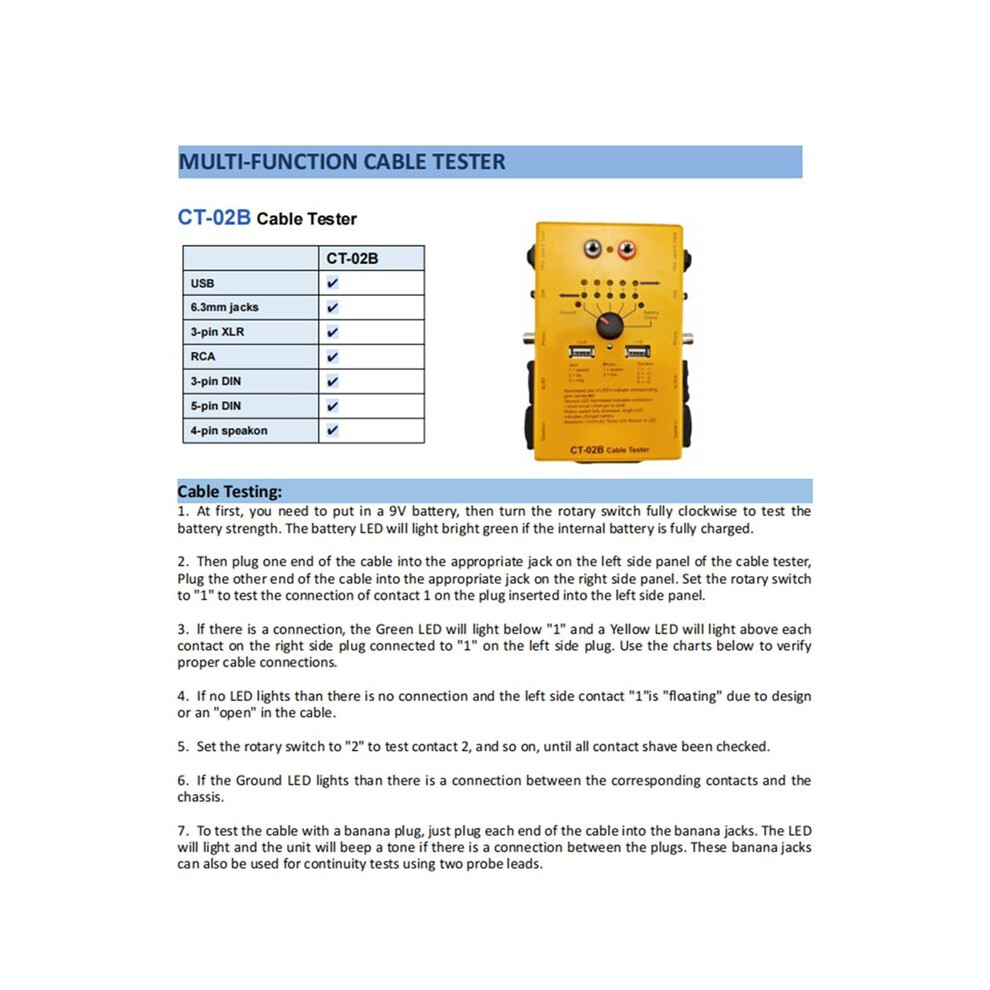

Cable Testing:1. You need to put in a 9V battery, then turn the rotary fully clockwise to test thebattery strength.
2. Then plug one end of the cable into the appropriate jack the left side panel of the cable tester, Plug the other end of the cable into the appropriate jack the right side panel. Set the rotary to "1" to test the connection of contact 1 the plug inserted into the left side panel.
3. lf there is a connection, the Green LED will light below "1" and a Yellow LED will light above each contact the right side plug connected to "1" the left side plug. Use the charts below to verify
proper cable connections.
4. If no LED lights than there is no connection and the left side contact "1"is "floating" due to designor an "open" in the cable.
5. Set the rotary to "2" to test contact 2, and so , until all contact shave been checked.
6. If the Ground LED lights than there is a connection between the corresponding contacts and the chassis.
7. To test the cable with a banana plug, just plug each end of the cable into the banana jacks.
Interface:USB/6.3mmjacks/3-pin XLR/RCA/3-pin DIN/5-pin DIN/4-pin speakon

Package Contents:
1 x Cable Tester(Without 1x9V battery,You need to prepare yourself)
