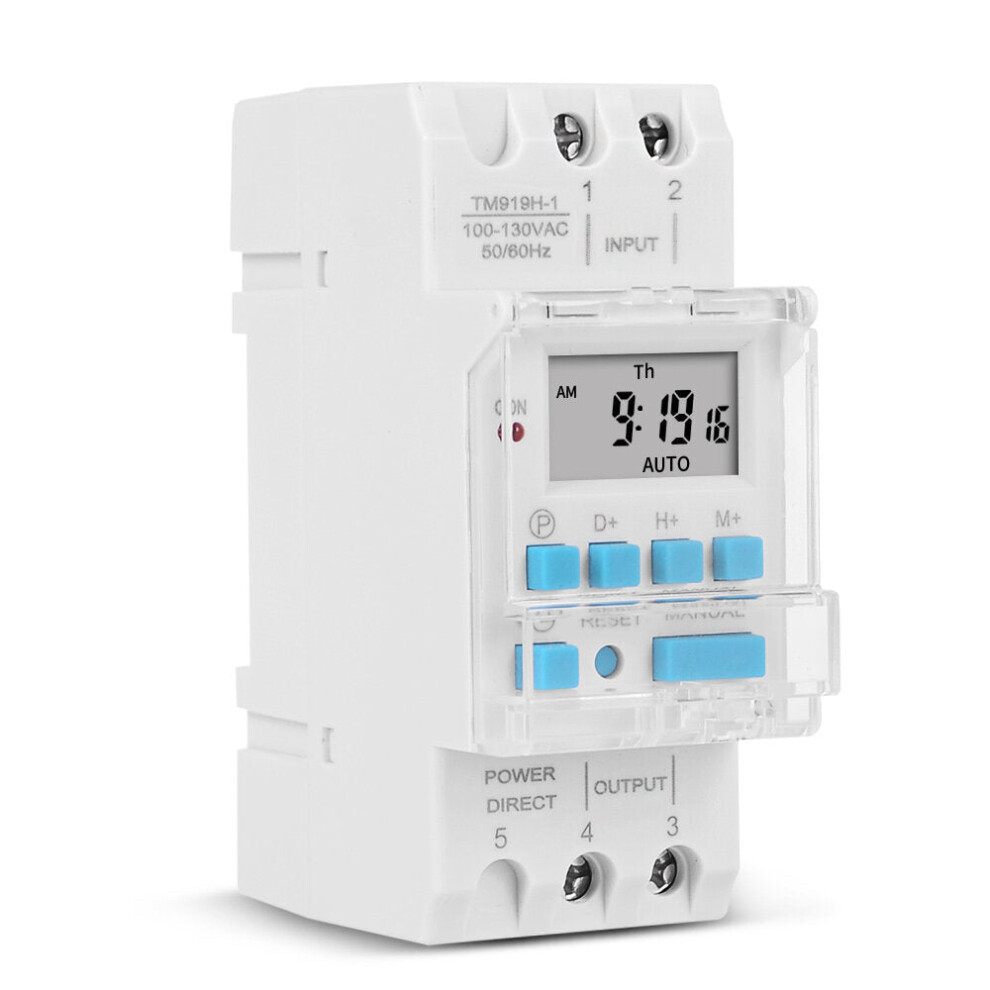

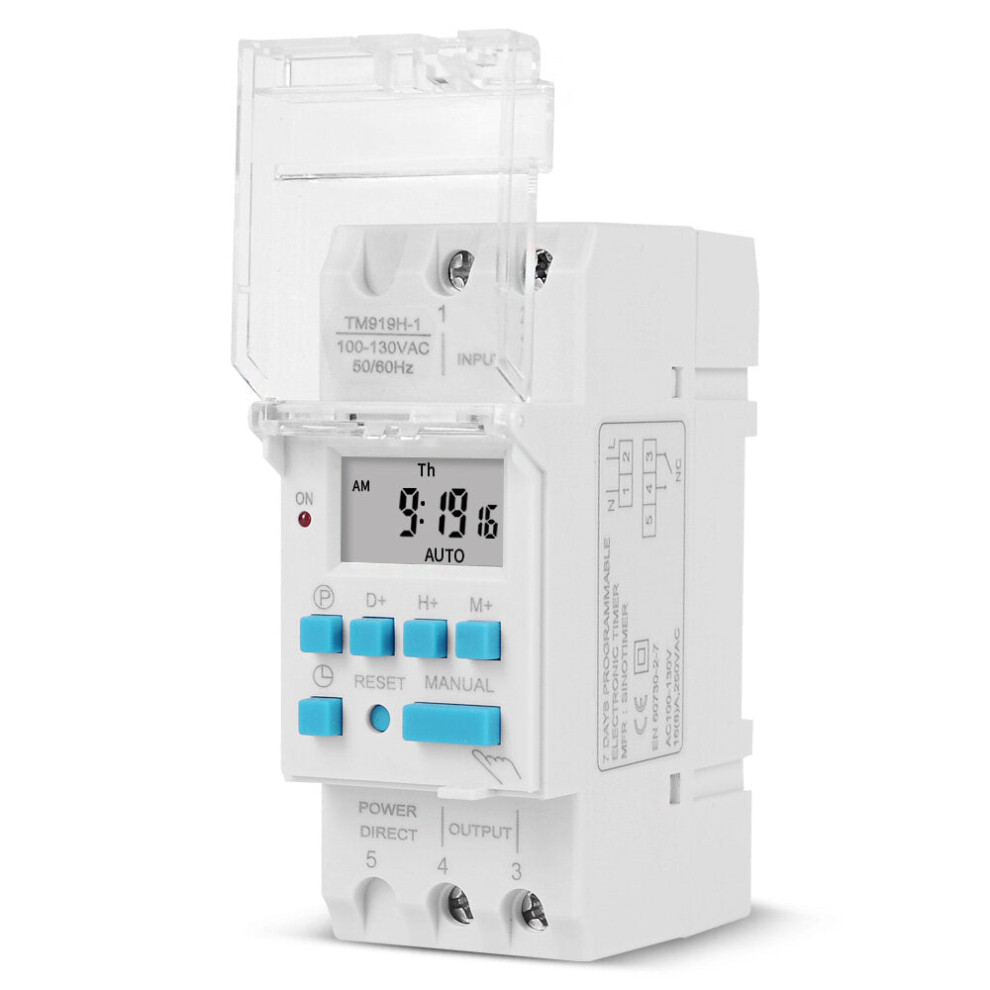

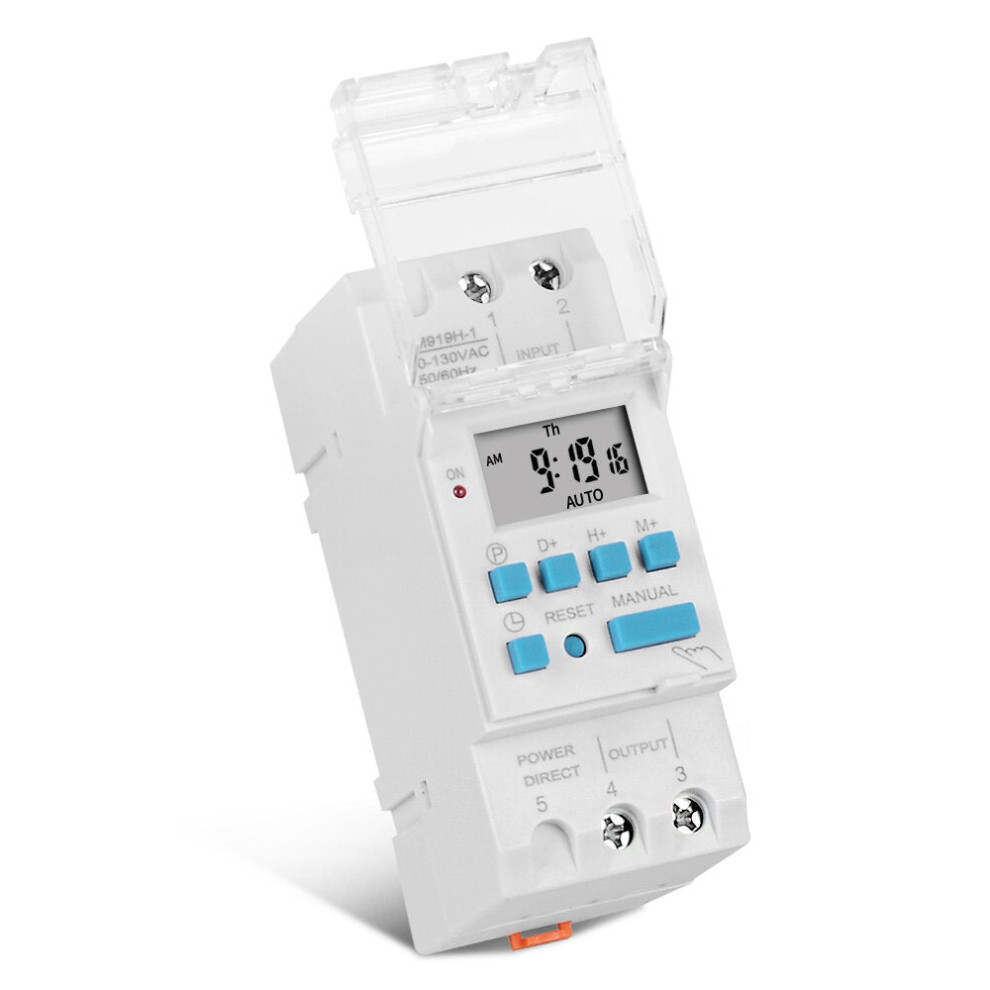

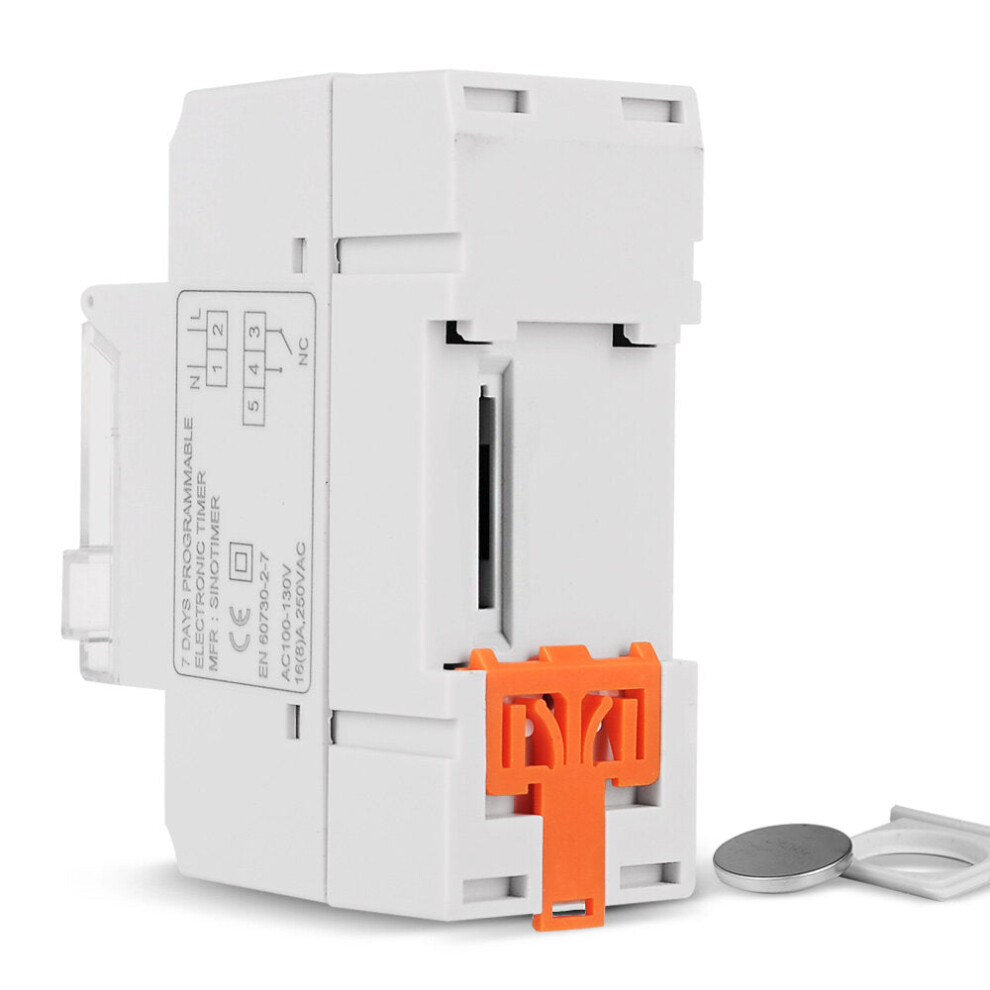

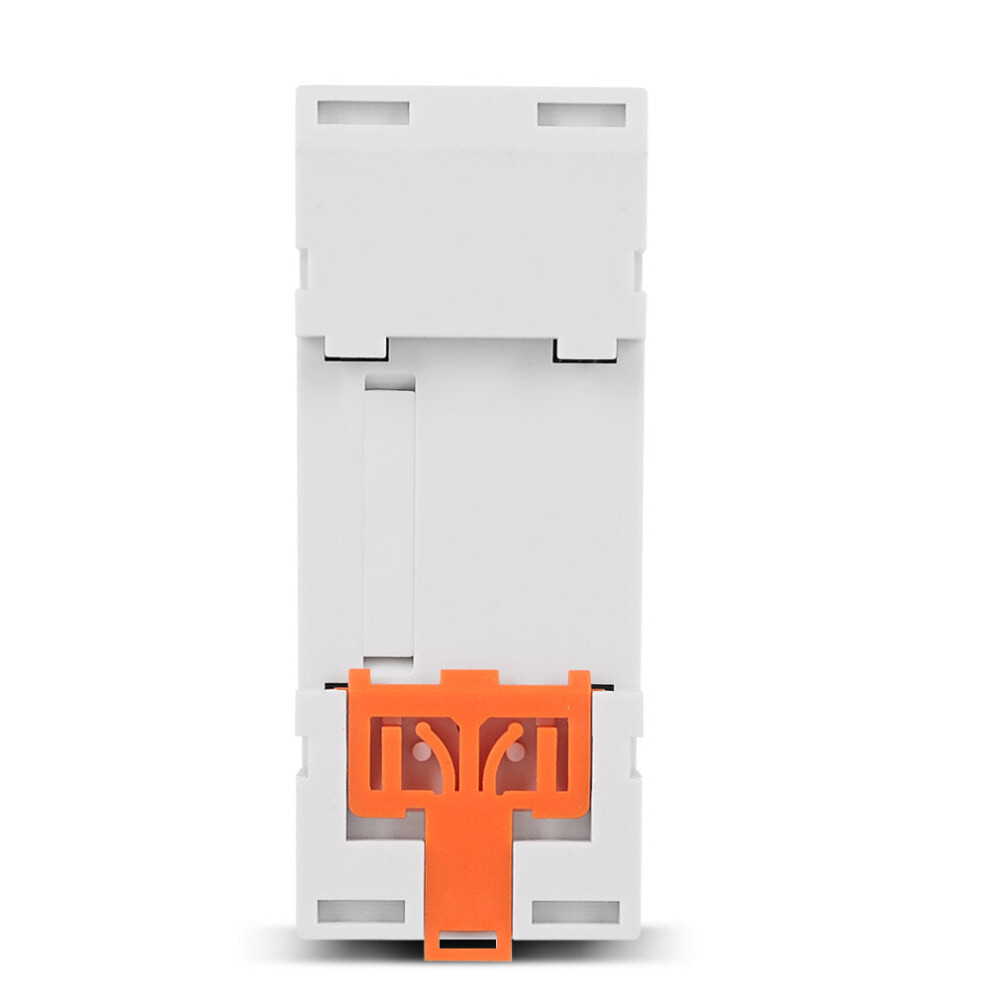

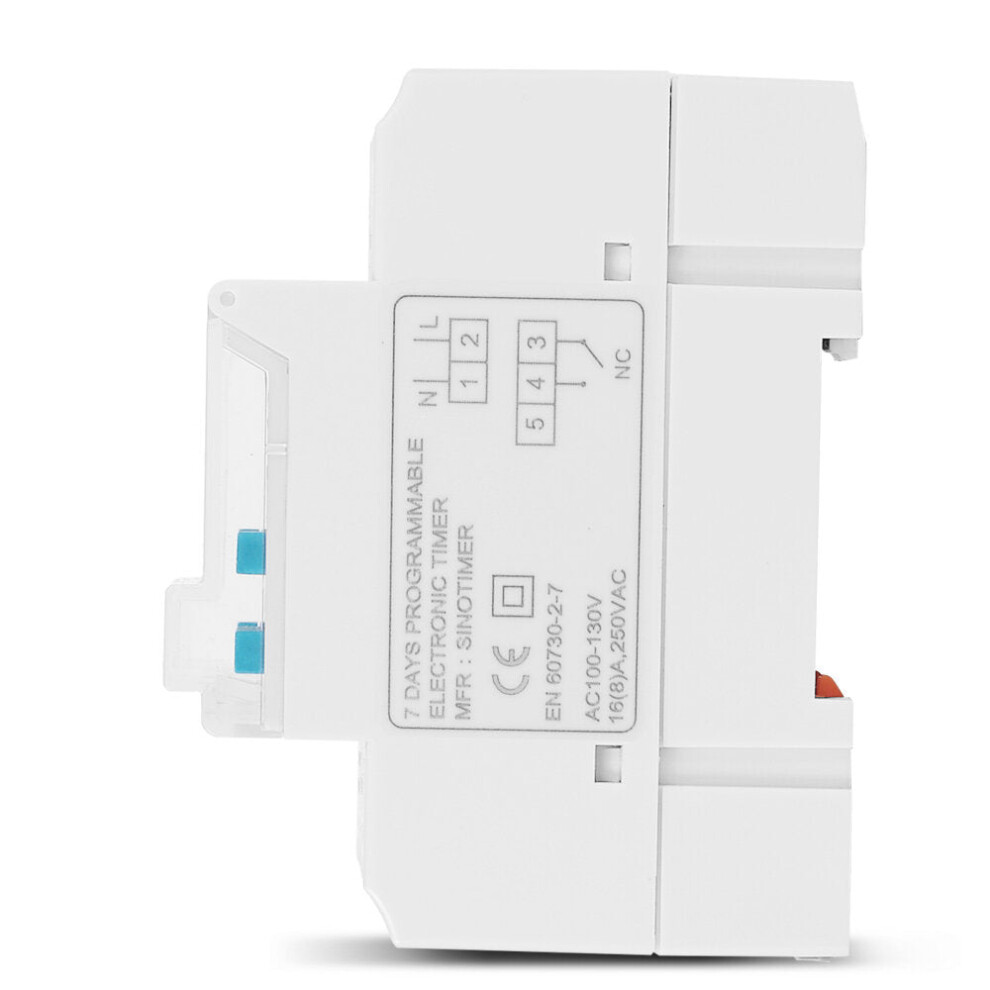

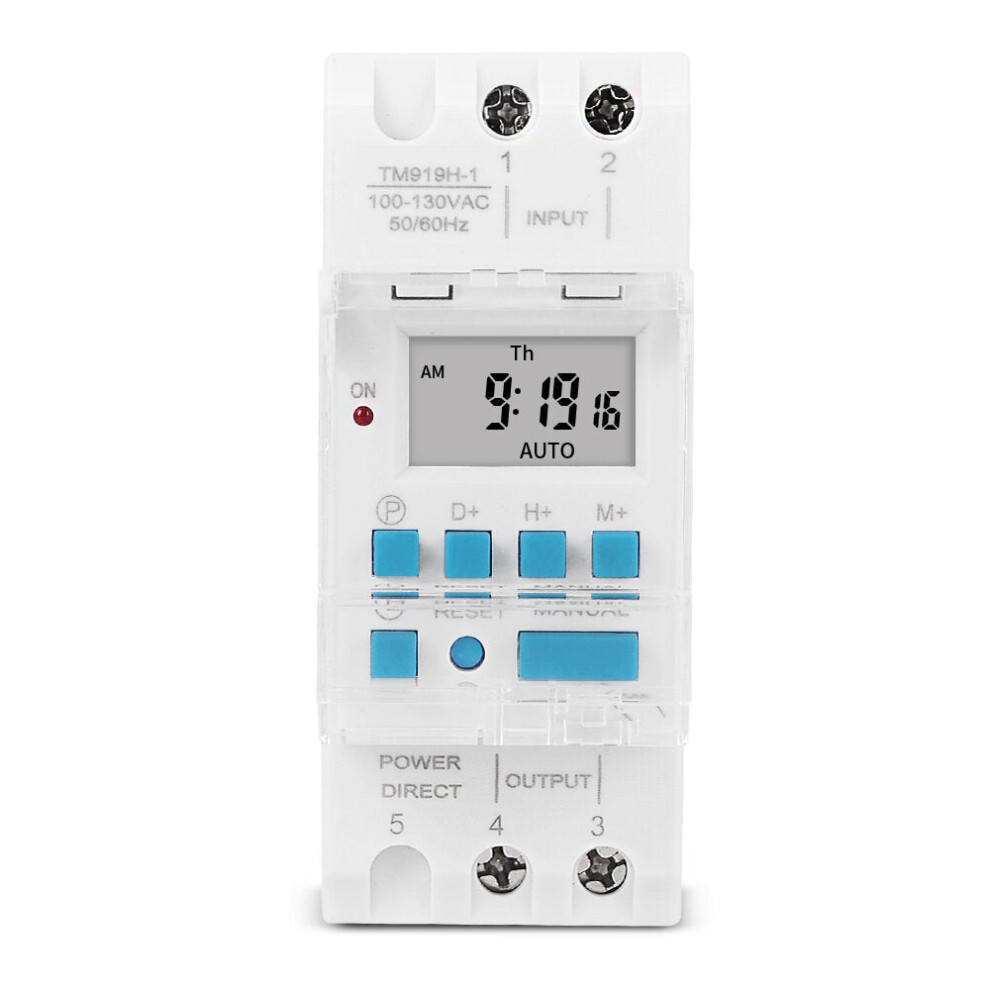

(DC 5V) DIN Rail 4 Pins Voltage Output Digital Switch Timer Electronic Time Clock Relay with Replaceable Battery

(DC 5V) DIN Rail 4 Pins Voltage Output Digital Switch Timer Electronic Time Clock Relay with Replaceable Battery Description

Functions:
1. Clock display(12hr/24hr format);
2. Timer;

Features:
1.Easy to read LCD display, LED indicators.
2.16 ON/OFF programs per day, 15 combinations to a week.
3.24 hours / 7 days a week programmable.

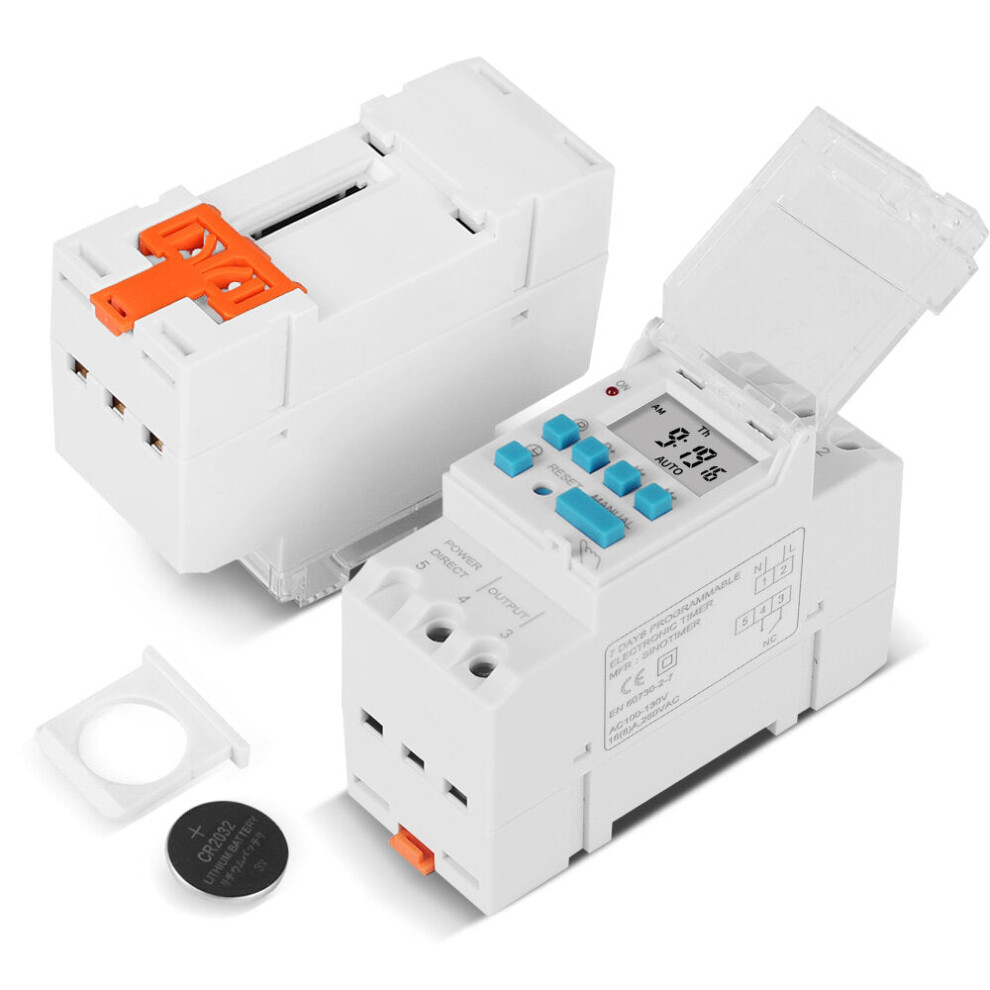

4.Replace battery CR2032 for back-up the memory (save the programs you set) when power failure.
5.Repeat programs with 16 on/off settings, and setting on/off manually.
6.Ideal for household use in 35mm DIN Rail mounted.

Parameters:
1.Power Supply: 85~265V,220V,110V,12V,24V,5V50/60Hz;
2.Capacity:16A;
3.Timing Range:1min~168hours;
4.Programs:16 ON/OFF per day;
5.Power consumption:<5VA;
6.Black-out:90 days;
7.Average error:<2sec/day;
8.Temperature range:-10~50 Celsius;
9.Humidity :<95%;
10.Installation:87*65*36mm;

Package includes:
1 x Timer Switch TM919H;
1 x Manual
