DC Geared Motor 12V or 24V 30W High Torque Mini Motor

DC Geared Motor 12V or 24V 30W High Torque Mini Motor Description

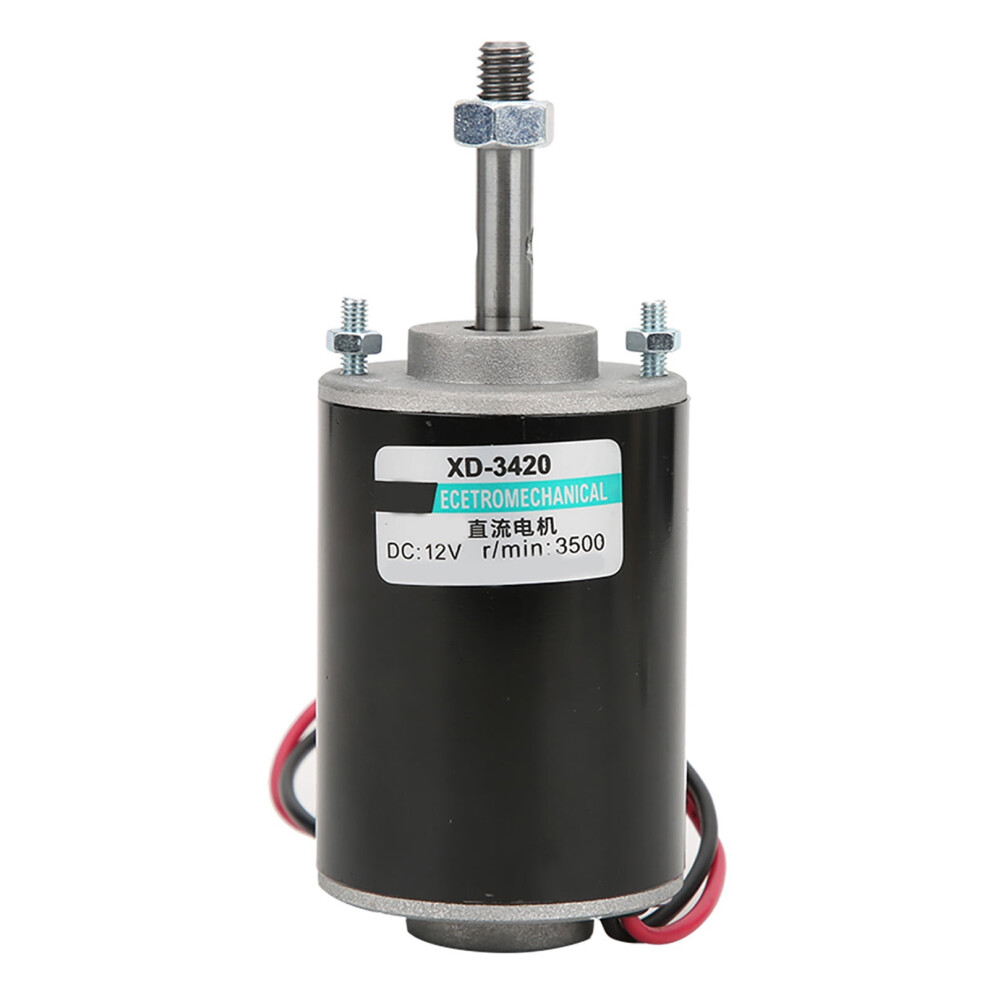

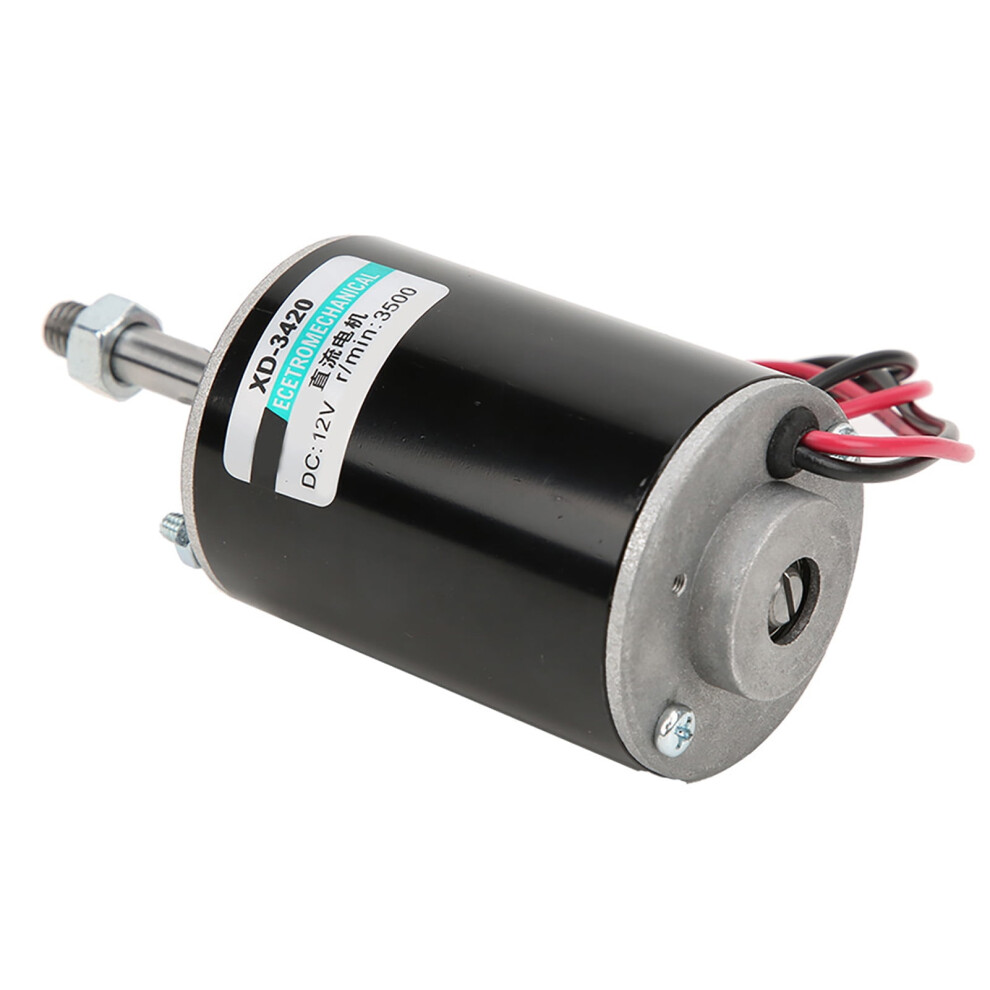

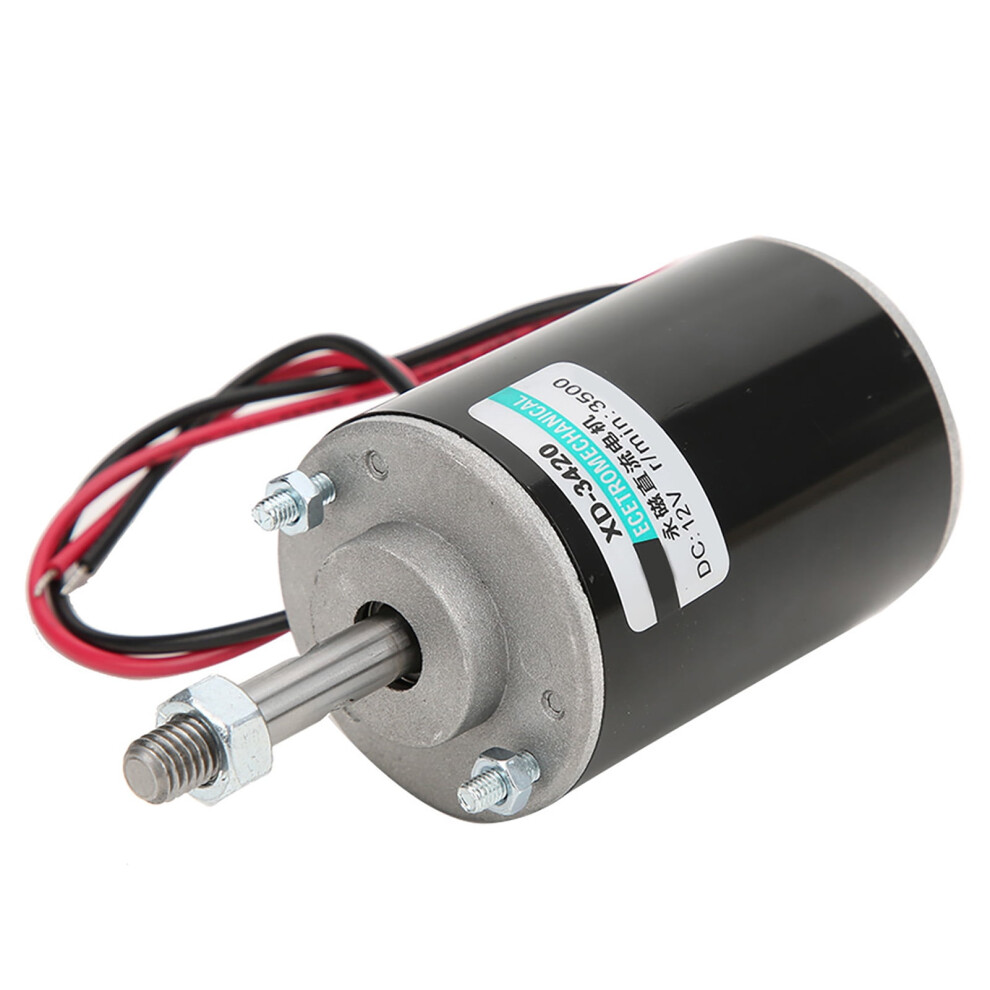

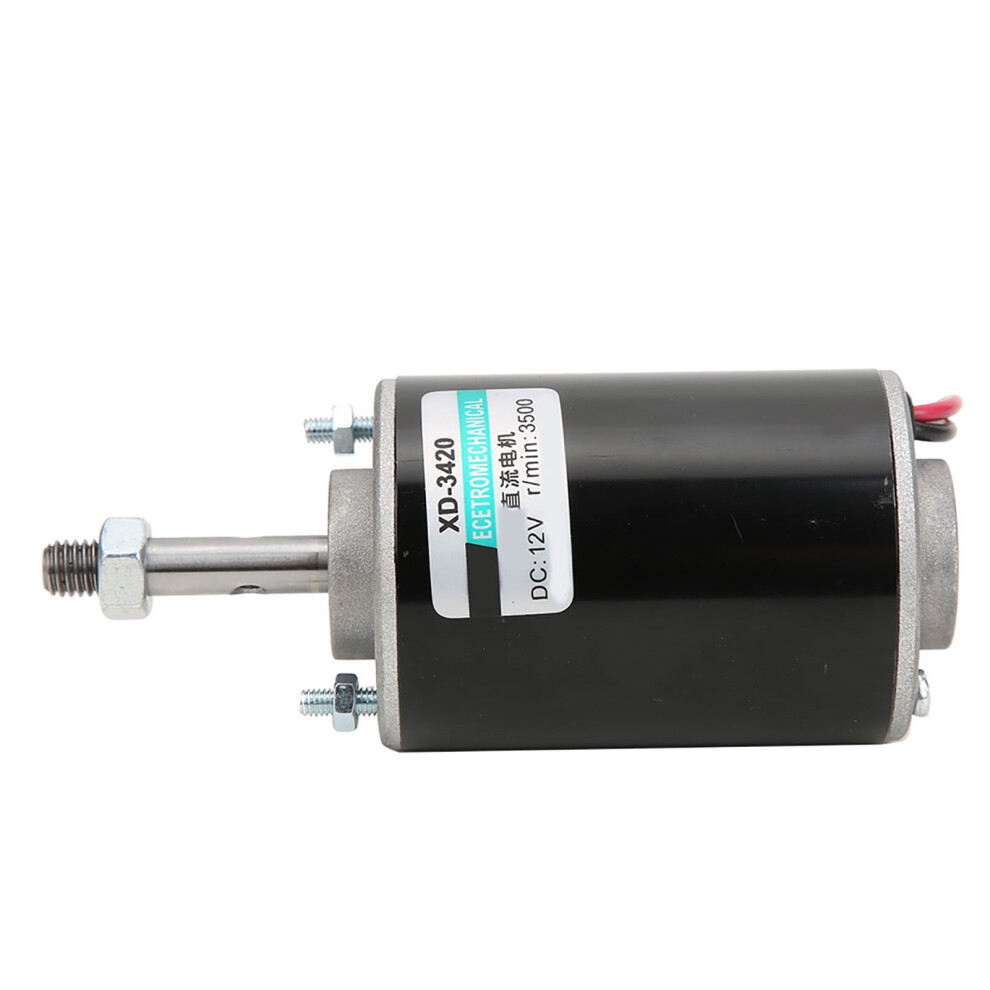

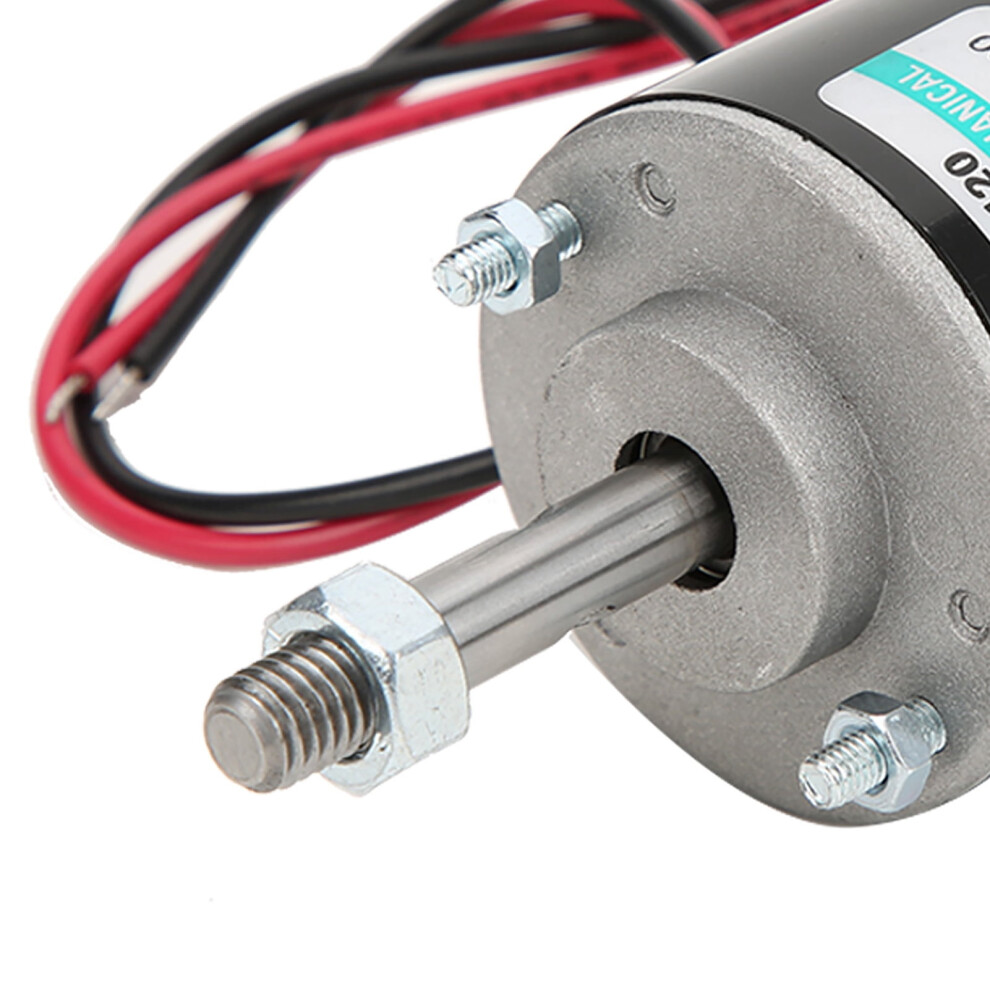

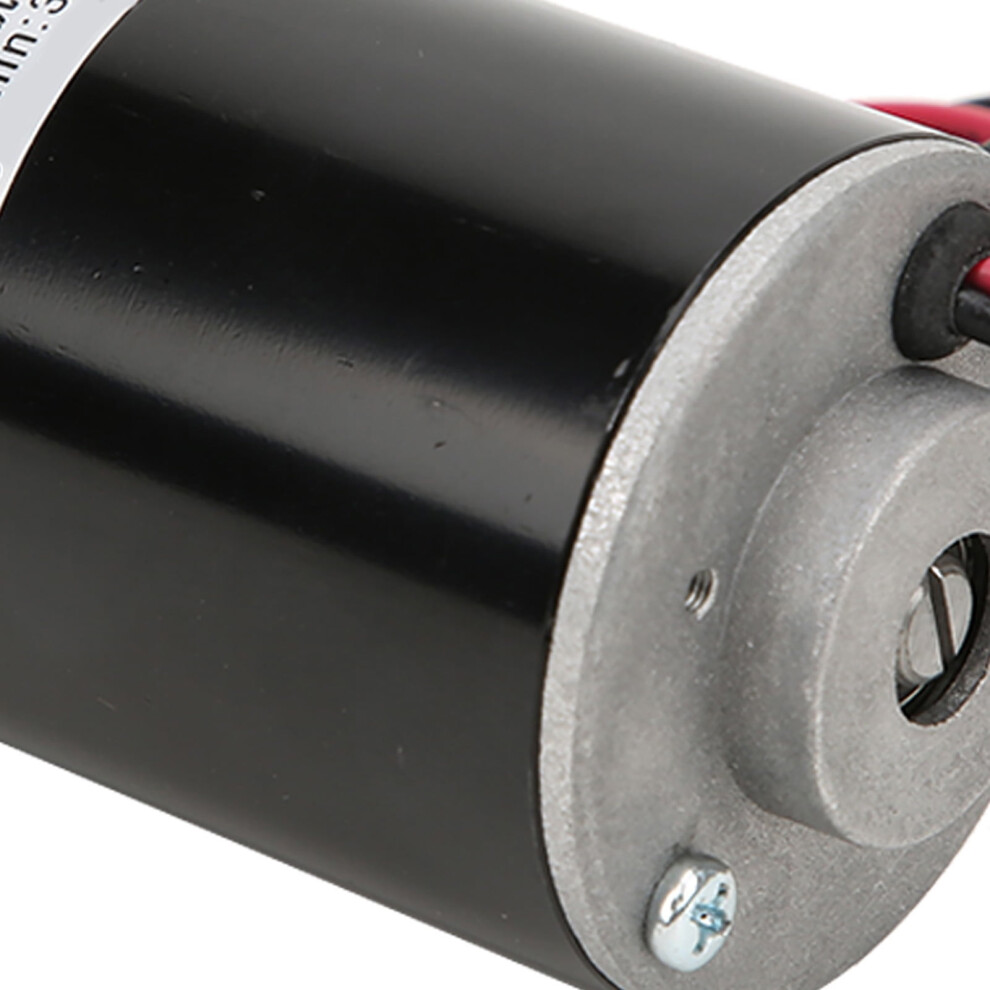

12/24V 30W High Speed CW/CCW Permanent Magnet DC Motor For DIY Generator Specification: Features: Can be applied in cotton candy machine, small cutting bench, grinding machine, equipment and other mechanical equipment.. This motor features high speed 3500/7000rpm and large torsion. The stator windings of the motor are copper wire, CW/CCW control. This permanent magnet DC motor is ideal for DIY generator. Need for external direct current governor, it can achieve speed adjustment function. Specifications: Model: XD-3420 VoltageOptional: DC12V/24V Power: 30W Speed: 3500RPM12V, 7000RPM24V Voltage No Load Speed No Load Current Rated revolution Rated current locked-rotor current 12V 3500RPM 2.42 2400 2.42 3.1 24V 7000RPM 2.76 5100 2.76 3.37 The product has no function of automatic forward and reverse rotation and speed regulation, and the motor wire needs to be connected in reverse to realize reverse rotation; The governor with positive and reverse switch is externally connected to realize the speed regulation function. Package Included: 1 x Permanent Magnet DC Motor Note: Please note that the new type and old type of this product will be sent randomly
