Dc Lc Low Pass Filter 20a Emi Eliminate Electromagnetic Interference Dc Switching Power Emc Car Aud

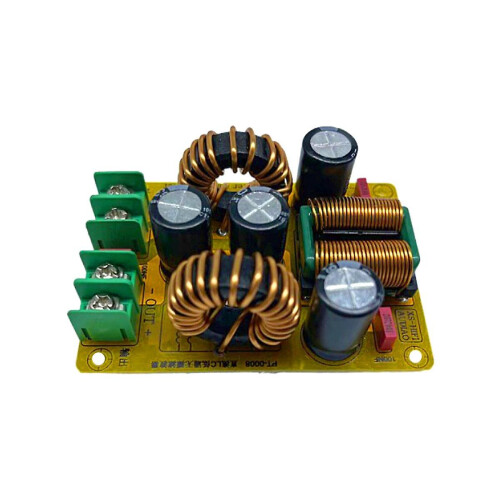

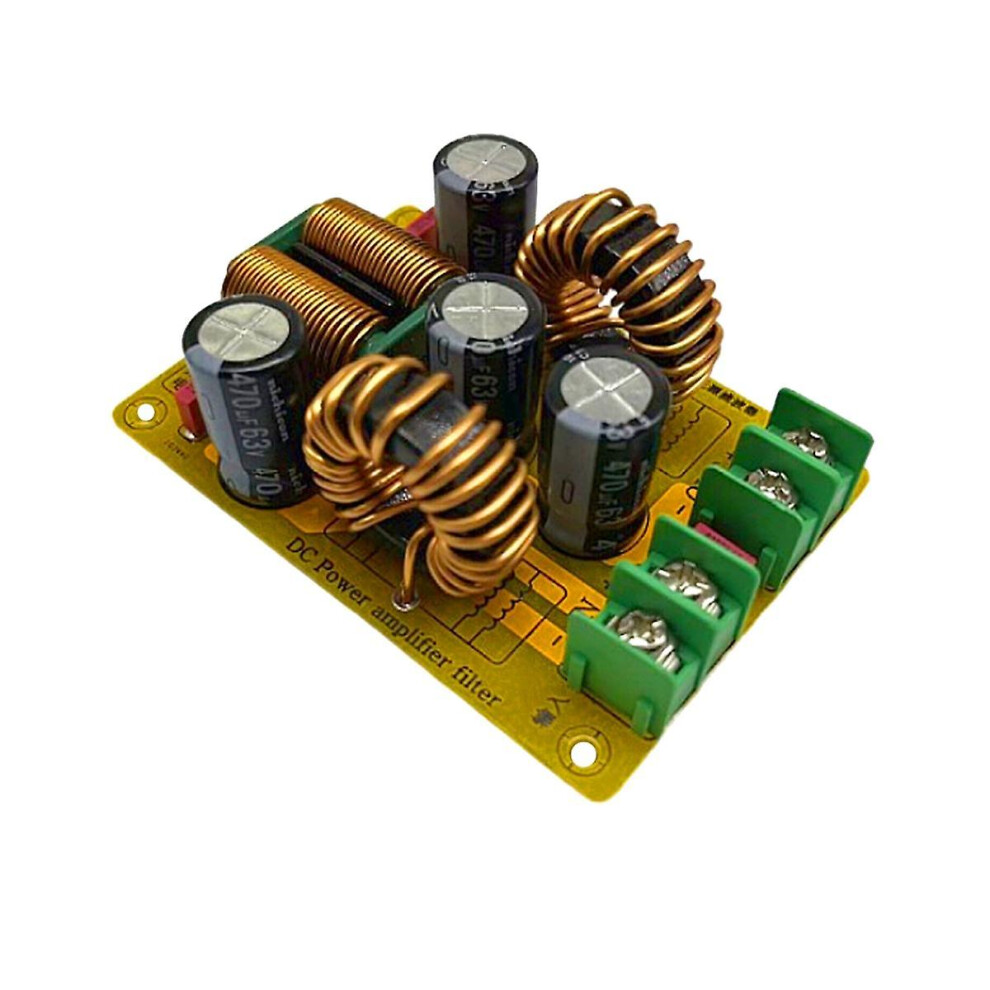

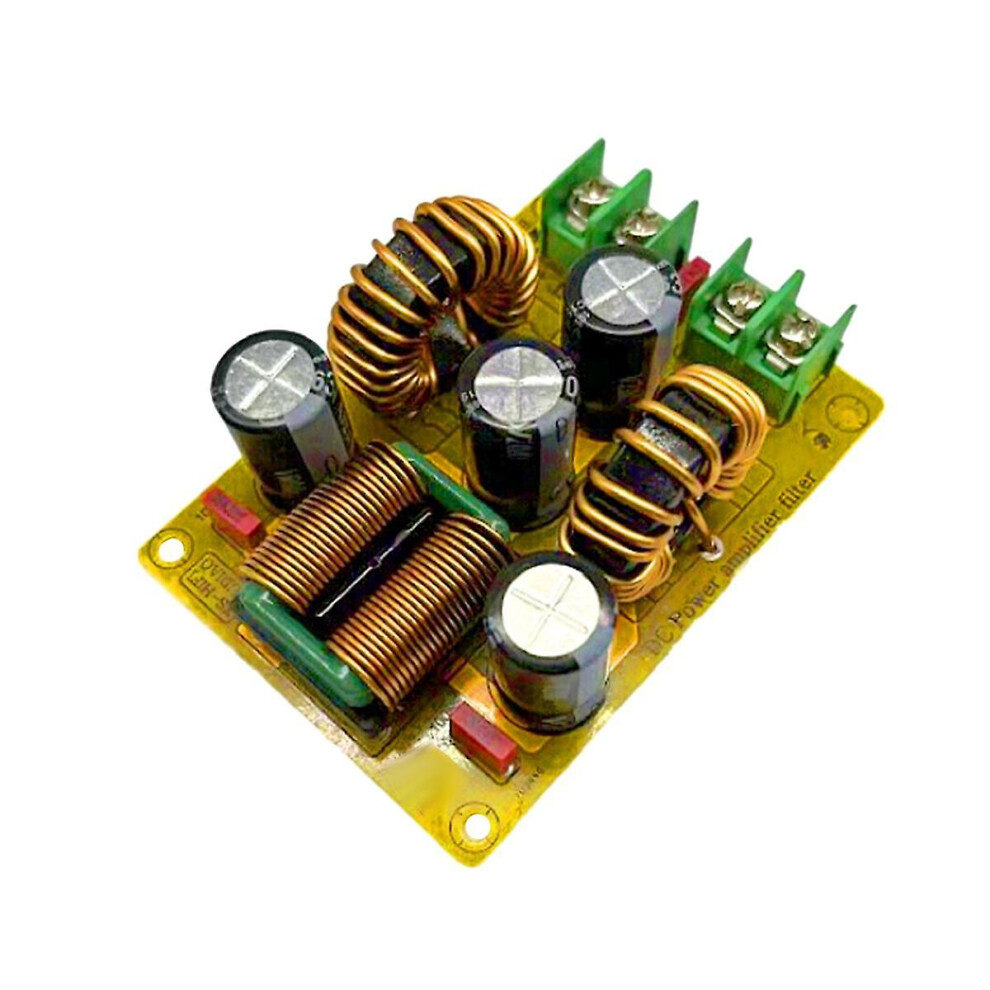

PT-0008 DC power filter circuit introduction: The circuit consists of three-stage filtering, the first part is - - stage LC filter circuit, the second part is common mode EMI filtering, and the third part is two-stage LC filter circuit.LC filter is generally called passive filter. It is a DC power harmonic compensation device composed of inductors and capacitors. It can filter harmonics in the power supply one or more .Purify the DC power supply and common mode filtering, which can suppress the problem of fast transient group pulse interference with a repetition frequency of several kilohertz in some sites.Input: DC.Output: DC.Voltage: 50V (higher voltage can replace the electrolytic capacitor to improve)Current: 20AMain Parts Specifications:Circuit board: Double-sided FR4 fiberglass boardElectrolytic capacitor: 50V 470UF diameter 13MM dosage 4 PCSFilm Capacitor: 100NF 3PCSMagnetic ring inductance: the amount of 2PCS, (20A high current use FeSiAl),Common mode inductance; consumption 1PCS, (20A current flat copper tape inductance)Socket: 7.62 socket 2PIN 2PCSThis module is suitable for eliminating the use of DC power supply with electromagnetic interference. It can be applied to filter after switching power supply output, automobiles, motorcycles, and DC with strong electromagnetic interference.The factory batches are different, and some appearances may be different, which has no effect on the productColour:Photo ColorMaterial:ABSPackage Contents:1 x Low pass filterOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm. 1. The material of high-quality goods is good. 2. The style is novel and unique, and is deeply loved by consumers. 3. It is practical and can stand the test. There are many repeat customers. 4. Will ship within 48 hours 5. Delivery within 4-10 working days
