DC10V-55V PWM DC Motor Speed Controller with LCD Display and Remote Ad

DC10V-55V PWM DC Motor Speed Controller with LCD Display and Remote Ad Description

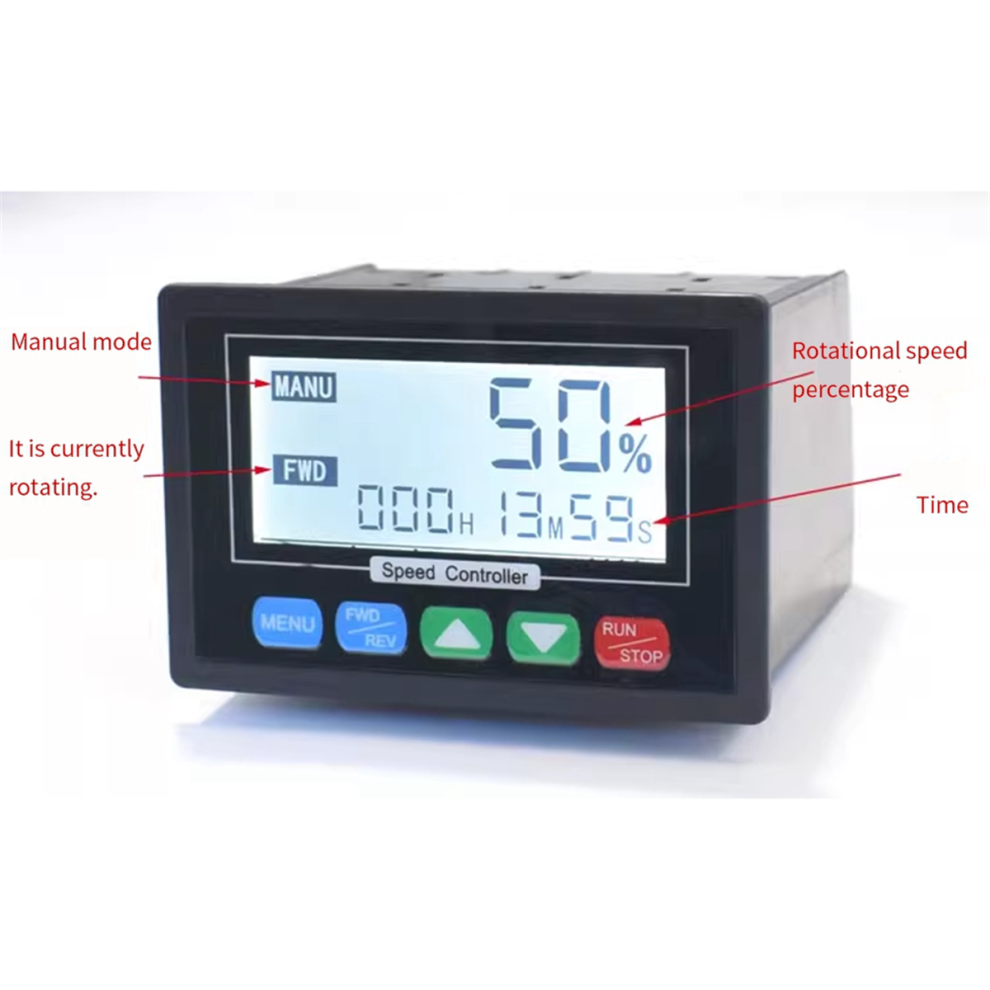

Intelligent LCD screen with backlight, capable of displaying working time, speed percentage, current mode, forward and reverse status, etc.

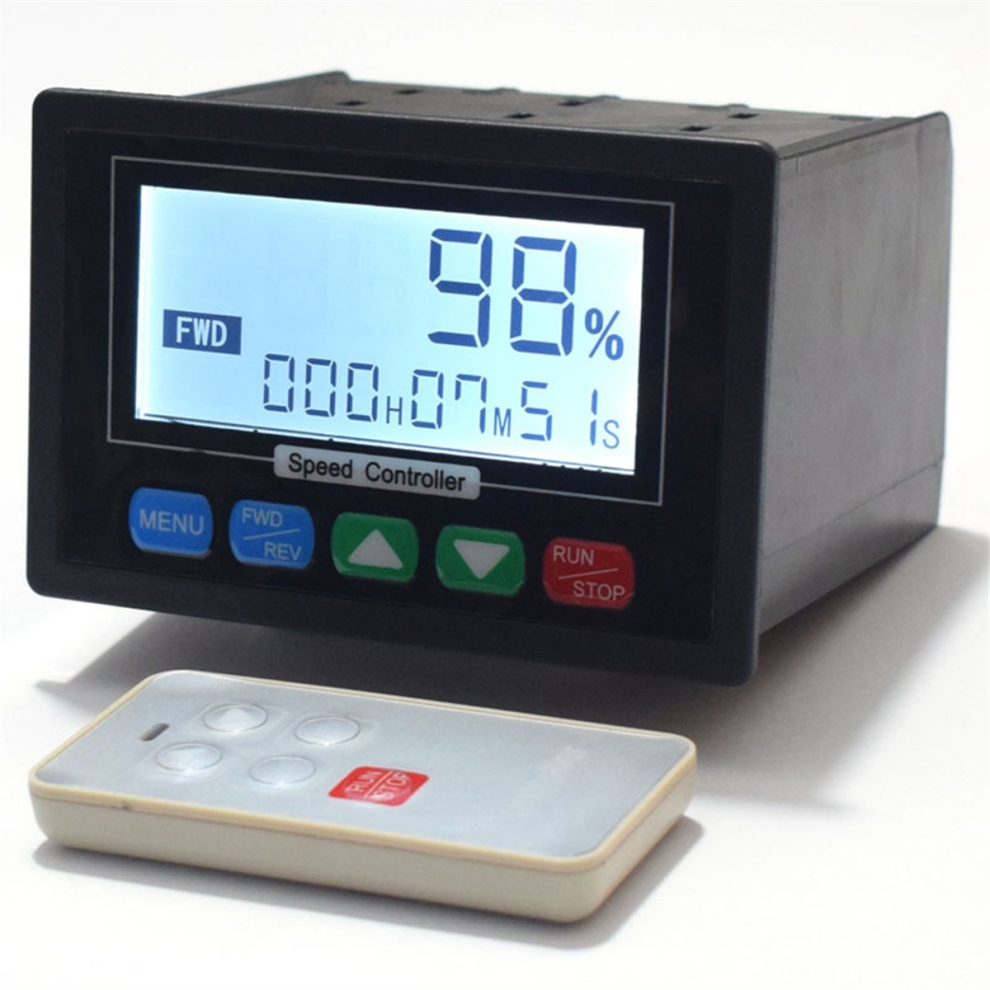

Equipped with wireless remote control,Multiple limit modes available

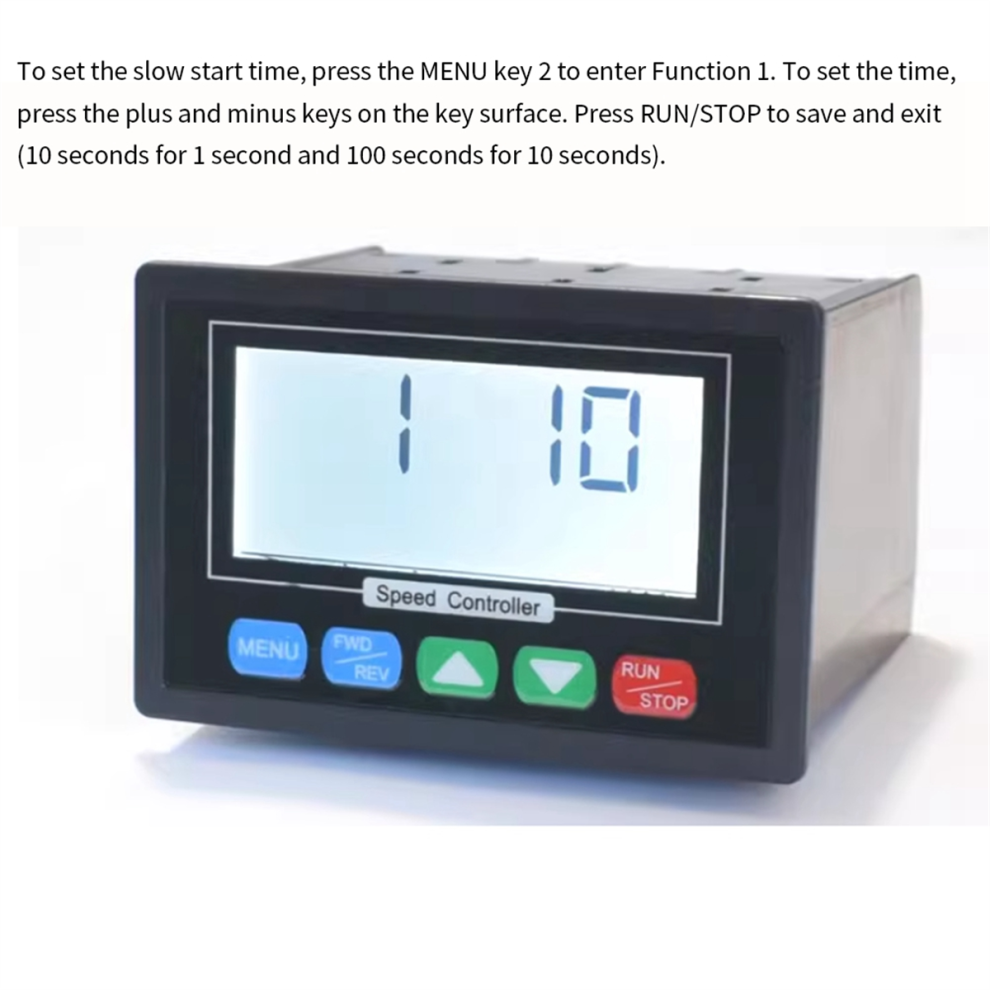

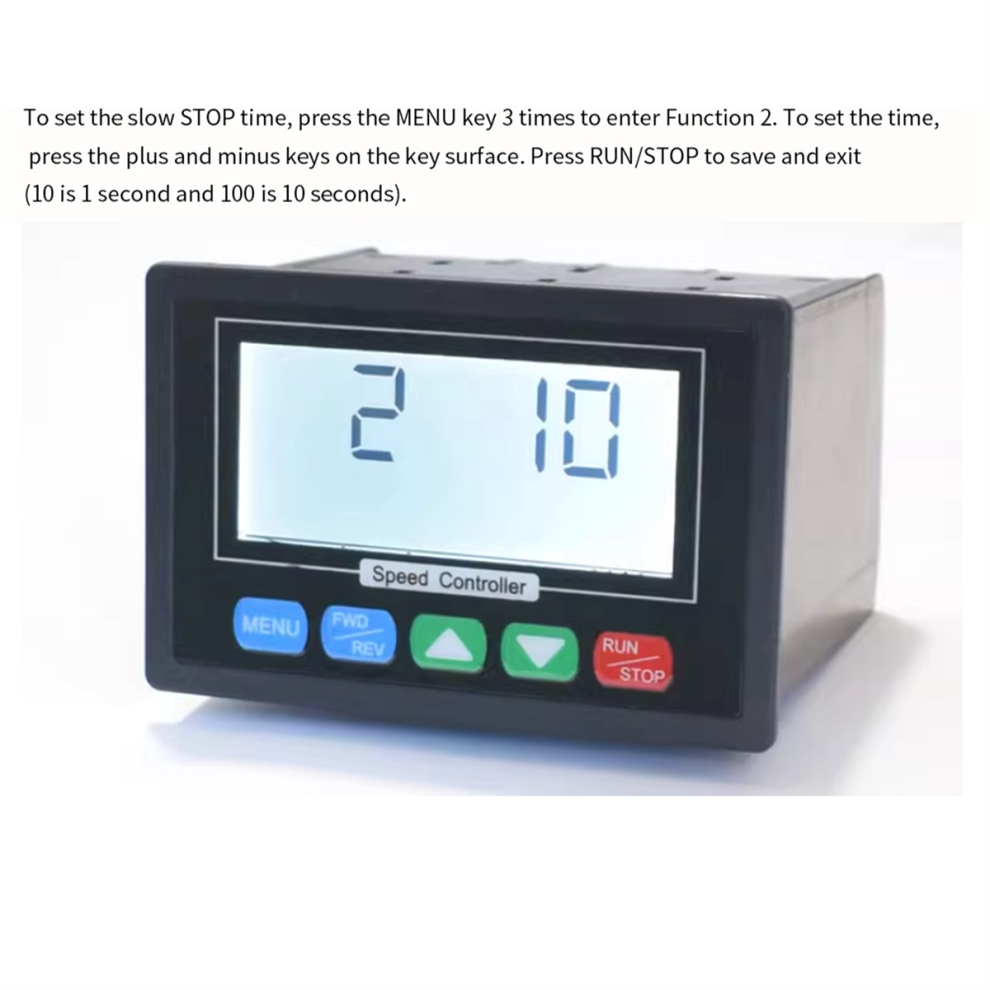

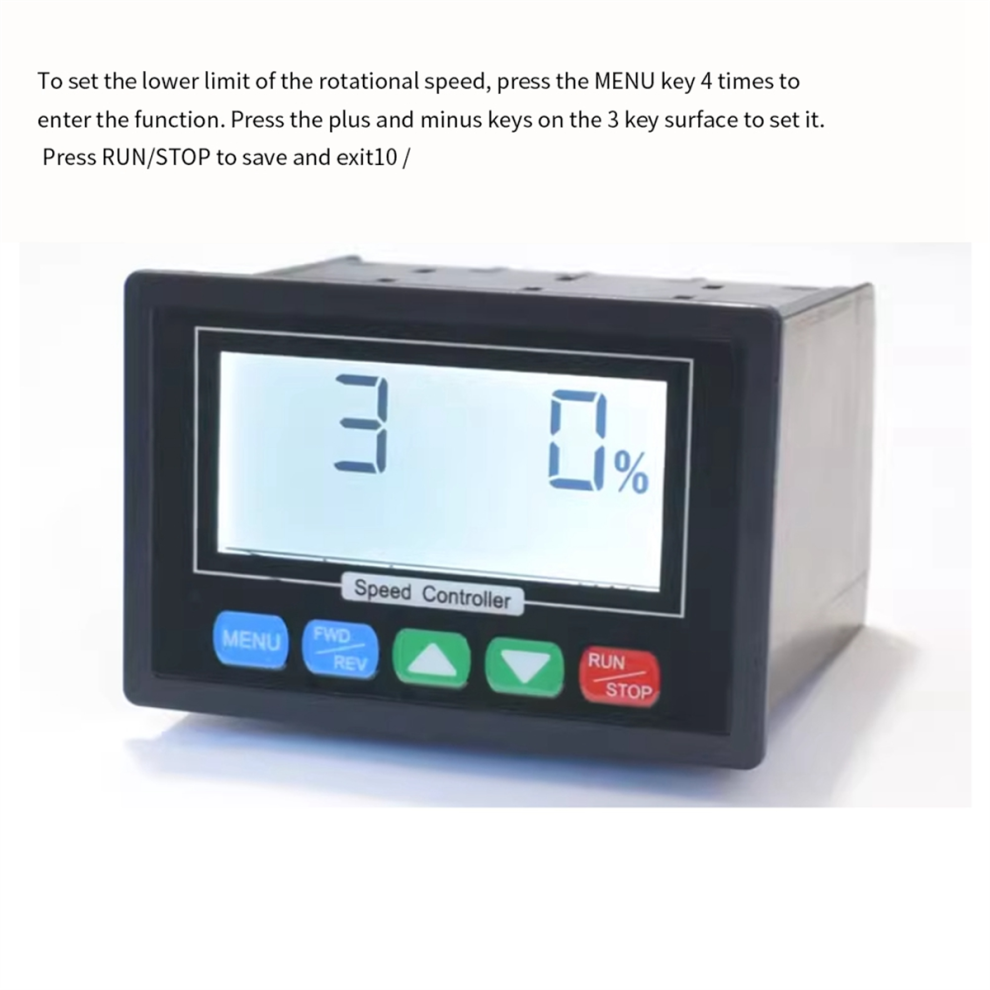

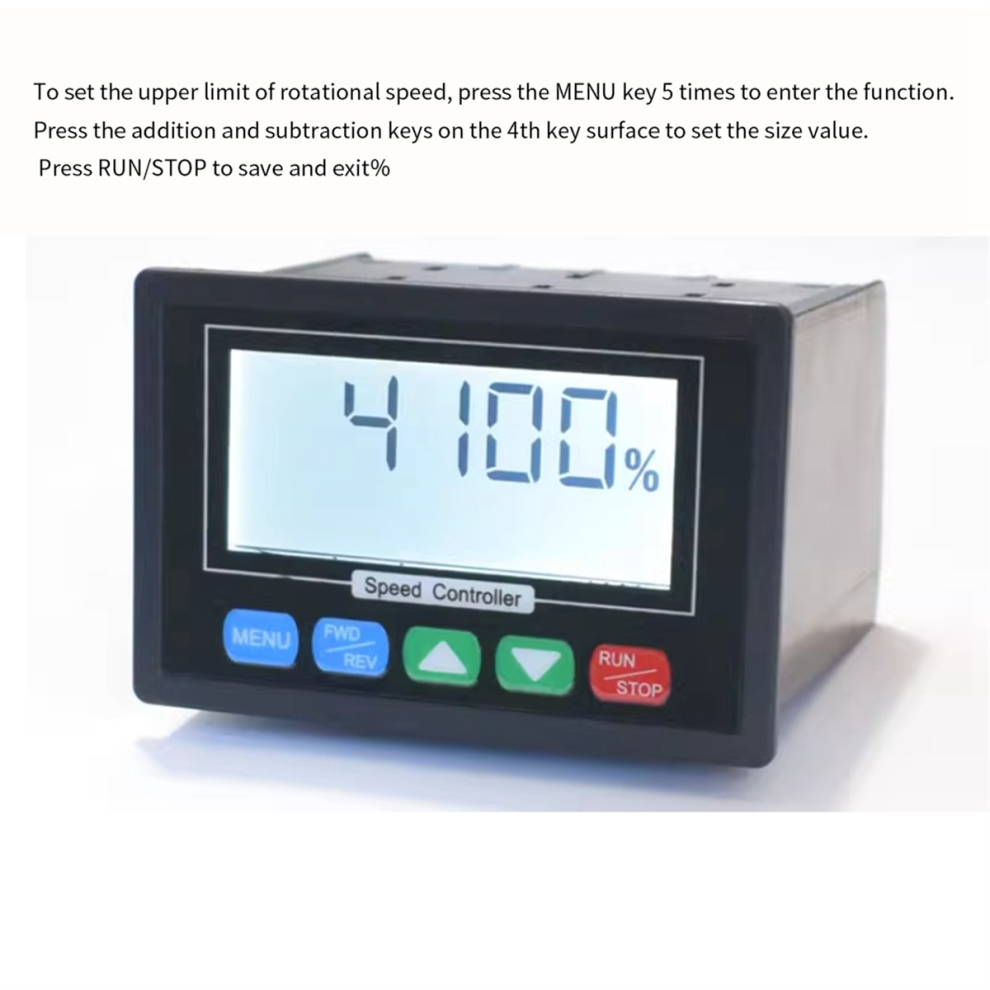

Can set slow start and slow stop time,Can set upper and lower speed limits,Can set total working time and stop at a certain time

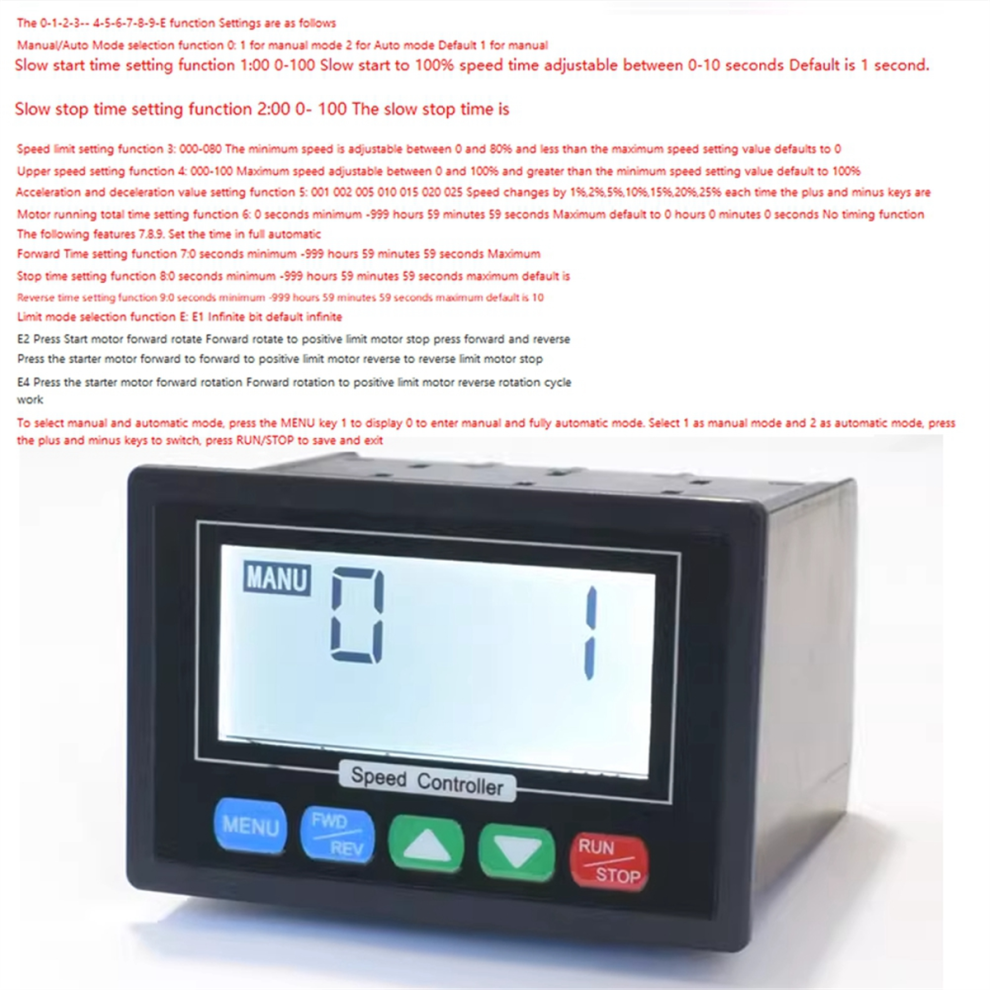

Supports dual-speed control, separate speed regulation for forward and reverse speeds,Manual and automatic modes available, automatic mode fully automatically forward and reverse within the set time
Touch switch to switch forward and reverse, inching acceleration and deceleration, solves the problem of easy damage of traditional potentiometers

Input voltage: DC10-55V (specific voltage is equal to the rated voltage of the motor)
Output voltage: linear under load
Instantaneous current: 50A
Continuous current: within 30A
Forward and reverse: support
Wireless remote control: yes
Timing: yes

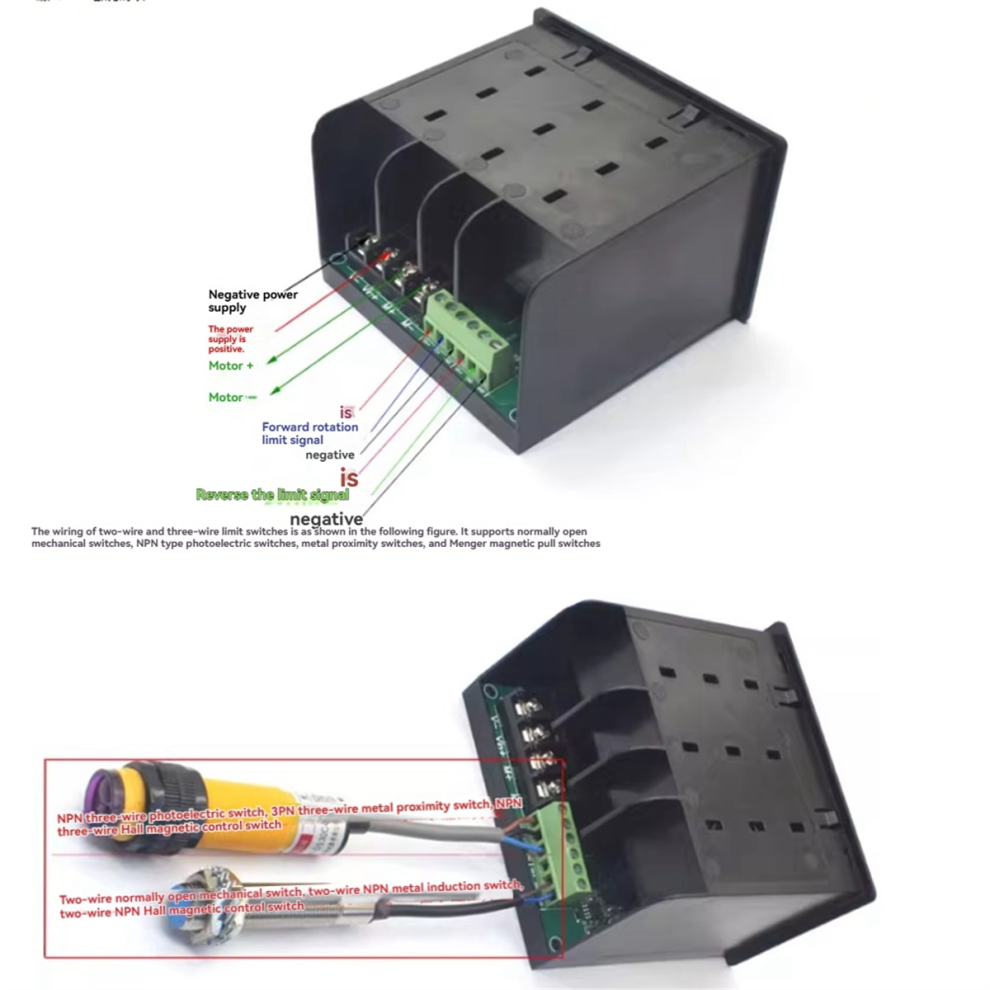

Limit function: yes
Slow start and slow stop: can be set
Speed digital display: 0-100 percentage meter
Speed regulation type: current regulation
Speed regulation mode: inching + -
Speed regulation range: 0-100%
Control frequency: 15KHZ
Wiring type: fence terminal
Supported motor: brushed motor
Panel opening: length x width 98mm x 63mm
Installation method: embedded
and hold the MENU button to turn off and on the backlight
If you need to reverse start, FWD/REV to reverse start
Note: The input must be positive and negative. The input voltage must be equal to the rated voltage of the motor (within 10-55V)
For example, the rated voltage of the motor is 12V and the input voltage of the speed regulator is 12V The rated voltage of the motor is 36V, and the input voltage of the speed regulator is 36V. If the input voltage is 220V, it burn.
Due to different batches, there may be differences in product appearance, color, and printed text, which not affect the use. Colour:Black Material:plastic+metal Package Contents: 1 * Motor speed controller 1 * Remote controller Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
