DC5V Single Non-Switched Atomization Humidification Module DIY Ultrasonic Atomizer TYPE-C Mini Humidifier Circuit Board

DC5V Single Non-Switched Atomization Humidification Module DIY Ultrasonic Atomizer TYPE-C Mini Humidifier Circuit Board Description

1. Using 1plastic material, the circuit board is designed reasonably and has a long service life.
2. Upgrade the TYPE-C interface, with strong versatility, high fog output, stable performance, simple use, and easy to get started with.
3. Easy to use, single without switch, when the power input is powered on, which is suitable for working when the atomizing equipment is powered on.

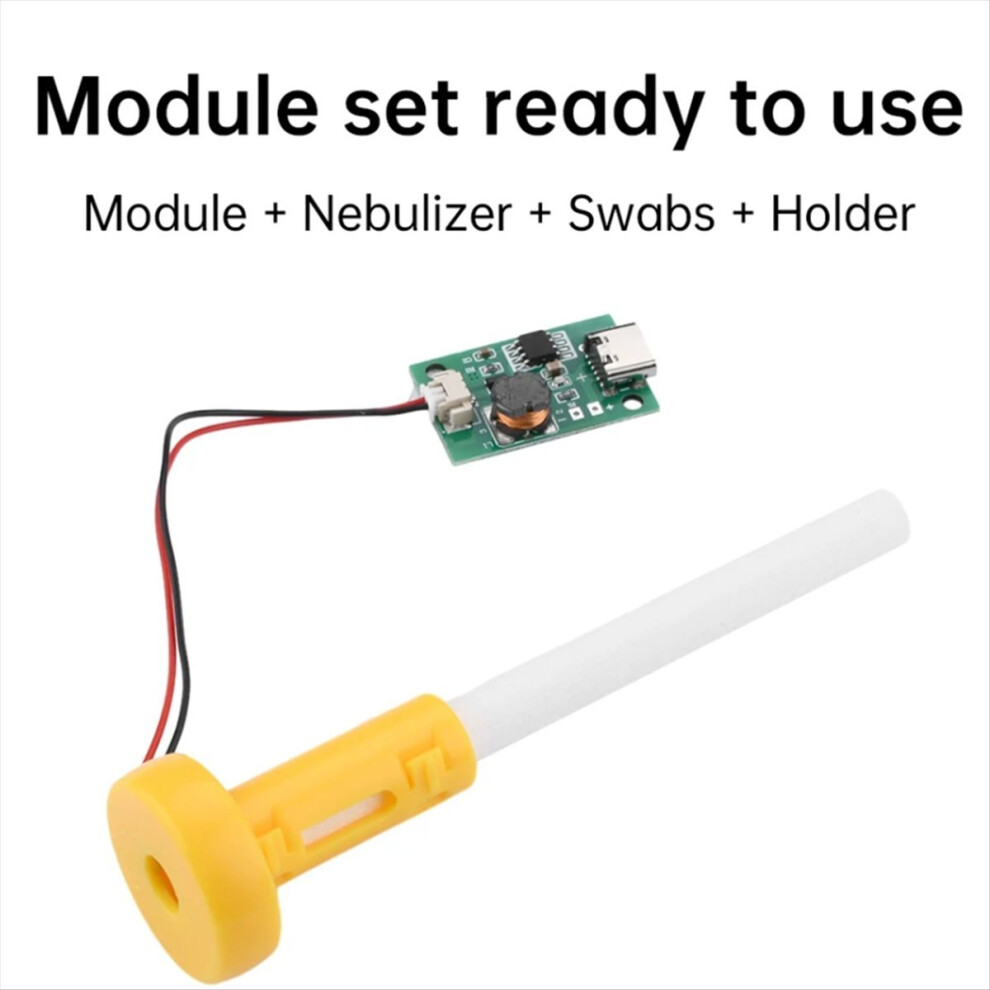

4. The module set is ready to use and comes with a bracket and cotton swab for easy assembly.
5. Micrometre atomization, which atomizes water into delicate water molecules through micropores, dispersing them into the air.

Name: Unswitched single humidification module
Rated voltage: DC5V (power supply)
Rated current: 300MA
Power: 1.5-2W
Atomization frequency: 108KHZ 2KHZ

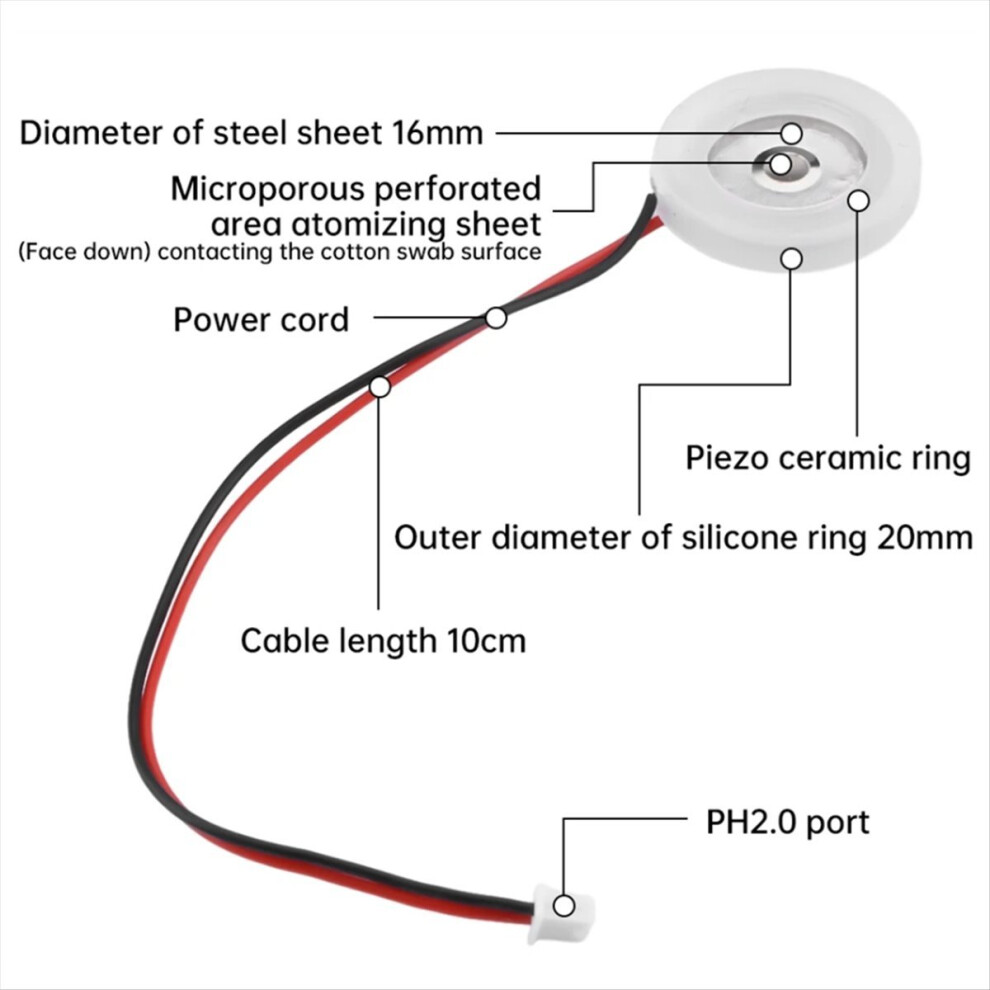

Nebulizer parameters:
Name: Mini porous atomizing tablets
Drive voltage: 5V
Resonant frequency: 108-110KHZ 5
Rated power: 2W
Punch count: 1100
Aperture: 4-5UM
Outer diameter of silicone sleeve: 20MM
Rubber ring thickness: 3MM
Steel plate diameter: 16MM
Line length: 100MM
Wire terminal: PH2.0
module:
1. Continuous mode: no switch, power on is , input DC5V power supply, immediately , LED light is always on, continuous mode, always .
2. Shutdown: unplug the power input to shut down.
No switch type, the color of the rod is sent randomly, don't accept the specified
Colour:Green
Material:plastic

Package Contents:

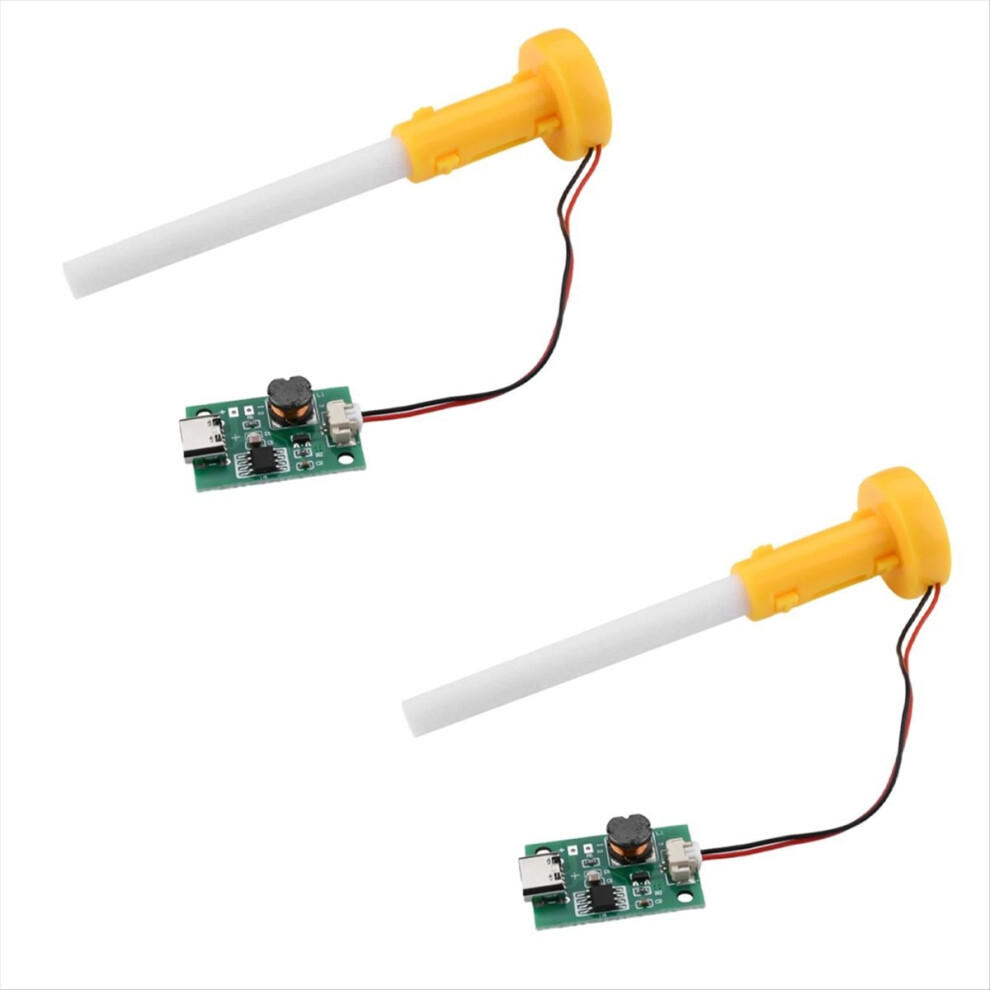

2X module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
