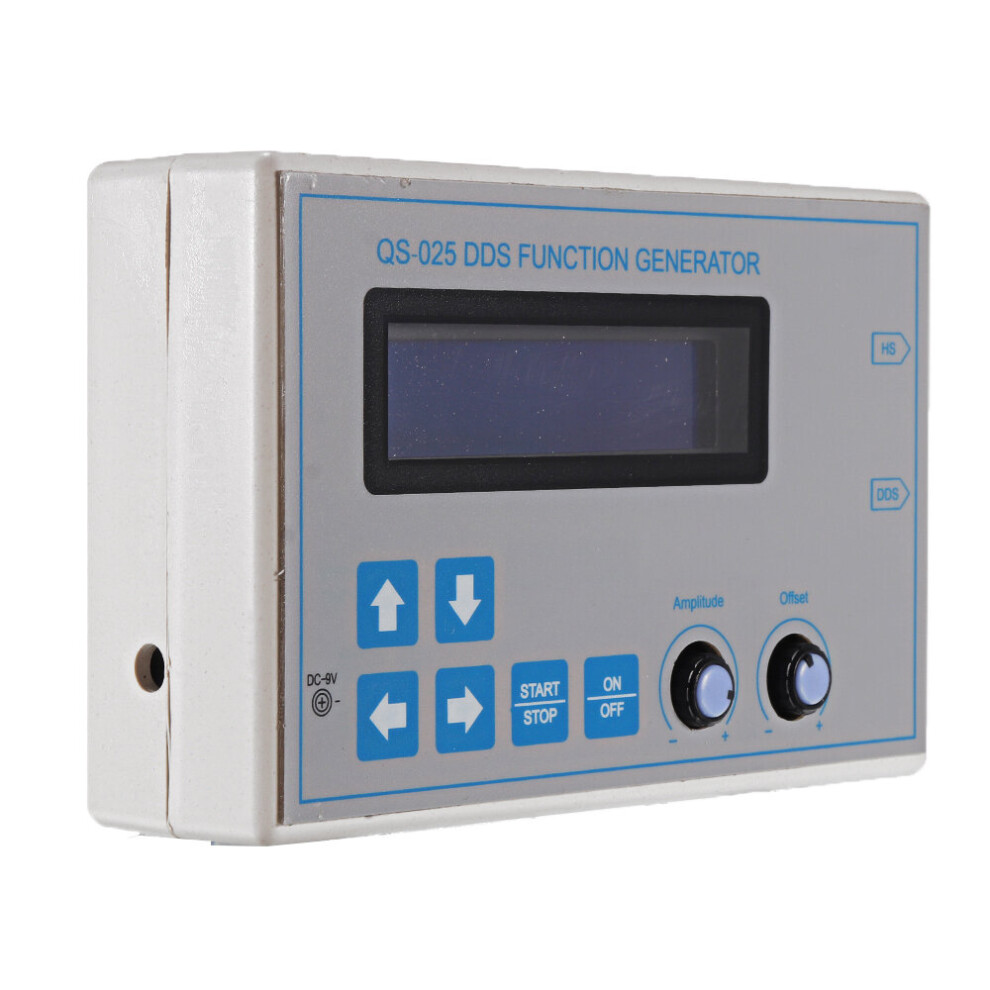

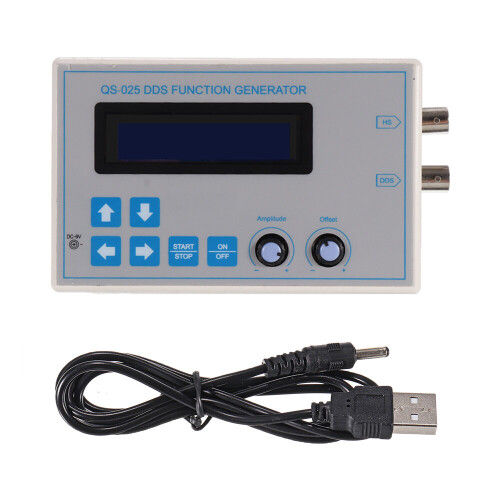

DC9V DDS Function Signal Generator Sine Square Triangle Sawtooth Low Frequency LCD Display USB Cable 1Hz-65534Hz

DC9V DDS Function Signal Generator Sine Square Triangle Sawtooth Low Frequency LCD Display USB Cable 1Hz-65534Hz Description

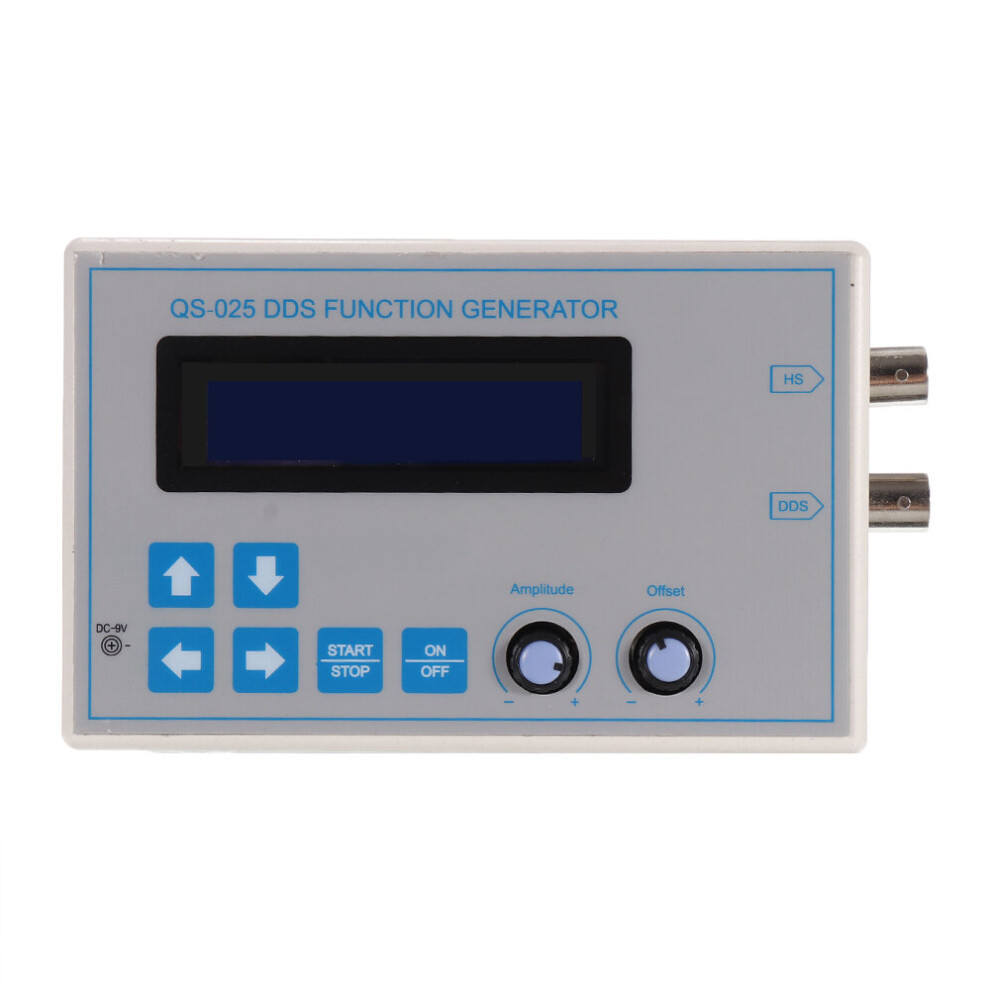

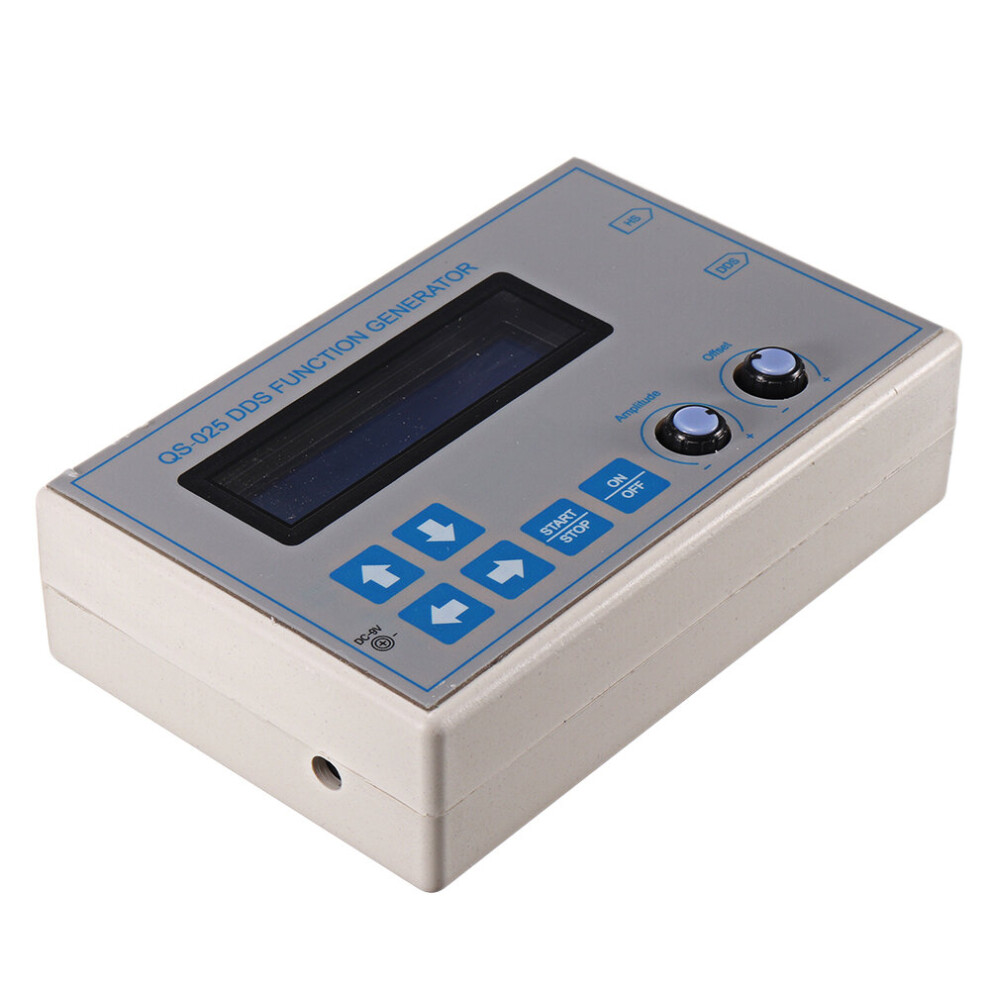

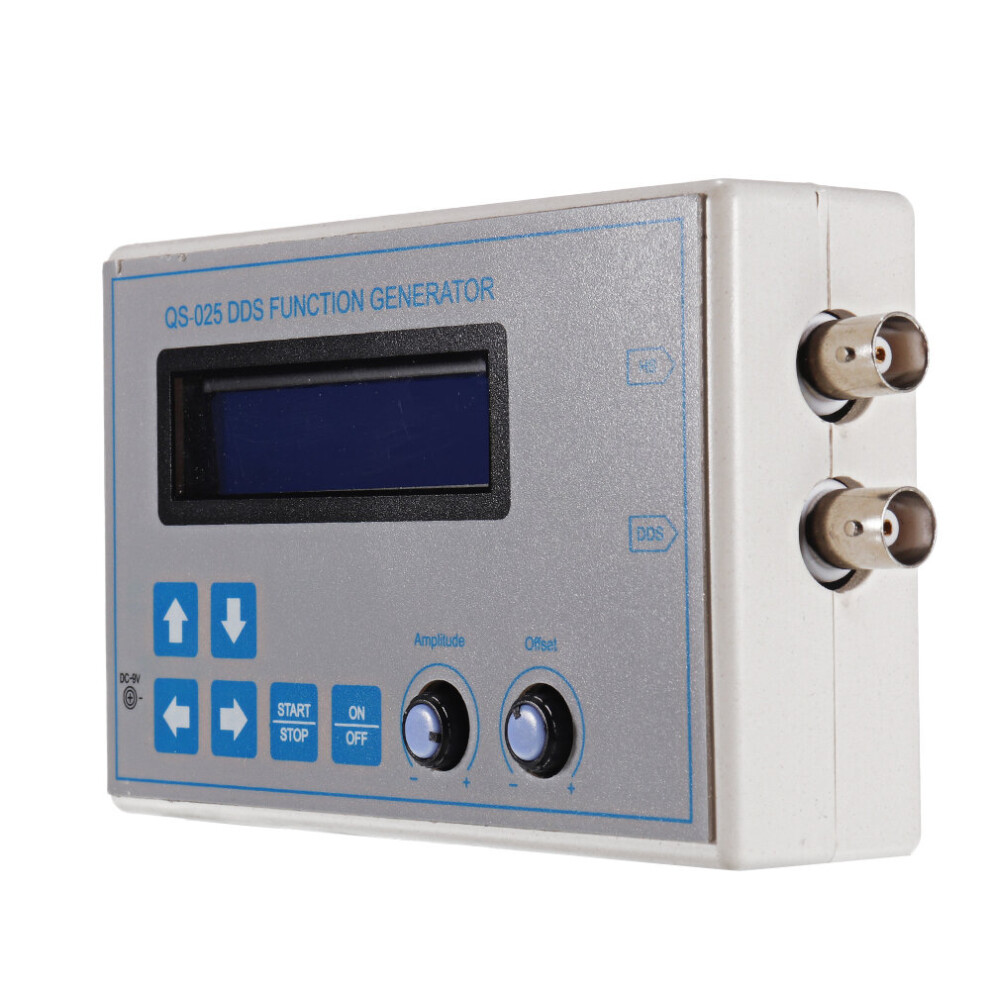

Features: Portable --- Small size, powered by DC 9V, easy and portable for use. DDS frequency range --- 1Hz-65534Hz, high-speed frequency (HS) output up to 8MHz. Adjustable --- DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers. Wide DDS signals --- sine ve, square, sawtooth, reverse sawtooth, triangle, the ECG, and noise. Easy Use --- LCD display for clear reading, intuitive touch buttons. The power automatically restores the last used configuration. Function: UP output waveform select DOWN output waveform select LEFT output frequency - RIGHT output frequency + STOP / START the output stop / start 'UP' key waveforms order: ECG = electrocardiogram (in the OFF state, the 'left' and 'right' keys to set the output frequency. Middle button start, all of the following waveform set) Rev Sawtooth = reverse sawtooth SawTooth = sawtooth Triangle = triangle Square = square Specifications: Material: ABS Display: 1602 LCD Operating Voltage: DC 9V DDS Frequency Range: 1Hz-65534Hz Frequency(HS) Output: up to 8MHz Section into the Value: 1, 10 , 100, 1000, 10000 Hz Offset: 0.5pp-5Vpp Amplitude Amount: 0.5Vpp-14Vpp Power Cable Length: Approx. 70cm / 27.56in Item Size: 135*80*32mm / 5.3*3.15*1.26in Item Weight: 198g / 6.98oz Package Weight: 203g / 7.16oz Package Size: 135*80*32mm / 5.3*3.15*1.26in Package includes: 1 x DDS Function Signal Generator 1 x Power Cable
