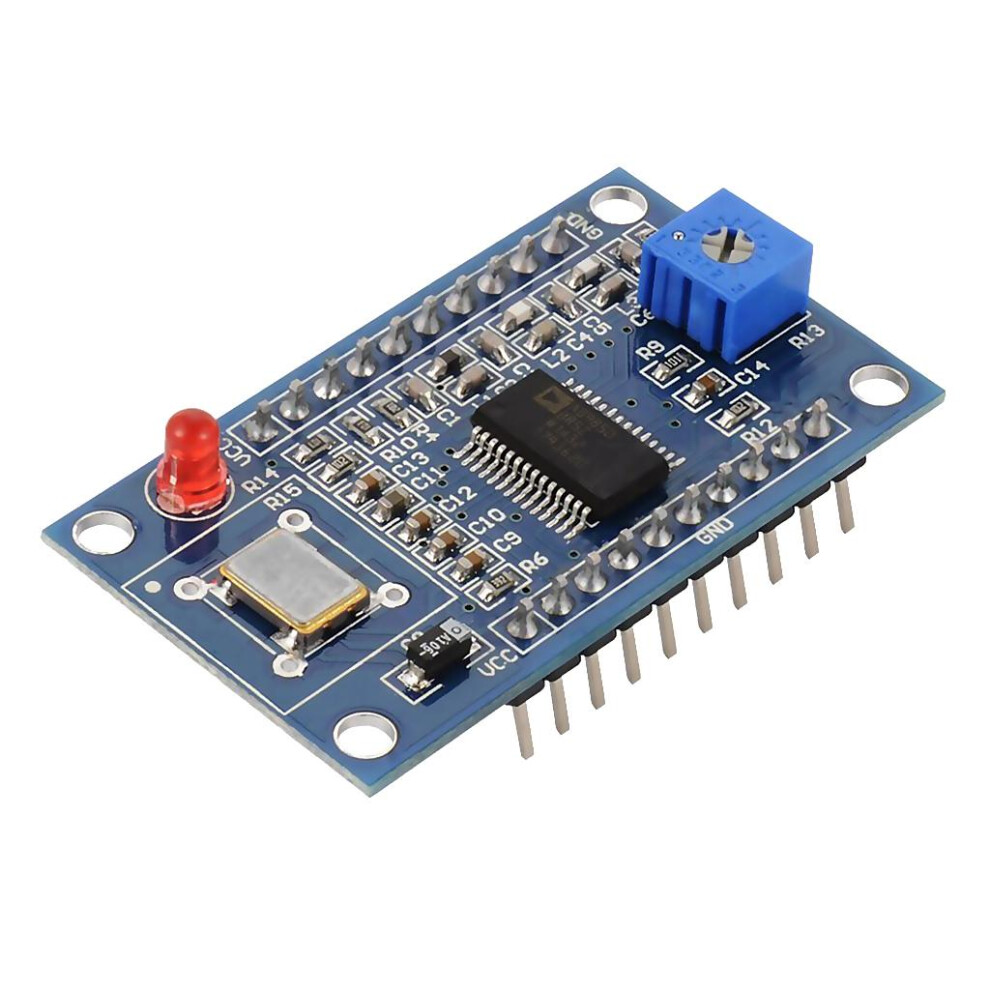

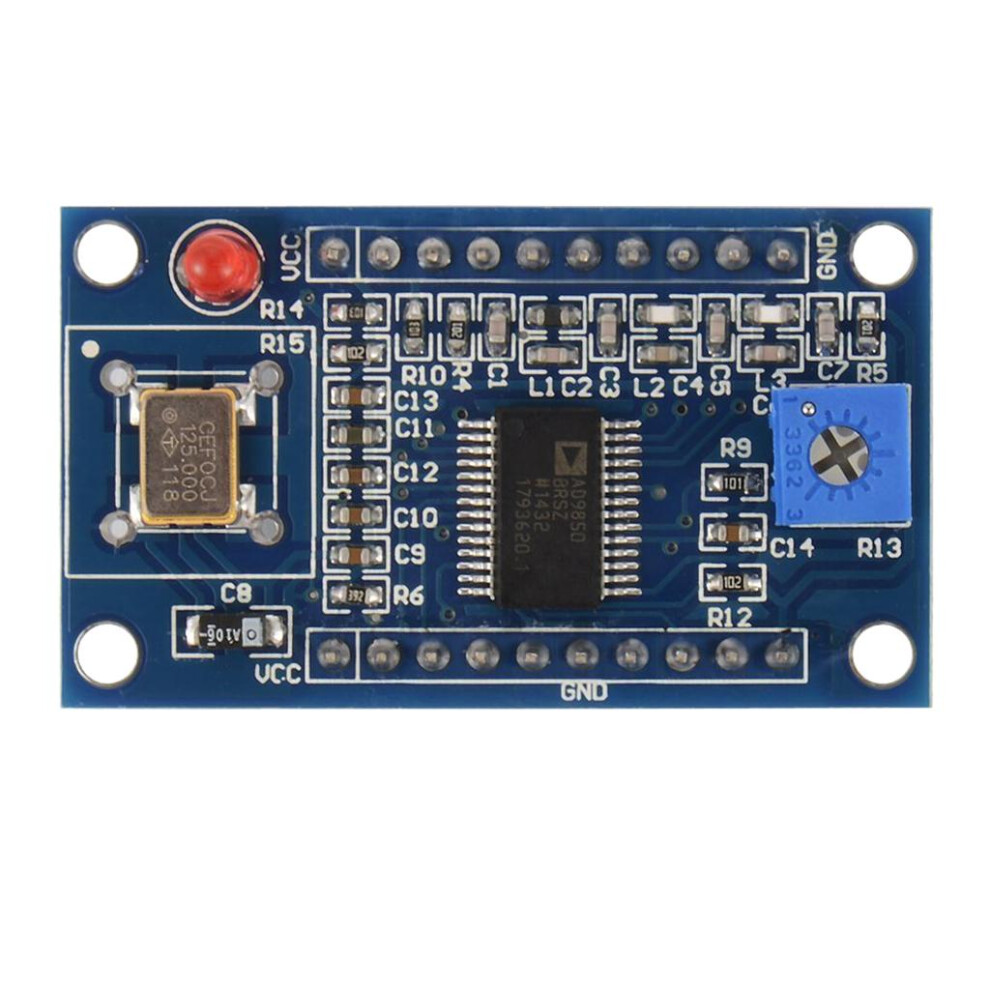

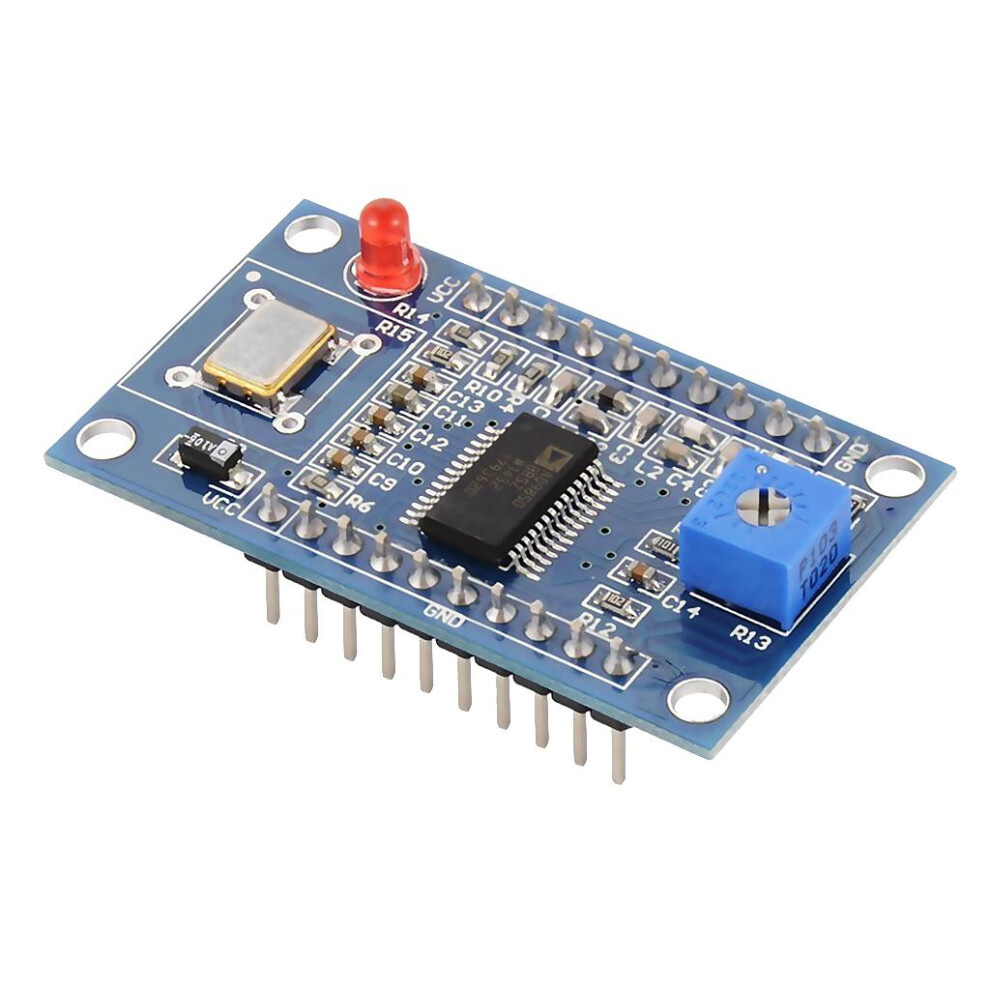

DDS AD9850 Signal Generator Module Test Equipment Sine Square Wave 0-4

DDS AD9850 Signal Generator Module Test Equipment Sine Square Wave 0-4 Description

Description:

Module can output sine wave and square wave, two sine wave and two square wave output. AD9850: 0-40MHz

70MHz low-pass filter, the waveform SN better

Pin that generates DA reference (PIN12) leads to amplitude adjustment applications for output waveforms.

Comparator's reference input voltage is generated by a variable resistor, which regulates the resistance to get a different duty cycle square wave

The AD9850 module uses a 125MHz active crystal

AD9850 clock frequency up to 125MHz

Specification:

Material: PCS Board

Color: As picture show

Size: Approx. 4.5x2.6cm/1.77x1.02inch

Package Includes:

1 piece DDS Signal Generator Module

Note:

Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement.
