DH48S‑2Z Digital Timer Relay 0.01S-99H, 5A, 11x5.5cm

DH48S‑2Z Digital Timer Relay 0.01S-99H, 5A, 11x5.5cm Description

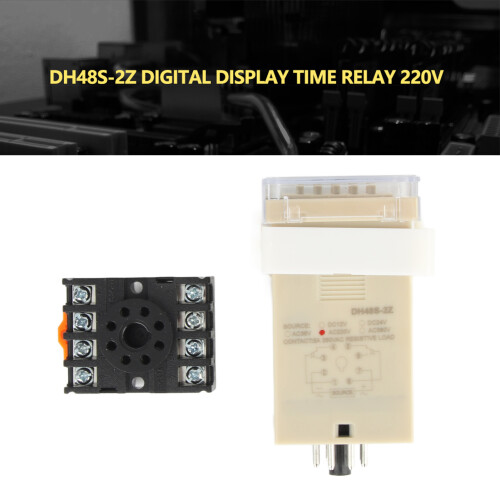

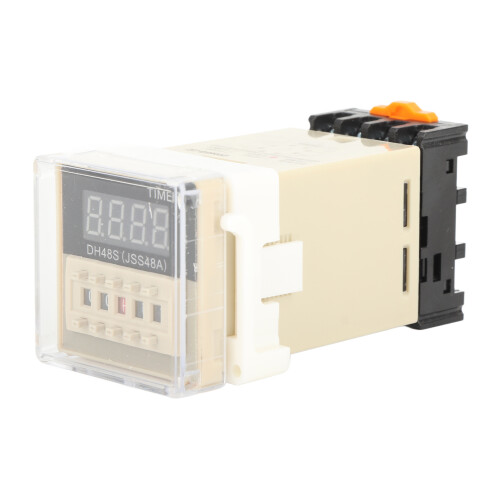

DH48S‑2Z Digital Display Double Time Relay with Socket Base

Features:

The time adjustable range is 0.01S-99H99M, which can satisfy most control requirements.


Integrated circuit: original, craftsman welding, fully automatic control, safe and reliable work.


Large capacity relay: sensitive, stable and accurate control.


Flexible adjust button: elastic button, suitable for wide spacing, quick adjustment, easy to operate.


Relay and transformer: both adopted of pure copper wire material.


The relay is closely connected with the base, and the conductivity is excellent.


Mainly used for outdoor billboards, factory workshops, road lamps and so on.


Specifications:
Model: DH48S-2Z
Contact: 5A 250VAC
Rated current: 7-10A
Size: 11 x 5.5 x 5 cm / 4.33 x 2.17 x 1.97in
Weight: 224g

Method:
1.Power on delay, 2 sets normally closed
For example: indicator light set 01S23= 1.23s.
Show: 2 sets indicator are light for 1.23s, then Put out,and remain unlit
2.Power on delay, 2 set normally open
For example: indicator light set 01S23= 1.23s.
Show: 2 sets indicator are unlit for 1.23s, then light, and remain light
3. Power on delay, 1set normally open, 1 set normally closed
For example: indicator light set 01S23 = 1.23s
Show: The first set indicator are unlit for 1.23s
The second set indicator is light for 1.23s, after 1.23s
The first set indicator is light, then remain light
The second set indicator is unlit, then remain unlit

Package included:
1 x Digital Time Relay
1 x Socket Base
