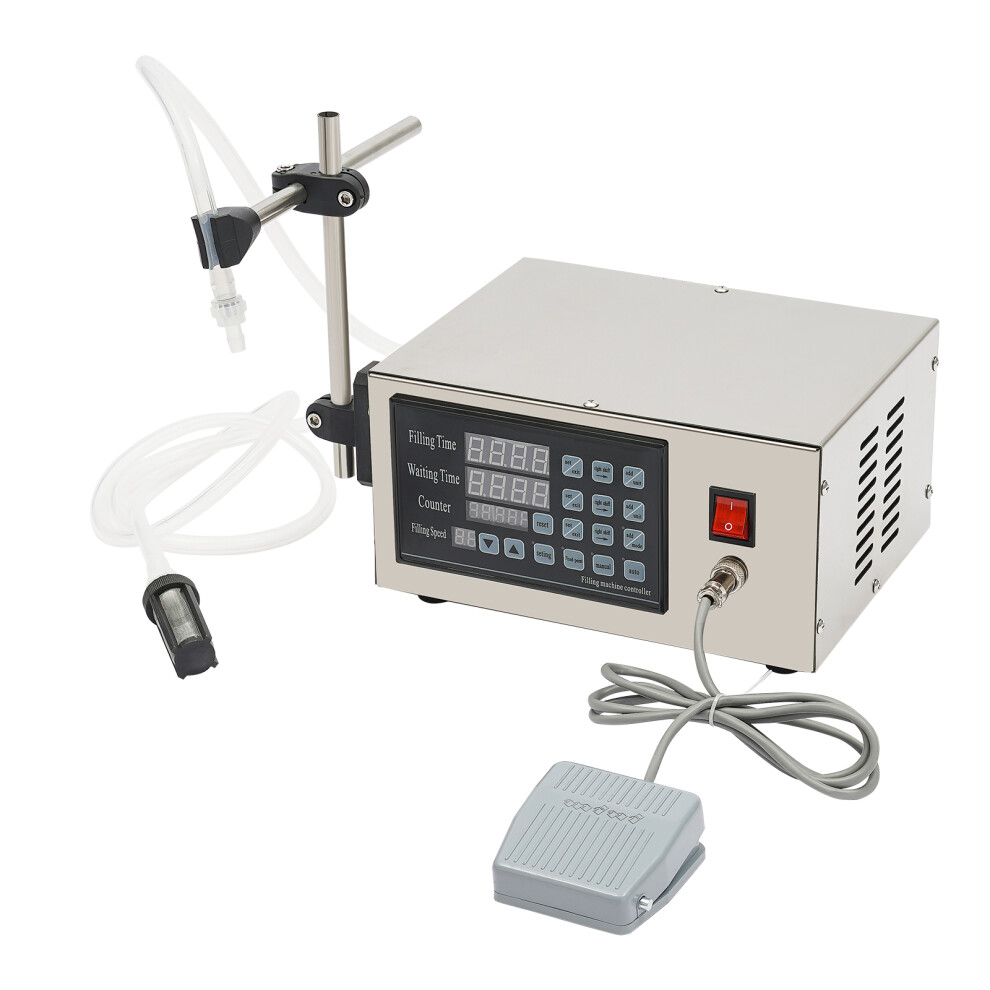

Digital Control Liquid Filling Machine Automatic W/ Cleaning Function

Digital Control Liquid Filling Machine Automatic W/ Cleaning Function Description

Application

It is suitable for round bottles, square bottles, hexagonal bottles, and shaped bottles. It can be used to fill water, beverages, drinks, condiments, juices, milk, soya milk, make-up remover, essential oils, soy sauce, vinegar, cooking oil, and so on. It is suitable for homes, factories, personal studios, food and chemical industries, etc. This product is more suitable for thin, non-solid particles, non-corrosive, and low-viscosity liquids, such as wines, make-up removers, flavorings, daily-use cosmetic liquids, emulsion products, glass detergents, and so on.

Specifications

Material: 304 Stainless Steel, Silicone

Process: Polishing

Model: GFK-280

Assembly Required: Yes

Color: Silver

Style: Modern

Shape: Rectangular

Mounting Type: Free-standing

Power Source: Corded Electric

Plug: UK Standard

Control Method: Manual and Automatic

Filling Mode: Timed Filling

Pump Type: Diaphragm Pump

Display Type: LED

Power: 40W

Voltage: 110V--220V 50/60HZ

Maximum Runoff: 2000ml/70.4oz/m(Water)

Filling Range: 5ml-2000ml/0.18-70.4oz

Optimal Filling Range: 5ml-1000ml/0.18-35.2oz

Filling Precision: 2%

Applicable Bottle Height: Within 20cm/7.87in

Applicable Bottle Mouth Diameter: 8mm/0.31in

Maximum Suction Distance: 2m/6.56ft

Power Cord Length: 1.5m/4.92ft

Product Size: 36*25.5*17cm/14.17*10.04*6.69in

Package Size: 33*25*17.5cm/12.99*9.84*6.89in

Gross Weight: 4kg/8.82lbs

Net Weight: 3.5kg/7.72lbs

Package Included

1*  Liquid Filling Machine

1* Power Cord

1* English Manual

Other Accessories for Installation

Notes

1. Please read the operating manual completely before use. And pay particular attention to the safety instructions included.

2.  When you stop working, please turn off the power.

3. Please note that if you install a filling nozzle and filter, the filling speed will decrease.

4. Please note that manual mode means that the machine will only work when the "manual" button is pressed once or the "foot pedal" is stepped on once. If not pressed, the machine will not work.

5. Please note that this product is not suitable for viscous liquids, strong-corrosive, and high-acidity items.

6. Please do not pump flammable fluid. Please do not use the pump in an explosive environment.

7. Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

Key Features

Sturdy and Durable: This product is made of high-quality 304 stainless steel with a polishing process, which is stain-resistant, scratch-resistant, and rust-resistant with high strength, ensuring a long service life.

High Precision&Efficiency: The diaphragm pump and high-efficiency motor (40W) ensure efficient operation within 2% error, maximum suction range up to 6.56 ft, and maximum runoff up to 70.4oz/m, which can help you complete filling tasks efficiently and save time and cost.

Two Filling Modes: The product can select manual and automatic control modes. In manual mode, when you step on the pedal once, the machine will fill the bottle once; in automatic mode, the machine can realize continuous filling. You can choose different modes according to the product and work needs.

High Adaptability: The filling range of this filling machine is 0.18-70.4oz, you can adjust the height of the filling nozzle according to the volume to be filled and the size of the bottle to fully meet different filling needs.

Thoughtful Design: The product is equipped with an anti-drip design, which can prevent extra liquid dripping and effectively avoid waste. And the filling nozzle is equipped with a check valve, which can be controlled in time to prevent liquid backflow.

High Safety:  Many heat dissipation holes allow for efficient heat dissipation, extending its service life. The anti-drip function and power-off memory function protect your operation.

Easy to Maintain: The smooth surface and simple structure allow you to quickly clean or maintain it without complex disassembly like other filling machines.

Simple Operation: The intuitive operating panel with an LED display can display filling time, waiting time, filling speed and counter, together with these simple keys with signs, allowing you to adjust and operate this machine with ease.

Easy to Install: Thanks to the simple structure, complete accessories, and a clear English manual, you can install this product and start to use it in a short time.

Details

Mesh Filters: They can effectively filter particles, impurities, etc., to ensure the quality of filling liquid.

Silicone Tube: A flexible silicone tube connects easily to the input and output ports to ensure smooth fluid delivery. Its translucent design makes it easy for you to observe the liquid.

Anti-slip Feet: They make the product fit the ground well, so it is stable and safe to use while preventing the base plate from being scratched.
