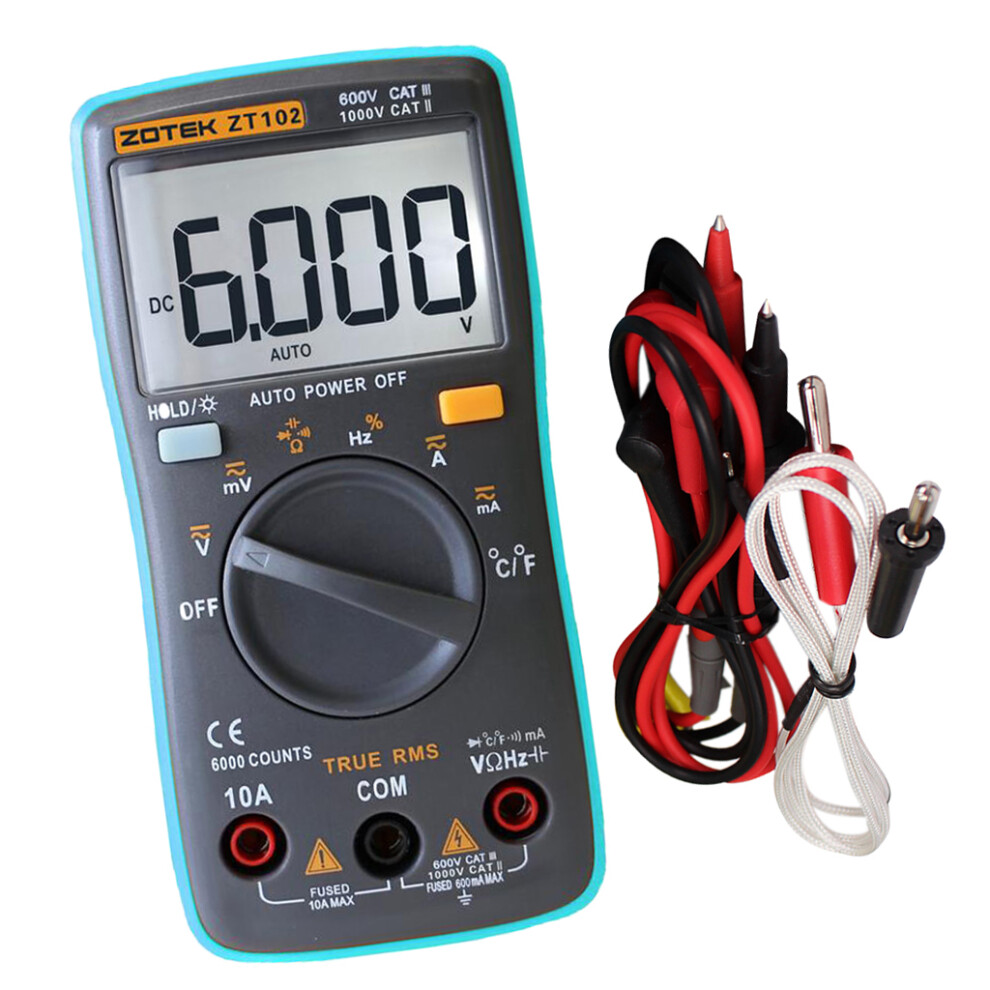

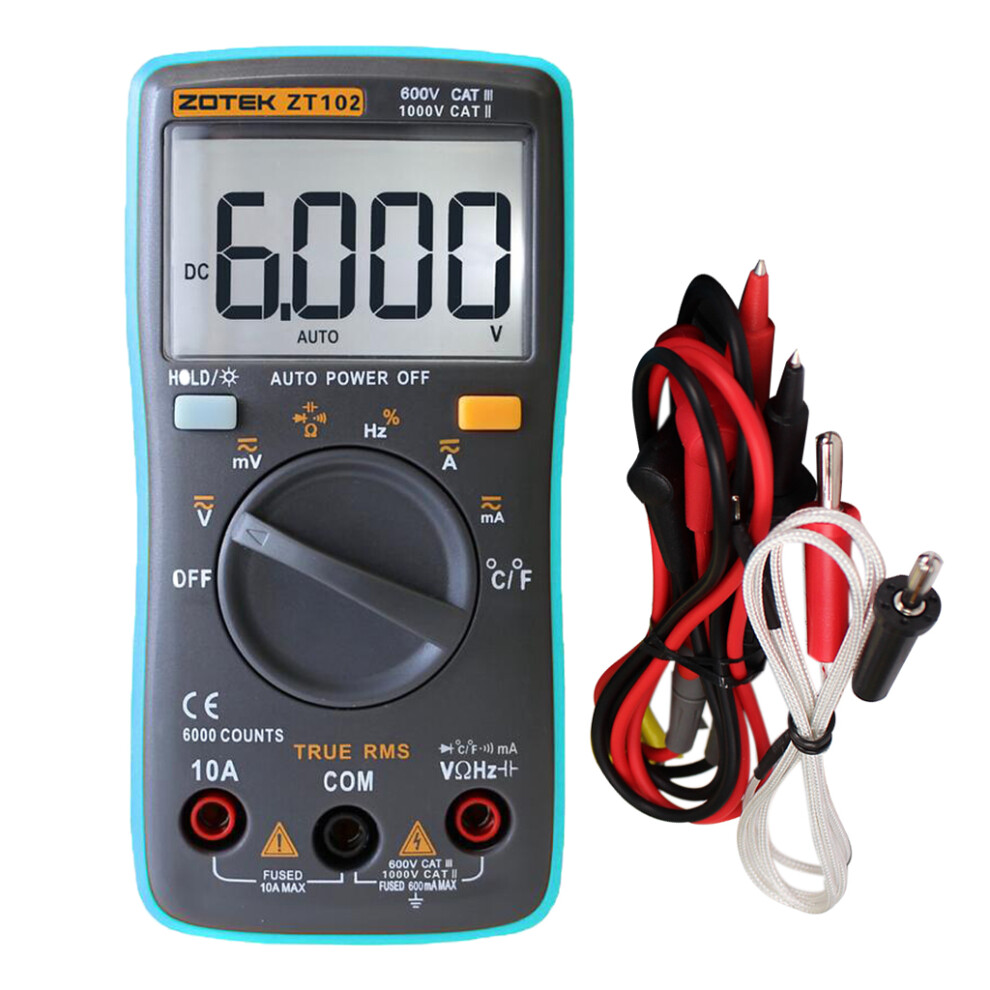

Digital Multimeter TRMS 6000 Counts Auto Ranging Meter Tester LCD Disp

Digital Multimeter TRMS 6000 Counts Auto Ranging Meter Tester LCD Disp Description

Description:

Auto ranges, true RMS, 550V protection in resistance, capacitance and frequency ranges
Large LCD display with backlight, maxdisplay 6000 counts
Sample rate: 3 times per second, data hold, polarity identification
Low voltage indication, 10A high current and low current measurement, auto power off
Main measurements: AC/DC voltage, AC/DC current, resistance, capacitance, diode and continuity testing, temperature,frequency andduty cycle, etc.

Specification:

Size: Approx. 130 65 30 mm/ 5.12 2.56 1.18 inch
Frequency: 1Hz to 20MHz
Temperature: -20 to 1000 (-4to 1832)
Capacitance: 10pF to 6000uF
AC volts: 0.1mV to 750V
DC volts: 0.1mV to 1000V
AC current: 0.1uA to 20A
DC current: 0.1uA to 20A
Resistance: 0.1Ωto 60MΩ
Duty cycle: 1% to 99%
Capacitance: 10nF(5.0+20), 100nF/1uF/10uF/100uF(2.0%+5), 1000uF/10000uF(5.0%+5)
DC volts: 600mV(1.0%+10), 6V/60V/600V/1000V(0.5%+3)
AC volts: 600mV(3.0%+3), 6V/60V/600V/750V(1.0%+3)
DC current: 600uA/6000uA(1.5%+3), 60mA/600mA(1.5%+3), 10A(1.5%+3)
AC current: 600uA/6000uA(1.5%+3), 60mA/600mA(1.5%+3), 10A(1.5%+3)
Resistance: 600Ω(0.5%+3), 6K/60K/600K/6M(0.5%+2), 60MΩ(1.5%+3)
Temperature: 400 (1.0%+5), 400(1.5%+15)
752 (1.0%+5), 752(1.5%+15)
Frequency: 5/50/500/5k/50k/500k/5M/10M(0.1+3)
Duty cycle: 1% to 99%(1%)
Measurement mode: Double-integral style A/D transform
Over range indication: OL
Working environment: 0 to 40, relative humidity less than 80%
Battery: 21.5V (do not contain)

Package Includes:

1 Piece of 6000 Digital Multimeter
2 Pieces of Test Leads
1 Piece of Thermocouple
1 Piece of User Manual
